LOWERING SYSTEM,FRONT & REAR,19-26 GM 1500,2WD,AXLE GROUP A

Brand New Ridetech Performance Lowering System (Part #11720110).

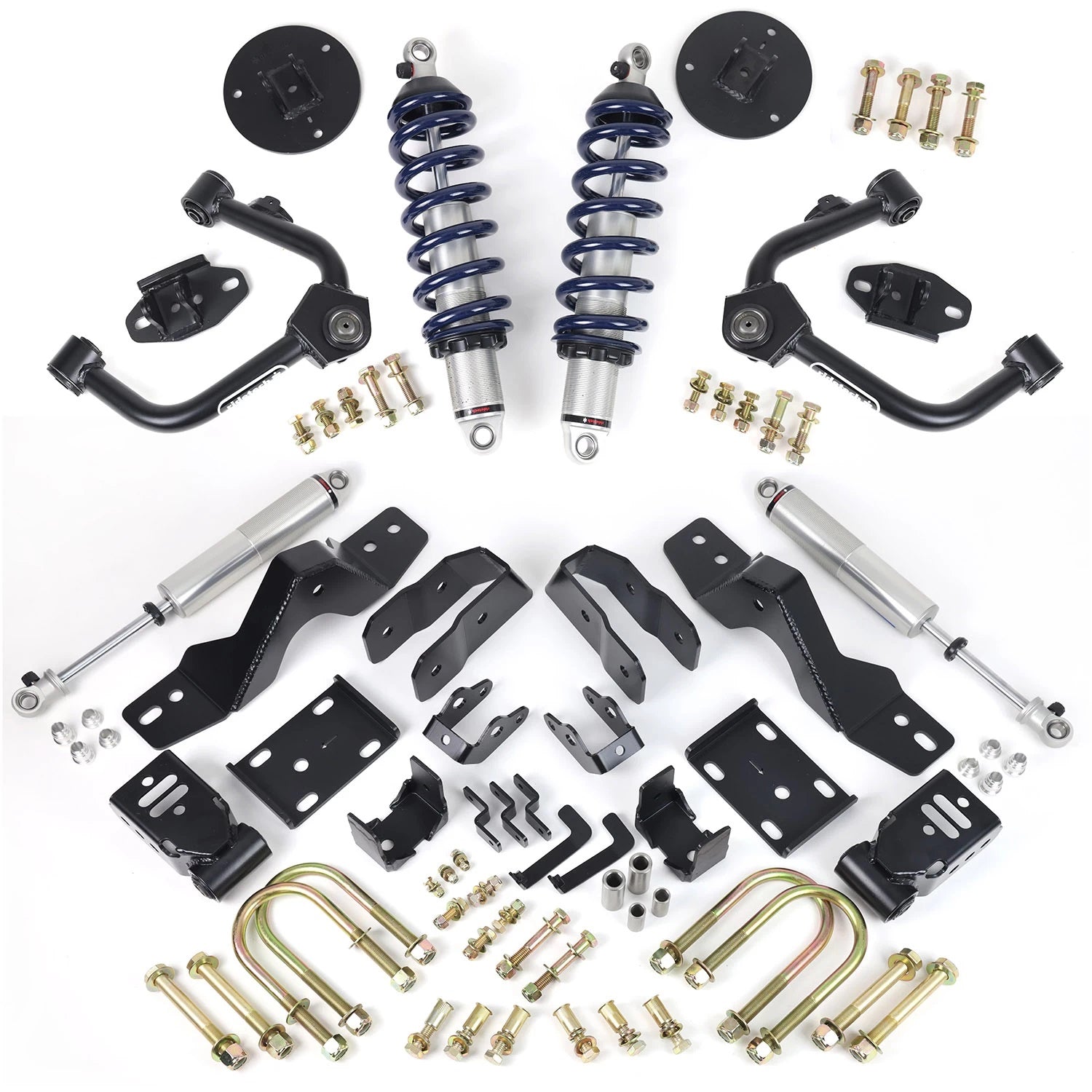

The Ridetech lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes front HQ Series Coilovers, tubular upper control arms, rear HQ Series shocks, shock angle correction brackets, flip brackets, adjustable shackles and heavy-duty hangers.

Fits:

• Chevrolet:

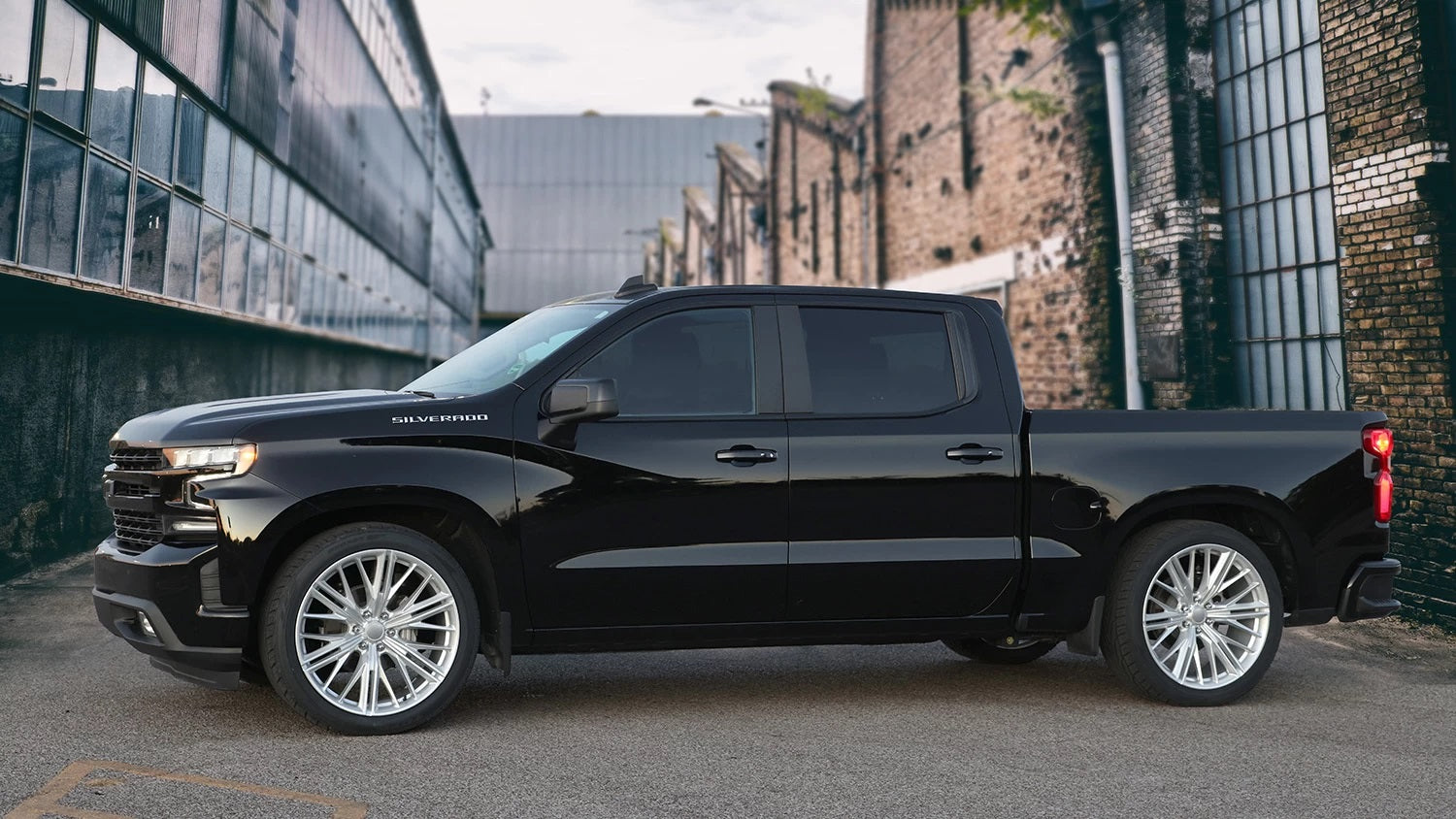

  • 2019-2026 Silverado 1500 2WD with Axle Group A (See Notes)
  • 2022 Silverado 1500 LTD 2WD with Axle Group A (See Notes)
• GMC:
  • 2019-2026 Sierra 1500 2WD with Axle Group A (See Notes)
  • 2022 Sierra 1500 Limited 2WD with Axle Group A (See Notes)

Notes:

• This system is available with two different axle flip brackets to fit the 4 different axle housing GM used.
• Axle Group A: 10 Bolt Axle (found on early W/T) - Has 10 cover bolts. 12 Bolt GM 9.50" Axle (Aluminum) - Has 12 cover bolts, diff. housing is non-magnetic.
• Axle Group B: 12 Bolt 9.76 Axle (Steel) - Has 12 cover bolts and diff. housing is magnetic. 12 Bolt AAM 9.50" Axle (Aluminum) - Has 12 cover bolts, diff housing is non-magnetic
• Does not fit trucks equipped with the factory composite mono leaf spring.

Features:

• Front HQ Series Coil-overs allow for a 1″-3″ lowered stance (2″ optimal) and are a direct replacement for factory shock and spring. They utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound adjustment knob with 24 positions of adjustment. Premium Hyperco springs are used that are CNC cold wound with high tensile steel.

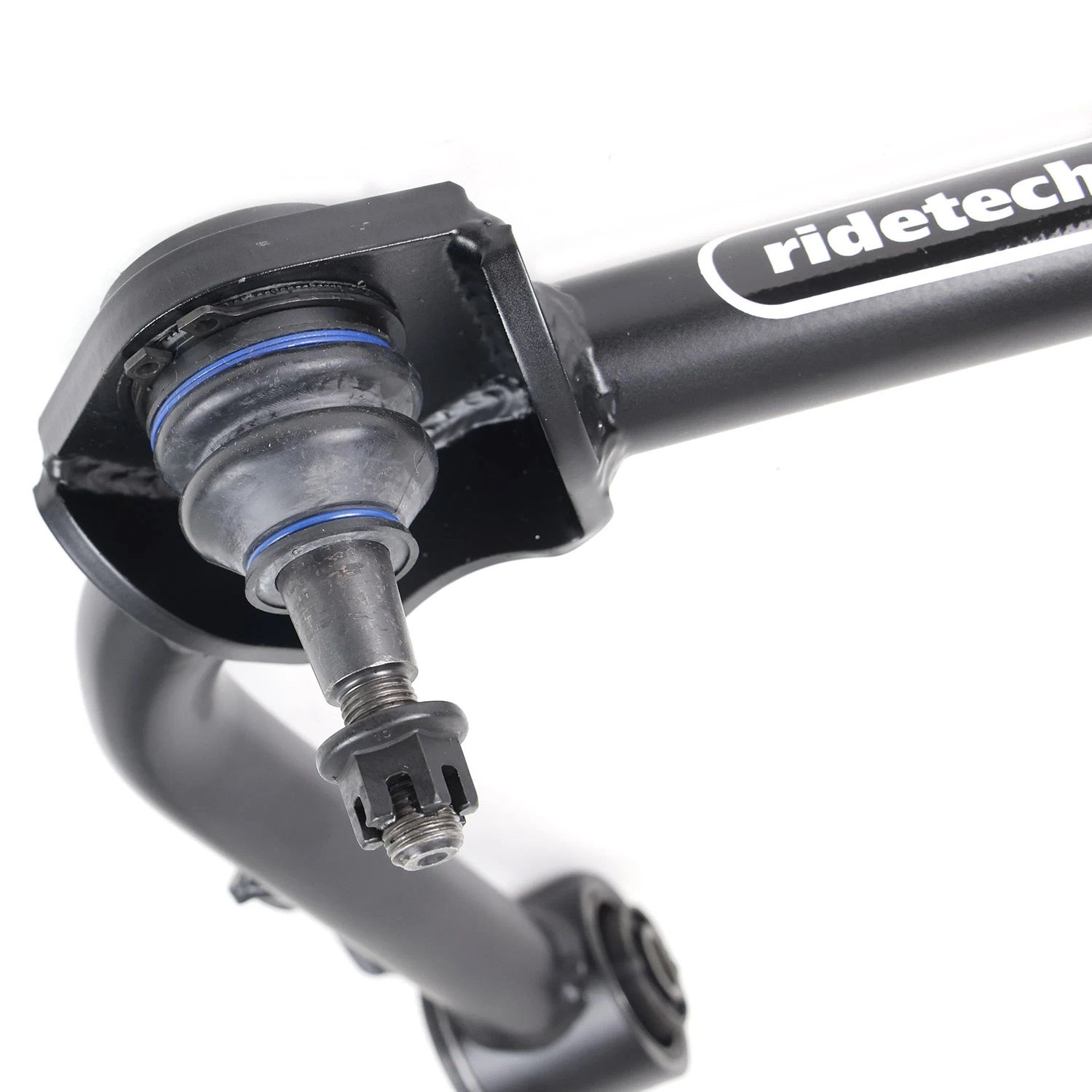

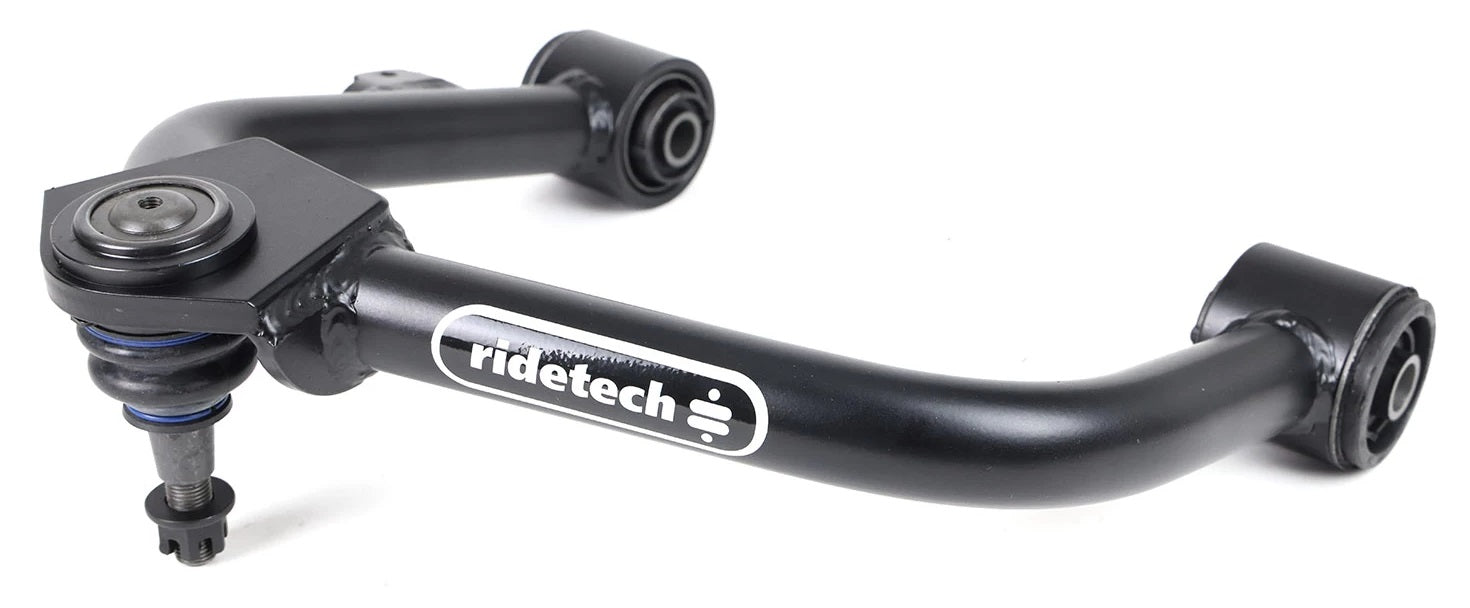

• Upper StrongArms correct the camber and ball joint angles to allow proper wheel alignment. They are fully assembled with ball joints and bushings and are power coated satin black.
• Rear HQ Series Shocks are also rebound adjustable and include brackets to correct the shock angle at the lowered stance more maximum effectiveness.
• The Rear 4″ Lowering Kit for the rear includes axle flip brackets, stout front leaf spring hangers and adjustable shackles to fine tune the stance.

You can view and download the assembly instruction booklet here.
