AIR SUSPENSION SYSTEM,14-18 CHEVY GMC 1500 W/ OE STAMPED STEEL/ALUMINUM ARMS

Brand New Ridetech Complete Air Suspension System (Part #11710296).

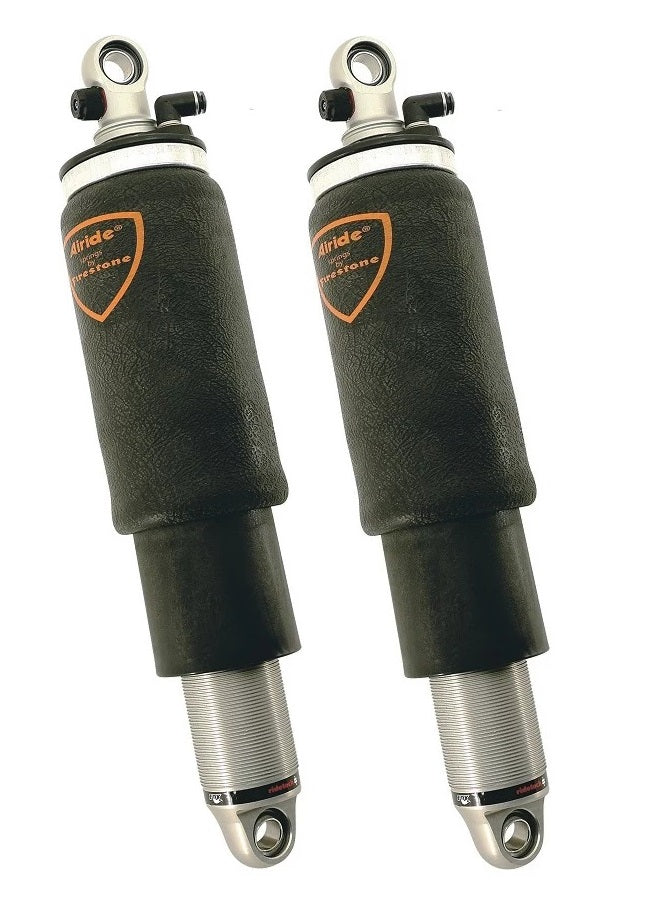

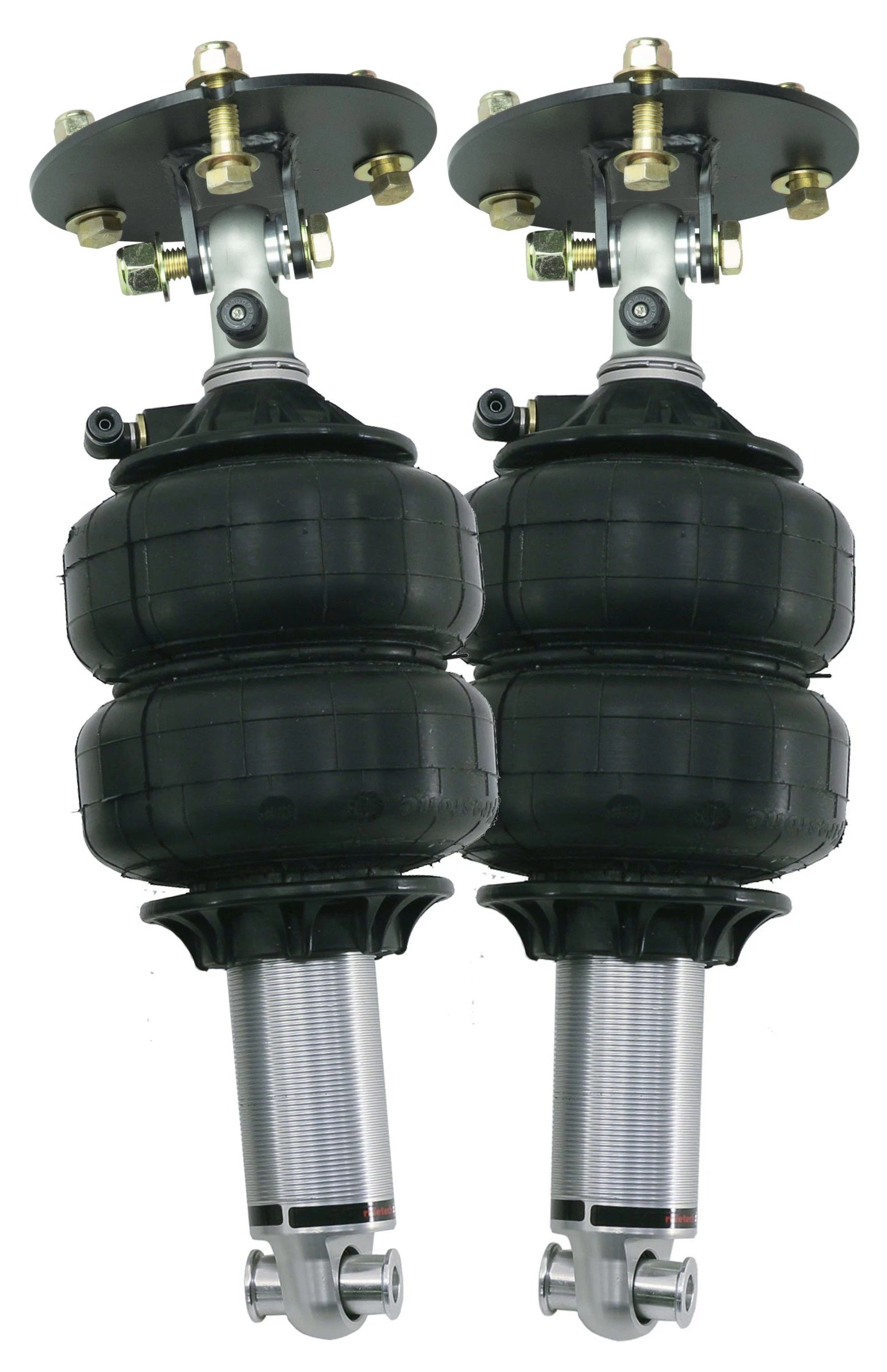

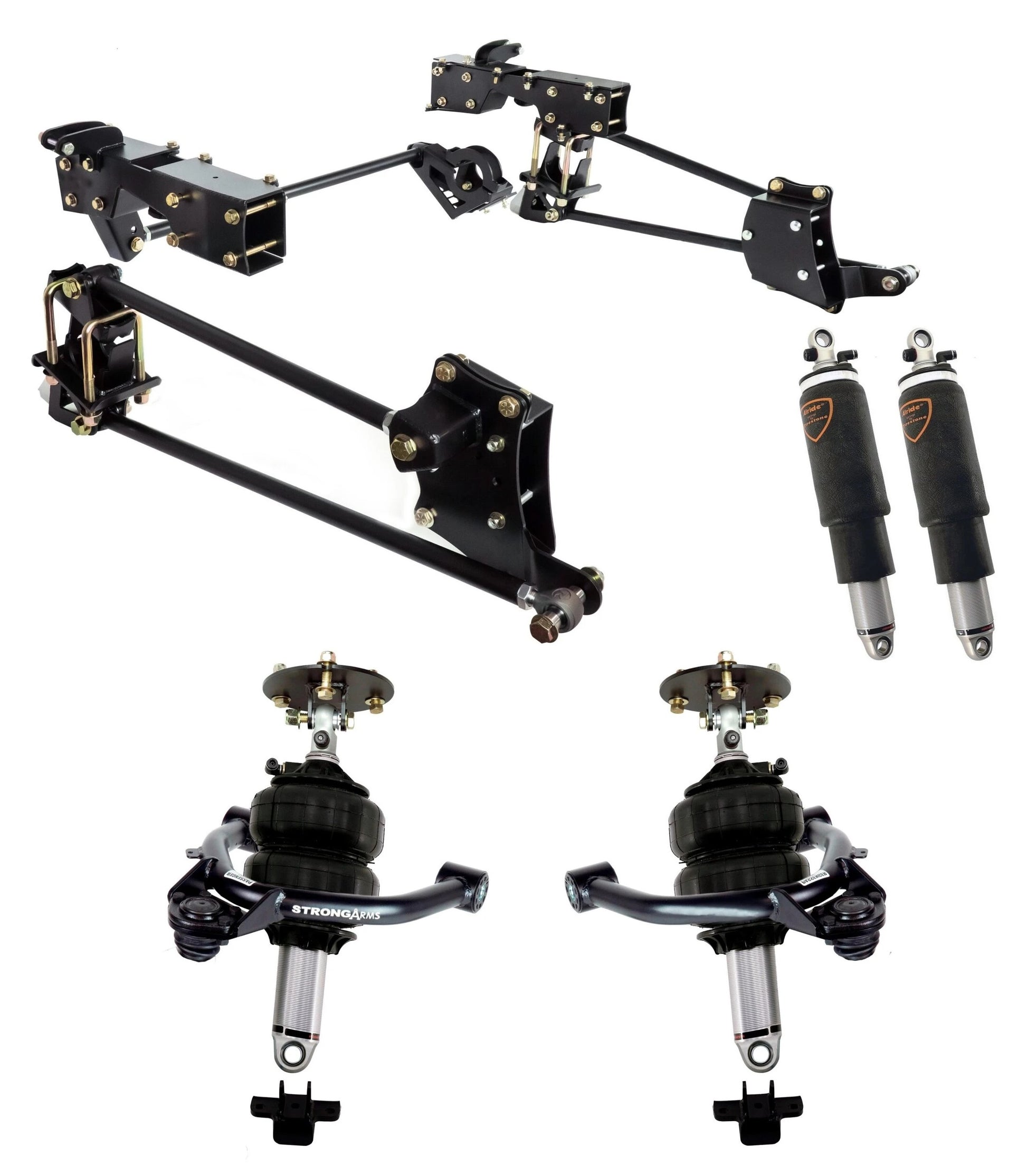

Air Ride Suspension System for 2014-2018 Silverado & Sierra 1500 2WD/4WD.  Includes front & rear HQ Series Shockwaves, front tubular upper control arms, and Bolt-On 4 Link with C Notches. Fitment includes 2014-2018 Chevrolet Silverado and GMC Sierra 1500 (2019 Legacy & Limited) 2WD & 4WD pickups with stamped steel or aluminum OE control arms.  Some trucks (specifically 2014-2016 model years) may have cast steel control arms which use different spindles and ball joints (Kit # 1170296).  Trucks equipped with magnetic suspension require shock simulators.

Fits:

• Chevrolet:
  • 2014-2018 Silverado 1500 2WD/4WD with Stamped Steel or Aluminum OE Control Arms
  • 2019 Silverado 1500 Legacy 2WD/4WD with Stamped Steel or Aluminum OE Control Arms
• GMC:
  • 2014-2018 Sierra 1500 2WD/4WD with Stamped Steel or Aluminum OE Control Arms
  • 2019 Sierra 1500 Limited 2WD/4WD with Stamped Steel or Aluminum OE Control Arms

Note:

• A compressor is required for this air suspension system. Example part #30514100.

Features:

• Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear. Fully deflated will net an additional 3″ drop.

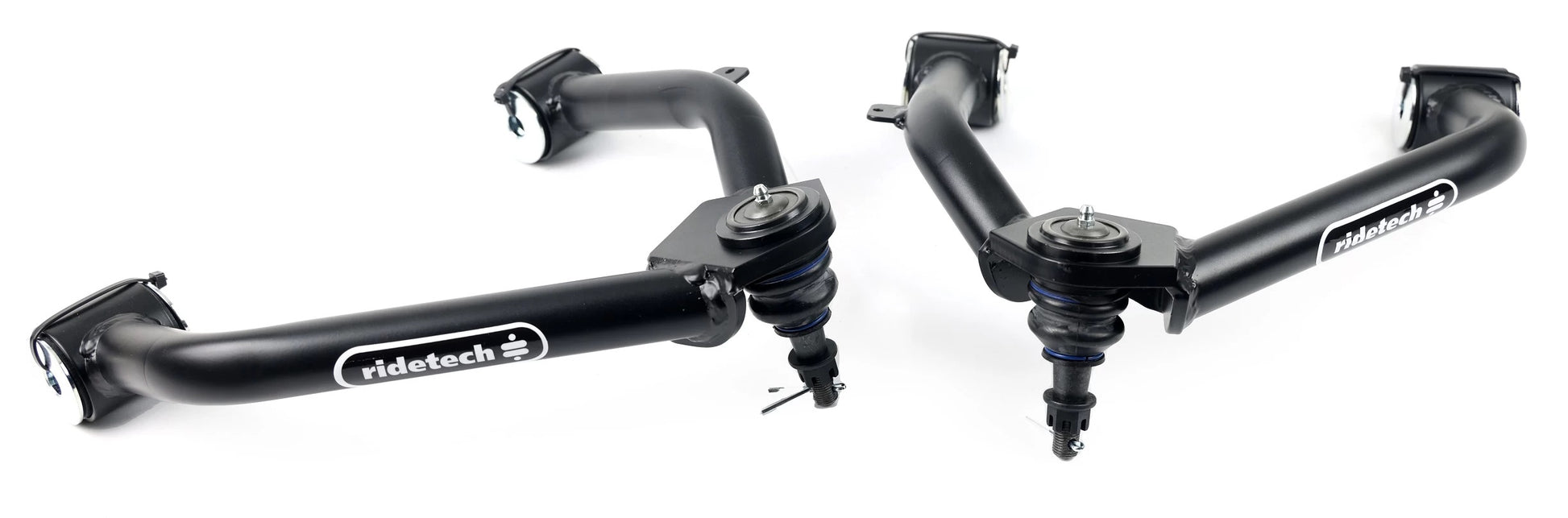

• Upper StrongArms tubular control arm feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

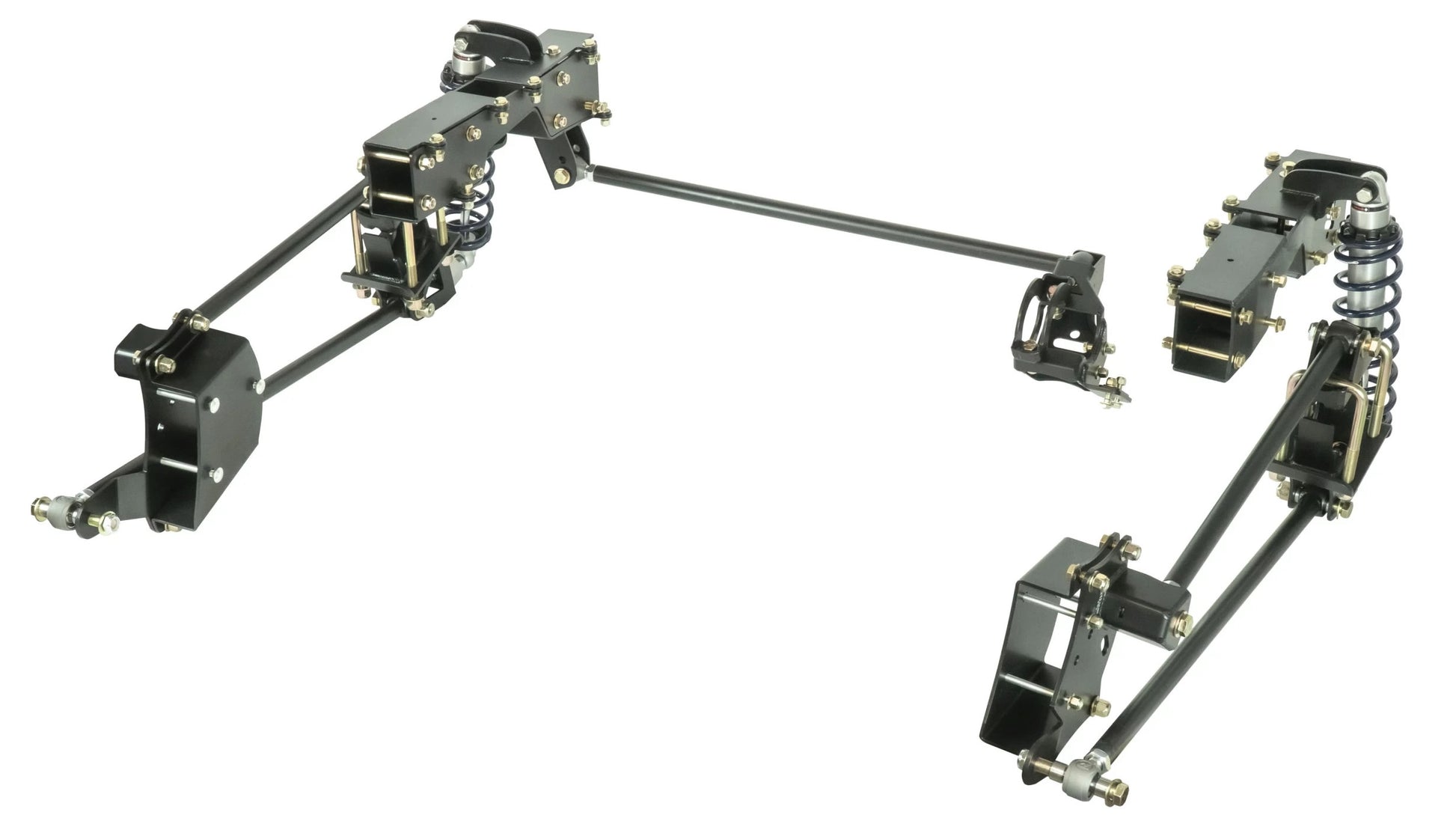

• Bolt-On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.

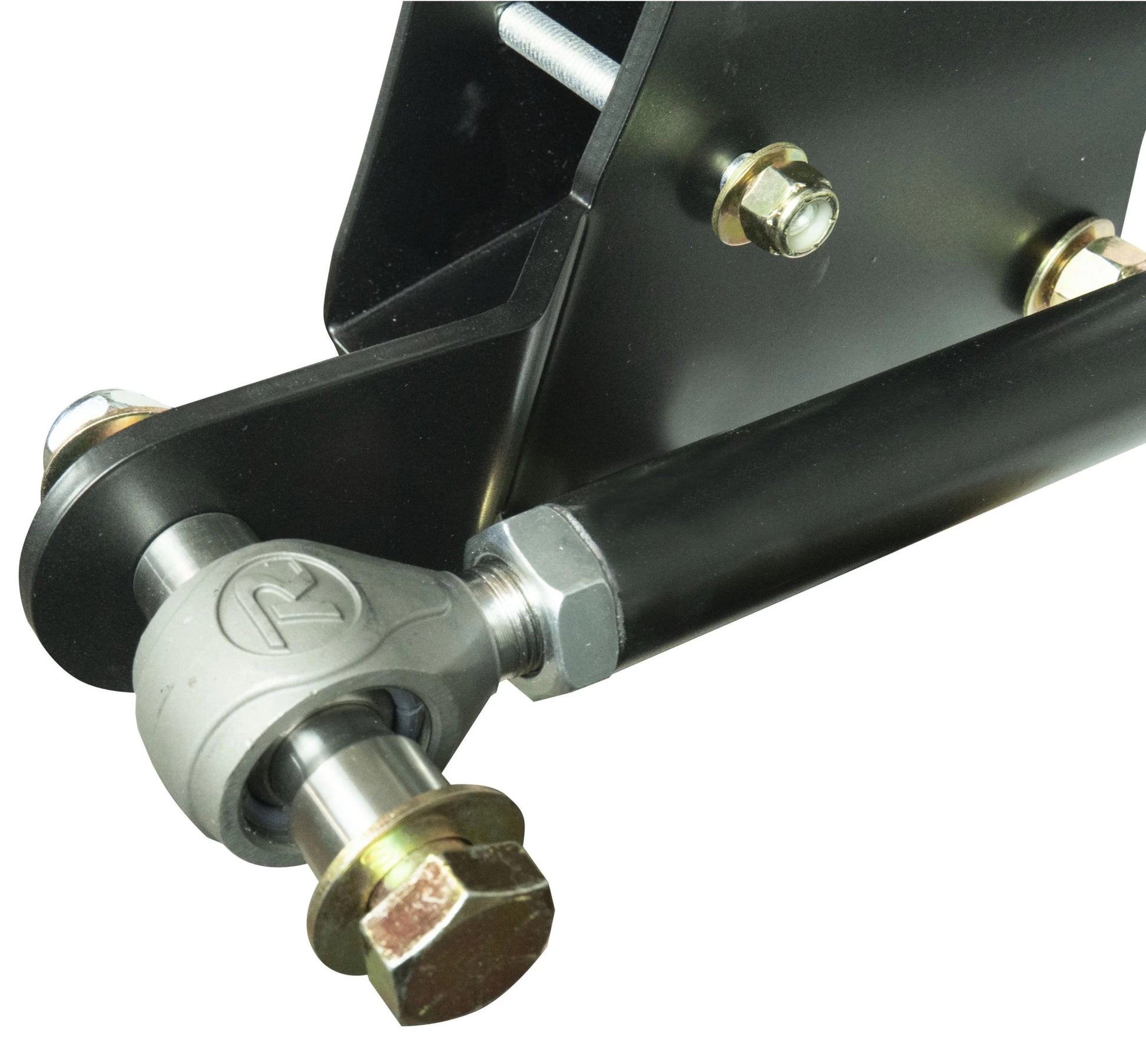

• Includes patent-pending R-Joint rod ends to eliminate binding and noise.
• Optimized anti-squat, roll center, and pinion angle migration for dramatic improvements in handling and traction.

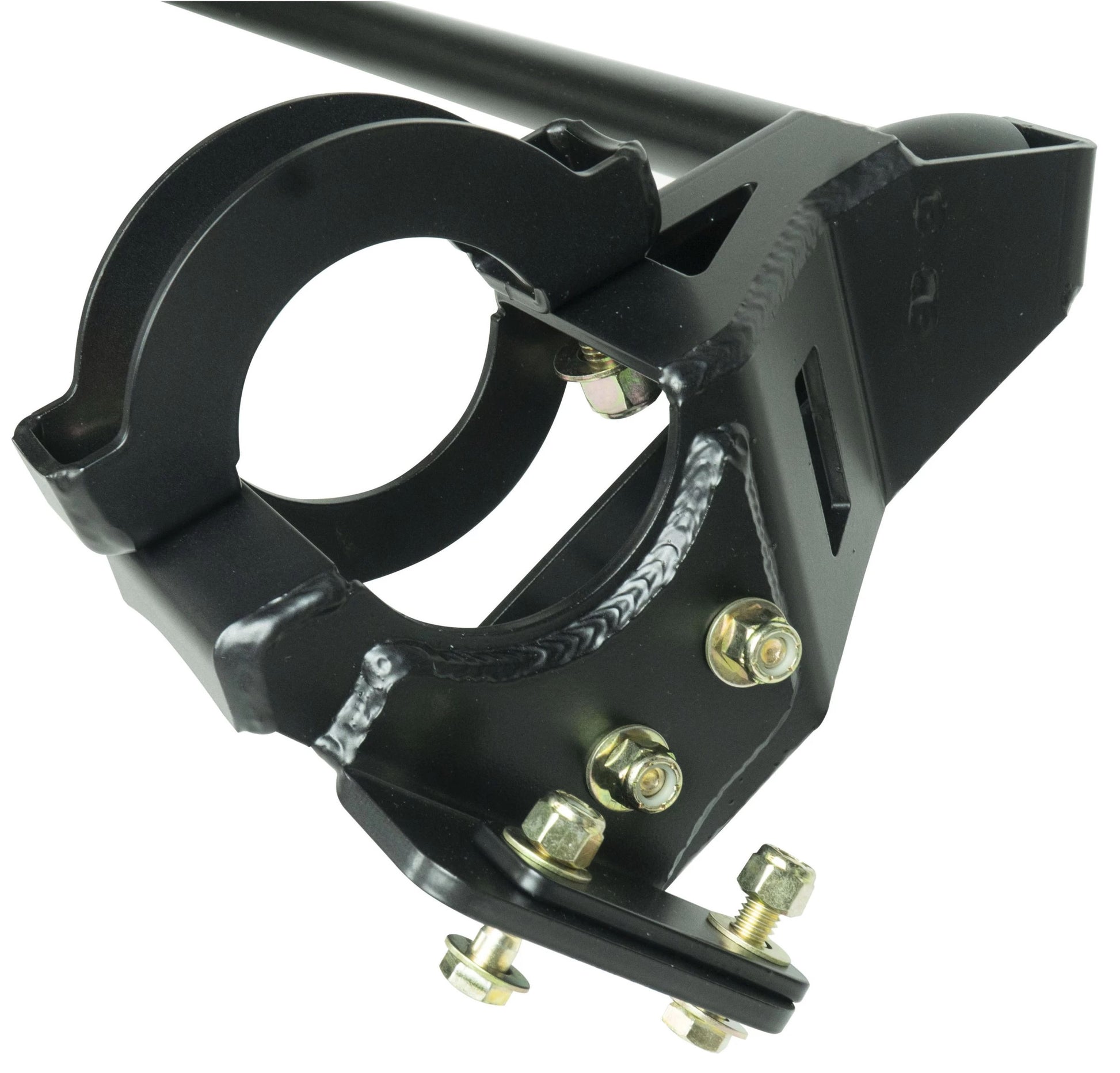

• Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
• Compatible with all cab size and bed length configurations
• Designed for simple installation with minimal OEM rivet removal.

You can view and download the assembly or instruction booklet here and here.
