AIR RIDE SYSTEM,WILWOOD 14" DRILLED,RED,07-16 GM 1500,CAST ARMS,6 LUG

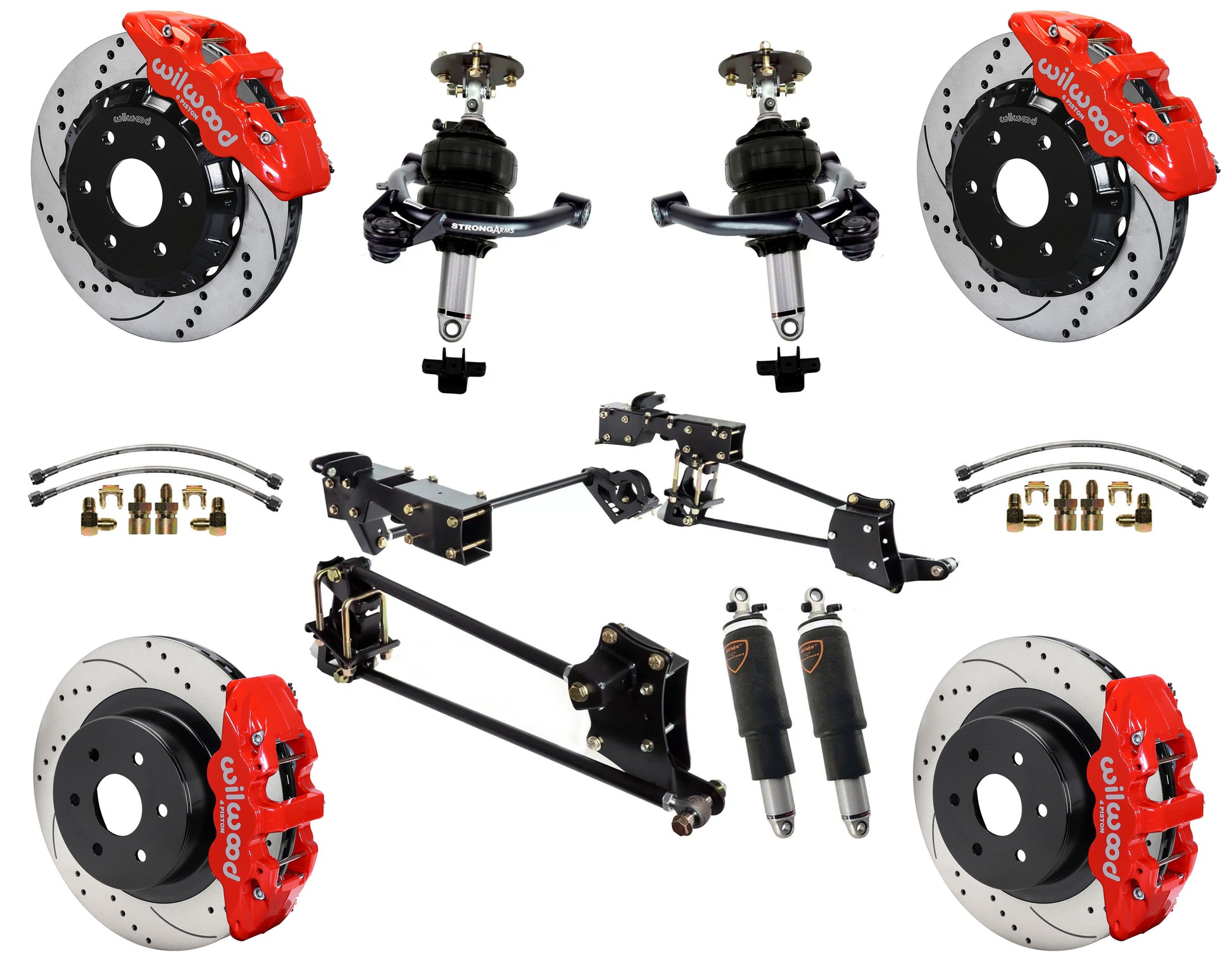

Brand New Ridetech Air Suspension System and Wilwood Disc Brake Kit, including Front Upper StrongArms, Front & Rear ShockWaves, Rear 4-Link System, 14" Front & Rear Rotors, Brake Calipers, Brake Lines, and more (Part #11700296-44).

Air Ride Suspension System for 2007-2016 Silverado & Sierra 1500 2WD/4WD. Includes front & rear HQ Series Shockwaves, front tubular upper control arms, and Bolt-On 4 Link with C-Notches.

Note: This Ridetech System comes in a 2WD variant and 4WD variant. You'll be contacted after purchase to figure out if you have a 2WD or 4WD truck.

Note: Some trucks (specifically 2014-2016 model years) may have stamped steel or aluminum control arms which use different spindles and ball joints (Kit # 11710204 & 11710205). Trucks equipped with magnetic suspension require shock simulators.

Features:

• Upper StrongArms:
  • Feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
• HQ Series ShockWaves:
  • Air ride shock and air spring unit utilizes an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They are rebound adjustable and come standard with a 1,000,001 Mile Warranty.
• Bolt On 4-Link:

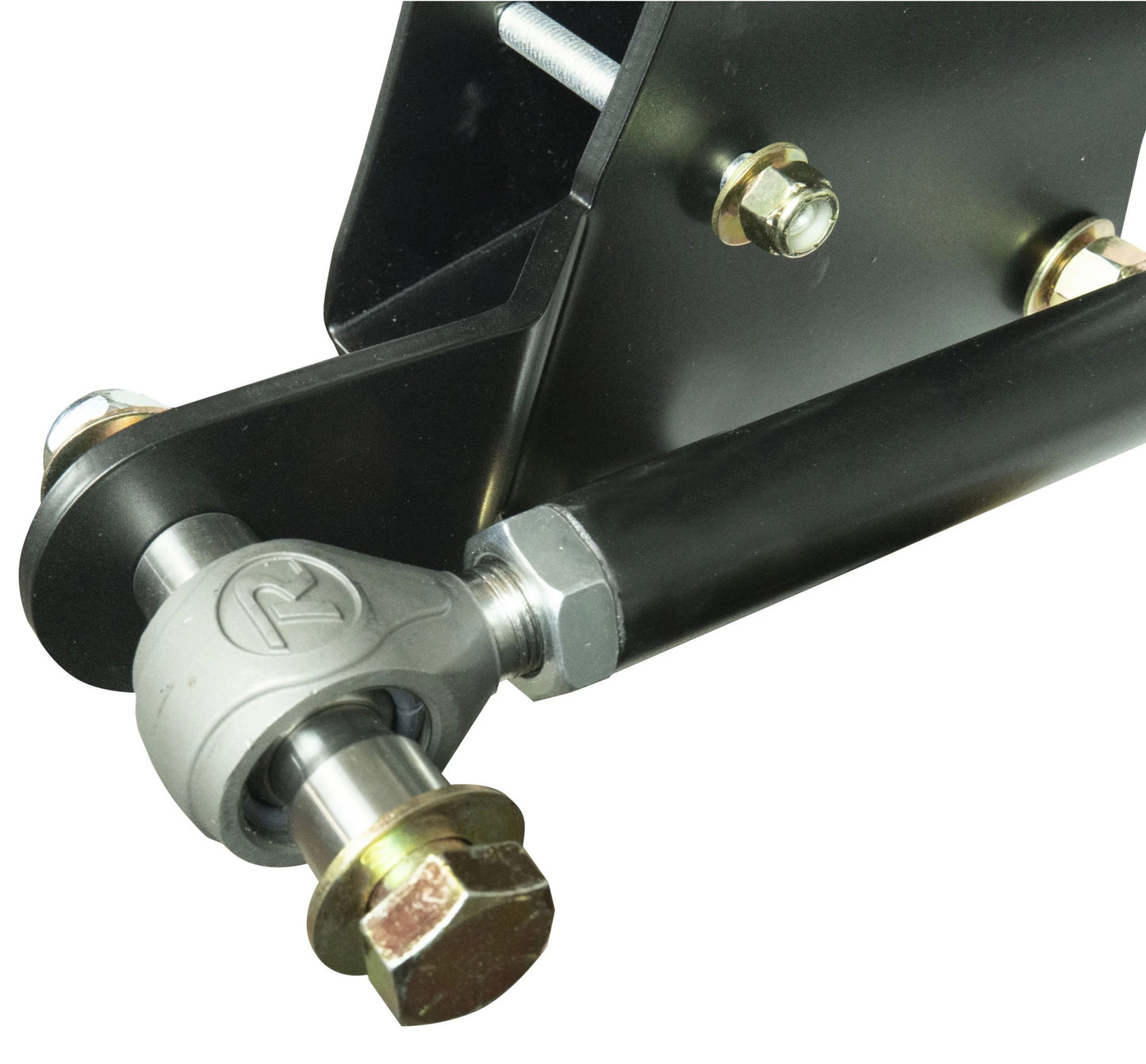

• Greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor. Includes patent-pending R-Joint rod ends to eliminate binding and noise.
• Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.
• Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
• Designed for simple installation with minimal OEM rivet removal.
• Compatible with all cab size and bed length configurations
• Wilwood Front Disc Brake Kit with 14.25" Drilled Rotors and Red Calipers (Part #140-9789-DR):
  • AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” rotors provide maximum cooling for sustained high heat durability.
  • These Brake kits require at least 18" diameter wheels.
  • Kit includes parts for both front wheels:
    • Drilled & Slotted, 1.25" Thick x 14.25" O.D. Rotors & Hats
    • AERO6 6 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-20 Smart Compound Brake Pads
    • All necessary hardware to install the complete braking system on both front wheels

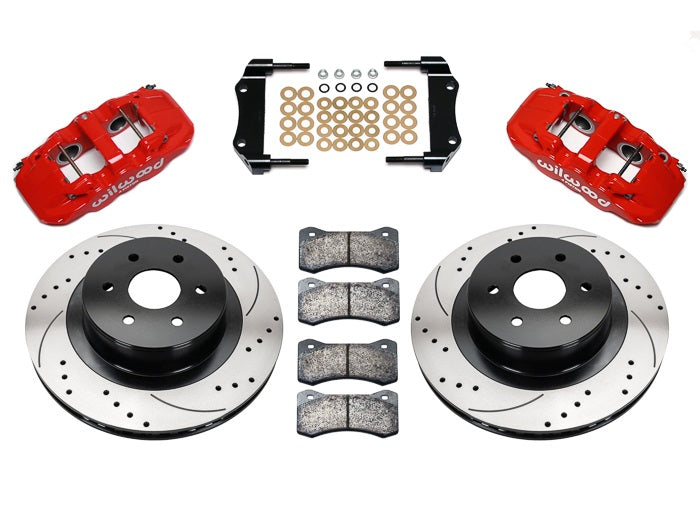

• Wilwood Rear Disc Brake Kit with 14.25" Drilled Rotors and Red Calipers (Part #140-9407-DR):
  • AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the AERO4 calipers, BP-20 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.
  • Kit includes parts for both rear wheels:
    • Drilled & Slotted, 1.25" Thick x 14.25" O.D. Rotors
    • AERO4 4 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-20 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Front & Rear Flexline Kits:
  • Steel braided brake lines, caliper fittings, and chassis fittings to connect the calipers to the hard lines
  • Also includes weld-on line tabs to install on your rear end
