AIR SUSPENSION SYSTEM,07-16 CHEVY GMC 1500 W/ OE CAST STEEL ARMS

AIR SUSPENSION SYSTEM,07-16 CHEVY GMC 1500 W/ OE CAST STEEL ARMS

RDT 11700296

$5,910.00
$5,910.00
View full details

Brand New Ridetech Complete Air Suspension System (Part #11700296).

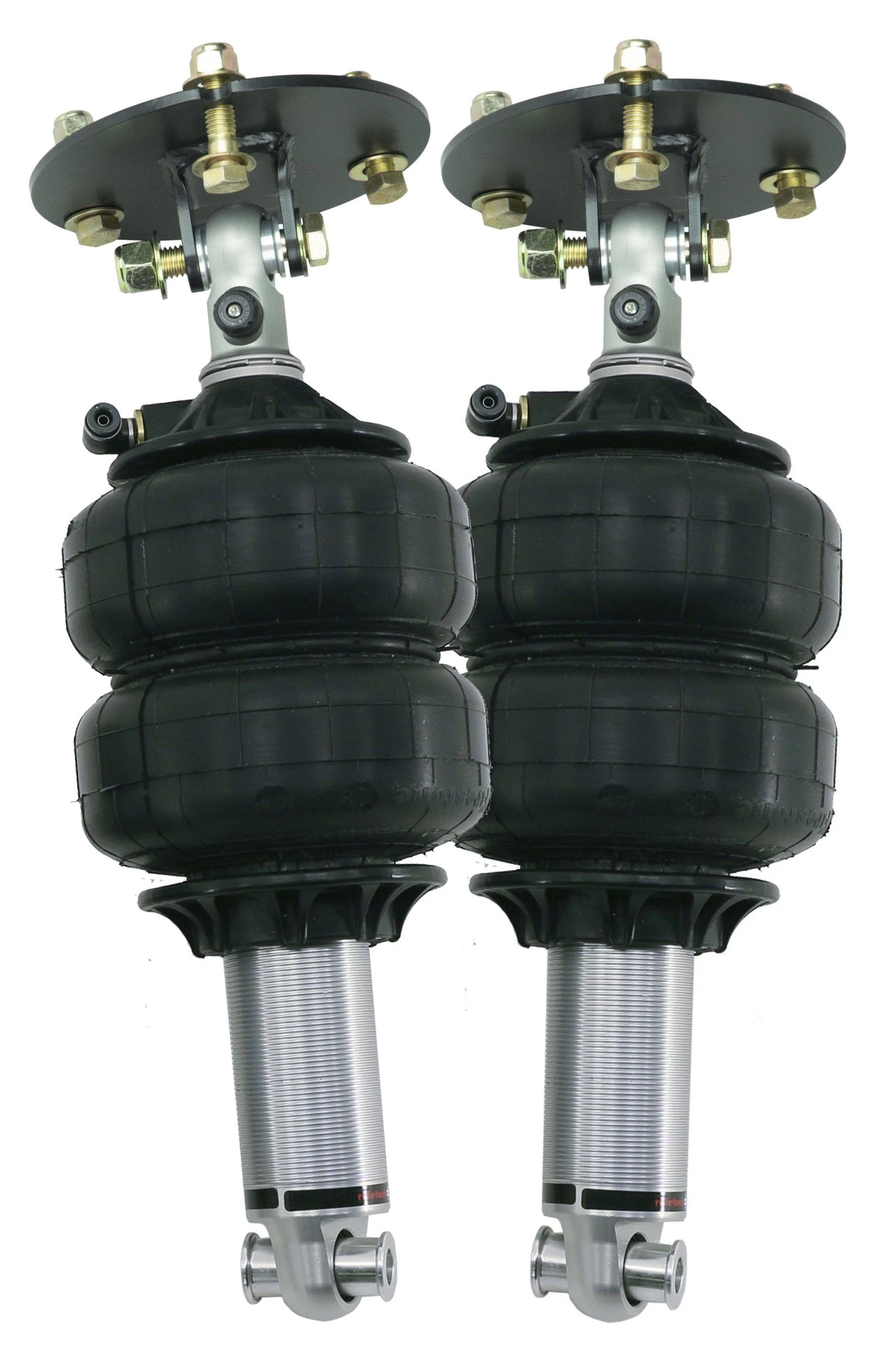

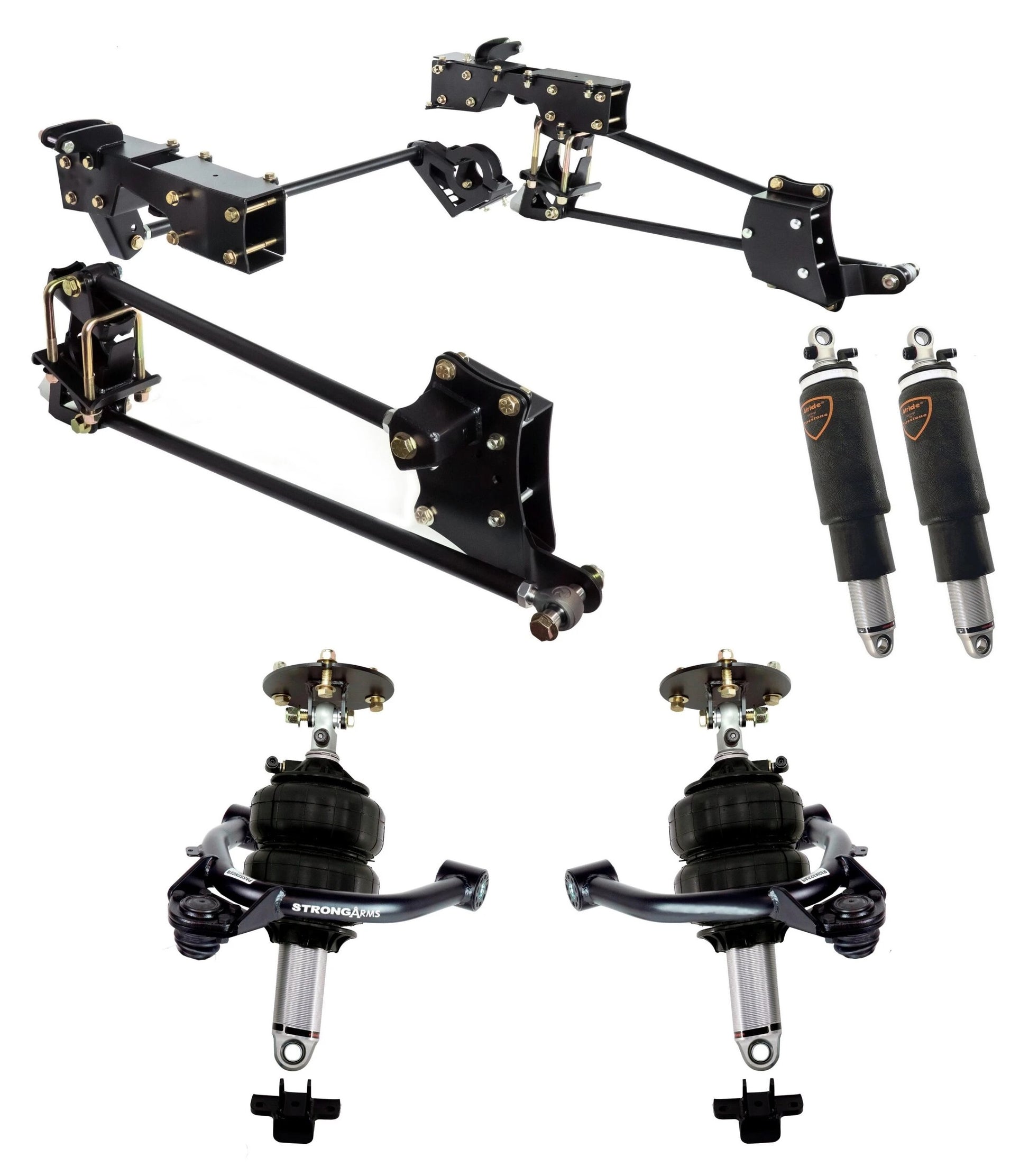

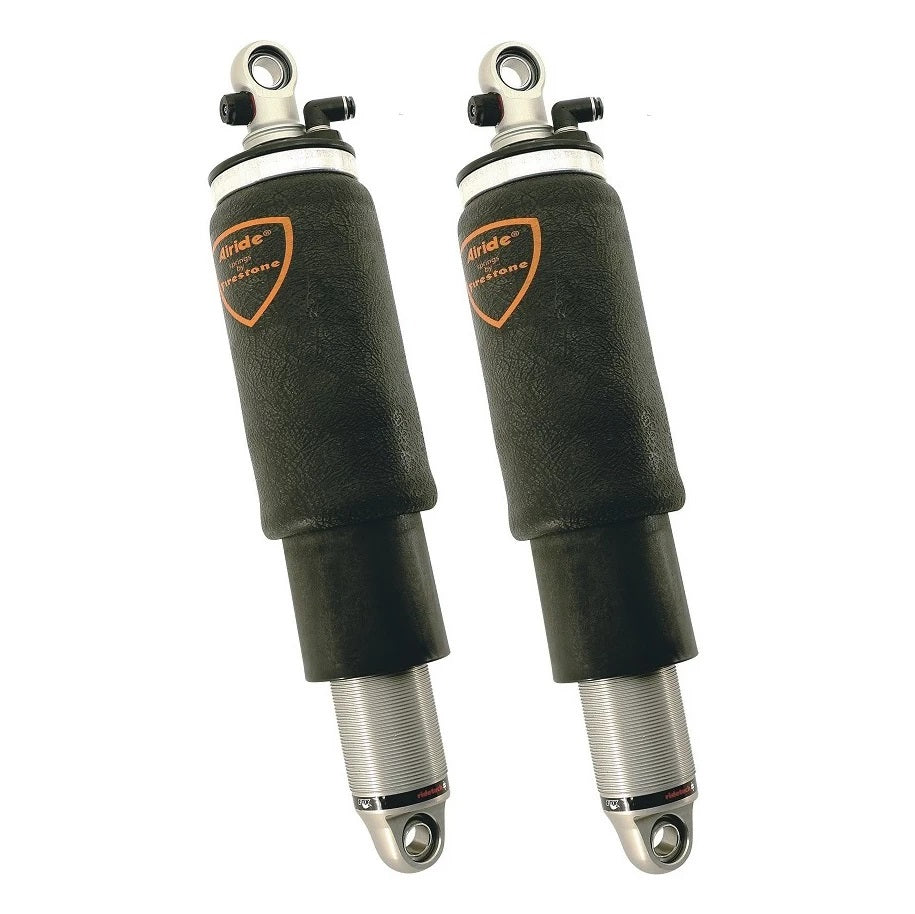

Air Ride Suspension System for 2007-2016 Silverado & Sierra 1500 2WD/4WD.  Includes front & rear HQ Series Shockwaves, front tubular upper control arms, and Bolt-On 4 Link with C-Notches. Fitment includes 2007-2016 Chevrolet Silverado and GMC Sierra 1500 2WD & 4WD pickups with cast steel OE control arms. Some trucks (specifically 2014-2016 model years) may have stamped steel or aluminum control arms which use different spindles and ball joints (Kit # 11710296). Trucks equipped with magnetic suspension require shock simulators.

Fits:

  • Chevrolet:
    • 2007-2016 Silverado 1500 2WD/4WD with Cast Steel OE Control Arms
  • GMC:
    • 2007-2016 Sierra 1500 2WD/4WD with Cast Steel OE Control Arms

Note:

  • A compressor is required for this air suspension system. Example part #30514100.

Features:

  • Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear. Fully deflated will net an additional 3″ drop.

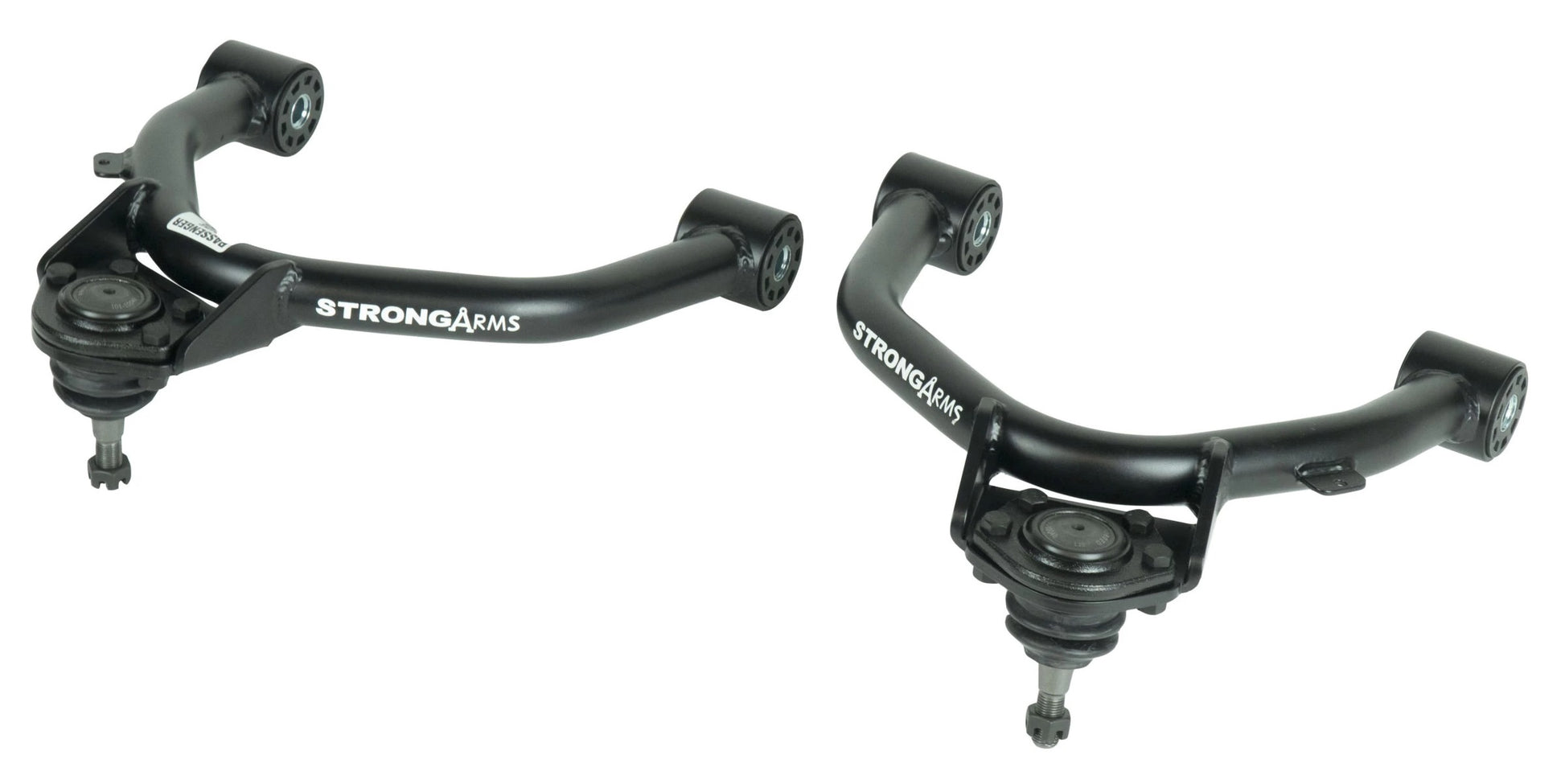

  • Upper StrongArms tubular control arm feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

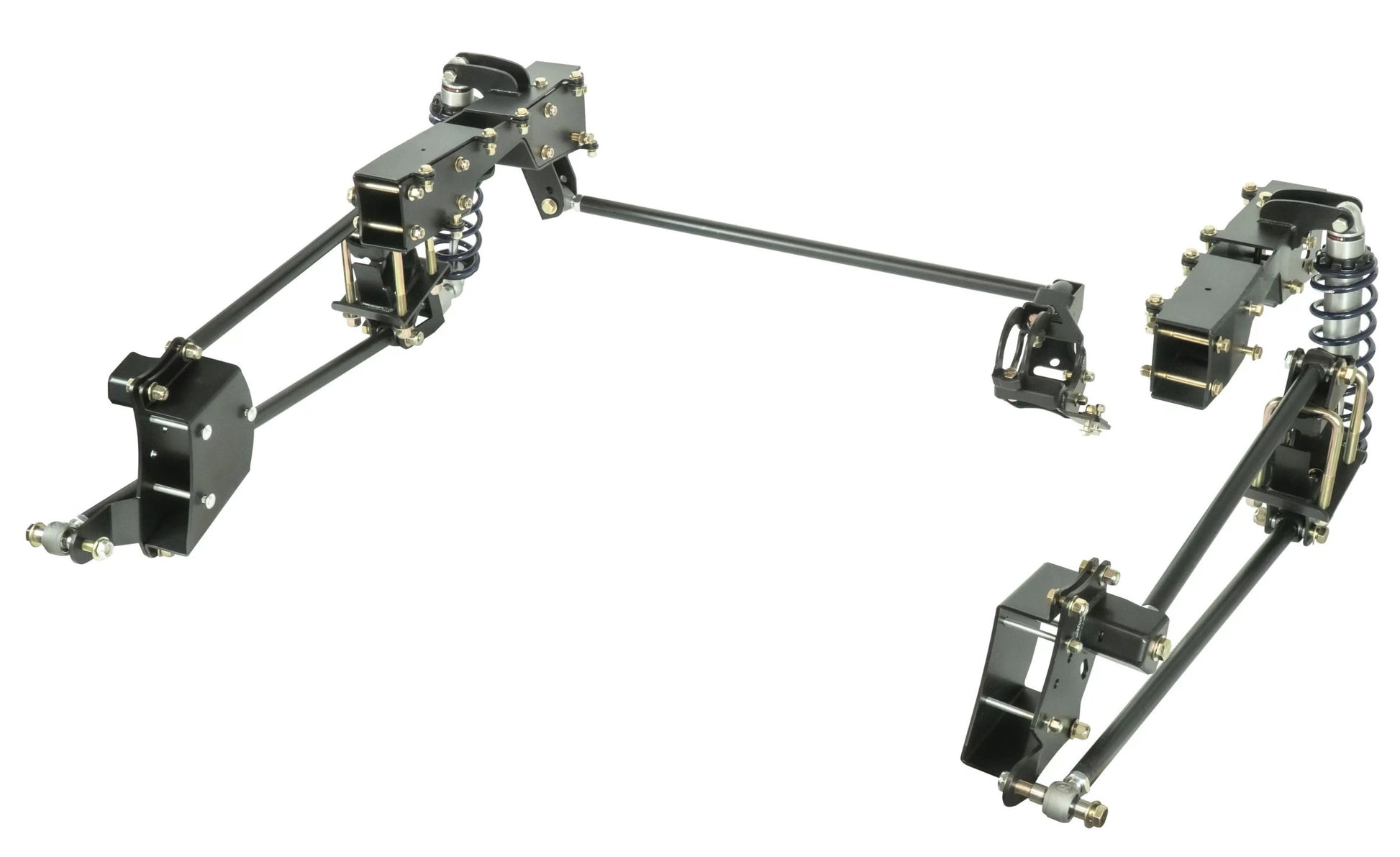

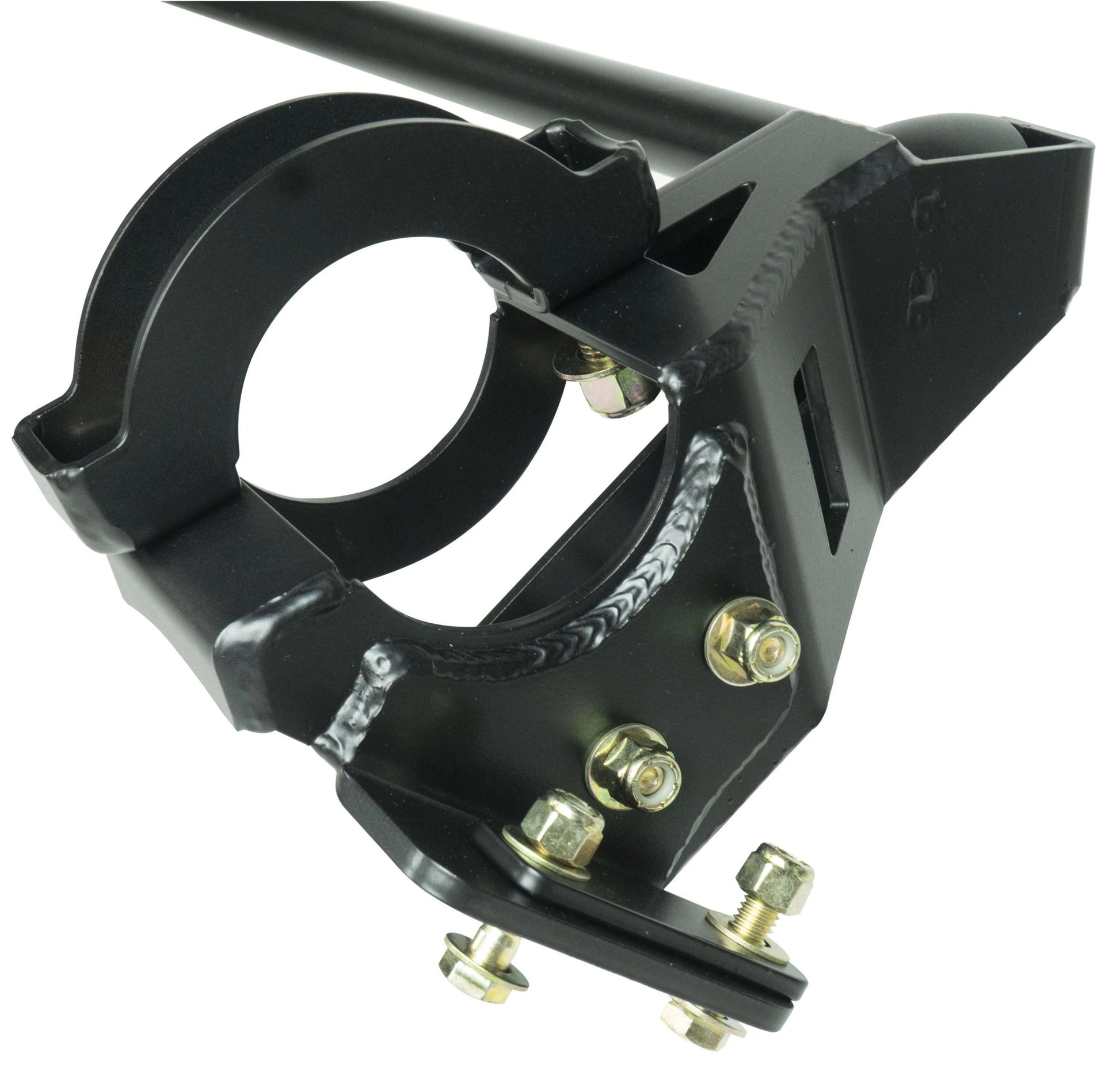

  • Bolt-On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.

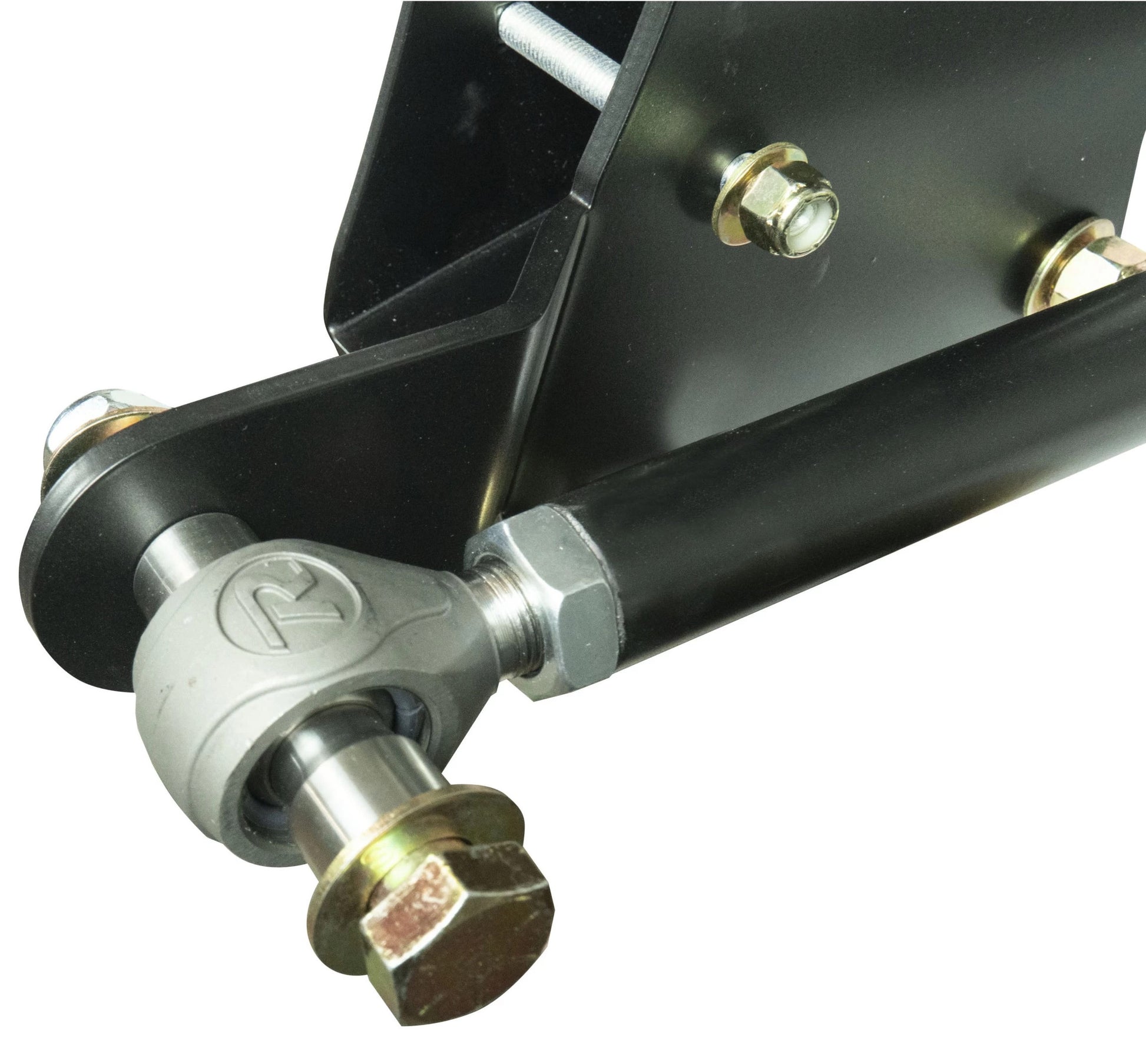

  • Includes patent-pending R-Joint rod ends to eliminate binding and noise.
  • Optimized anti-squat, roll center, and pinion angle migration for dramatic improvements in handling and traction.
  • Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
  • Compatible with all cab size and bed length configurations
  • Designed for simple installation with minimal OEM rivet removal.

You can view and download the assembly instruction booklet here and here.
