COILOVER SYSTEM,ARMS,4-LINK,07-16 CHEVY GMC 1500 4WD W/OE CAST STEEL ARMS

Brand New Ridetech Complete Coilover Suspension System (Part #11700205).

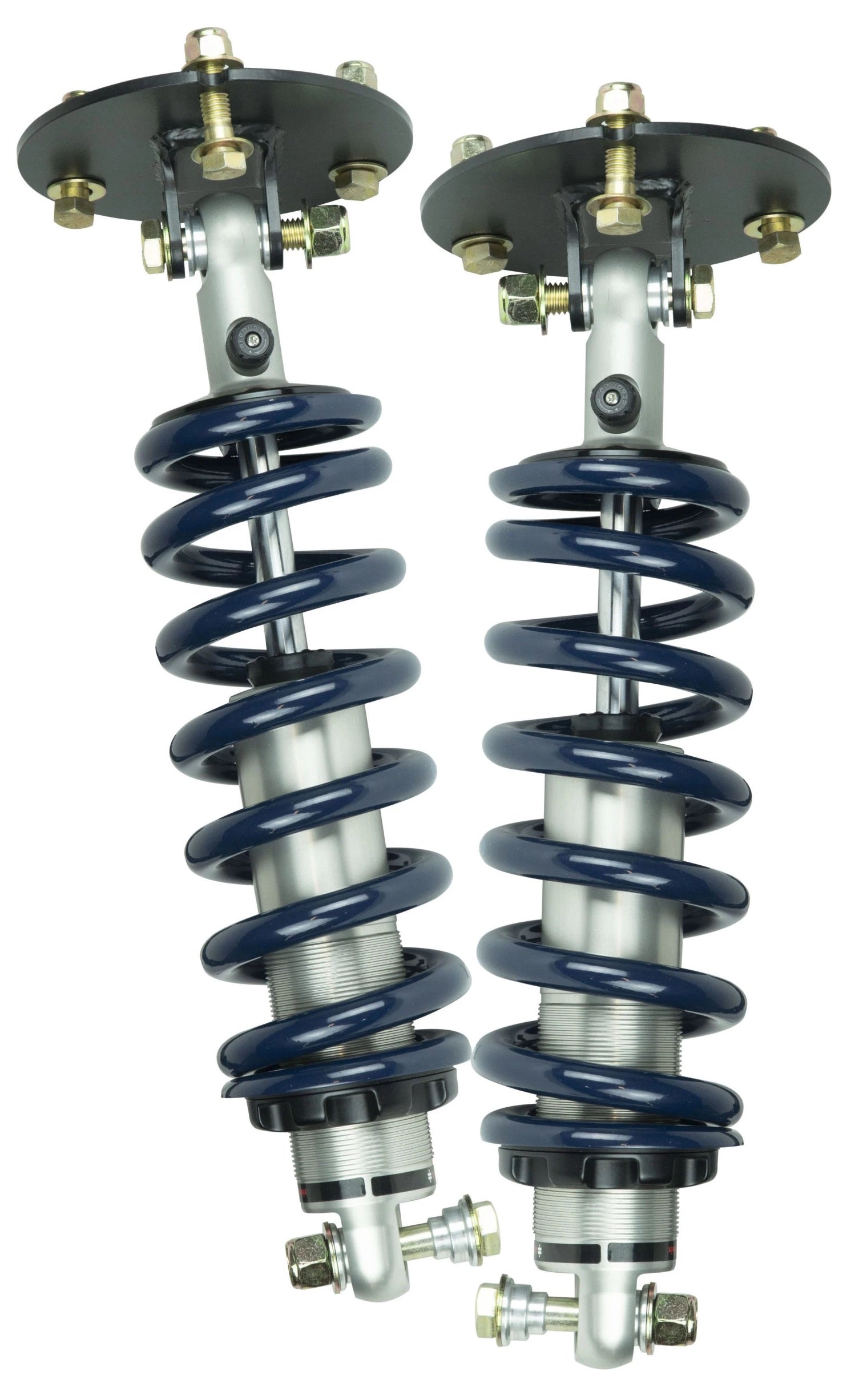

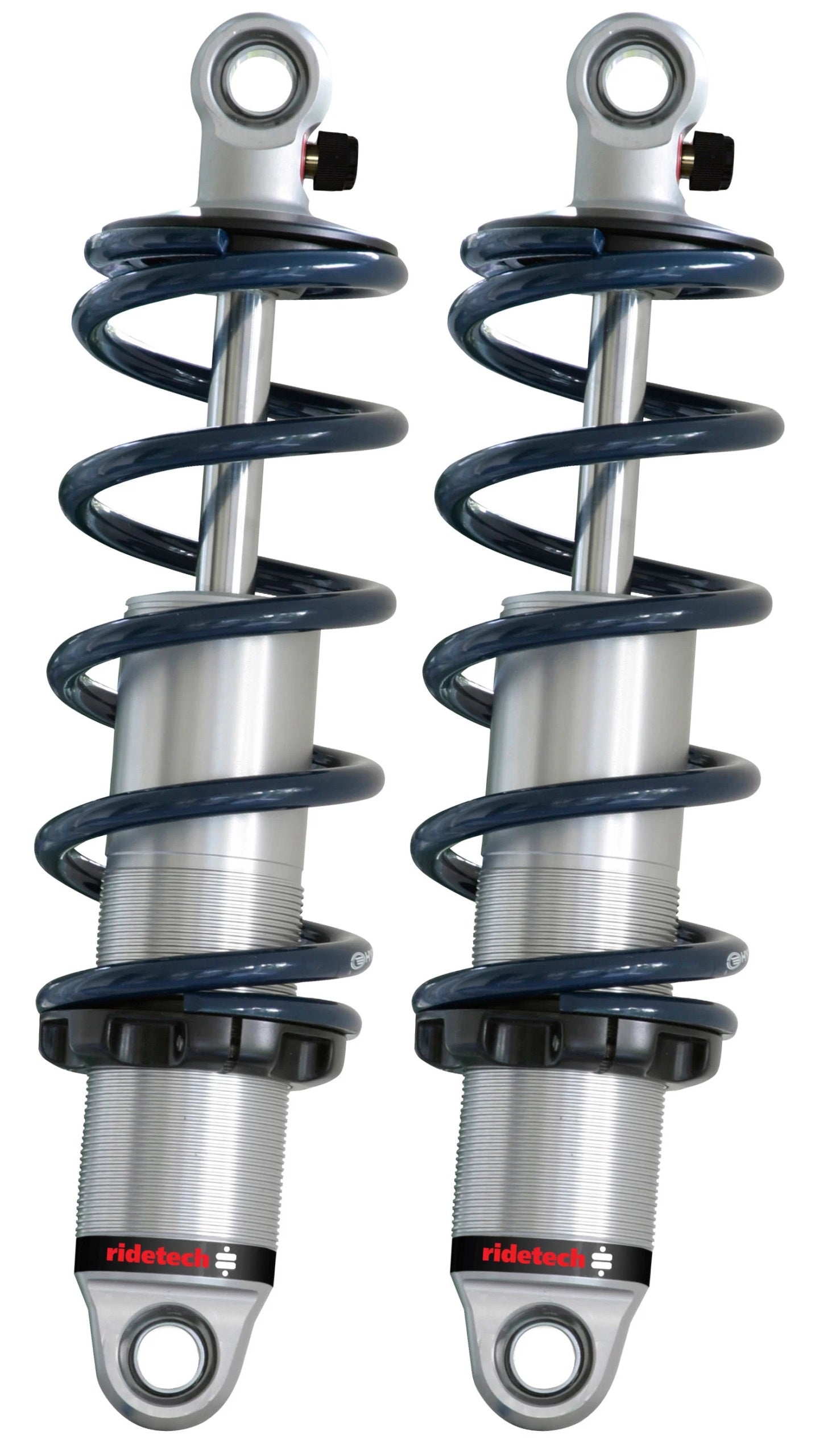

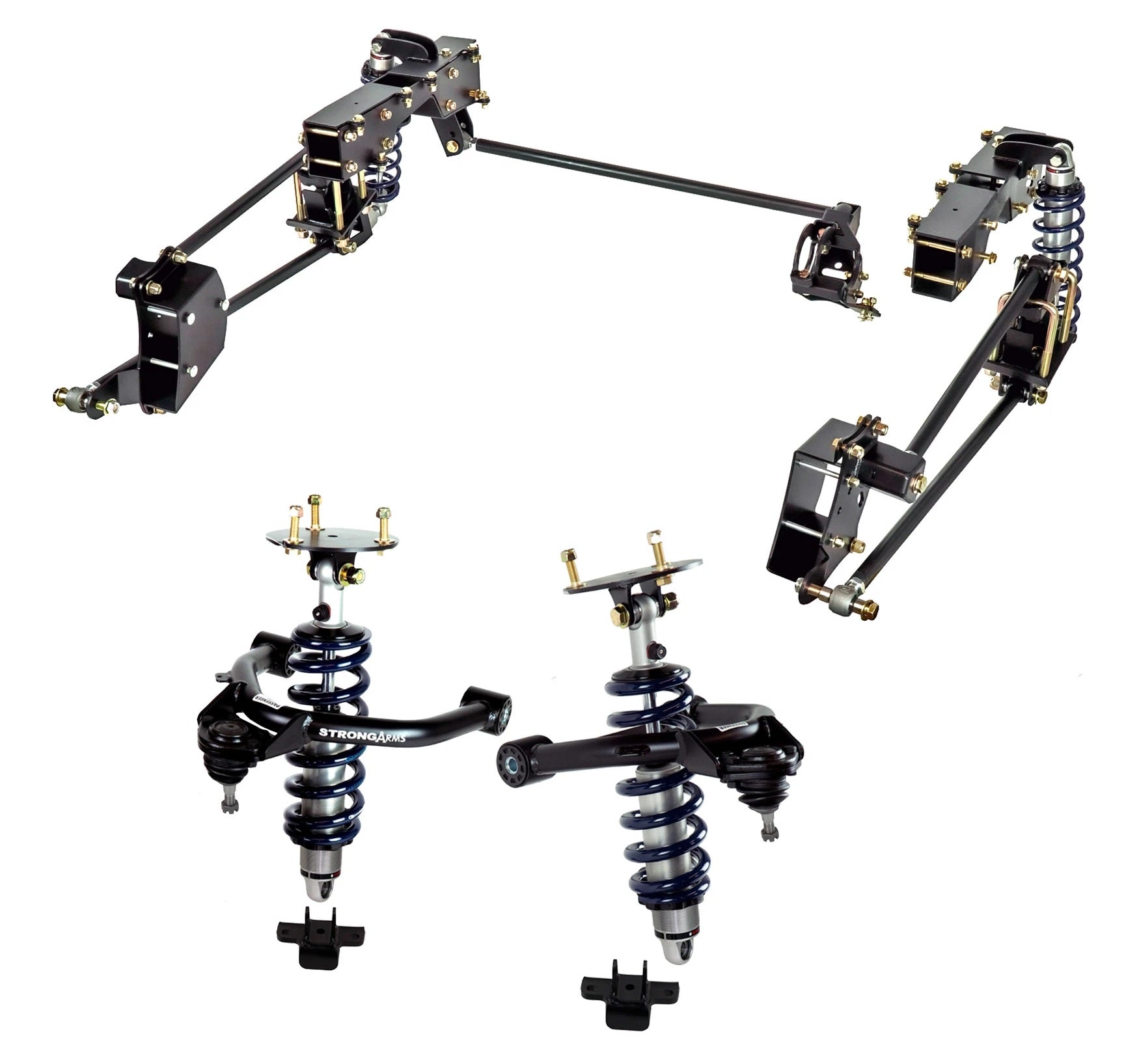

Complete Coilover System for 2007-2016 Silverado & Sierra 1500 4WD. Includes front & rear HQ Series rebound adjustable Coil-overs, front tubular upper control arms, and bolt-on 4 link with c-notches. Designed to lower your vehicle and improve handling and ride quality. Fitment includes 2007-2016 Chevrolet Silverado and GMC Sierra 1500 4WD pickups with cast steel OE control arms. Some trucks (specifically 2014-2016 model years) may have stamped steel or aluminum control arms which use different spindles and ball joints (Kit # 11710204 & 11710205). Trucks equipped with magnetic suspension require shock simulators.

Fits:

• Chevrolet:
  • 2007-2016 Silverado 1500 4WD with Cast Steel OE Control Arms
• GMC:
  • 2007-2016 Sierra 1500 4WD with Cast Steel OE Control Arms

Features:

• Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear.

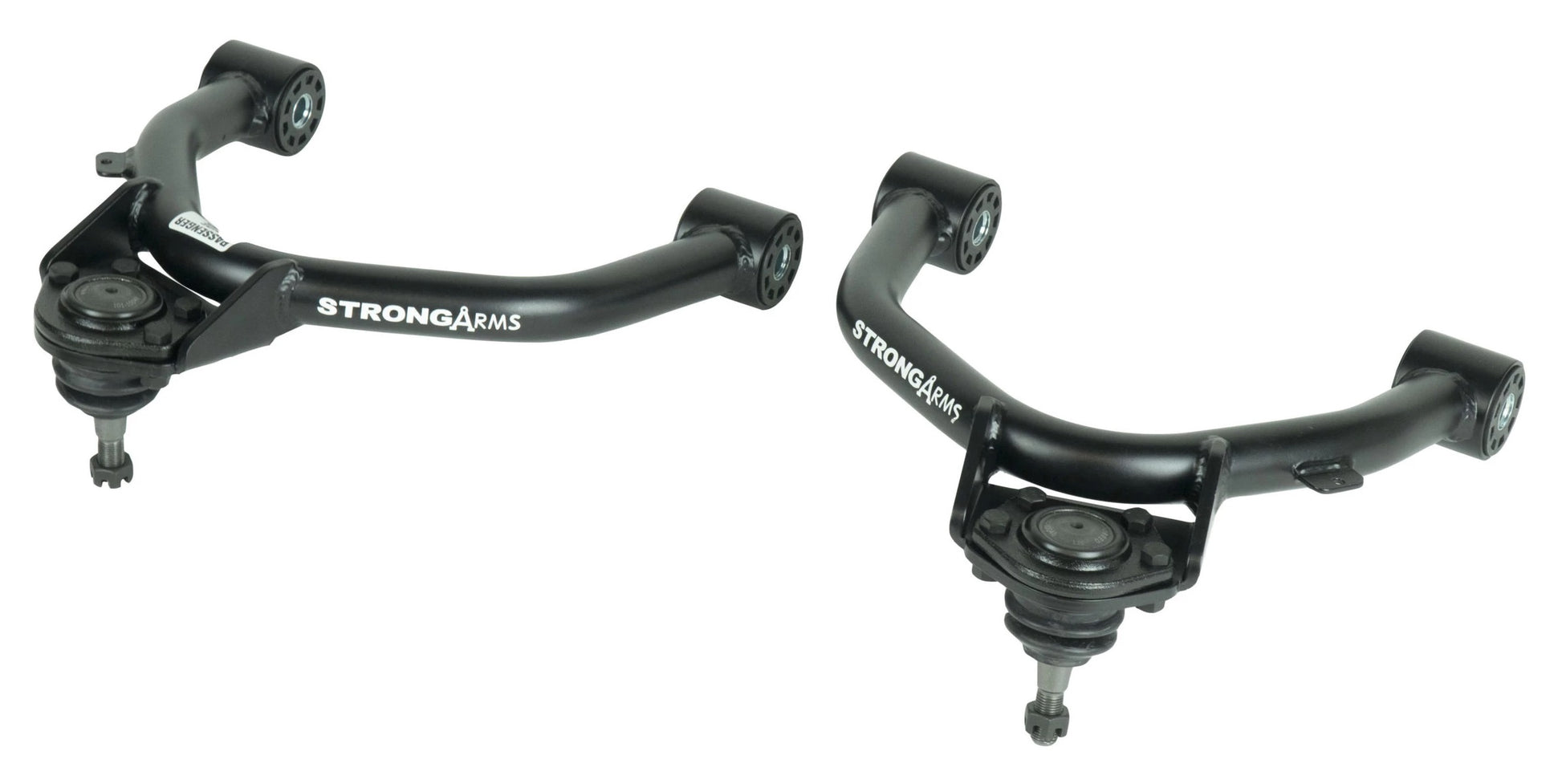

• The Upper StrongArm tubular control arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

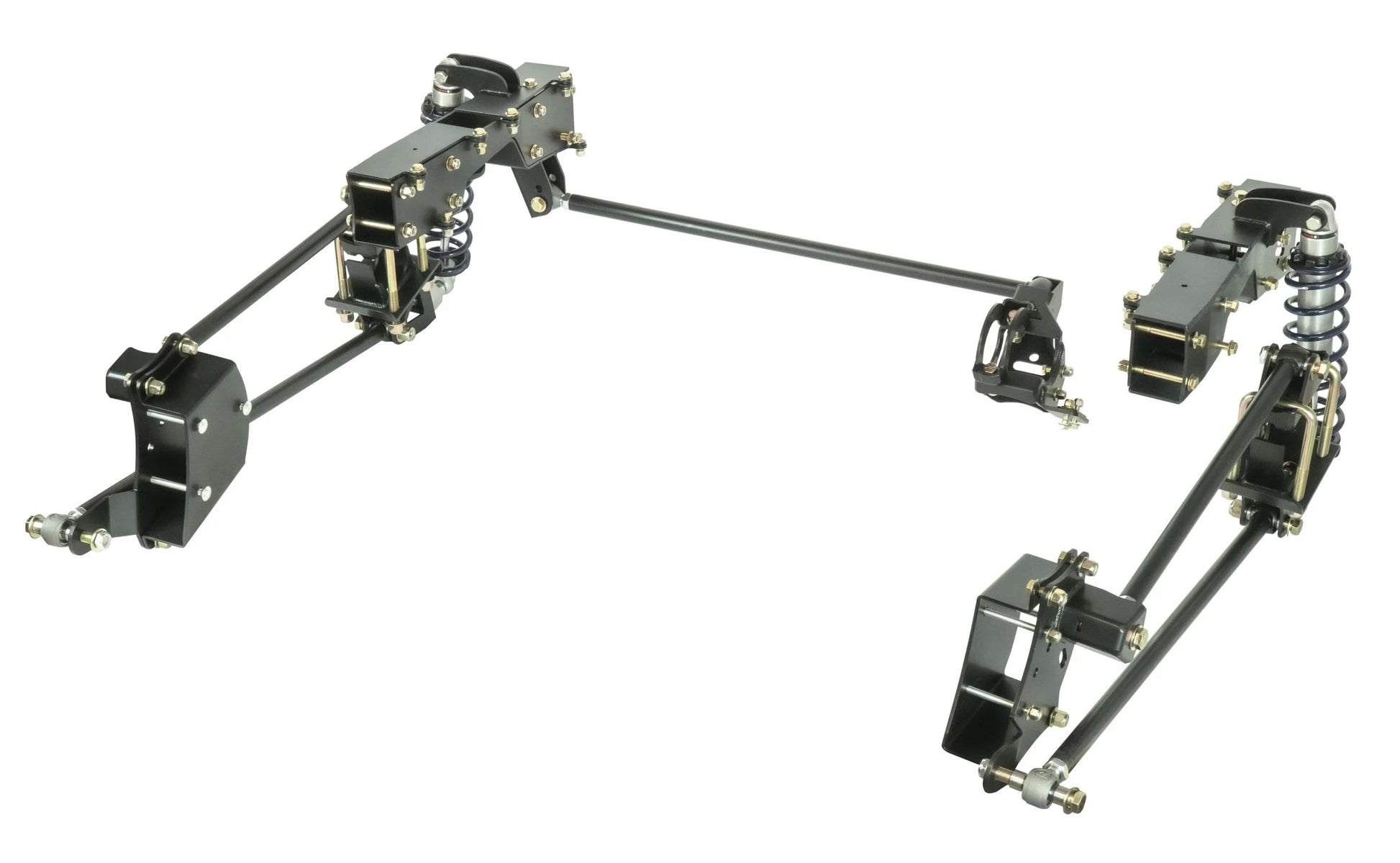

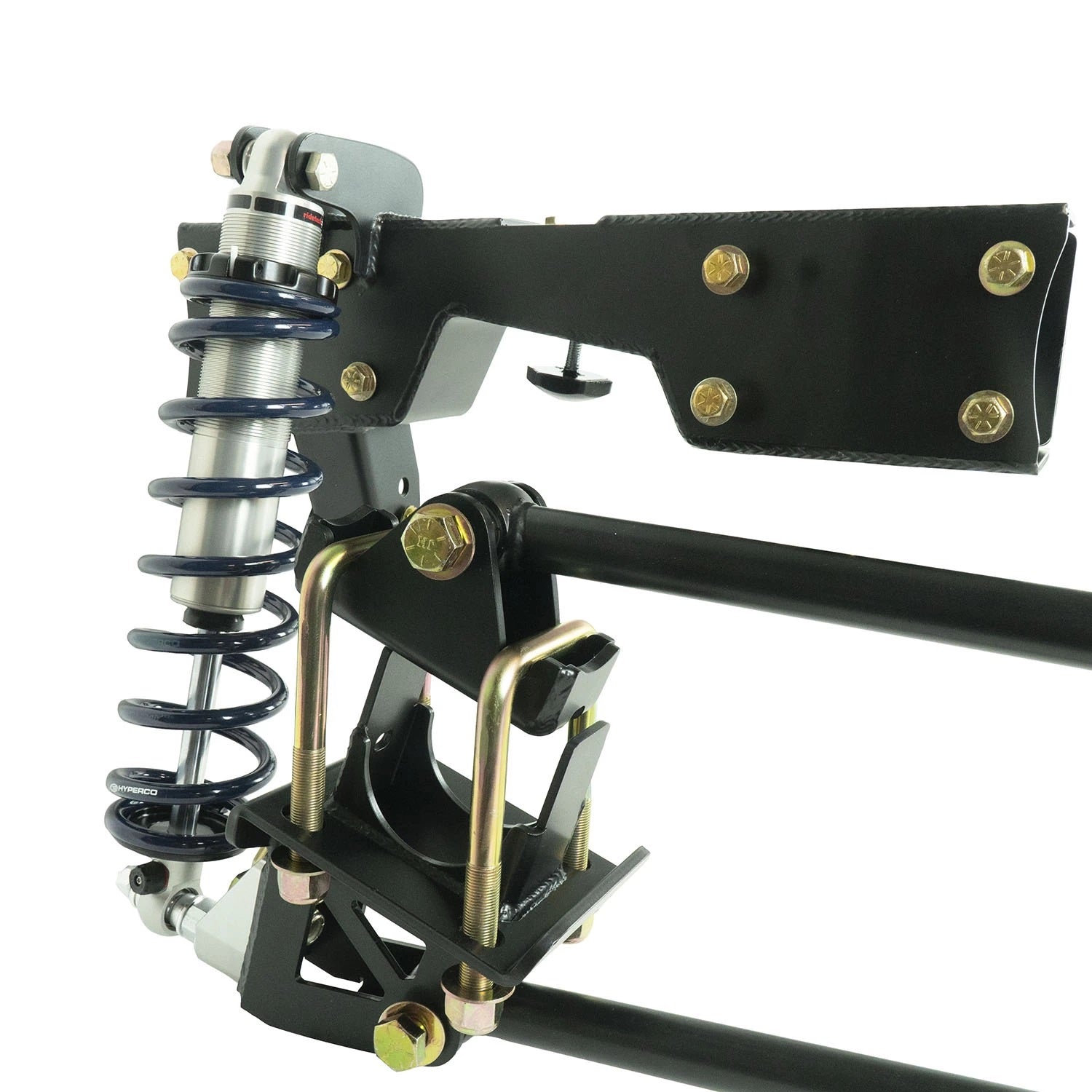

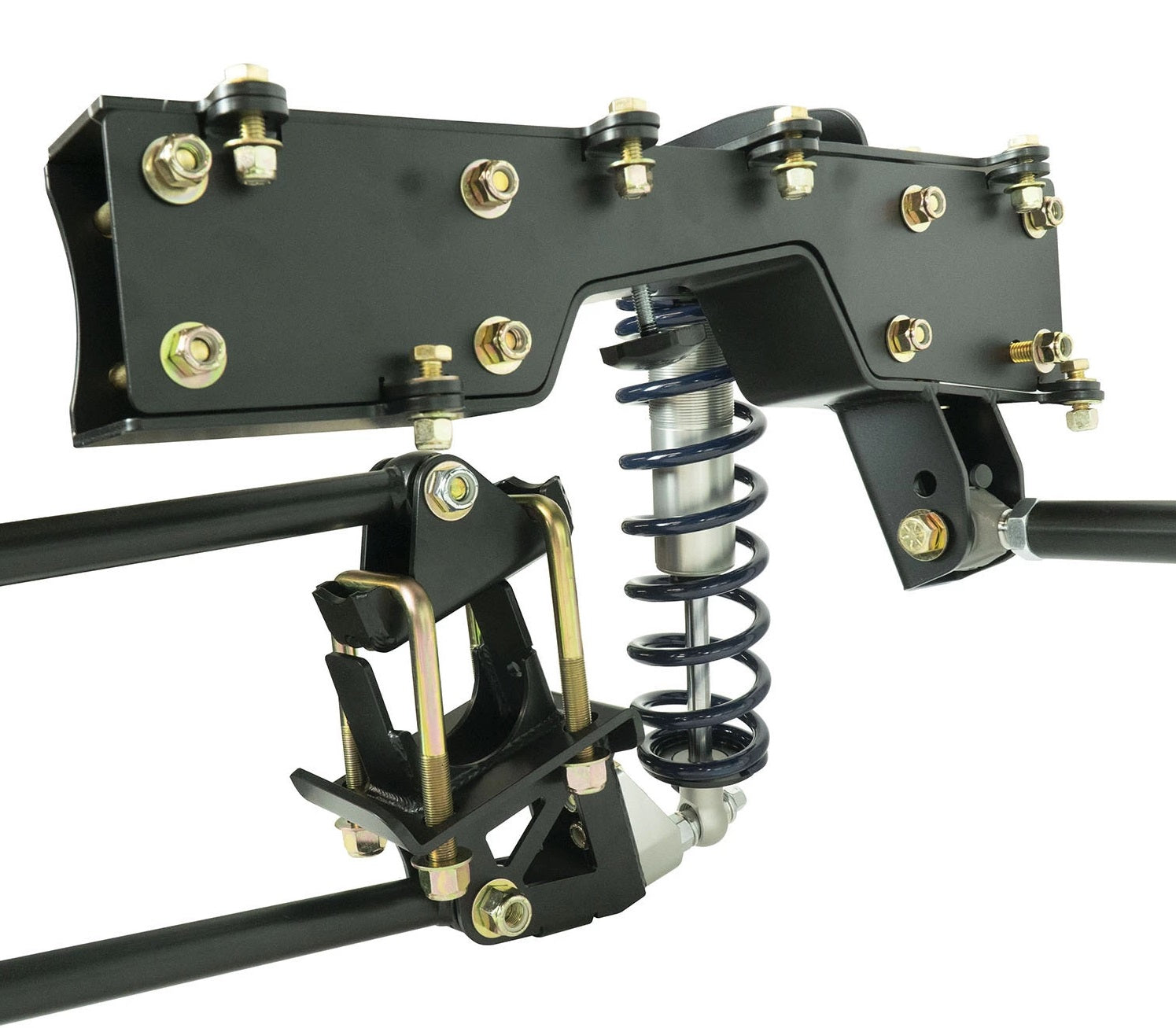

• The Bolt On 4-Link greatly improves traction, handling and ride quality.  Installation does not require any welding or major modifications to the bed floor.  Includes patent-pending R-Joint rod ends to eliminate binding and noise.

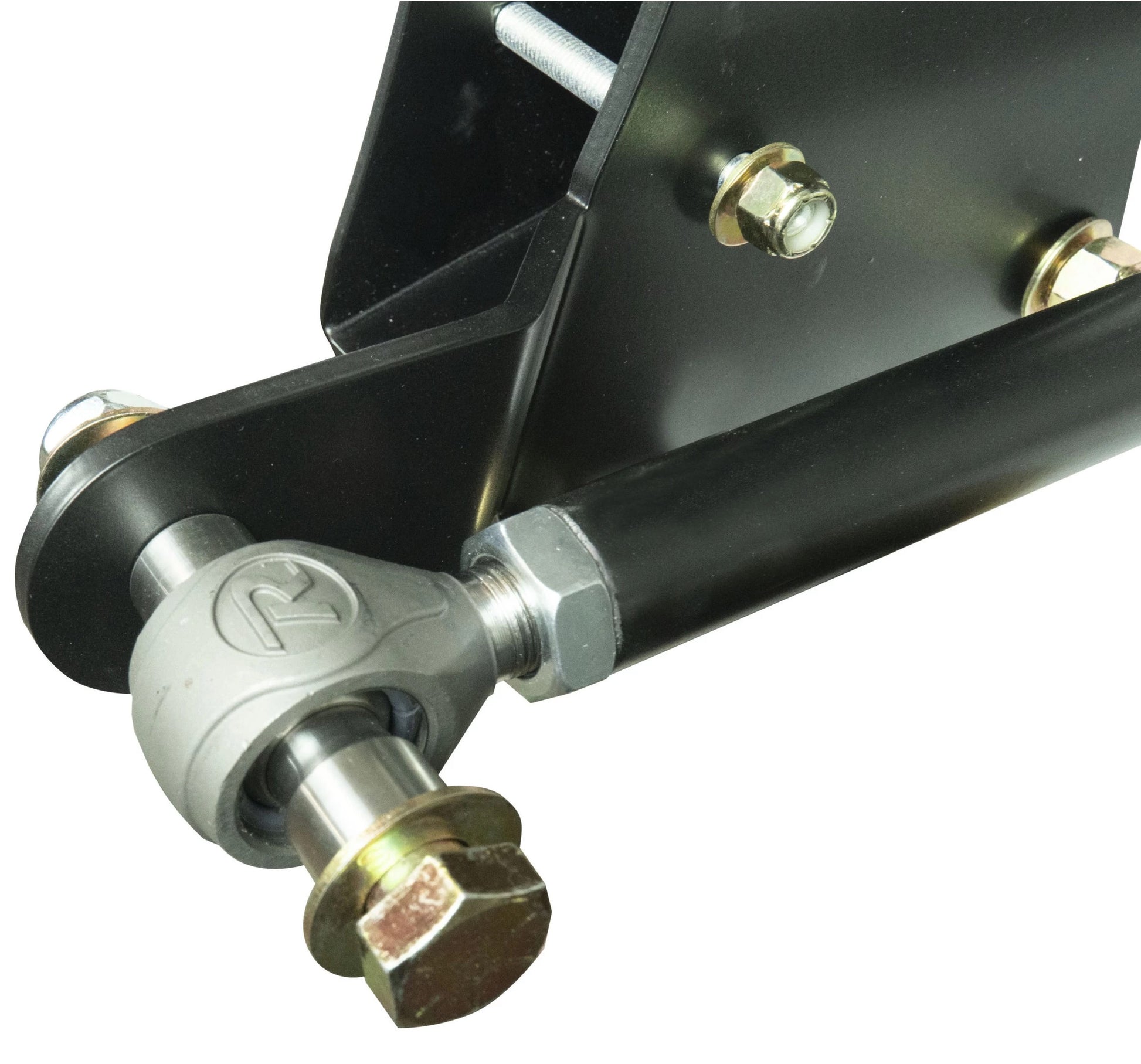

• Includes patent-pending R-Joint rod ends to eliminate binding and noise.
• Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.

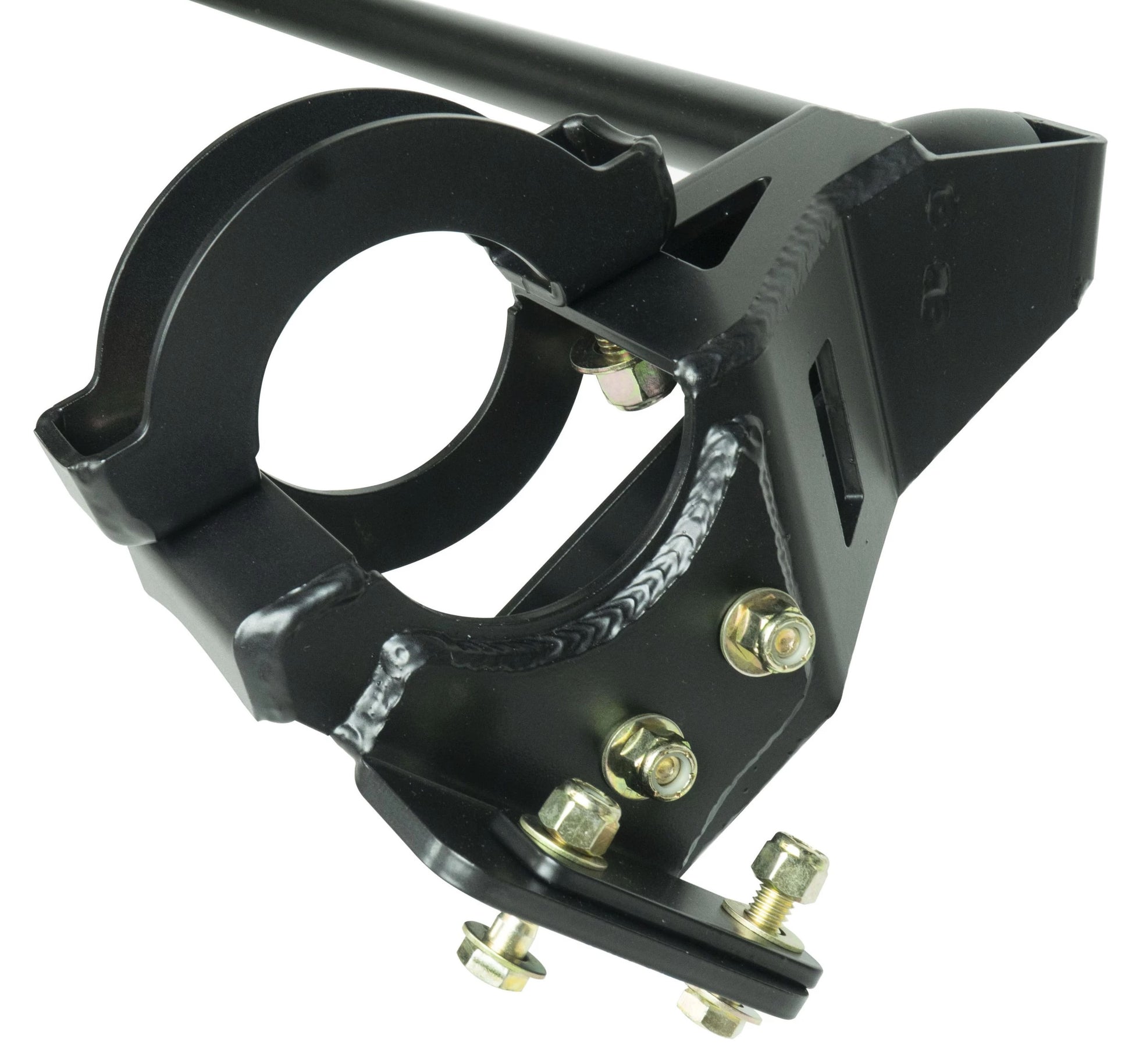

• Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
• Compatible with all cab size and bed length configurations

You can view and download the assembly or instruction booklet here, here, and here.
