STREETGRIP SYSTEM,BARS,SHOCKS,90-96 CORVETTE

Brand New Ridetech StreetGRIP Suspension System (Part #11565010).

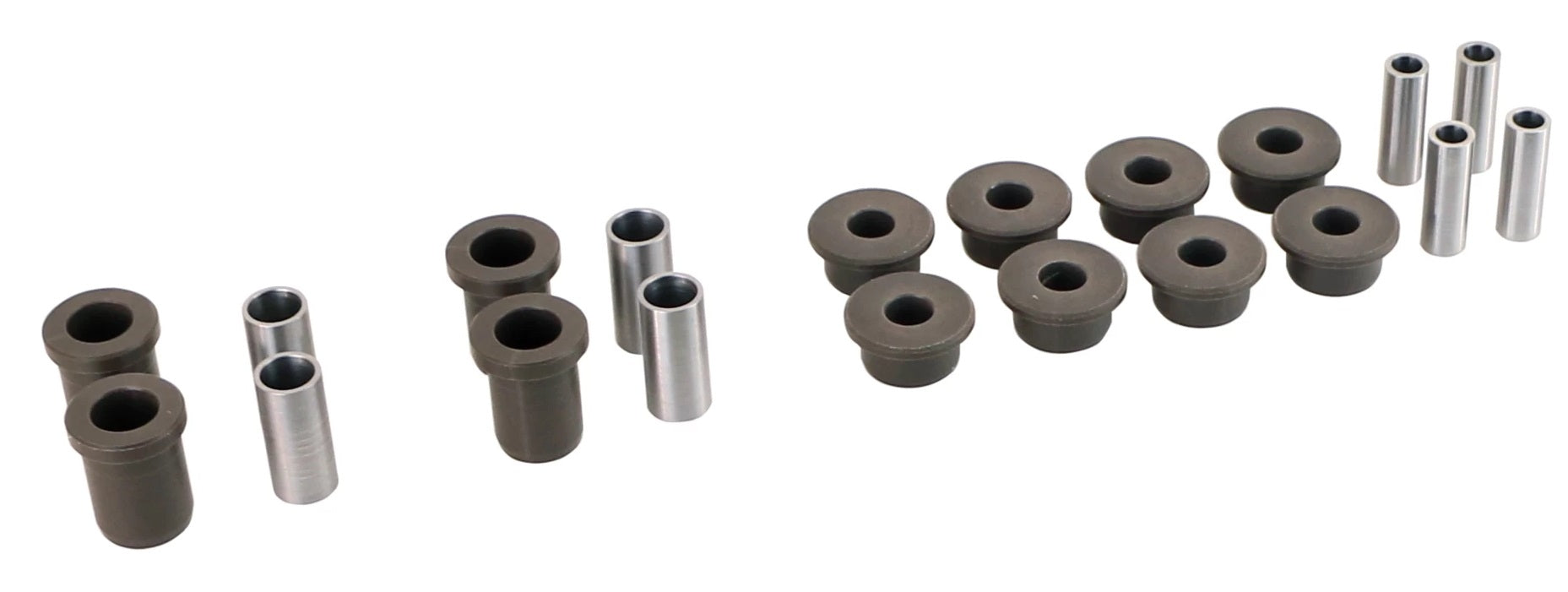

Update your 1990-96 C4 Corvettes suspension with Ridetech’s StreetGRIP system. The 100% bolt on kit features adjustable monotube shock absorbers, heavy duty sway bars and self-lubricating Delrin control arm bushings. Ridetech’s excellent HQ Series shock absorbers are custom-valved to complement your C4 Corvette’s factory springs for modern handling and ride quality. You can fine tune performance by way of precision rebound adjusting knobs.  Ridetech’s all-new CNC-bent MuscleBar sway bars increase bar rate over stock. MuscleBars feature innovative investment-cast bar ends that perfectly engage end-link bushings as your Corvette’s cornering loads change. Delrin-lined sway bar mounting bushings never squeak or need lubricating. A set of Delrin A-Arm bushings greatly reduce deflection during cornering, eliminate stiction and are maintenance free. If you love your C4 Corvette, but wish for better ride quality and handling, you will be thrilled with Ridetech’s bolt-on StreetGRIP suspension system.

Fits:

• Chevrolet:
  • 1990-1996 Corvette

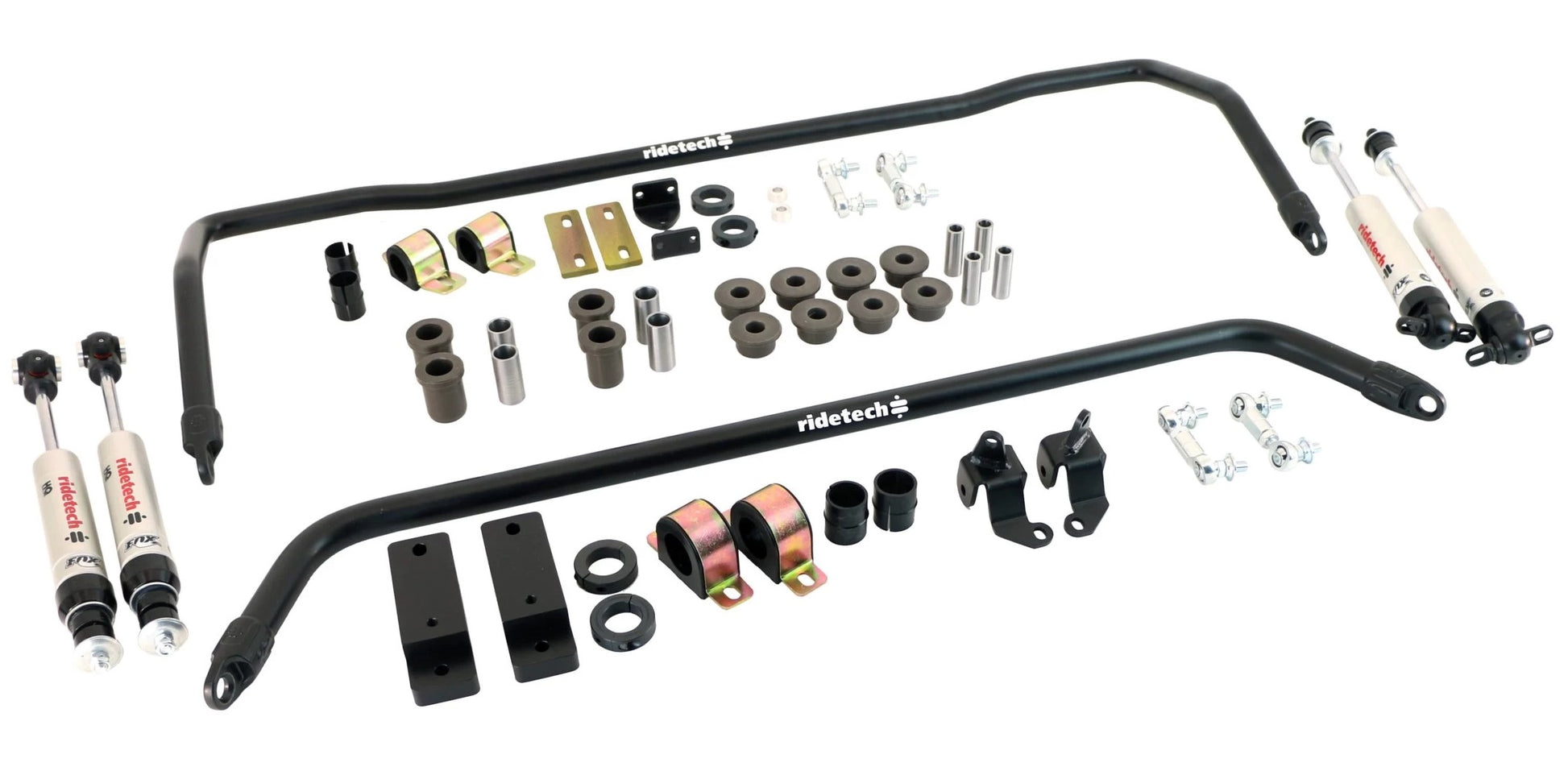

Includes:

• Front HQ Series Shocks
• Rear HQ Series Shocks
• Front Sway Bar
• Rear Sway Bar
• Mounting Hardware

Features:

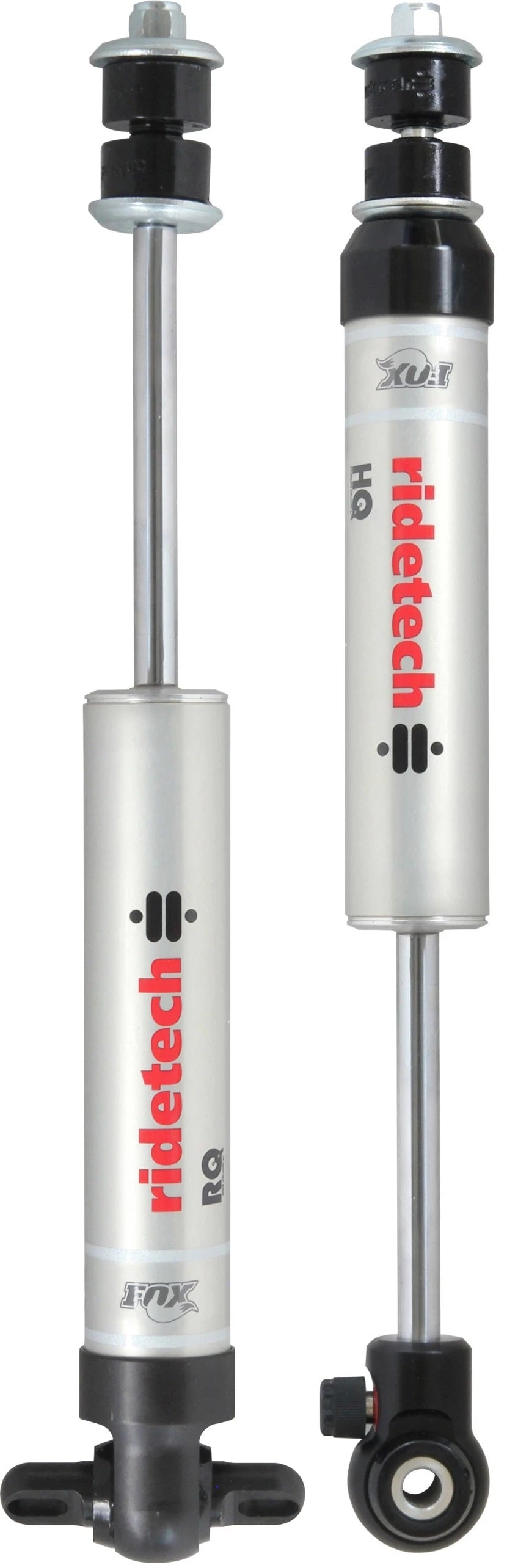

• HQ Series Shocks:
  • Utilizes an impact forged aluminum body and monotube design to deliver excellent ride quality and handling.
  • They allow fine tuning of the ride quality and handling.

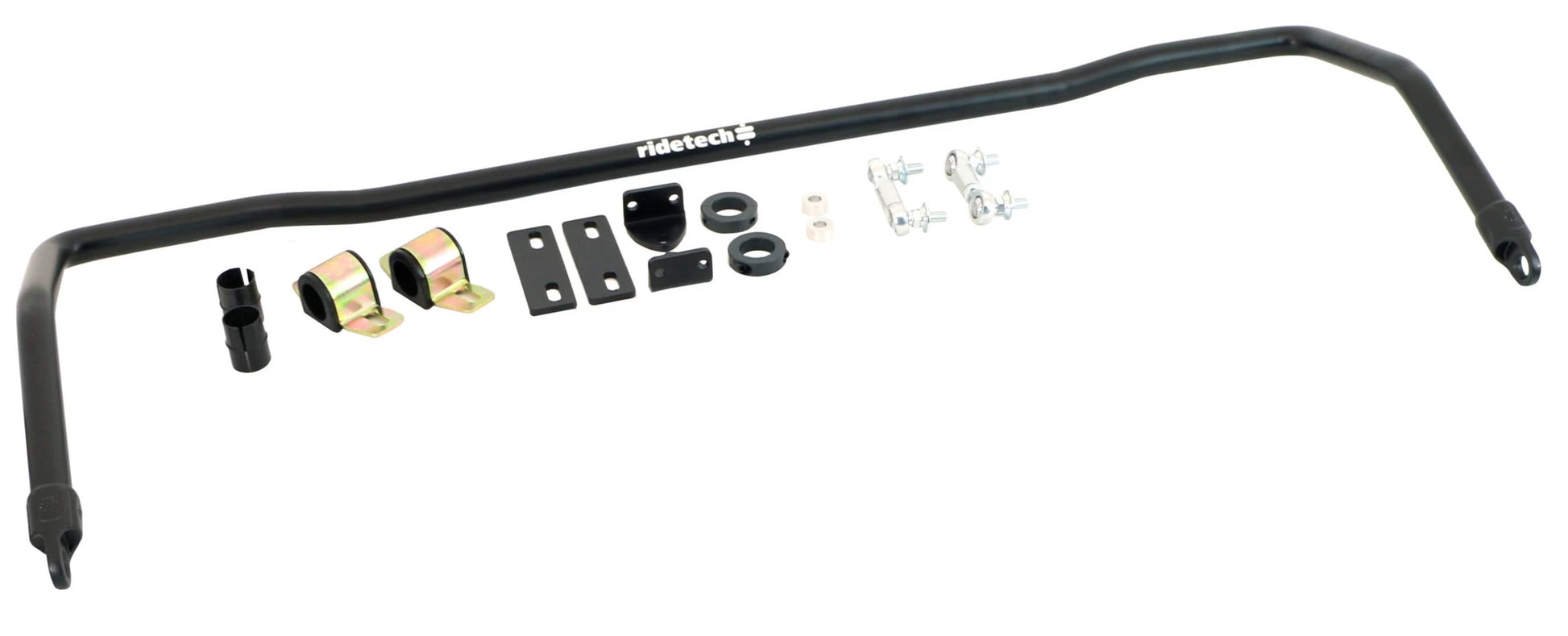

• Front Sway Bar:
  • Helps reduce body roll and creates room for wider front tires with an adjustable rate.
  • Include billet aluminum mounts (anodized black) and low friction bushings.

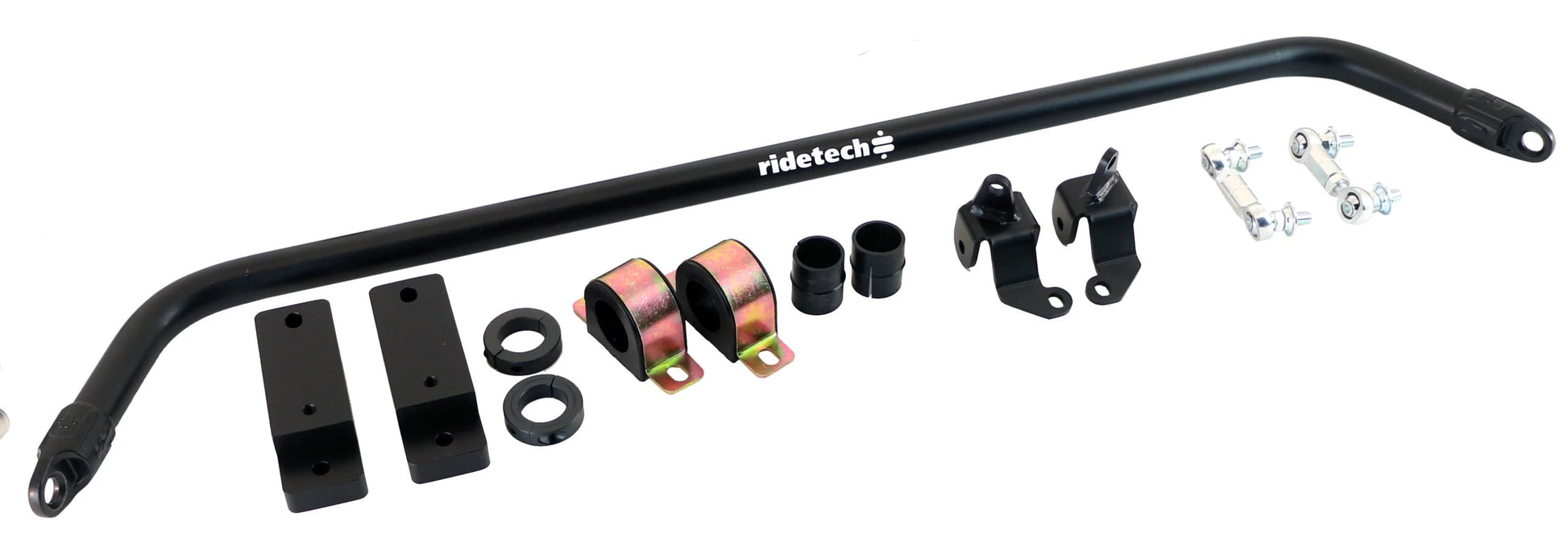

• Rear Sway Bar:
  • Billet aluminum frame mounts, anodized black
  • Low friction frame bushings allow easy and predictable rotation over the stiction of polyurethane or rubber
  • Attractive black satin powder coat finish for corrosion resistance and durability

You can view and download the assembly instruction booklet here.
