FRONT COILOVER,STEERING,WILWOOD 12" DRILLED,BLACK

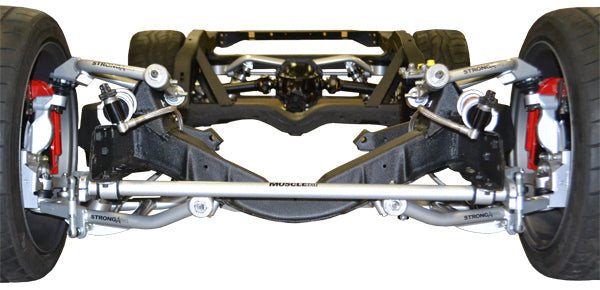

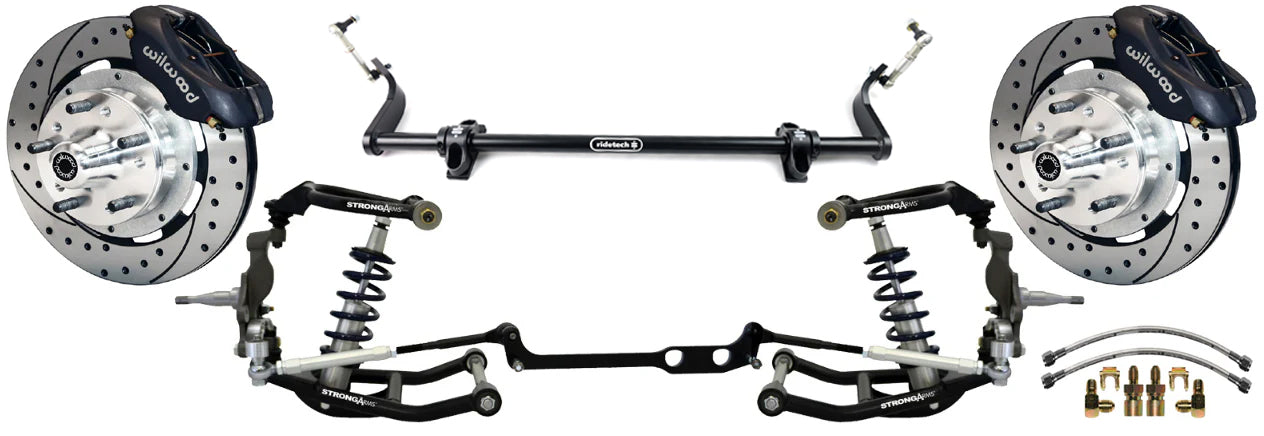

BRAND NEW RIDETECH FRONT COILOVER & STEERING SYSTEM AND WILWOOD DISC BRAKE KIT, INCLUDING CONTROL ARMS, SPINDLES, STEERING ARMS, DRAG LINK, TIE ROD LINKAGE, MUSCLEBAR FRONT SWAY BAR, 12.19" FRONT DRILLED BRAKE ROTORS, BLACK BRAKE CALIPERS, BRAKE LINES, AND MORE

THE RIDETECH COILOVER SYSTEM FOR THE 1968-1979 CORVETTE INCLUDES HIGH-QUALITY ITEMS THAT YOU NEED TO MAKE YOUR VINTAGE C3 CORVETTE HANDLE LIKE A NEW CORVETTE. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. RIDETECH HAS SPENT HOURS COLLECTING DATA TO FIND A PERFECT SPRING RATE AND COMPONENTS FOR YOUR VEHICLES PERFORMANCE AND RIDE QUALITY. WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE & SUSPENSION UPGRADES. EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE.

FITS:

• CHEVROLET: 1968-1979 CORVETTE C3

RIDETECH SYSTEM INCLUDES:

• FRONT TRUTURN SYSTEM WITH SPINDLES, STEERING ARM, DRAG LINK, AND TIE ROD LINKAGE:
• THE TRUTURN SYSTEM INCLUDES TALL SPINDLES WHICH INDUCE MORE NEGATIVE CAMBER GAIN TO MAXIMIZE TIRE CONTACT PATCH DURING CORNERING. IT ALSO INCLUDE BILLET ALUMINUM STEERING ARMS, CENTER LINK ADAPTER, TIE RODS AND ADJUSTERS TO VIRTUALLY ELIMINATE BUMPSTEER, CORRECT ACKERMAN ANGLE AND ALLOW FOR WIDER TIRES. THE BRAKES THAT ARE INCLUDED WITH THIS KIT ARE SPECIFICALLY DESIGNED FOR USE WITH THESE SPINDLES.
• FRONT UPPER STRONGARM CONTROL ARMS:
• THE UPPER STRONGARMS FEATURE CORRECTED BALL JOINT ANGLES FOR THE TALL SPINDLES. THE UPPER BALL JOINT HAVE BEEN MOVED BACK TO ALLOW FOR ADDITIONAL CASTER SETTING TO IMPROVE HIGH SPEED STABILITY AND STEERING FEEL. OFFSET SLUGS ARE ALSO AVAILABLE FOR ADDITIONAL CASTER. INJECTION MOLDED DELRIN BUSHINGS WITH 13% TEFLON ARE USED TO REDUCE DEFLECTION AND STICTION.
• FRONT LOWER STRONGARM CONTROL ARMS:
• LOWER STRONGARMS FEATURE A DOUBLE SHEER LOWER MOUNT FOR INCREASED STRENGTH. WE HAVE ALSO DROPPED THE LOWER SHOCK MOUNT TO INCREASE SUSPENSION TRAVEL AND MOVED THE LOWER BALL JOINT FORWARD TO INCREASE CASTER SETTINGS WHILE KEEPING THE WHEEL CENTERED IN THE WHEEL OPENING. INJECTION MOLDED DELRIN BUSHINGS WITH 13% TEFLON ARE USED TO REDUCE DEFLECTION AND STICTION.

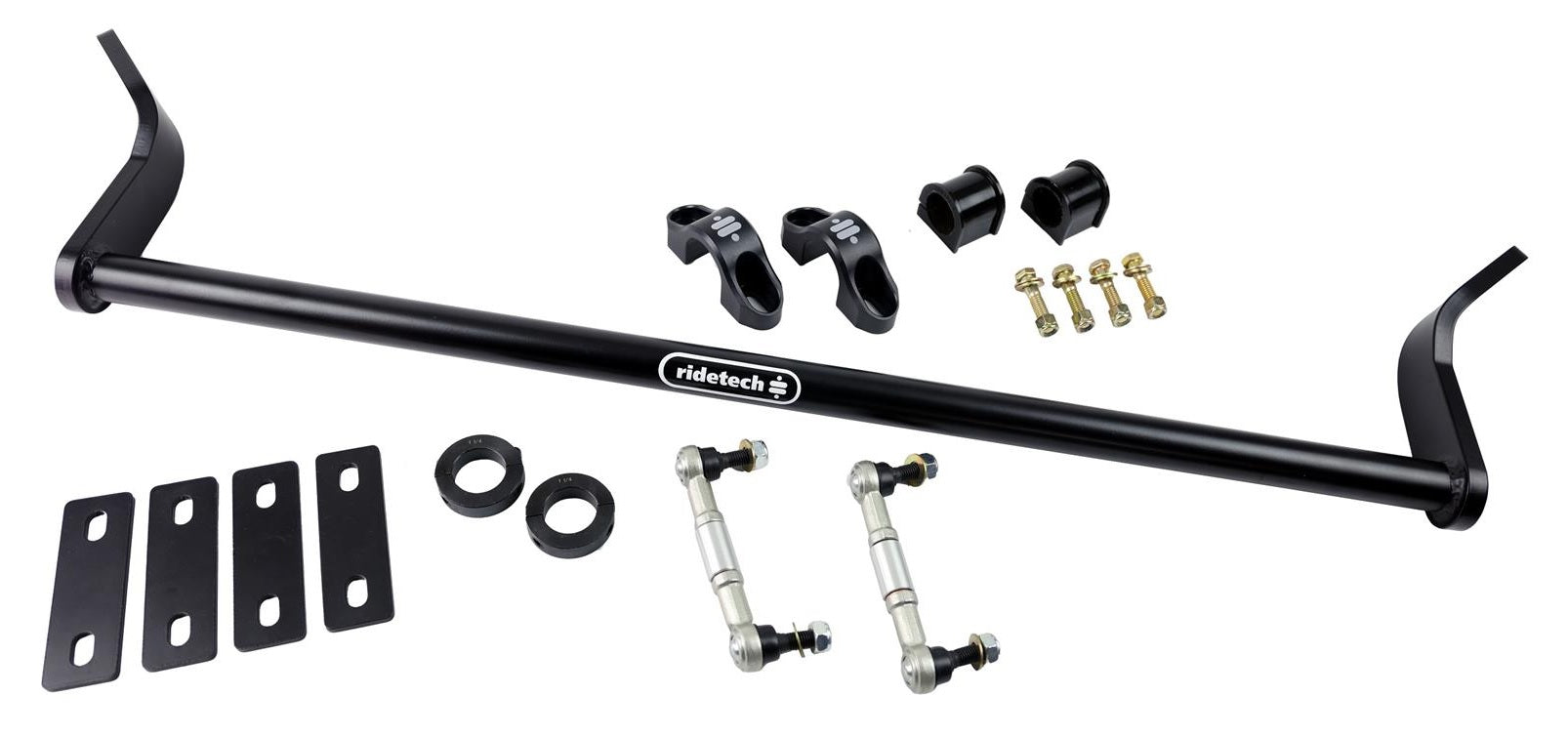

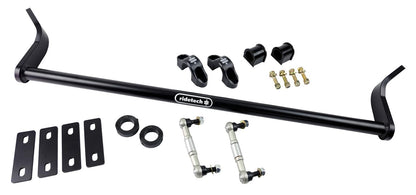

• FRONT MUSCLEBAR SWAY BAR:
• THIS FRONT MUSCLEBAR IS A SPLINED DESIGN AND HELPS REDUCE BODY ROLL AND CREATES ROOM FOR WIDER FRONT TIRES. IT INCLUDES THE POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN THE CHASSIS AND CONTROL ARMS.
• IMPROVES RANGE OF MOTION & ELIMINATES BINDING
• STRONG DESIGN PREVENTS DEFORMATION AND FAILURE
• POSITIVE TRANSFER OF MOTION THROUGH SWAYBAR
• OEM HIGH-PERFORMANCE QUALITY
• FRONT HQ SERIES ADJUSTABLE COILOVERS:
• WITH THE HQ SERIES OF COILOVERS, YOULL GET HIGH PERFORMANCE HANDLING, EXCEPTIONAL RIDE QUALITY AND THE ABILITY TO ADJUST YOUR CARS RIDE HEIGHT. THE RIDETECH COILOVERS FEATURE 24-POSITION REBOUND ADJUSTMENT TO HELP YOU FINE TUNE THE SHOCKS TO YOUR DRIVING PREFERENCES AND VEHICLE DEMANDS. WITH LARGE 1.834" PISTONS, HEAVY-DUTY 5/8" SHAFTS, AND IMPACT FORGED BODIES, HQ SERIES COILOVERS ARE BUILT TO PERFORM AND MADE TO LAST. THEYRE BACKED BY THE RIDETECH EXCLUSIVE 1,000,001 MILE WARRANTY. RIDETECH DEVELOPS THE SHOCK CALIBRATIONS AND SPRING RATES THROUGH THOUSANDS OF CROSS-COUNTRY TEST MILES, ON THEIR EXCLUSIVE TEST TRACK AND AT COMPETITION EVENTS FROM COAST TO COAST.

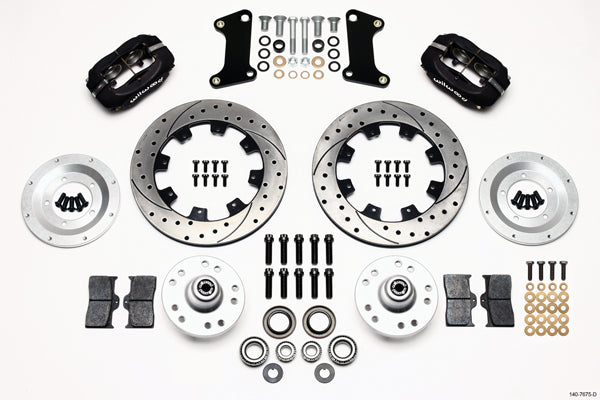

• WILWOOD FRONT DISC BRAKE KIT WITH 12.19" DRILLED & SLOTTED ROTORS AND BLACK CALIPERS (140-7675-D):
• FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS. BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS.
• THESE BIG BRAKES REQUIRE AT LEAST 16" WHEELS
• KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
• DRILLED & SLOTTED .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS, & ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
• FRONT FLEXLINE KITS:
• STEEL BRAIDED BRAKE LINES, CALIPER FITTINGS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THE FRONT TRUTURN KIT, FRONT COILOVER KIT, SHOCK TUNING GUIDE, FRONT MUSCLEBAR KIT, AND WILWOOD BRAKE KIT.
