COILOVER SYSTEM,WILWOOD 13" BRAKES,DRILLED,BLACK,65-79 CORVETTE

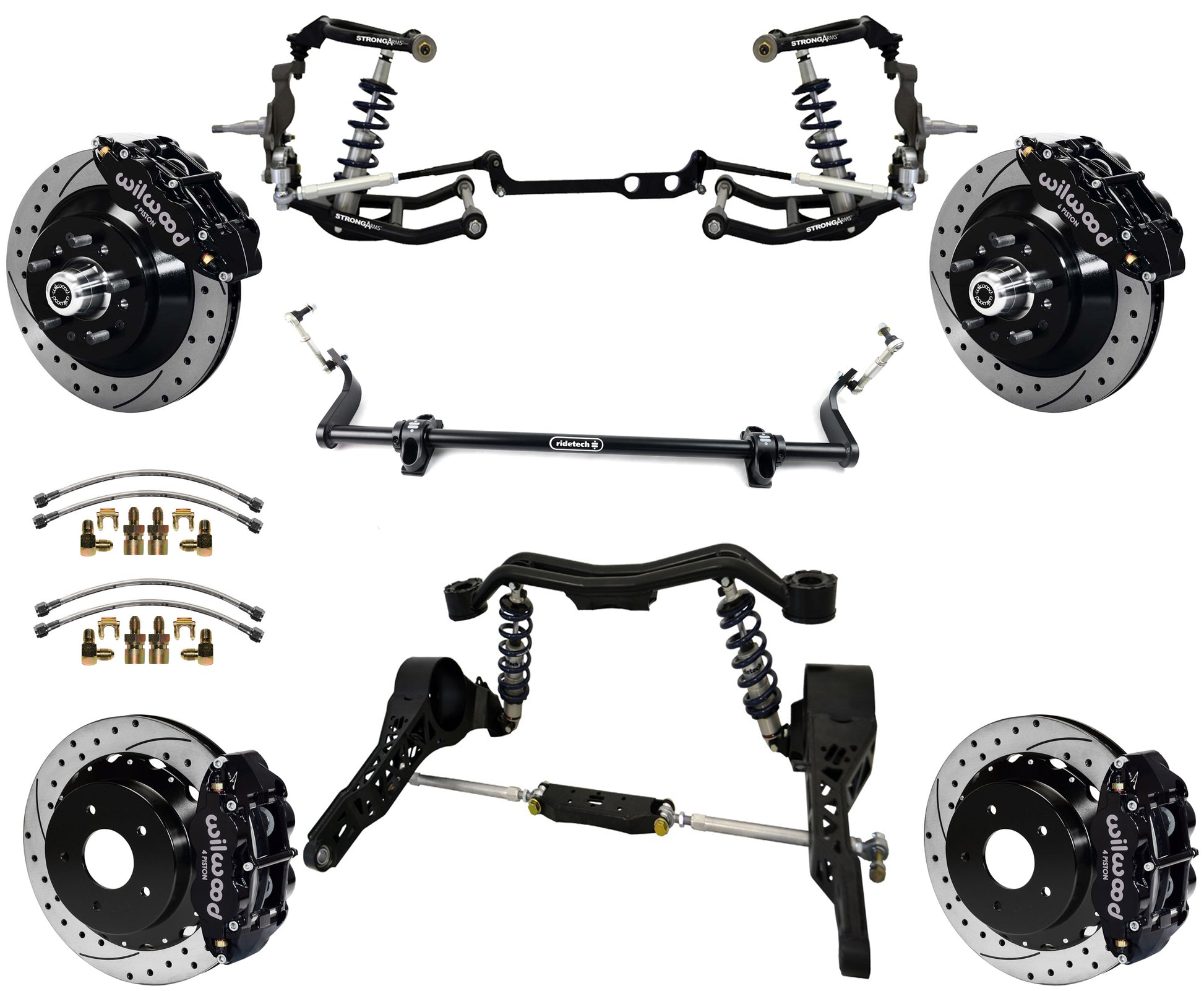

Brand New Ridetech Coilover System and Wilwood Disc Brake Kit, including Control Arms, Spindles, Steering Arms, Drag Link, Tie Rod Linkage, MuscleBar Front Sway Bar, 13" Drilled Rotors, Black Brake Calipers, Brake Lines, and more (Part #11530202-33).

The RideTech CoilOver System for the C2/C3 Corvette includes everything you need to make your vintage Corvette handle like a new Corvette. The package contains front upper and lower control arms, tall spindles, billet steering arms, inner & outer tie rods, front MuscleBar, rear trailing arms and 4 HQ Series CoilOvers for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

Ridetech System Includes:

• Front TruTurn System with Spindles, Steering Arm, Drag Link, and Tie Rod Linkage:
  • The TruTurn System includes tall spindles which induce more negative camber gain to maximize tire contact patch during cornering. It also include billet aluminum steering arms, center link adapter, tie rods and adjusters to virtually eliminate bumpsteer, correct Ackerman angle and allow for wider tires. The brakes in this kit are specifically designed for use with these spindles.
• Front Upper StrongArm Control Arms:
  • The Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
• Front Lower StrongArm Control Arms:
  • Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

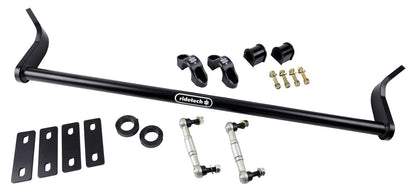

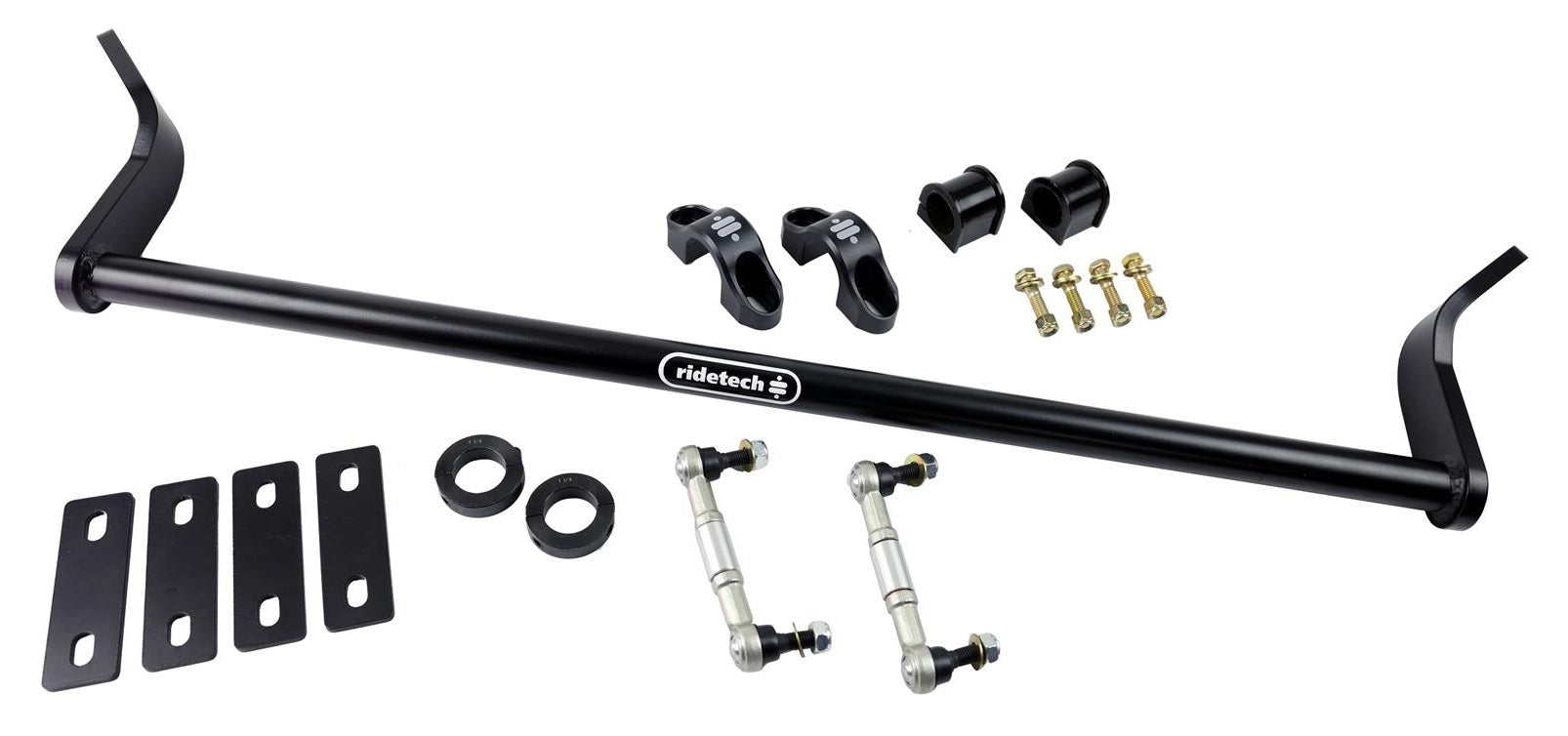

• Front MuscleBar Sway Bar:
  • Let’s face it…the most overlooked suspension component is also one of the most important. The magic you could be missing in your suspension may be nothing more than simply adding or upgrading your sway bar! RideTech has upgraded the traditional notion of sway bars with their MuscleBar. Using precision CNC tubing benders, investment cast steel bar ends, and Delrin lined mount bushings, Ridetech produces sway bars with unheard of dimensional and rate accuracy.
  • Precision CNC-bent tubing for accurate and repeatable fitment
  • Exact bar rates included with each bar
  • Delrin-lined frame mount bushings allow easy and predictable rotation over the stiction of polyurethane or rubber
  • Investment cast steel bar ends offer performance and appearance improvements over the traditional manufacturing
  • Easy installation spherical end links with barrel lock nuts
  • Compatible with OE manual steering, OE power steering, and aftermarket power steering conversions
• Front HQ Series Adjustable Coilovers:
  • With the HQ Series of Coilovers, you'll get high performance handling, exceptional ride quality and the ability to adjust your car's ride height. The Ridetech CoilOvers feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. With large 1.834" pistons, heavy-duty 5/8" shafts, and impact forged bodies, HQ Series CoilOvers are built to perform and made to last. They're backed by the Ridetech exclusive 1,000,001 mile warranty. Ridetech develops the shock calibrations and spring rates through thousands of cross-country test miles, on their exclusive test track and at competition events from coast to coast.
• Rear HQ Series Adjustable Coilovers:
  • These Rear CoilOvers are designed to provide the optimal ride quality and ease of installation. Ridetech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new Ridetech CoilOvers.
  • Monotube gas pressure design offers superior fade free performance
  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834" piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8" chrome shock shaft
  • Anodized finish protects against corrosion
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2" bore x 1" aramid composite lined bearings for noise free operation
• Rear StrongArm Package
  • The Rear StrongArms are offset for increased tire clearance and are fabricated into a truss design for maximium strength and minimum weight. They feature Teflon lined bearings at the front mounting point to reduce stiction and roll bind. Also incorporated is the adjustable coilover mount, conveniently locating them behind the axle for easy adjustments. The upper coilover crossmember simply bolts in place of the stock cross member. The strut rods are outfitting with R-Joint rod ends to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
  • Lowers vehicle ride height
  • Mounting hardware to maintain ground & tire clearance, driveline angles, and load capacities
  • Bolt-on installation (no fabrication required)
  • Greatly improved handling performance
  • Ultimate ride qualityd

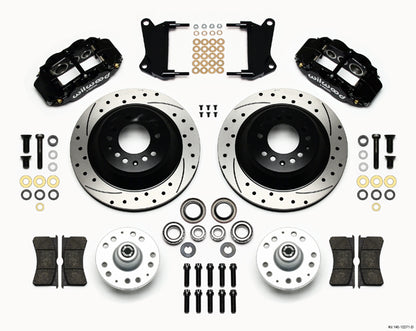

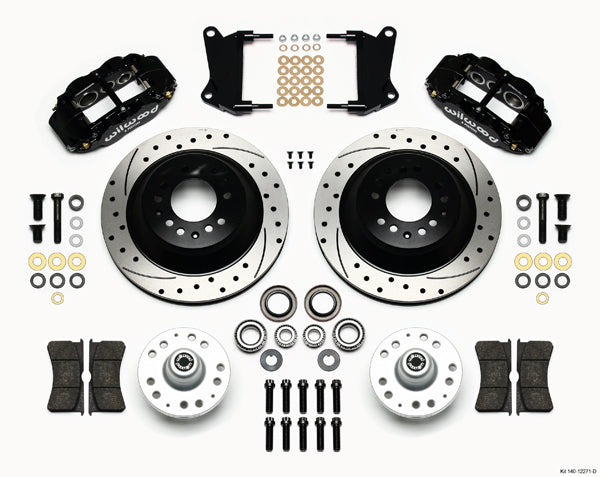

• Wilwood Front Disc Brake Kit with 12.90" Drilled Rotors and Black Calipers (140-12271-D):
  • Forged Narrow Superlite 6 piston calipers with 12.90" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. They are engineered application specific for simplified installation and full compatibility.
  • These Big Brake kits require at least 17" wheels.
  • Kit includes parts for both front wheels:
    • Drilled & Slotted, 1.10" Thick x 12.90" O.D. Rotors
    • Forged Narrow Superlite 6 Piston Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels

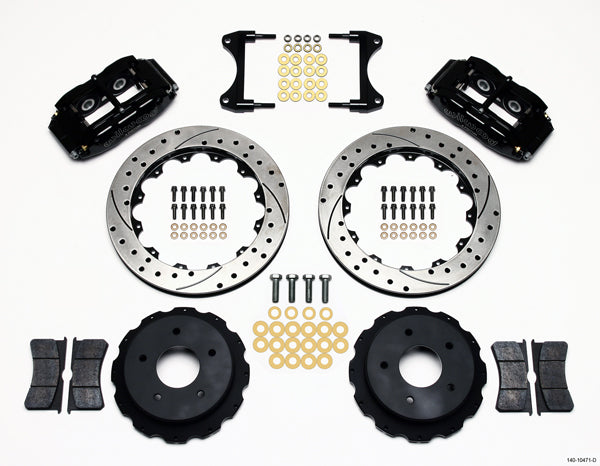

• Wilwood Rear Disc Brake Kit with 12.90" Drilled Rotors and Black Calipers (140-10471-D):
  • Forged Narrow Superlite 4 piston rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake. Forged Superlite four-piston calipers 12.90" rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • Drilled & Slotted, 1.10" Thick x 12.90" O.D. Rotors
    • Forged Narrow Superlite 4 Piston Calipers - Black
    • Caliper Mounting Brackets
    • Hats
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

Fits:

• Chevrolet:
  • 1965-1979 Corvette

• You can view and download the complete assembly instruction booklets here for the Ridetech Kit, Wilwood Front Kit, and Wilwood Rear Kit.
