AIR SUSPENSION SYSTEM,ARMS,99-06 TRUCKS

AIR SUSPENSION SYSTEM,ARMS,99-06 TRUCKS

RDT 11380297

$7,350.00
$7,350.00
View full details

Brand New Ridetech Complete Air Suspension System (Part #11380297).

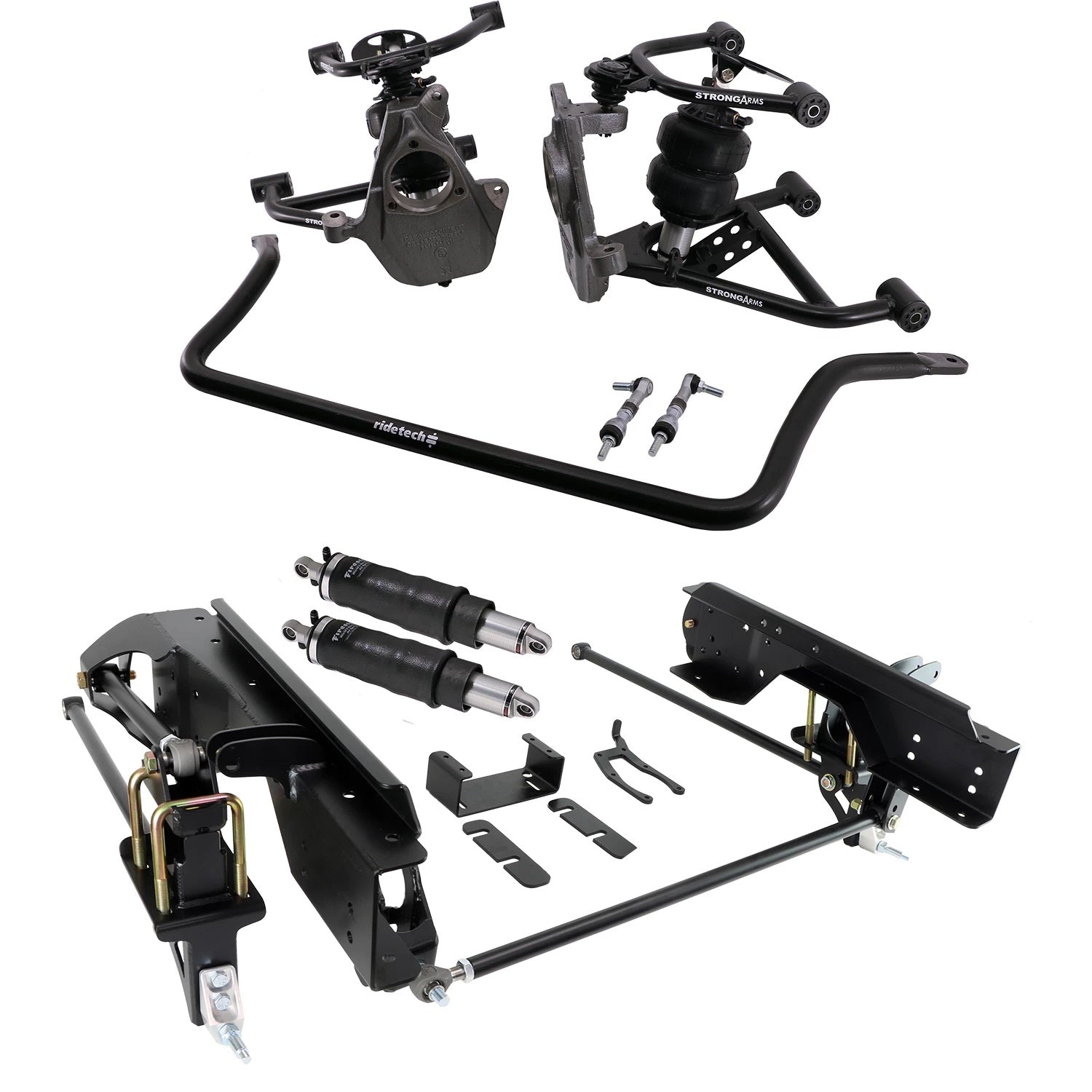

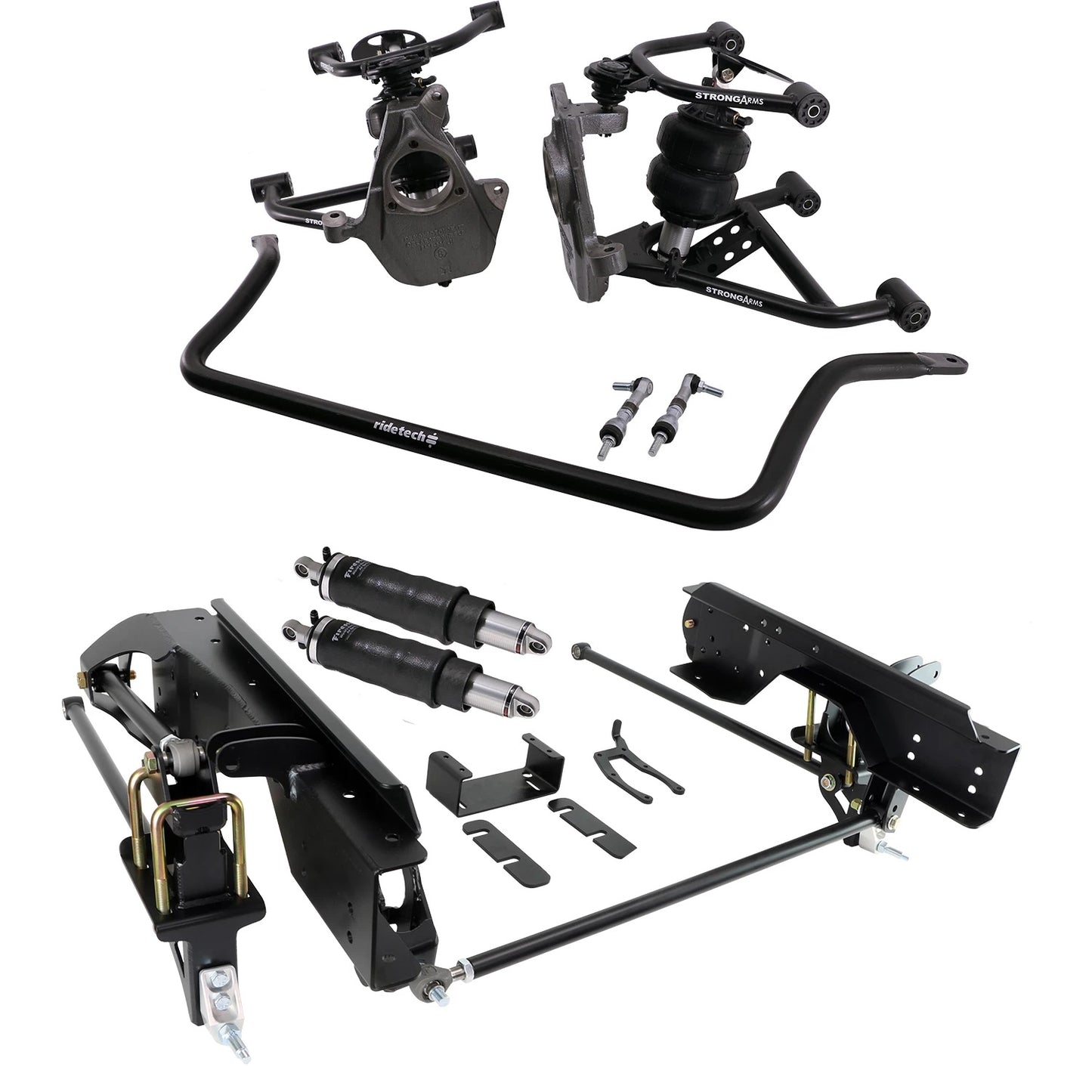

Air Suspension System for 1999-2006 Silverado & Sierra 1500 2WD.  (2007 Classic).  Includes front & rear HQ Series Shockwaves, front upper & lower StrongArms, Bolt-On 4 Link, drop spindles, and front sway bar. Designed to lower your vehicle and improve handling and ride quality. Offers a ride height that is approximately 4″ lower than stock in the front and 6″ in the rear.   Fully deflated will net an additional 3″ drop.

Fits:

  • Chevrolet:
    • 1999-2006 Silverado 1500 2WD
    • 2007 Silverado 1500 Classic 2WD
  • GMC:
    • 1999-2006 Sierra 1500 2WD
    • 2007 Sierra 1500 Classic 2WD

Note:

  • Not compatible with trucks equipped with factory torsion bar front suspension.

Includes:

  • Front and Rear HQ Series Shockwaves
  • Front Upper and Lower Control Arms
  • Front Sway Bar
  • Drop Spindles
  • Bolt On 4-Link
  • Mounting Hardware

Features:

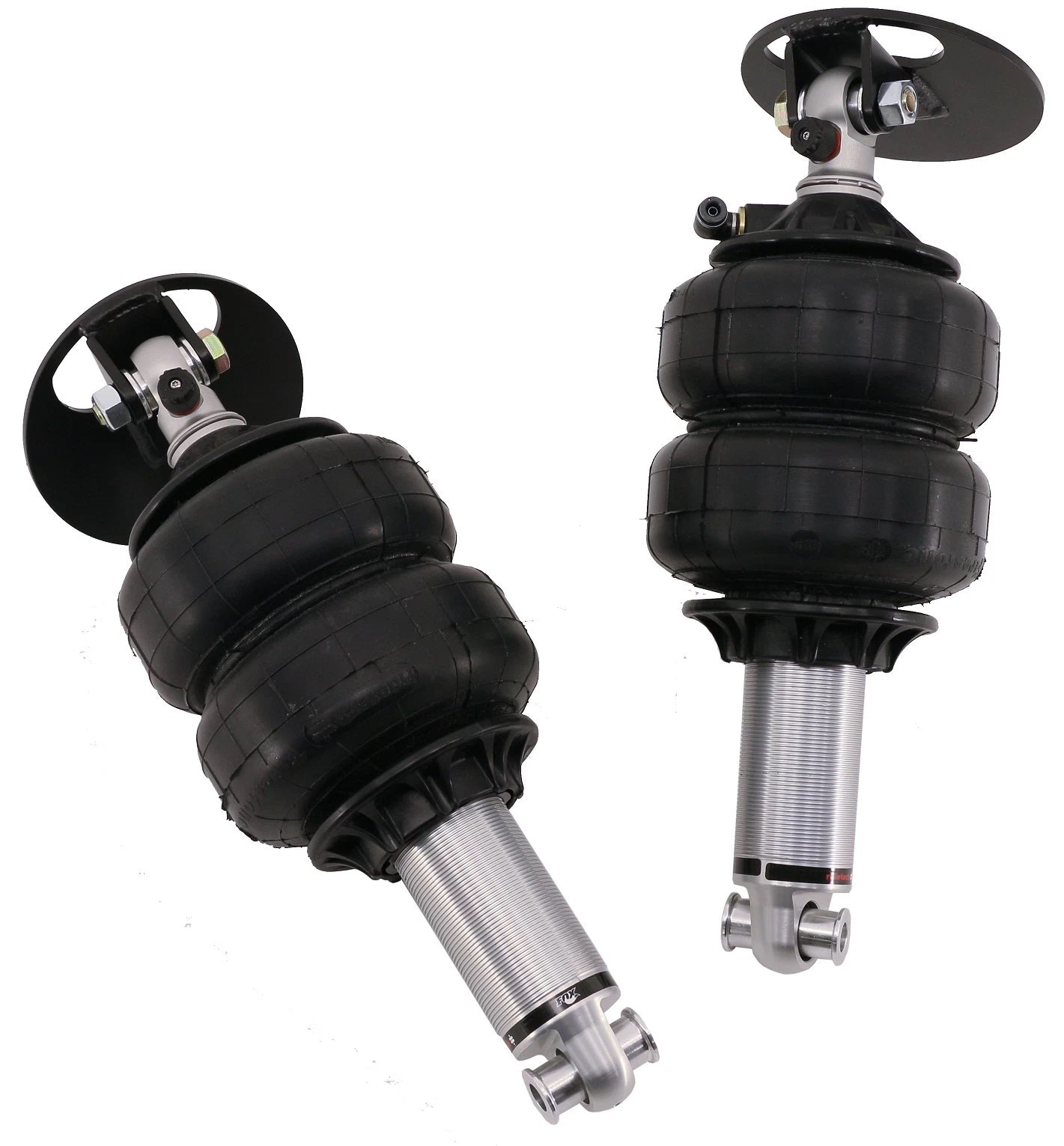

  • HQ Series Shockwaves:
    • Utilizes an impact forged aluminum body and monotube design.
    • They allow fine tuning of the ride quality and handling.
    • Includes a rebound knob that is located at the top of the air shock for easy adjustments.

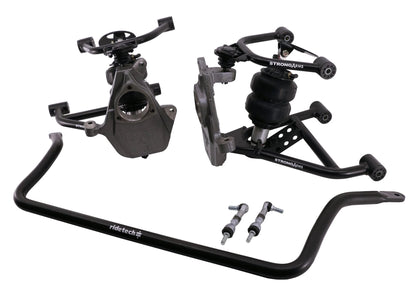

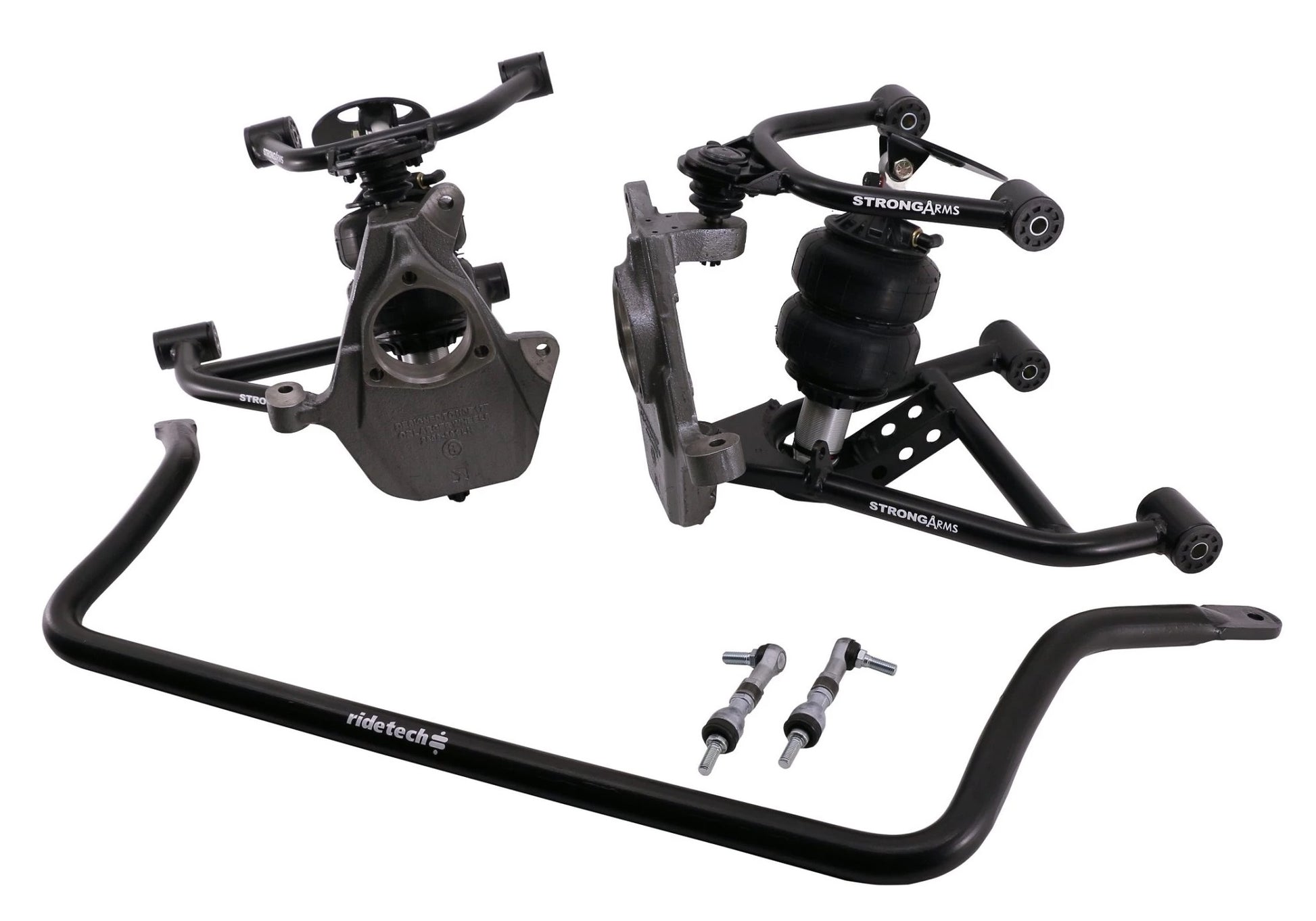

  • Upper Front StrongArms:
    • Feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
    • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

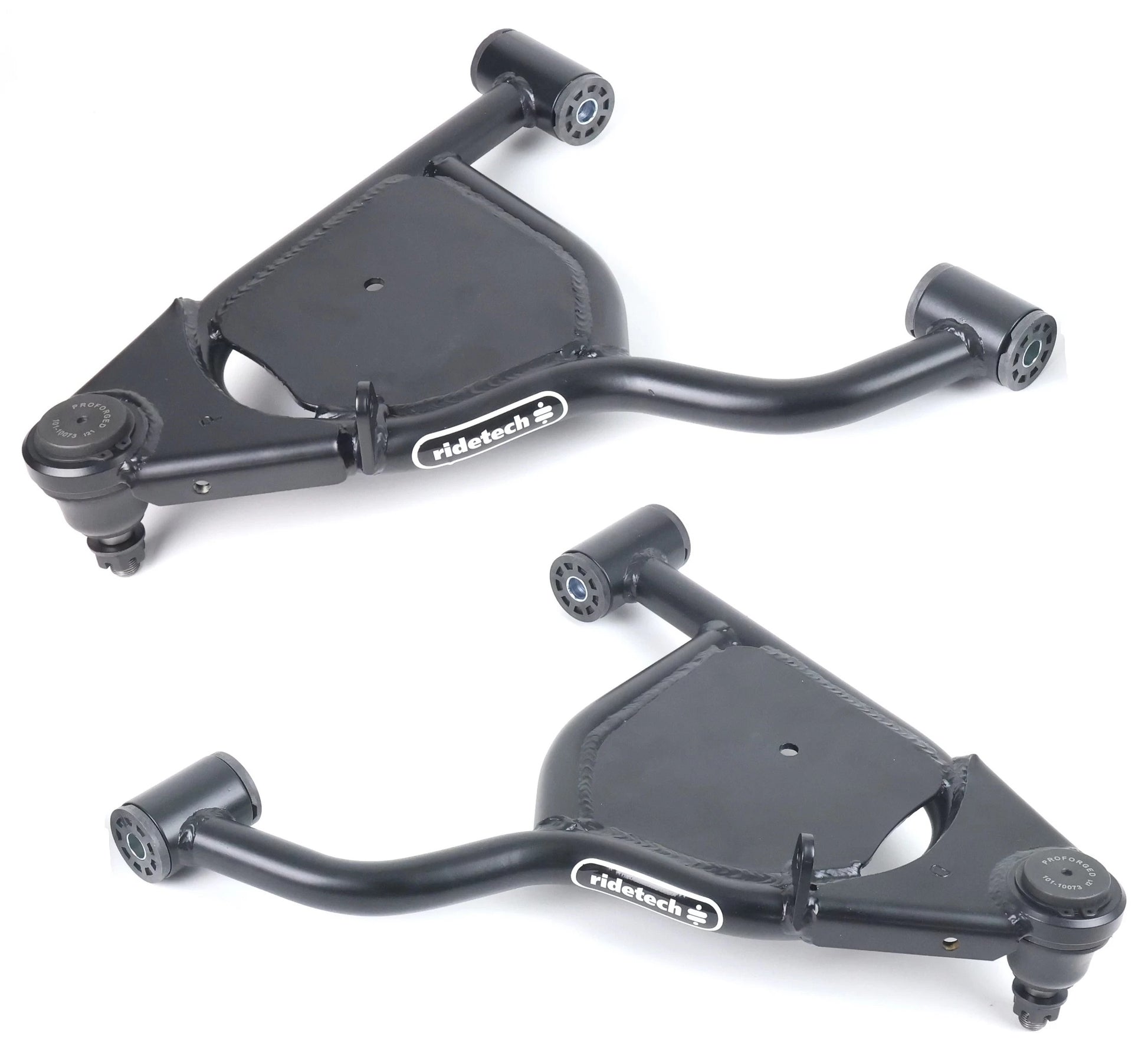

  • Lower Front StrongArms:
    • Features a double sheer lower mount for increased strength.
    • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
  • Front Sway Bar:
    • Helps reduce body roll and creates room for wider front tires with an adjustable rate.
    • Include billet aluminum mounts (anodized black) and low friction bushings.
  • Drop Spindles:
    • Designed to use a longer stroke shock.
    • Improve suspension geometry and bump steer.
    • Fits 17″ or larger wheels.

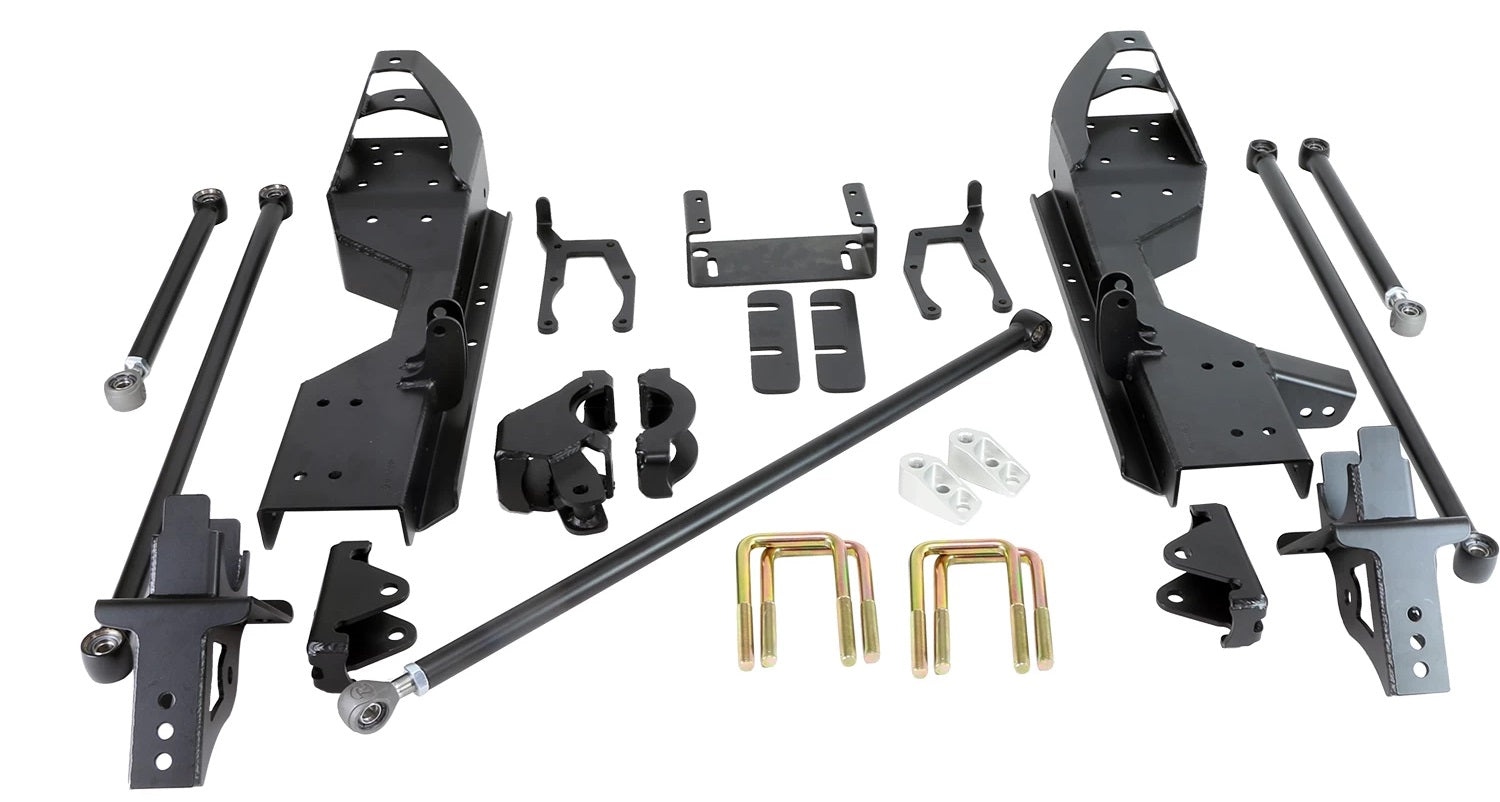

  • Bolt On 4-Link:
    • Greatly improves traction, handling and ride quality.
    • The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one bearing

You can view and download the assembly instruction booklet here and here.
