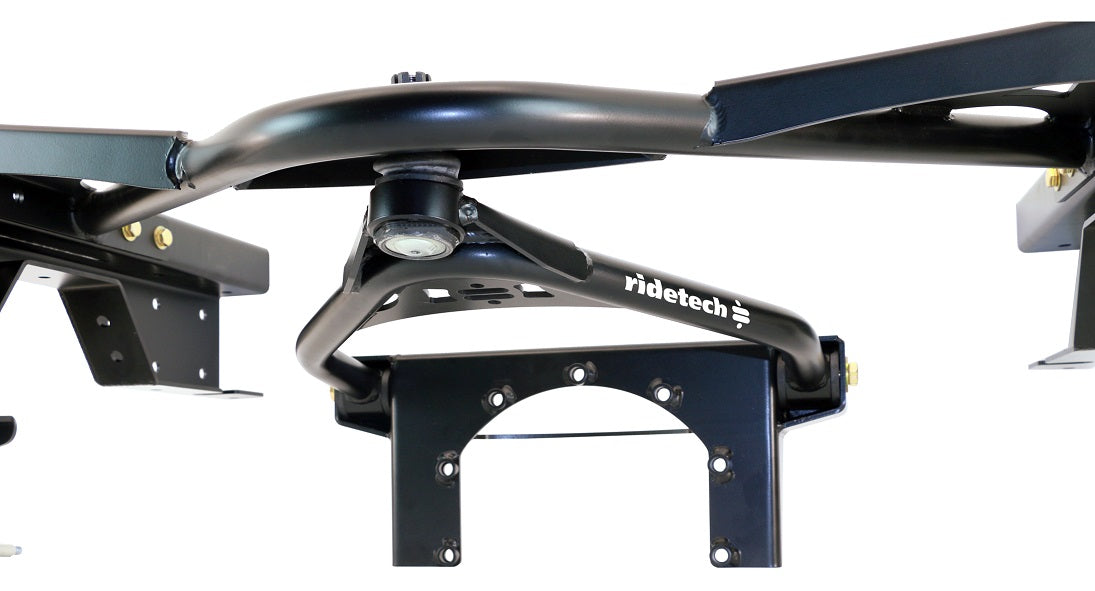

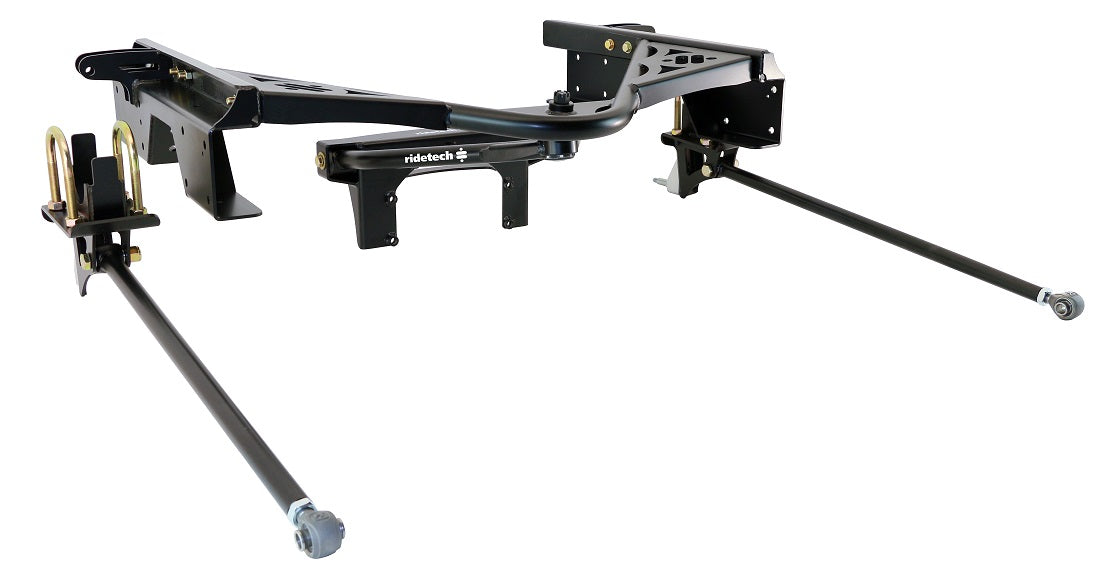

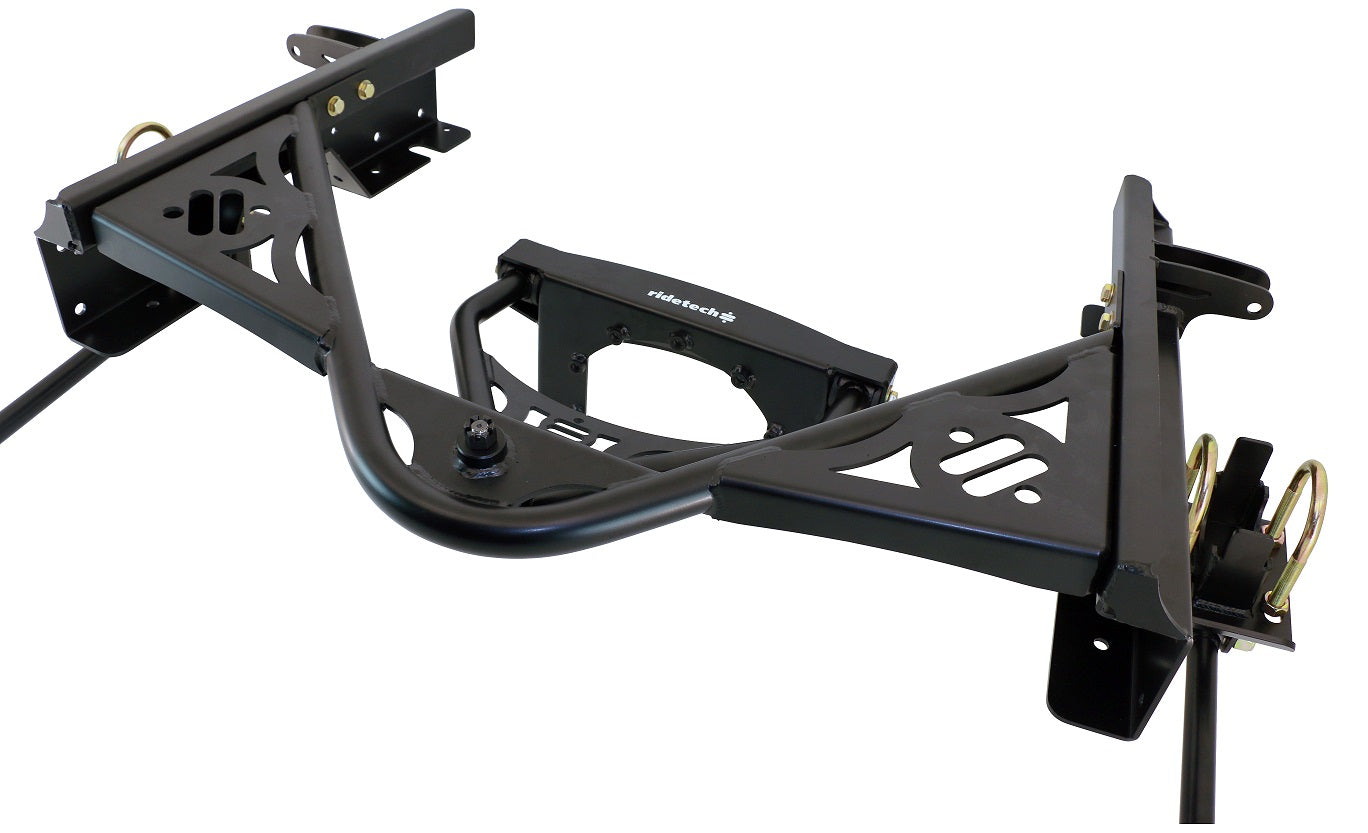

BOLT-ON WISHBONE SYSTEM,88-98 C1500

Brand New Ridetech Bolt-On Wishbone System. This kit fits 1988-1998 Chevrolet & GMC C1500 Trucks with 10-Bolt Rear End (Part #11377199).

The Bolt-On Wishbone System for 1988-1998 C1500 (OBS) replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for Shockwaves or Coil-Overs. DOM lower bars, upper wishbone and mounting brackets eliminate springs wrap which leads to wheel hop.  Corrected anti-squat provides excellent traction and a low roll center minimizes body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The heavy-duty C-notches are included with the kit and fit the frame rail.  All fabricated components are powder coated satin black. Compatible with all cab and bed configurations.

Compatible with:

• Chevrolet:
  • 1988-1998 C1500 Trucks with 10 Bolt Rear End
• GMC:
  • 1988-1998 C1500 Trucks with 10 Bolt Rear End

Features:

• Lower ride height approximately 6″ (additional 3″ with air suspension)

• Eliminated spring wrap/wheel hop

• Increased compression travel with heavy-duty C-notch

• Optimized roll center height for confident cornering

• Adjustable panhard bar with R-Joint rod ends

• Correct pinion angle to eliminate driveline vibration

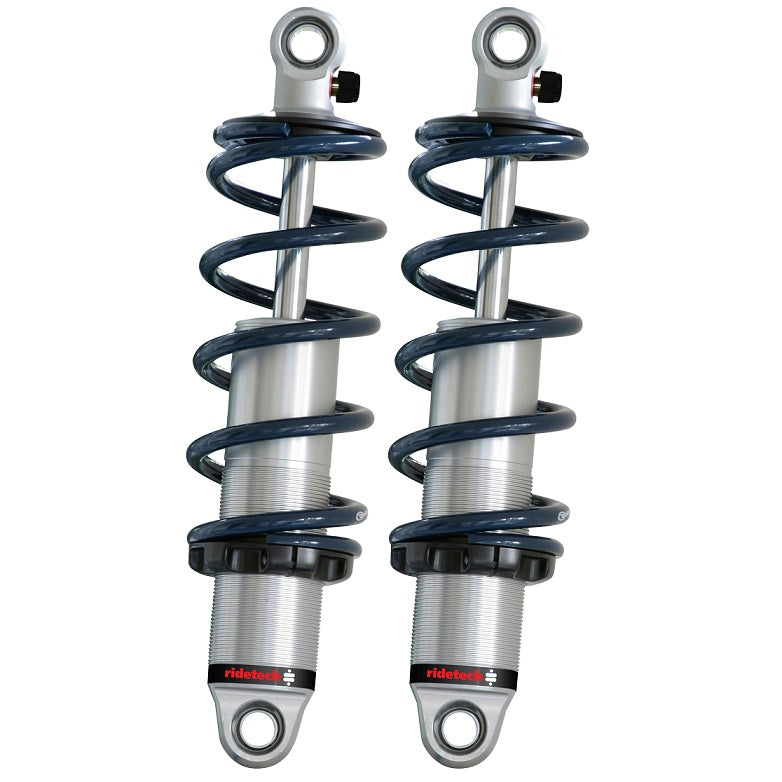

• Designed for use with Coil-Overs or ShockWave air suspension (sold separately)

You can view and download the dimension/instruction booklet here and here.
