COILOVER SYSTEM,WILWOOD 12" DRILL,RED,88-98 C1500 TRUCK

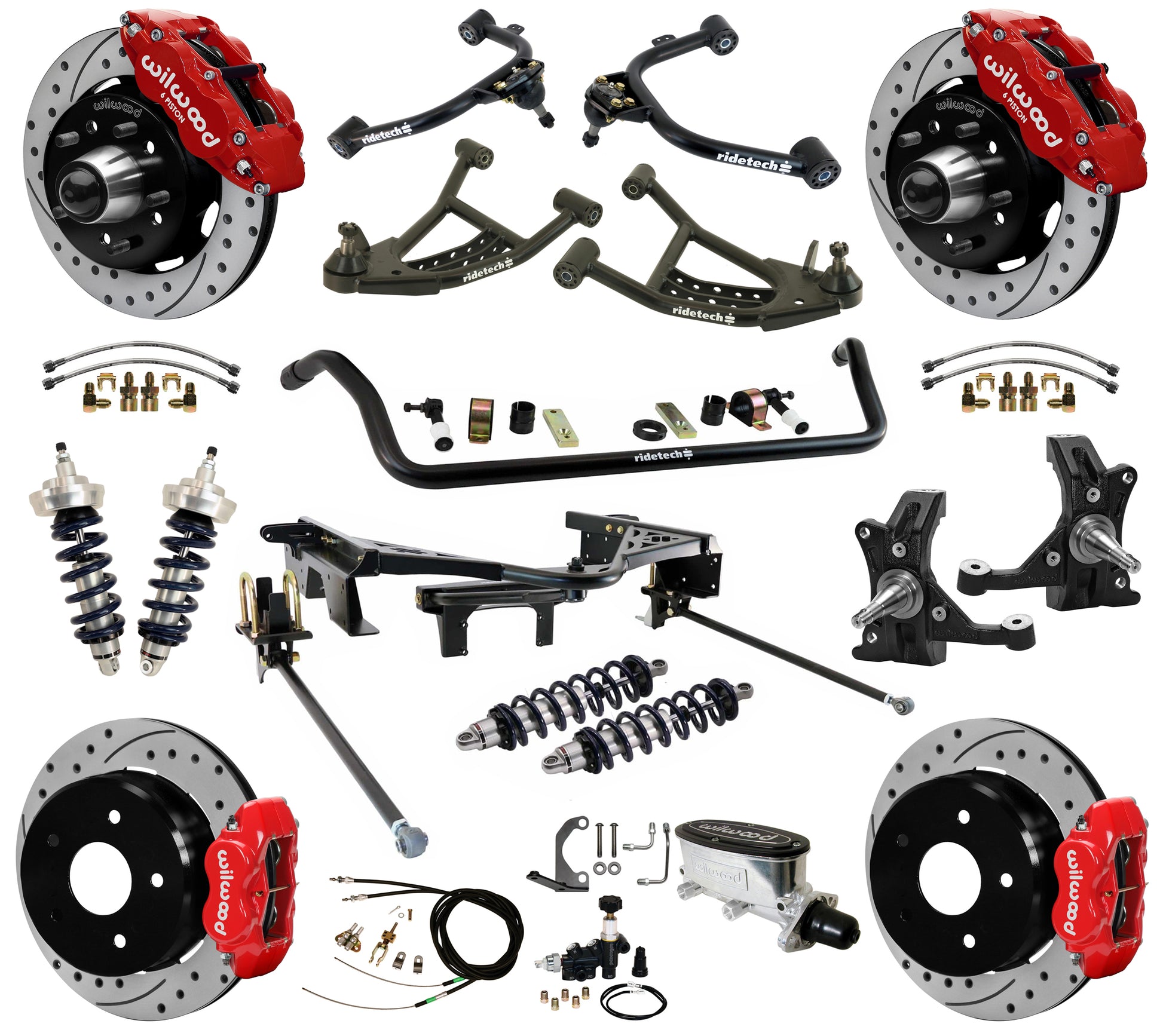

Brand New Ridetech Coilover System and Wilwood Disc Brake Kit, including Front Upper & Lower StrongArms, Front & Rear Coilovers, Front MuscleBar Sway Bar, Rear Wishbone System, 2" Drop Spindles, 12" Front & Rear Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11370211-24).

Specifically designed for the 1988-1998 Chevrolet and GMC C1500 Truck and includes everything needed to create modern driveability with an aggressive stance. The package contains front upper and lower StrongArm tubular A-arms, front and rear HQ Series coil-over shocks, front sway bar, HD drop spindles, and rear Wishbone with integrated C-Notches. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.

Note: After purchase you'll be contacted to find out if you have a Standard 10 Bolt differential or a 454SS 14 Bolt differential.

Note: Ride height is approximately 4in lower than stock in the front and 6in in the rear. Coil-overs add adjustability for rebound and ride height.

Features:

• Upper StrongArms:
  • A-arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Also includes integrated brake line mounting brackets.
• Lower StrongArms:
  • A-arms feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Also included are quality ball joints for a completely bolt-on experience.
• Front HQ Series Coilovers:
  • Includes bolt-on upper shock mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a mono tube design, are rebound adjustable, and come with a 1,000,001 Mile Warranty.
• Front MuscleBar Sway Bar:
  • Included to reduce body roll and includes the delrin liners to minimize suspension bind.
• Bolt-On Rear Wishbone System:
• Greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor.

• Includes patent-pending R-Joint rod ends to eliminate binding and noise.

• Wishbone upper link rather than panhard bar for zero lateral movement during suspension travel allowing extremely tight wheel/tire fitment.

• Optimized anti-squat, instant center and pinion angle migration for dramatic improvements in handling and traction.

• Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.

• Designed for simple installation with minimal OEM rivet removal.

• Compatible with all cab size and bed length configurations

• Rear HQ Series Coilovers:
• Direct bolt on and allow for easy adjustment. The aluminum body shocks are a mono tube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.
• Wilwood 2" Drop Pro Spindles (Part #831-15933):
• Wilwood's C1500 Steel ProSpindle Kits contain a pair of one piece spindles and integrated steering arms for Chevrolet & GMC 2WD C1500 Pickups, Tahoes/Yukons and Suburbans. Specifically designed for use with Wilwood's disc brake kits and with a 2.00” drop without affecting steering geometry. Constructed from a proprietary grade of cast steel with a traditional bearing snout that supports Wilwood kit specific hubs in both 5 x 4.75” and 5 x 5.00” wheel bolt circles.
• Wilwood Front Disc Brake Kit with 12.19" Drilled Rotors and Red Calipers (Part #140-15948-DR):
  • The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 12.19” big rotor kit for the popular 1988 thru 1998 Chevrolet & GMC C1500 Trucks using Wilwood's new 1 Piece Iron Drop Pro Spindles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with 5 x 4.75” and 5 x 5.00” bolt circle.
  • These Brake kits require at least 16" diameter wheels.
  • Kit includes parts for both front wheels:
    • Drilled & Slotted, 1.10" Thick x 12.19" O.D. Rotors & Hats
    • Forged Narrow Superlite 6R 6 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals
    • All necessary hardware to install the complete braking system on both front wheels

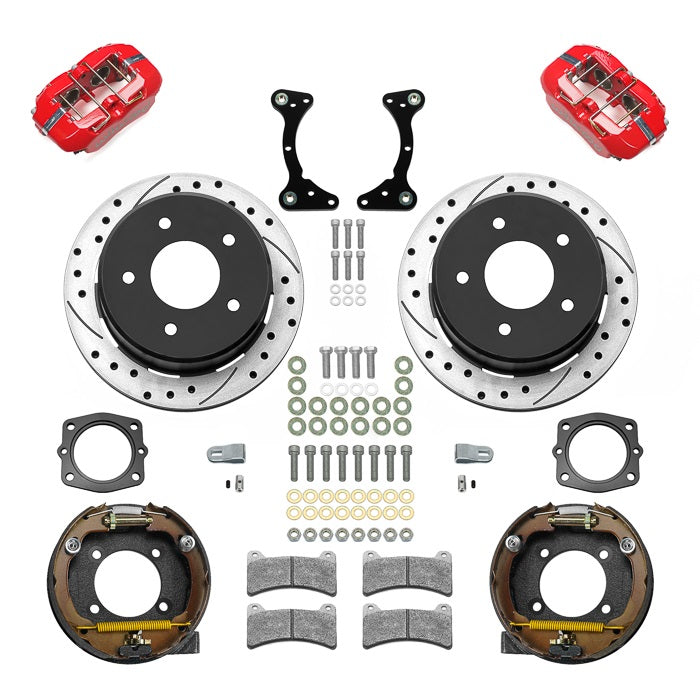

• Wilwood Rear Disc Brake Kit with 12.19" Drilled Rotors and Red Calipers (Part #140-17541-DR):
  • This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
  • Kit includes parts for both rear wheels:
    • Drilled & Slotted, .810" Thick x 12.19" O.D. Rotors
    • Forged Dynalite 4 Piston Calipers - Red
    • Caliper Mounting Brackets
    • Drum Parking Brake Assemblies
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Front & Rear Flexline Kits:
  • Steel braided brake lines, caliper fittings, and chassis fittings to connect the calipers to the hard lines
  • Also includes weld-on line tabs to install on your rear end
• Rear Parking Brake Cable Kit:
  • Connects to the Wilwood Parking Brake Assemblies, then comes together to join the stock cable behind the transmission
• Wilwood Polished Master Cylinder & Proportioning Valve Set:
  • Polished Tandem Chamber Master Cylinder:
    • 1" Bore cylinder
    • Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. The exclusive Wilwood features incorporated in this innovative and unique new design make it the perfect choice for a wide range of custom manual or power brake applications.
    • High-pressure die casting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A black anodized, machined billet lid captures a pressure balanced bellows gasket with 100% sealing against moisture invasion or fluid leakage.
    • Each master cylinder is configured with full separation between the front and rear reservoir chambers and fluid outlets. There is pressure access on both sides of the piston bore for right or left hand plumbing based on mount location. A total piston stroke of 1.10" is distributed at a 2:1 volume ratio between the primary and secondary chambers.
    • Diagram shown at the bottom
  • Adjustable Combination Proportioning Valve:
    • Simplifies mounting, fluid circuit plumbing, brake light wiring, and brake bias adjustments on modified, custom built, or competition vehicles equipped with brake system upgrades
    • Maintains full separation between the front and rear fluid circuits
    • Bias proportioning adjustment is provided in the rear fluid circuit
    • The front circuit has a single inlet and two outlets for optional line routing
    • A fluid port with a pressure switch responds instantly to pressure in the front fluid circuit for brake light activation. A wiring pigtail with a protective boot is included with the switch
    • Diagram shown at the bottom
  • Stainless Steel Fluid Tubes:
    • Precision bent with preinstalled stainless tube nuts for a simple bolt-on installation
  • Mounting Bracket:
    • Black e-coating will give years of durable, rust-free performance
  • Stainless Steel Button Head Bolts
