AIR RIDE SUSPENSION,WILWOOD 13" BRAKES,BLACK,73-87 C10

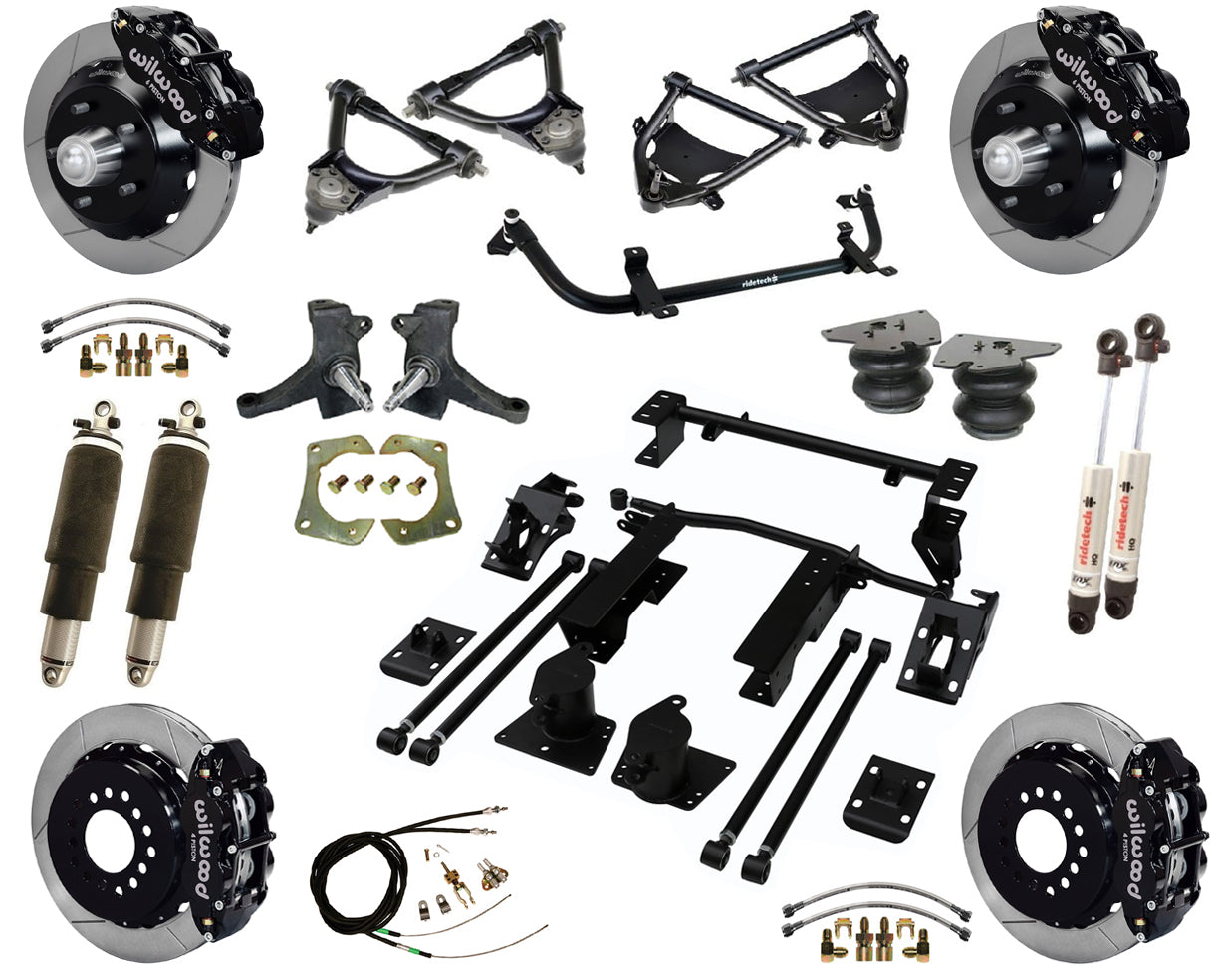

Brand New Ridetech Air Ride Suspension System and Wilwood Disc Brake Kit, including Front Control Arms, Drop Spindles, MuscleBar Front Sway Bar, Bolt-On Rear 4 Link System, 13" Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11360297-35).

This Air Suspension System is specifically designed for the 1973-1987 Chevrolet and GMC C10 Truck and includes everything needed to create modern drivability with an ultra-low show stance. The package contains front upper and lower control arms, 2.5″ drop spindles, front air springs with adjustable shocks, front sway bar, rear 4 Link with C-Notch, an adjustable panhard bar and HQ Series rear Shockwaves. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

We offer kits that have even more items than this, including Currie 9" Ford Rear Ends, etc. Scroll to the bottom to the "Also Available" section to see everything we have in stock and ready to ship to you today.

NOTE: Does not include air compressor.

NOTE: Compatible with all cab and bed configurations. Rear kit does NOT fit a Blazer.

Complete System Includes:

• 2.5" Drop Spindles:
  • Allows lowered stance while maintaining suspension travel. The modular design allows for variety of brake options including Wilwood (1.25″ wide rotors).
• Upper & Lower Tubular Control Arms:
  • Feature corrected ball joint angles and increased caster to improve high speed stability and steering feel. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. They are powder coated black and fully assembled with ball joints, bushings and cross shafts, ready for installation.
• Front MuscleBar Sway Bar:
  • Manufactured from massive 1.5″ x .250″ wall tubing to minimize body roll and includes billet aluminum frame straps (anodized black) and low friction bushings.
• Front CoolRide Air Springs:
  • includes HQ series rebound adjustable shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a monotube design, are rebound adjustable with 21 steps of adjustment.
• HQ Series Shockwaves:
  • Utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access.
• Bolt-On Rear 4 Link System:
  • Replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for the rear Shockwaves. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been located to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to minimize body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The C-notches are included with the kit and FIT the frame rail.
• Wilwood Front Disc Brake Kit with 13" Rotors and Black Calipers (140-10775):
  • Forged Narrow Superlite 6 piston calipers with 13.06" diameter, 2 piece rotor and hat kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. They are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big Brake kits provide increased brake capacity and complimentary style with with wheel, tire, and suspension upgrades.
  • These Brake kits require at least 17" diameter wheels.
  • Kit includes parts for both front wheels:
    • 1.25" Thick x 13.06" O.D. Rotors
    • Forged Narrow Superlite 6 Piston Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hats, Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 13" Rotors and Black Calipers (140-10093):
  • Forged Narrow Superlite 4 piston rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake. Forged Superlite four-piston calipers 12.90" rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • 1.10" Thick x 12.90" O.D. Rotors with Hats
    • Forged Narrow Superlite 4 Piston Calipers - Black
    • Drum Parking Brake Assemblies
    • Caliper Mounting Brackets
    • Hats
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission


Fits:

• Chevrolet:
  • 1973-1986 C10
  • 1987 R10
• GMC:
  • 1973-1986 C15/C1500
  • 1987 R1500

You can view and download the complete assembly instruction booklet for the Ridetech kit here, the front brake kit here, and the rear brake kit here.
