AIR SUSPENSION SYSTEM,ARMS,63-70 C10

BRAND NEW RIDETECH AIR SUSPENSION SYSTEM, FITS 1963-1970 CHEVROLET C10 & GMC C15 TRUCKS

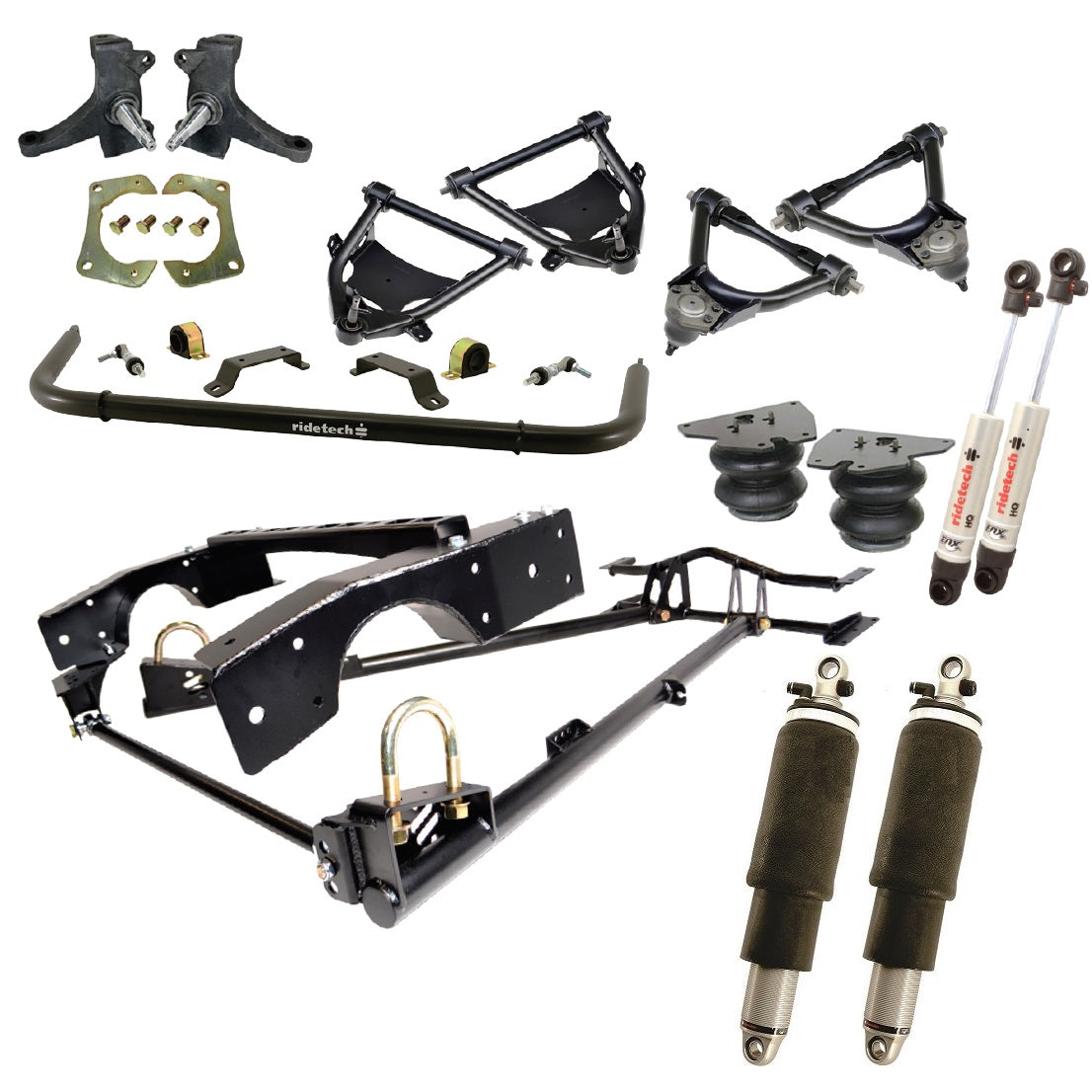

THIS AIR SUSPENSION SYSTEM IS SPECIFICALLY DESIGNED FOR 1963-1970 CHEVROLET C10 & GMC C15 TRUCKS AND INCLUDES EVERYTHING NEEDED TO CREATE MODERN DRIVEABILITY WITH AN ULTRA LOW SHOW STANCE. THE PACKAGE CONTAINS FRONT UPPER AND LOWER CONTROL ARMS, 2.5" DROP SPINDLES, FRONT AIR SPRINGS WITH ADJUSTABLE SHOCKS, FRONT SWAY BAR, REAR STRONGARMS WITH C-NOTCHES, AN ADJUSTABLE PANHARD BAR AND HQ SERIES REAR SHOCKWAVES. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION.

NOTE:

• AIR COMPRESSOR SYSTEM NOT INCLUDED

FITS:

• 1963-1970 CHEVROLET C10 & GMC C15 TRUCKS

FEATURES:

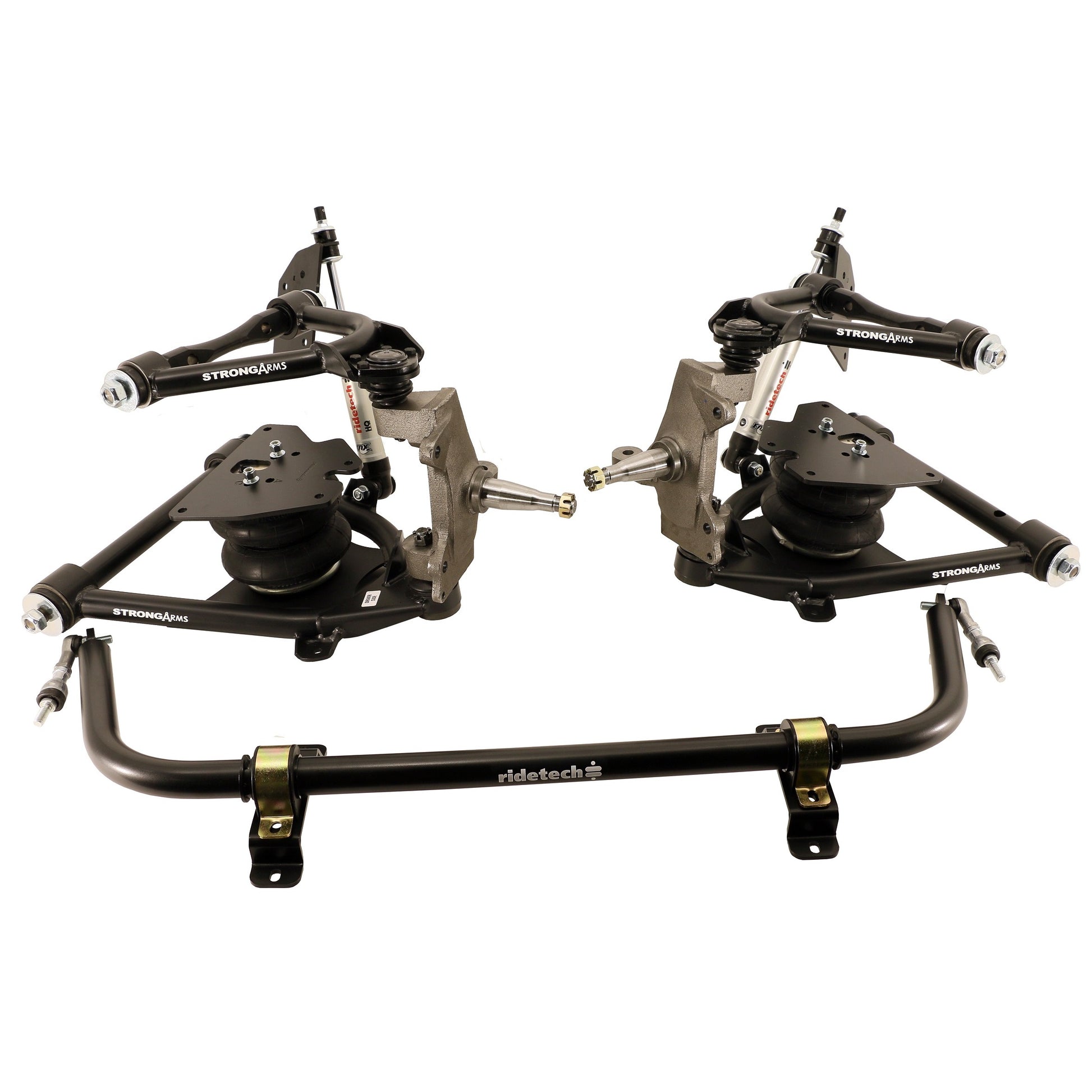

• 2.5" DROP SPINDLES: ALLOWS A LOWERED STANCE WHILE MAINTAINING SUSPENSION TRAVEL. MODULAR DESIGN ALLOWS FOR VARIETY OF BRAKE OPTIONS INCLUDING BAER, WILWOOD OR STOCK HD BRAKES (1.25" WIDE ROTORS).
• UPPER & LOWER STRONGARMS: CORRECTED BALL JOINT ANGLES & INCREASED CASTER TO IMPROVE HIGH SPEED STABILITY & STEERING FEEL. POWDER-COATED BLACK & FULLY ASSEMBLED W/ BALL JOINTS, BUSHING & CROSS SHAFTS, READY FOR INSTALLATION.
• FRONT COOLRIDE & HQ SERIES SHOCKS: INCLUDES BOLT-ON UPPER SHOCKS MOUNTS TO ALLOW MORE GROUND CLEARANCE & MAX SUSPENSION TRAVEL. ALUMINUM BODY SHOCKS ARE A MONOTUBE DESIGN & ARE REBOUND ADJUSTABLE. COMES W/ A 1,000,001 MILE WARRANTY.

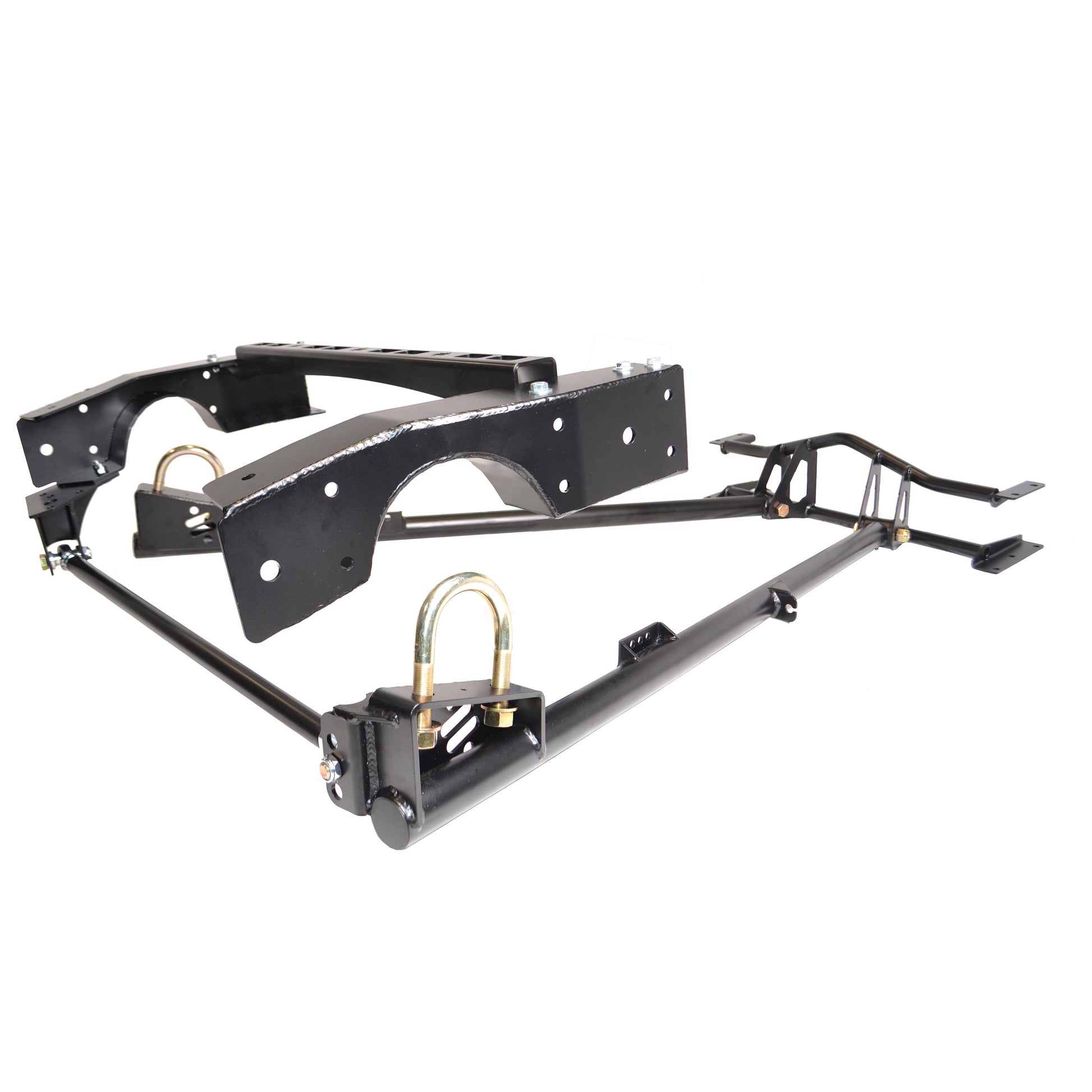

• REAR STRONGARM SYSTEM: FULLY BOLT-ON & PROVIDES MOUNTING FOR REAR SHOCKWAVES. FRONT TRAILING ARM CROSSMEMBER IS DESIGNED TO ALLOW EXHAUST TO BE RUN THROUGH IT RATHER THAN UNDER IT PROVIDING ADDITIONAL GROUND CLEARANCE. PANHARD IS ADJUSTABLE SO YOU CAN OPTIMIZE YOUR TIRE CLEARANCE AT NEW LOWERED HEIGHT & MOUNT HAS BEEN RELOCATED TO OPTIMIZE BAR LENGTH & ANGLE FOR LOWERED HEIGHT. THIS HELPS KEEP REAREND CENTERED IN TRUCK & LOWERS ROLL CENTER TO MINIMIZE BODY ROLL. R-JOINTS ON BOTH ENDS OF BAR. C-NOTCHES ARE INCLUDED W/ KIT & FIT FRAME RAIL. TRAILING ARMS OPTIMIZE DRIVELINE ANGLES FOR LOWERED STANCE & UTILIZE R-JOINT AT FRONT ATTACHMENT.
• HQ SERIES SHOCKWAVES: UTILIZE AN IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY & HANDLING. ALLOW FINE TUNING OF RIDE QUALITY & HANDLING REBOUND KNOB IS LOCATED AT TOP OF SHOCK FOR UNDER HOOD ACCESS. COMES W/ A 1,000,0001 MILE WARRANTY.
• FRONT MUSCLEBAR: HELPS REDUCE BODY ROLL & INCLUDES POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN CHASSIS & CONTROL ARMS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS SUSPENSION SYSTEM HERE AND THE C-NOTCH TEMPLATE HERE.
