AIR SUSPENSION SYSTEM,SHOCKWAVES,CONTROL ARMS,SWAY BARS,78-88 GM G-BODY

Brand New Ridetech HQ Series Air Suspension System. Fits 1978-1988 G-Body (Part #11320298).

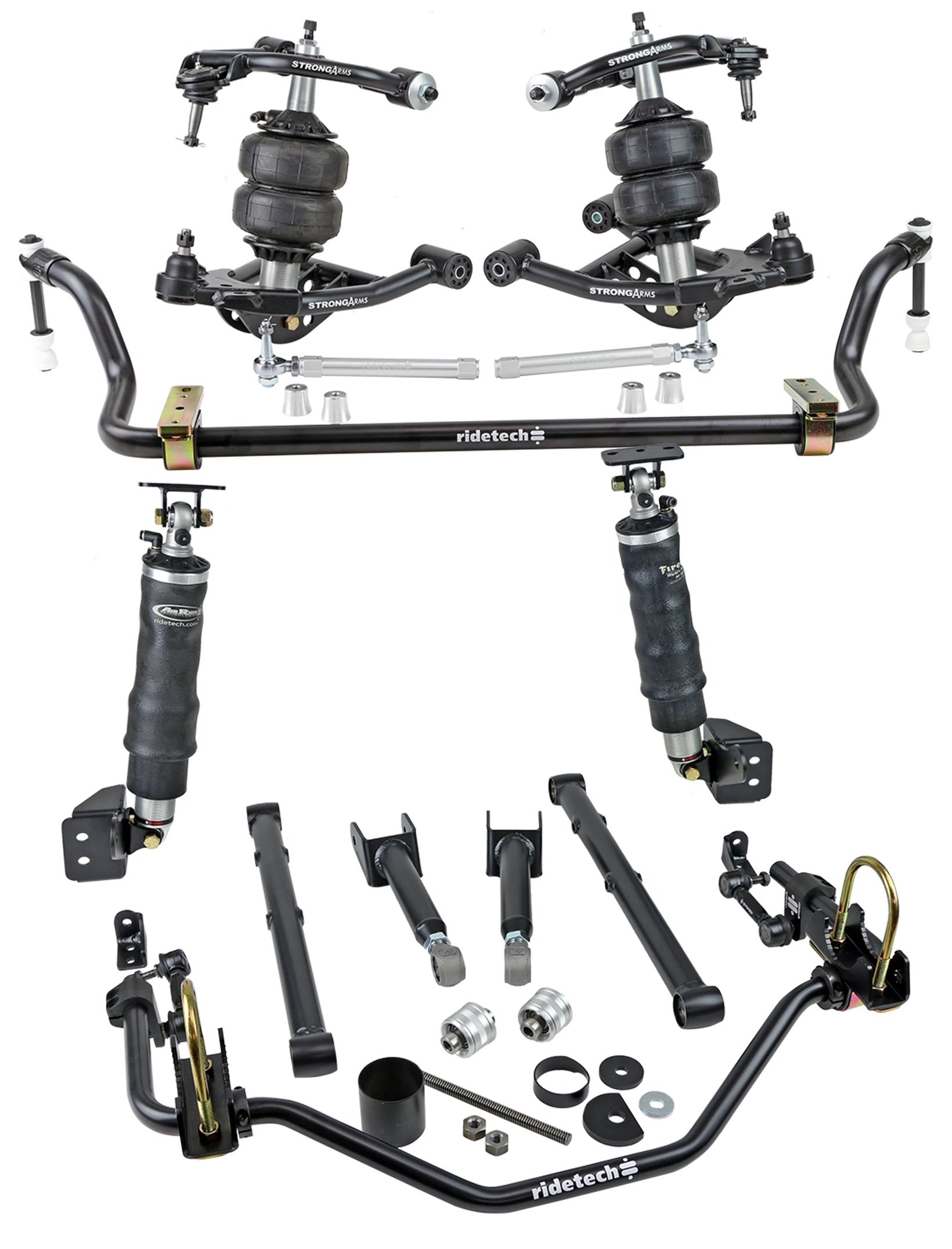

Air Suspension System with ShockWaves for 1978-1988 GM “G” Body cars including Monte Carlo, Regal, Cutlass, Grand Prix, Lemans, El Camino and variants. Includes front & rear HQ Series ShockWaves with integral rebound adjustable shock absorbers, front & rear StrongArm control arms and front & rear MUSCLEbars. This air ride system takes the guesswork out of choosing the correct air springs and suspension parts for proper handling and ride quality.  The heart of the system is Ridetech’s exclusive monotube shock absorber technology with 24-position rebound adjustment to help you fine tune for your driving preferences and vehicle demands. Advanced technology hides within the shocks. The monotube design features large 1.834″ pistons, heavy duty 5/8″ shafts, and impact-forged bodies. Based on more than 20 years of R&D, the air springs are correctly sized for Monte Carlo, Grand National, T-Type, 442, Hurst/Olds, El Camino and all G-body variants. All components are available separately as well.

NOTE: Does not include air compressor.

Fits:

• 1978-1988 GM "G" Body
• Buick:
  • 1978-1988 Regal
  • 1978-1988 Grand National
• Chevrolet:
  • 1978-1983 Malibu
  • 1978-1988 Monte Carlo
  • 1978-1987 El Camino
• Pontiac:

  • 1969-1972 Grand Prix

• Oldsmobile:
  • 1978-1988 Cutlass
  • 1978-1988 Cutlass Supreme

Features:

• Upper Strongarms:
  • Features tall ball joints to provide increased camber gain and the ball joint location has been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
• Lower Strongarms:
  • Features a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening.
  • Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
  • New Heim Style outer tie rods, studs and adjusters are included to correct the bumpsteer.

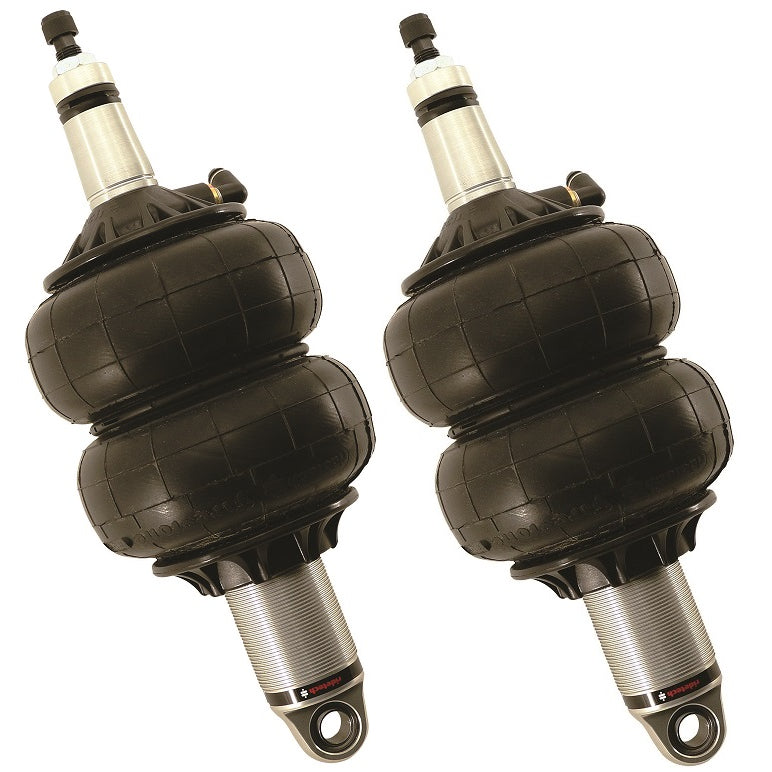

• HQ Series Shockwaves:
  • Utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.  They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access.

• Front Sway Bar:
  • Helps reduce body roll and creates room for wider front tires.
• Rear Sway Bar:
  • A great tool for tuning front/rear grip.  Both include billet aluminum mounts (anodized black) and low friction bushings.

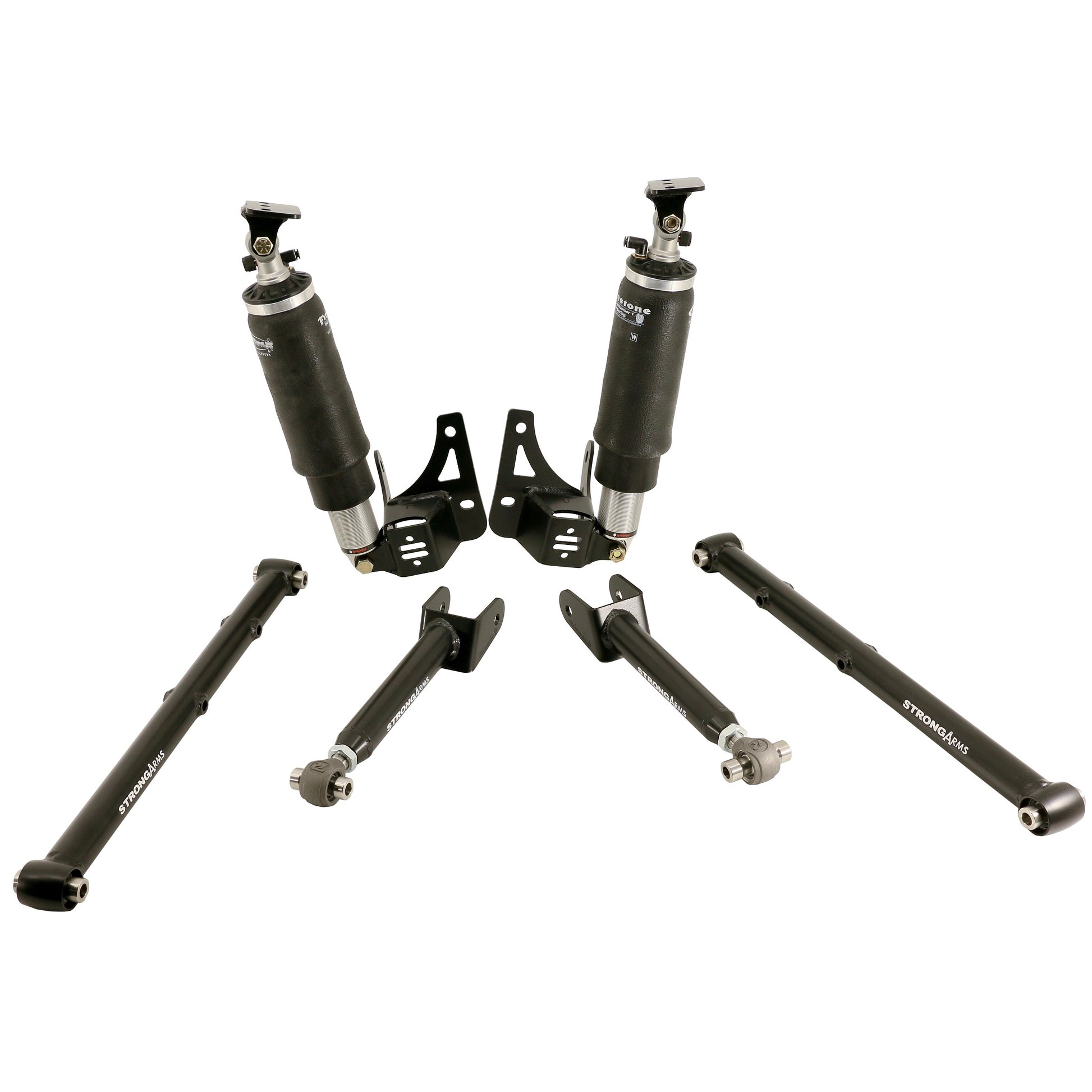

• Rear StrongArms:

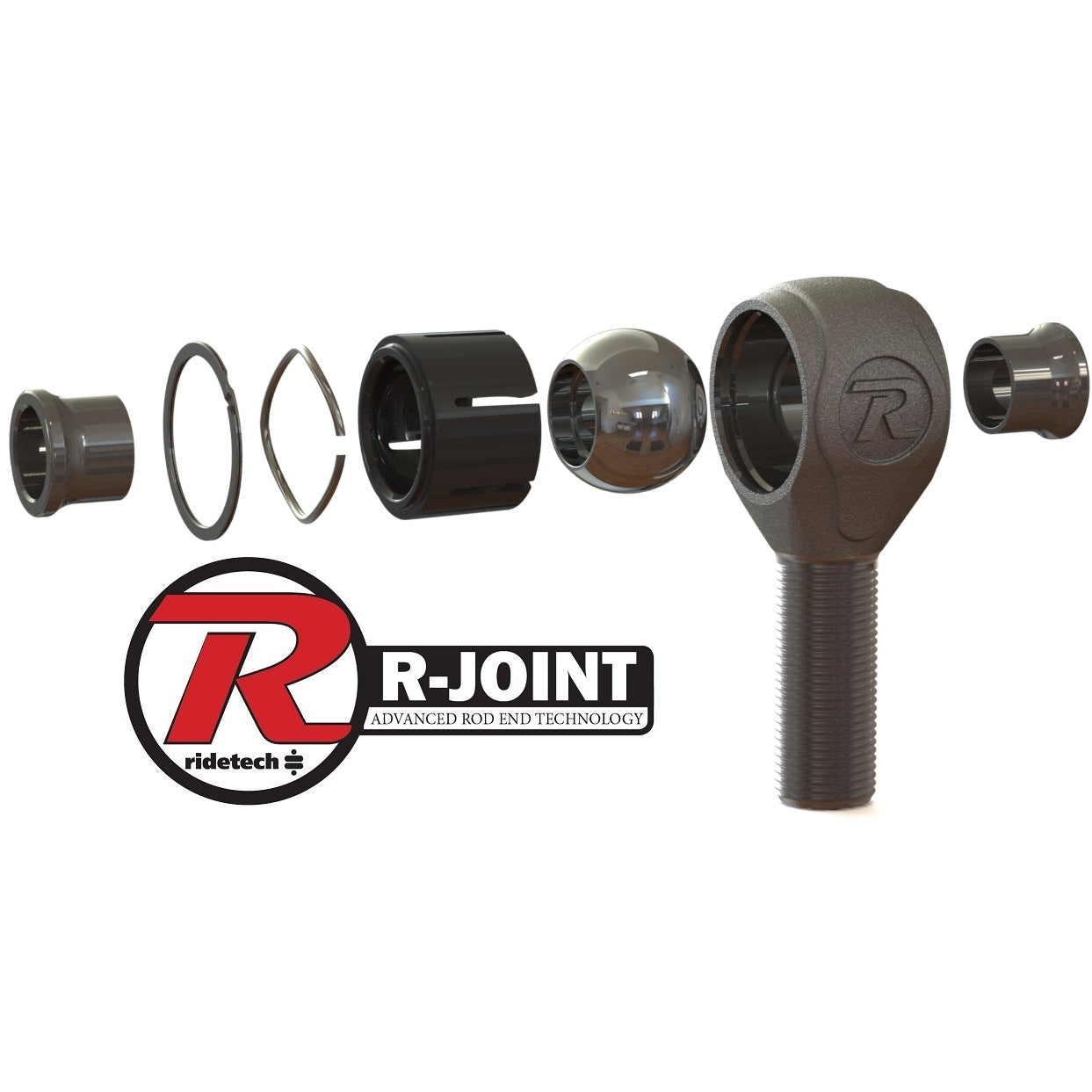

  • Provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

You can view and download the complete assembly instruction booklet for this air suspension system here.
