COILOVER SYSTEM,ARMS,BARS,WILWOOD 11" BRAKES,BLACK CALIPERS,78-88 GM G-BODY

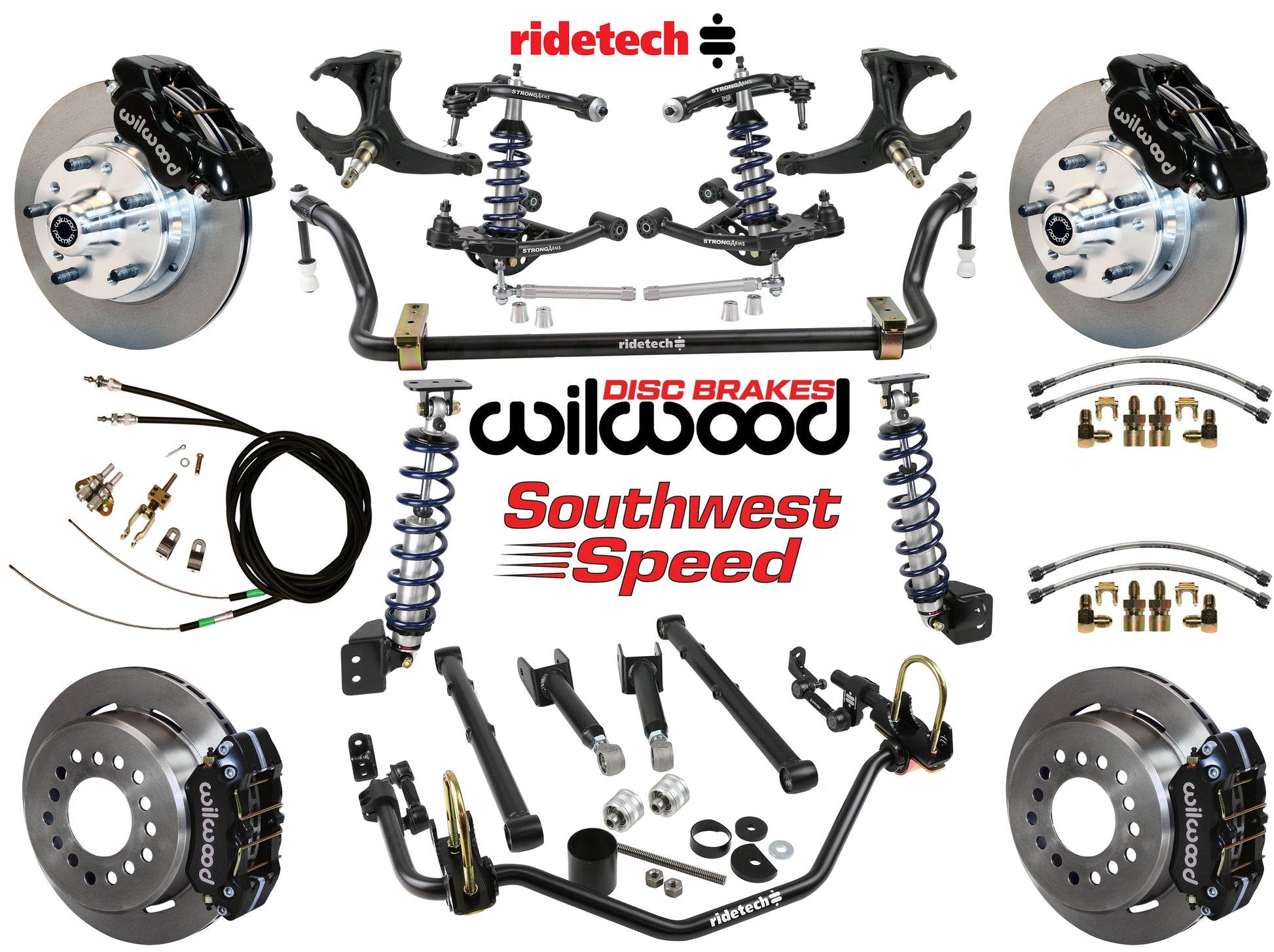

Brand New Ridetech Coilover Suspension System and Wilwood Disc Brake Kit, including StrongArms Control Arms & Trailing Arms, MuscleBar Sway Bars, 11" Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11320201-11).

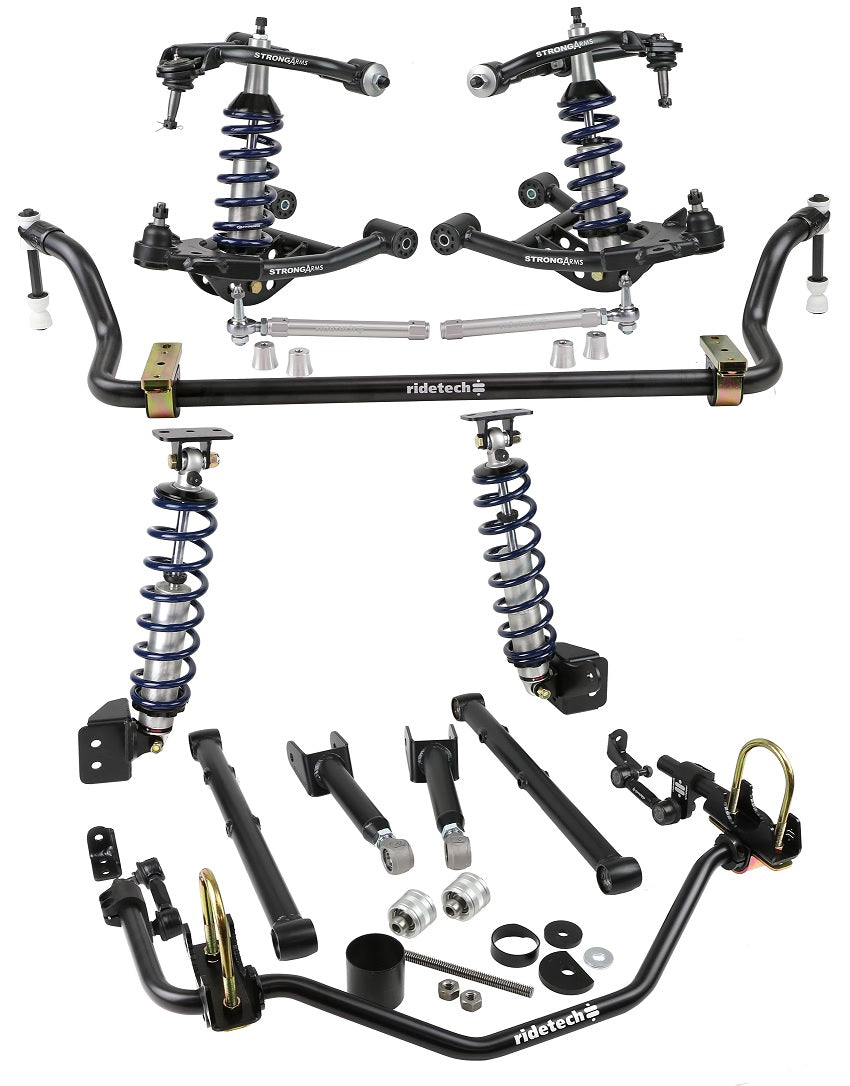

This Coilover System is specifically designed to lower the 1978-1988 GM “G” Body Platform and includes everything needed to create modern drivability from vintage muscle. The package contains front upper and lower control arms, front and rear MuscleBar, rear StrongArms and 4 HQ Series Coilovers. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality. 1978-1988 GM “G” Body includes Monte Carlo, Cutlass, El Camino, Grand National, Grand Prix, Malibu and Regal.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

Complete System Includes:

• Front Upper and Lower StrongArms:
  • What says "performance" more than a set of tubular control arms! After all of the time and effort expended on your ride, you definitely can’t let your stamped oem control arms detract from all that work. Finish your suspension off with these new tubular control arms. Built with all of the care and experience you have come to expect from us, these tubular control arms are a precision-engineered solution for ball joint binding and frame clearance issues that can haunt some vehicles. When you combine the performance benefits with the elegant design of these arms, there is no better choice on the market.
  • Development:
    • StrongArms are developed by Ridetech in Jasper, Indiana, on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs, and allows ongoing evaluation of the performance of the StrongArms.
  • Design:
    • Ridetech think the best way to design any component is to keep it simple. That is why Strong Arms are designed with as few components as possible. The new 4-axis tubing bender allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.
    • Lower arms feature a unique design that combines the control and strut rod into a stronger, more appealing 1 piece design. Additional caster is designed into the arms and includes a robust bearing in an aluminum housing at the front mount to replace the soft factory rubber units.
  • Components:
    • powder-coated in a satin black finish and completely assembled with ball joints and bushings. To reduce all stiction from the suspension movement, Injection Molded Delrin Bushings are used. These bushings are also impregnated with Teflon, which eliminates the need for lubrication.
  • Geometry:
    • Geometry of a suspension starts with the position of the frame mounts and the height of the spindle, not the shape of the control arm. However, there are a few small things in control arm design that can make a big difference in how a vehicle drives and performs.
      • The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
      • Billet cross shafts are included that feature a lowered mounting point to increase camber gain and correct suspension geometry.
      • They house a stout double sheer lower shock mount.
  • StrongArms are optimized to allow proper camber adjustment at your new lowered ride height without using a large stack of shims.
  • Includes outer tie rods and billet tie rod adjusters

• Front and Rear MuscleBar Sway Bars:
  • Ridetech has upgraded the traditional notion of sway bars with the new MuscleBar. Using precision CNC tubing benders, investment cast bar ends and billet aluminum frame mounts with low friction bushings, Ridetech can now produce sway bars with unheard of dimensional and rate accuracy.
  • Billet aluminum frame mounts, anodized black
  • Low friction frame bushings allow easy and predictable rotation over the stiction of polyurethane or rubber
  • Precision CNC bent tubing for accurate and repeatable fitment. Investment cast steel bar ends offer performance and appearance improvements over the traditional “beat it flat and punch a hole in it” manufacturing
  • Easy to install end links with barrel lock nuts to prevent over-tightening. The bushing contour matches the concave bar end to reduce bind
  • Adjustable rate with sliding mount for a 200-350 lb adjustment range on the rear.

• Rear Upper and Lower StrongArms Trailing Arms:
  • Ridetech's Strong Arms utilize R-Joint technology and provide added strength to help get the power to the pavement.
  • The R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.
  • Articulates in 3 planes 360 degree axial rotation and 30 degrees of total lateral rotation
  • 17-4 investment cast stainless steel housing with rolled threads
  • Polished stainless ball and RTX10 composite cage provides consistent low friction movement
  • Special RTX10 composite cage needs NO lubrication.
  • Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.
  • Spring loaded closure keeps mechanism tight and rattle free for LIFE!
• Front HQ Series Adjustable Coilovers:
  • With the HQ Series of Coilovers, you'll get high performance handling, exceptional ride quality and the ability to adjust your car's ride height. The Ridetech Coilovers feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. With large 1.834" pistons, heavy-duty 5/8" shafts, and impact forged bodies, HQ Series Coilovers are built to perform and made to last. They're backed by the Ridetech exclusive 1,000,001 mile warranty. Ridetech develops the shock calibrations and spring rates through thousands of cross-country test miles, on their exclusive test track and at competition events from coast to coast. Ridetech understands the suspension needs of your F-body better than any other company. This system includes two front HQ Series Coilover shocks and two Hyperco coil springs with proper spring rate.
• Rear HQ Series Adjustable Coilovers:
  • These Rear Coilovers are designed to provide the optimal ride quality and ease of installation for Ridetech Bolt-On 4-Link systems. Ridetech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new Ridetech Coilovers.
  • Monotube gas pressure design offers superior fade free performance
  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834" piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8" chrome shock shaft
  • Anodized finish protects against corrosion
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2" bore x 1" aramid composite lined bearings for noise free operation
• Southwest Speed Stock Replacement G-Body Spindles (103-9809):
  • Brand new spindles to connect Ridetech's StrongArms to your new Wilwood high performance brakes
  • Strong forged 4140 steel construction brings you the quality that Southwest Speed has become known for

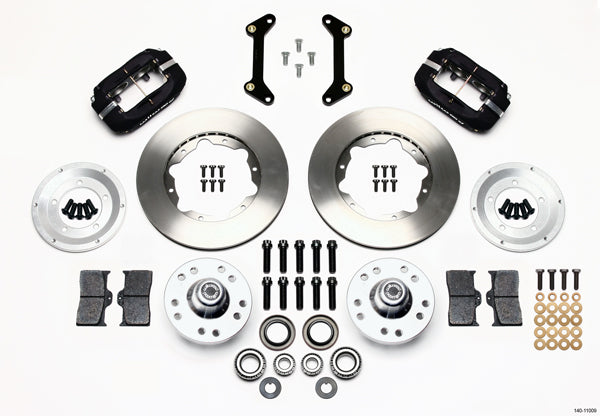

• Wilwood Front Disc Brake Kit with 11" Rotors and Black Calipers (140-11009):
  • FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits can be used with either manual or power boost master cylinders.
  • These Brake kits require at least 15" diameter wheels.
  • Kit includes parts for both front wheels:
    • .810" Thick x 11.00" O.D. Rotors
    • Forged Dynalite 4 Piston Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels

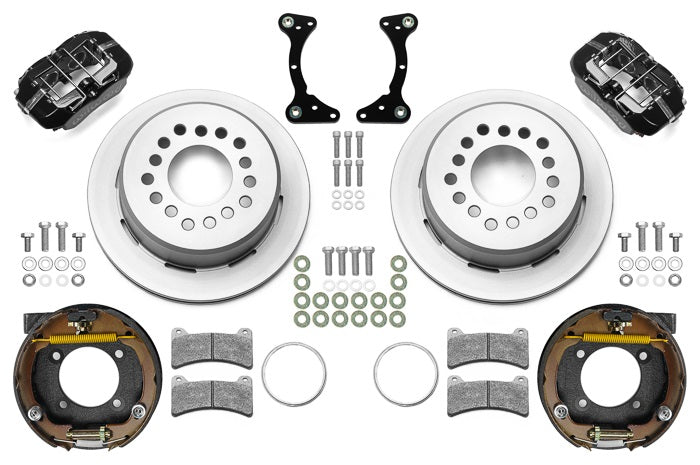

• Wilwood Rear Disc Brake Kit with 11" Rotors and Black Calipers (140-17120):
  • Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • .810" Thick x 11.00" O.D. Rotors with Hats
    • Low-Profile Dynapro 4 Piston Calipers - Black
    • Drum Parking Brake Assemblies with Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

Fits:

• Buick:
• 1978-1988 Regal
• 1978-1988 Grand National
• 1978-1988 Century


• Chevrolet:
• 1978-1988 Malibu
• 1978-1988 Monte Carlo

• 1978-1988 El Camino

• Pontiac:
• 1978-1988 Grand Lemans
• 1978-1988 Grand Prix

• 1978-1988 Lemans

• Oldsmobile:
• 1978-1988 Cutlass, including Calais, Cruiser, Salon, Supreme, Vista Cruiser

You can view and download the complete assembly instruction booklet for the coilover & 4-link kit here, the front brake kit here, and the rear brake kit here.
