AIR RIDE SYSTEM,WILWOOD 11" DRILL,BLACK,67-70 IMPALA,B-BODY

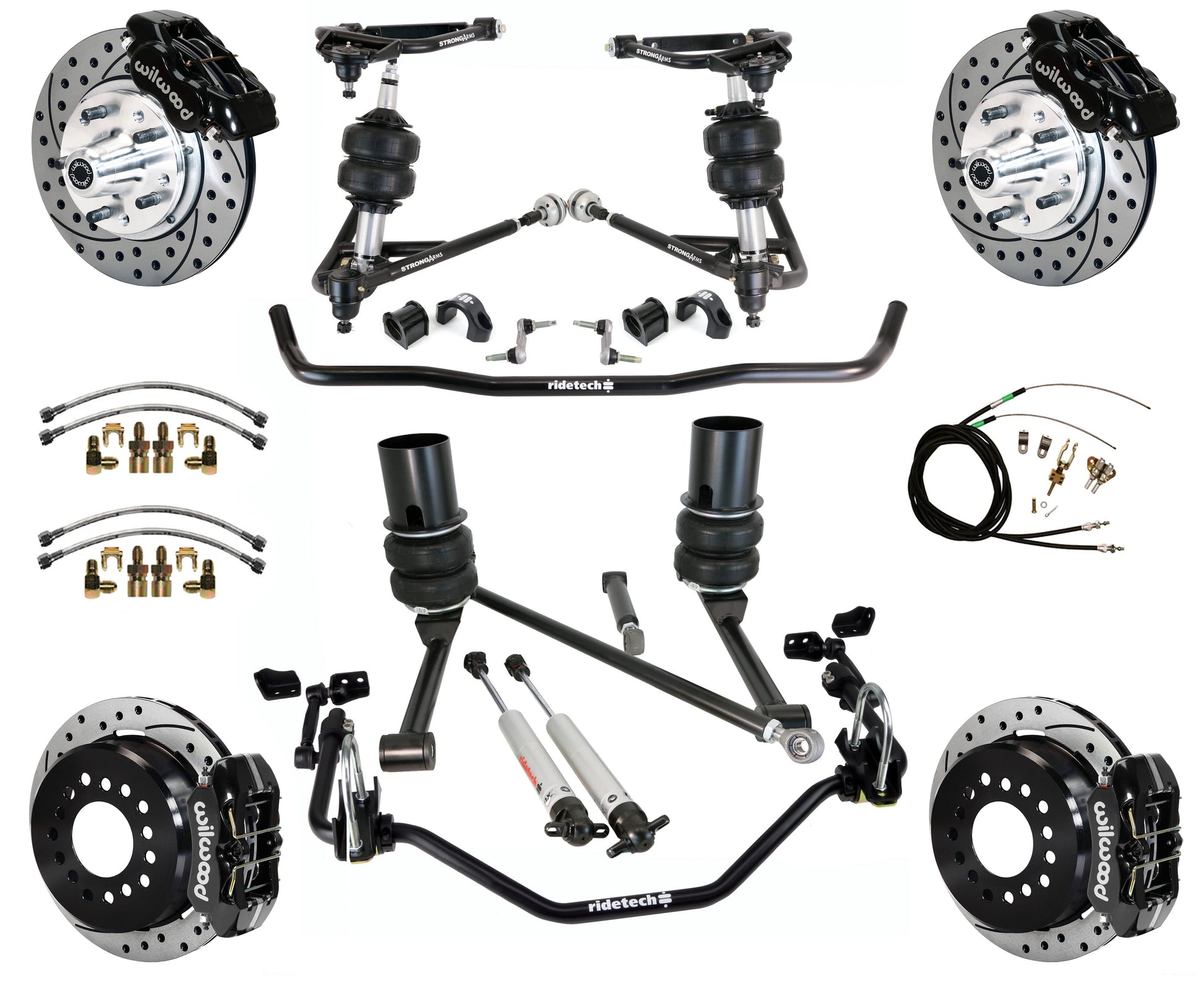

Brand New Ridetech Air Ride System and Wilwood Disc Brake Kit, including Front Upper & Lower StrongArms, Front ShockWaves, Rear CoolRide with HQ Series Shocks, Front & Rear MuscleBar Sway Bars, Rear StrongArms, 11" Front & Rear Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11300298-13).

This Air Suspension kit is specifically designed for the 1967-1970 Chevy "B" Body cars and includes everything needed to provide an ultra low show stance while maintaining excellent ride quality and handling. The system contains front upper and lower StrongArms, front & rear MuscleBars, front HQ Series Shockwaves, rear StrongArms with Adjustable Panhard Bar, rear CoolRide and rear HQ Series shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

Note: Must be used with stock spindles.

Note: Most cars were equipped with 1 rear upper trailing arm from the factory, therefore only 1 StrongArm is included in this system. However, some cars were equipped with a 2nd upper arm, requiring the purchase of a additional arm.

Features:

• Upper StrongArms:
  • Featuring corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
• Lower StrongArms:
  • Feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
• HQ Series Shockwaves:
  • Utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access.
• Front & Rear MuscleBar Sway Bars:
  • The Front Sway Bar helps reduce body roll and creates room for wider front tires. An adjustable-rate Rear Sway Bar is also included, which is a great tool for tuning front/rear grip. Both include billet aluminum mounts (anodized black) and low friction bushings.
• Rear StrongArms:
• Provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind.
• Wilwood Front Disc Brake Kit with 11.00" Drilled Rotors and Black Calipers (140-12021-D):
  • FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders
  • These Brake kits require at least 15" diameter wheels.
  • Kit includes parts for both front wheels:
    • Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors
    • Forged Dynalite 4 Piston Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 11" Drilled Rotors and Black Calipers (140-11385-D):
  • Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • Drilled & Slotted, .810" Thick x 11.00" O.D. Rotors
    • Forged Dynalite 4 Piston Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission
