COILOVER SYSTEM,WILWOOD 13/12" BRAKES,RED,67-70 IMPALA,B-BODY

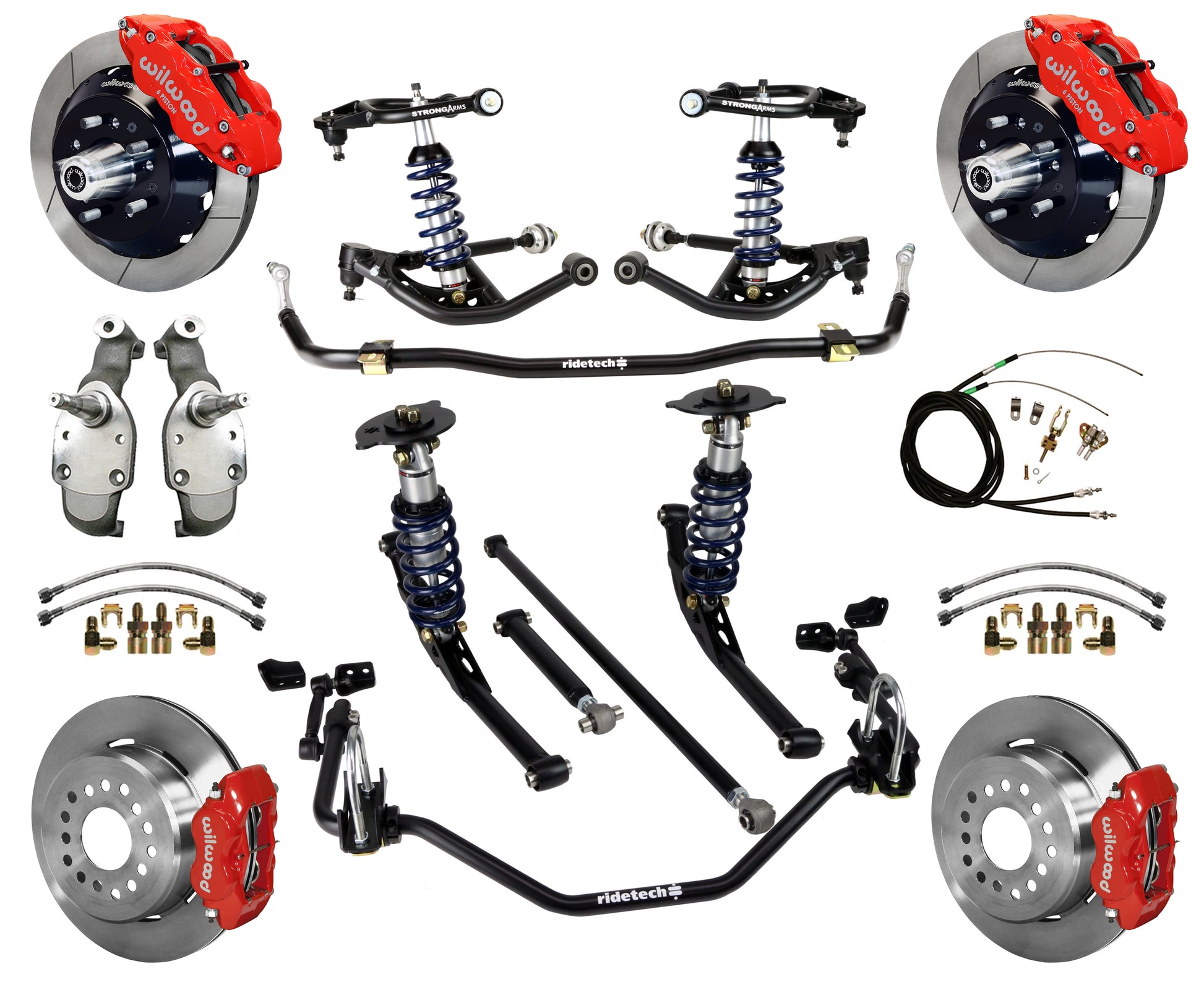

Brand New Ridetech Coilover System and Wilwood Disc Brake Kit, including Front Upper & Lower StrongArms, Front & Rear Coilovers, Front & Rear MuscleBar Sway Bars, Rear StrongArms, 2" Drop Spindles, 13" Front & 12" Rear Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11300202-32).

This Coil-over System is specifically designed for the 1967-1970 Chevy "B" Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality.  The system contains front upper and lower StrongArms, front & rear sway bars, front HQ Series Coil-overs, rear Upper and lower StrongArms with Adjustable upper and Panhard Bar, rear HQ Series Coil-overs shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

Note: Most cars were equipped with 1 rear upper trailing arm from the factory, therefore only 1 StrongArm is included in this system. However, some cars were equipped with a 2nd upper arm, requiring the purchase of a additional arm.

Features:

• Upper StrongArms:
  • Featuring corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
• Lower StrongArms:
  • Feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
• HQ Series Coil-Overs:
  • Utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob is located at the top of the shock for under hood access.
  • Hyperco springs are used to provide a consistent spring rate that will last a lifetime.
• Front & Rear MuscleBar Sway Bars:
  • The Front Sway Bar helps reduce body roll and creates room for wider front tires. An adjustable-rate Rear Sway Bar is also included, which is a great tool for tuning front/rear grip. Both include billet aluminum mounts (anodized black) and low friction bushings.
• Rear StrongArms:
• Provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind.
• The lower arms feature a double sheer mount for the coil-overs locating them in place of the stock springs, keeping the load where is belongs. The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.
• Wilwood Front Disc Brake Kit with 12.90" Rotors and Red Calipers with 2" Drop Spindles (140-10238-R & 103-97645):
  • FNSL6R billet Forged 6-piston calipers with 13" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods.  Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance, dual-purpose street and track machines.  It's guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.  These kits can be used with either manual or power boost master cylinders.
  • Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry.
  • These Brake kits require at least 17" diameter wheels.
  • Kit includes parts for both front wheels:
    • 2" Drop Spindles
    • 1.10" Thick x 12.90" O.D. Rotors
    • Superlite 6 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hats, Hubs, Bearings, Seals
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 12.19" Rotors and Red Calipers (140-10094-R):
  • FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake.  Forged Billet Dynalite 4-Piston calipers, 12.19" o.d. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines.  The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • 1.10" Thick x 12.19" O.D. Rotors
    • Forged Dynalite Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals, &
    • All Hardware necessary to install the complete braking system on both front wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission
