REAR COILOVER SYSTEM,TQ TRIPLE ADJUSTABLE,65-66 IMPALA,BEL AIR,BISCAYNE,CAPRICE

Brand New Ridetech TQ Triple Adjustable Rear Coilover Suspension System (Part #11296211).

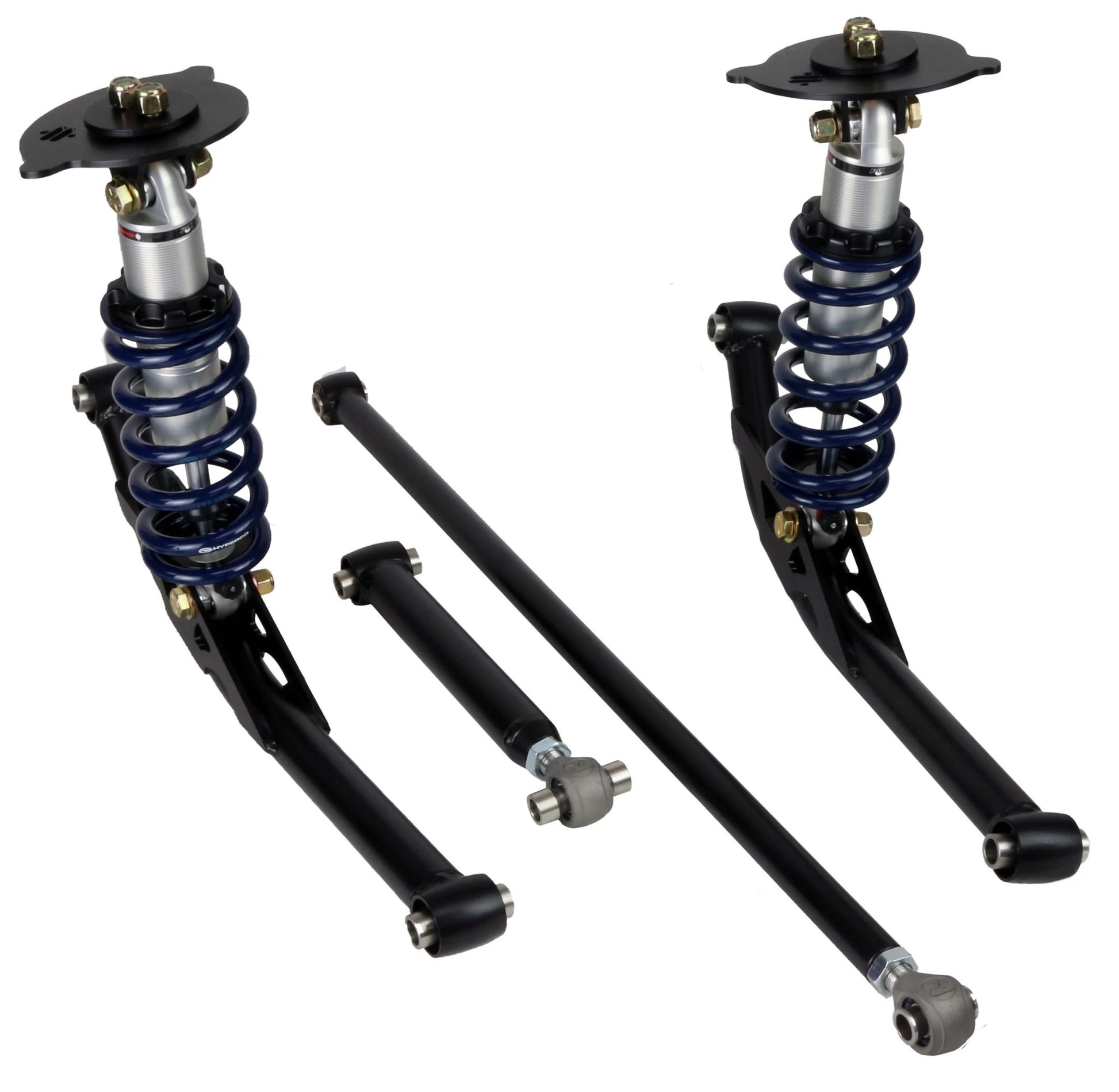

This Rear Coilover System is specifically designed for the 1965-1966 Chevy “B” Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality.  The system contains rear upper and lower StrongArms with adjustable upper and panhard bar, rear TQ Series Coilovers shocks. 1965-1966 Chevrolet “B” Body includes Impala, Bel Air, Biscayne & Caprice.

Fits:

• Chevrolet:
  • 1965-1966 Bel Air
  • 1965-1966 Biscayne
  • 1966 Caprice
  • 1965-1966 Impala

Note:

• Most cars were equipped with 1 rear upper trailing arm from the factory, therefore only 1 StrongArm is included in this system. However, some cars were equipped with a 2nd upper arm, requiring the purchase of a additional arm (Part #11296698).

Includes:

• Rear TQ Series Coilovers
• Rear Upper and Lower StrongArms
• Mounting Hardware

Features:

• TQ Series Coilovers:

  • Single rebound adjustment plus dual stage high and low speed compression.

  • Aluminum impact forged shock construction for leak free operation.

  • Monotube design allows large piston for superior oil control, ride quality, and handling.

  • Remote reservoir includes mounting brackets for easy installation.

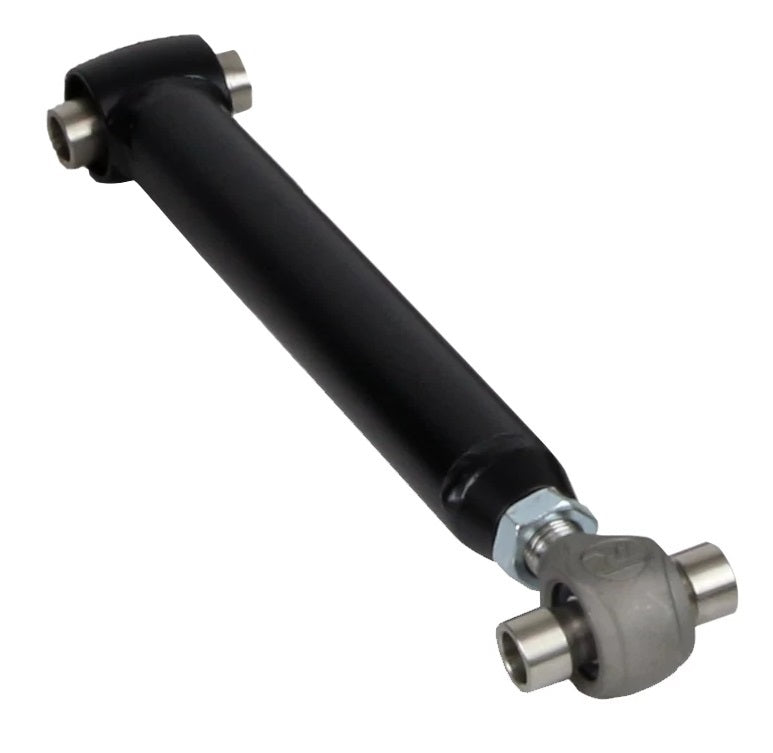

• Rear StrongArms:
  • Provides added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind.
  • The lower arms feature a double sheer mount for the coil-overs locating them in place of the stock springs, keeping the load where is belongs.

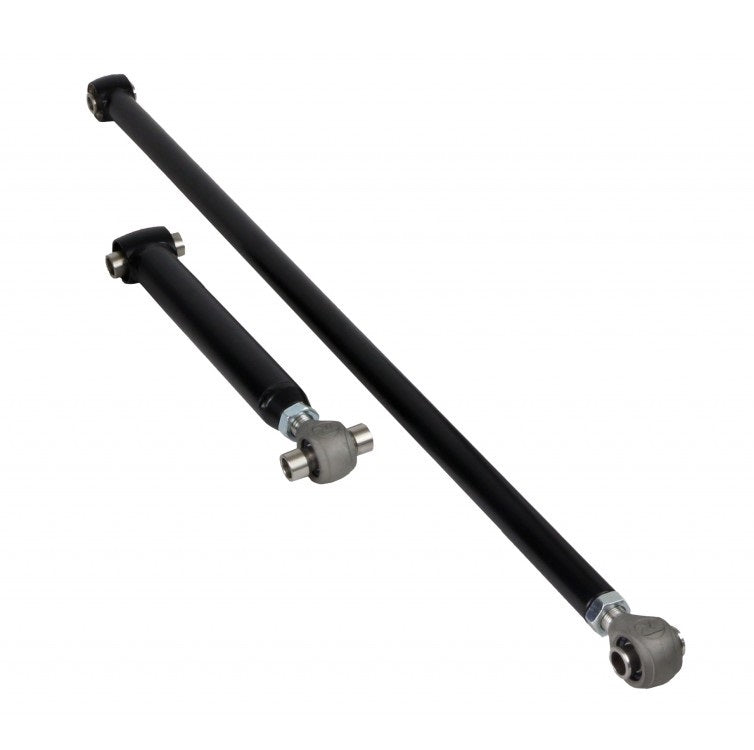

  • The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.

You can view and download the assembly instruction booklet here.
