AIR SUSPENSION SYSTEM,SHOCKS,68-74 NOVA

BRAND NEW RIDETECH AIR SUSPENSION SYSTEM, FRONT HQ SERIES SHOCKWAVES, FRONT MUSCLEBAR, TALL SPINDLES, FRONT UPPER & LOWER STRONGARMS, BOLT-ON 4-LINK, FITS 1968-1974 CHEVROLET NOVA

THIS AIR SUSPENSION SYSTEM IS SPECIFICALLY DESIGNED TO FIT THE 1968-1974 NOVA. THIS SYSTEM WILL GIVE YOU THE ABILITY TO ACHIEVE THAT ULTRA-LOW SHOW STANCE AND INCLUDES SEVERAL COMPONENTS THAT WILL DRAMATICALLY IMPROVE THE SUSPENSION GEOMETRY TO GIVE YOUR OLD MUSCLE CAR MODERN DRIVABILITY.

NOTE: AIR COMPRESSOR NOT INCLUDED.

FITS:

• 1968-1974 CHEVROLET: NOVA

INCLUDES:

• TALL SPINDLES
• FRONT UPPER & LOWER STRONGARMS
• FRONT HQ SERIES SHOCKWAVES
• FRONT MUSCLEBAR
• BOLT ON 4-LINK

FEATURES:

• RIDETECH TALL SPINDLES:
• INDUCES MORE NEGATIVE CAMBER GAIN TO MAXIMIZE TIRE CONTACT PATCH DURING CORNERING. OFFERS A 2" PIN DROP WHICH ALLOWS FOR THE USE OF LONGER SHOCKS CREATING MORE SUSPENSION TRAVEL.
• FRONT UPPER & LOWER STRONGARM CONTROL ARMS:
• (UPPER): CORRECTED BALL JOINT ANGLES FOR LOWERED RIDE HEIGHT.
• (LOWER): DOUBLE SHEER LOWER SHOCK MOUNT FOR INCREASED STRENGTH. FOR BOTH UPPER & LOWER ARMS THE LENGTH IS ALTERED TO CREATE MORE CAMBER ADJUSTMENT, & INJECTION MOLDED DELRIN BUSHINGS W/ 13% TEFLON TO REDUCE DEFLECTION/STICTION.

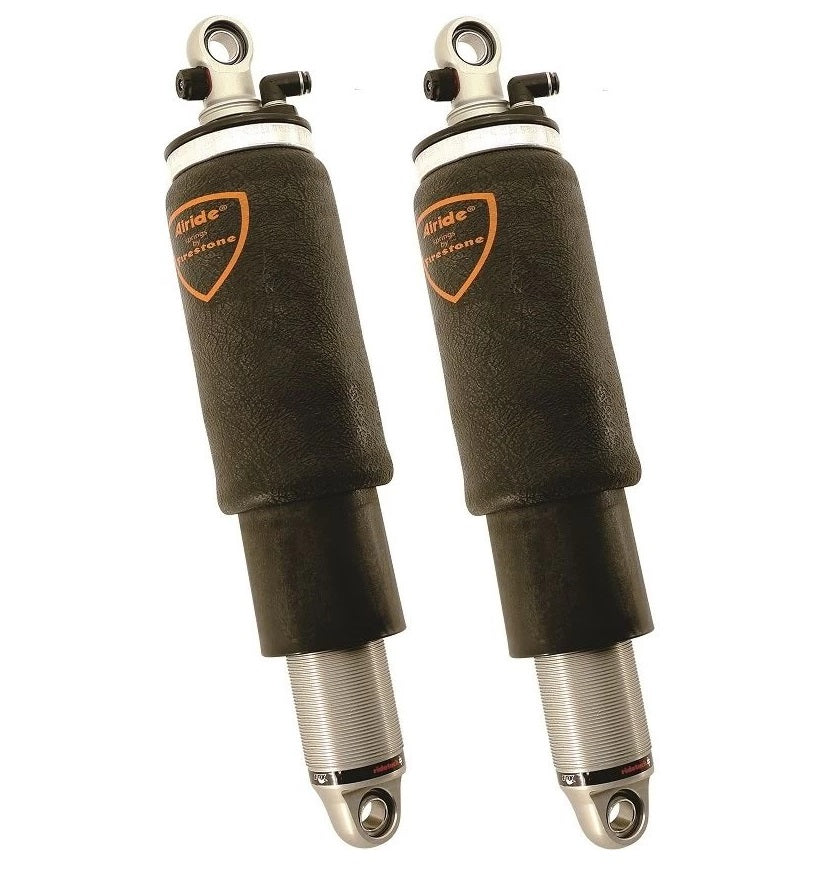

• HQ SERIES SHOCKWAVES:
• UTILIZES IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY & HANDLING. ALLOWS FINE TUNING OF RIDE QUALITY & HANDLING. REBOUND KNOB IS LOCATED AT THE TOP OF THE SHOCK FOR UNDER HOOD ACCESS. HAS A 1,000,0001 MILE WARRANTY.
• FRONT MUSCLEBAR:
• HELPS REDUCE BODY ROLL AND CREATES ROOM FOR WIDER FRONT TIRES. INCLUDES THE POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN THE CHASSIS AND CONTROL ARMS.
• BOLT ON 4-LINK:
• IMPROVES TRACTION, HANDLING & RIDE QUALITY. INSTALL DOES NOT REQUIRE ANY MAJOR MODIFICATIONS TO FLOOR PAN & REQUIRES ONLY MINIMAL WELDING TO AXLE TUBE. WORKS W/ MINITUBS. R-JOINT ROD ENDS COMBINE LOW FRICTION MOVEMENT, LATERAL STABILITY, FULL RANGE ARTICULATION, & QUIET OPERATION INTO ONE SPECIAL BEARING.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS AIR SUSPENSION SYSTEM HERE.
