AIR RIDE SYSTEM,ARMS,BARS,WILWOOD 13" BRAKES,RED CALIPERS,64-67 GM A-BODY

AIR RIDE SYSTEM,ARMS,BARS,WILWOOD 13" BRAKES,RED CALIPERS,64-67 GM A-BODY

RDT 11230298-36

$9,699.99
$9,699.99
View full details

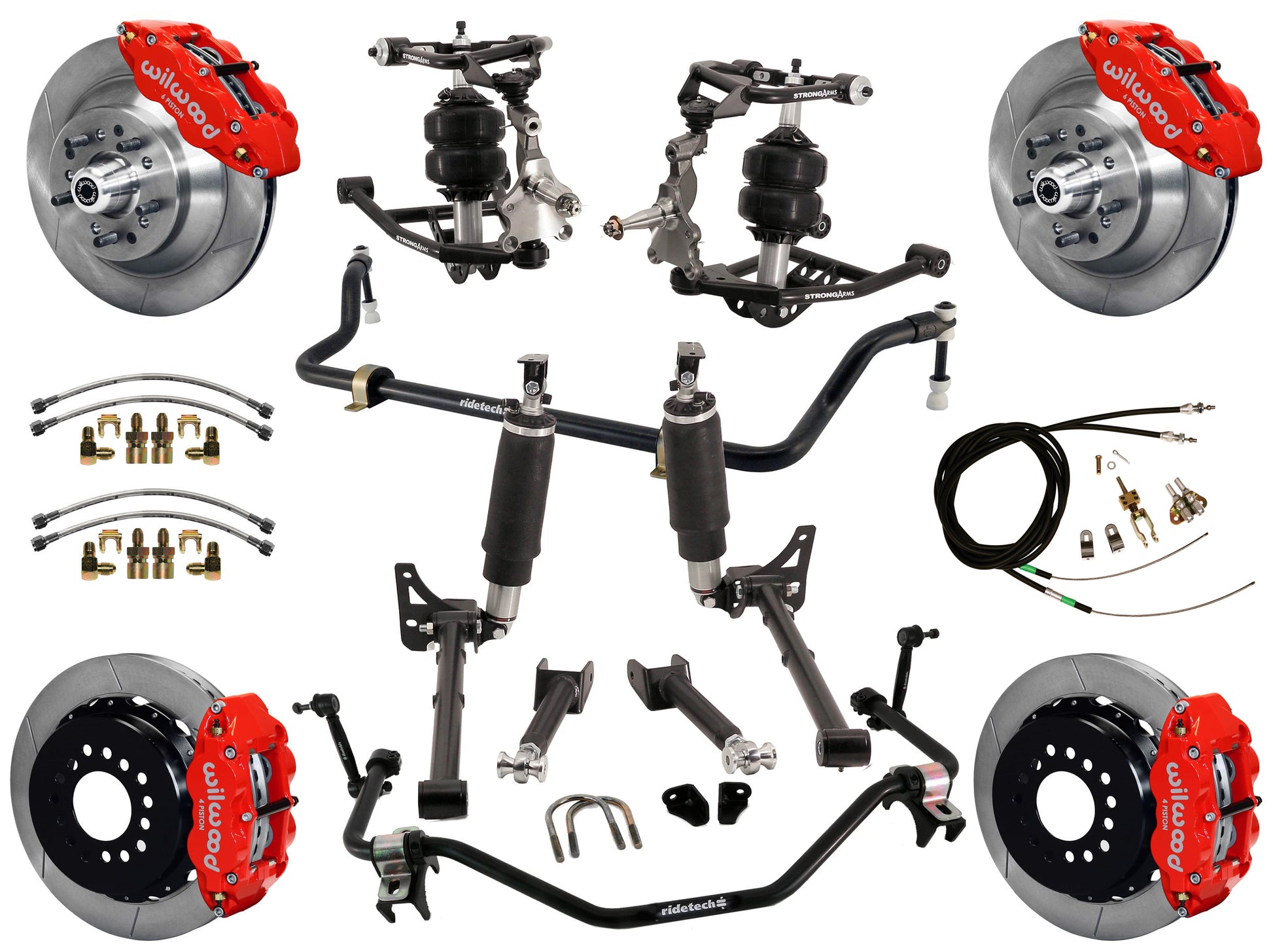

BRAND NEW RIDETECH AIR SUSPENSION & STRONG ARM SYSTEM AND WILWOOD DISC BRAKE KIT, INCLUDING FRONT CONTROL ARMS, REAR TRAILING ARMS, SPINDLES, MUSCLEBAR FRONT & REAR SWAY BARS, 13" ROTORS, RED BRAKE CALIPERS, BRAKE LINES, PARKING BRAKE CABLE KIT, AND MORE (PART #11230298-36).


  • THIS AIR SUSPENSION SYSTEM IS SPECIFICALLY DESIGNED FOR THE 1964-1967 GM "A" BODY PLATFORM AND INCLUDES EVERYTHING NEEDED TO CREATE MODERN DRIVABILITY WITH AN ULTRA LOW SHOW STANCE. DESIGNED TO LOWER YOUR CAR AND IMPROVE HANDLING AND RIDE QUALITY. THE PACKAGE CONTAINS FRONT UPPER AND LOWER CONTROL ARMS, TALL SPINDLES, FRONT & REAR MUSCLEBARS, REAR STRONGARMS AND 4 HQ SERIES SHOCKWAVES. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. 1964-1967 GM "A" BODY INCLUDES CHEVELLE, CUTLASS, EL CAMINO, F85, GTO, LEMANS, MALIBU, SKYLARK, SPECIAL, SPORTWAGON, TEMPEST AND VISTA CRUISER.

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES. EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE.

    • APPLICATIONS:

  • BUICK:
    • 1965-1967 GRAN SPORT
    • 1964-1967 SKYLARK
    • 1964-1967 SPECIAL
    • 1964-1967 SPORTWAGON
  • CHEVROLET:
    • 1964-1967 CHEVELLE
    • 1964-1967 EL CAMINO
    • 1964-1967 MALIBU
  • OLDSMOBILE:
    • 1964-1967 442
    • 1964-1967 CUTLASS
    • 1967 CUTLASS SUPREME
    • 1964-1967 F85
    • 1964-1967 VISTA CRUISER
  • PONTIAC:
    • 1964-1967 BEAUMONT
    • 1964-1967 GTO
    • 1964-1967 LEMANS
    • 1964-1967 TEMPEST
  • **THIS SYSTEM REQUIRES AN AIR COMPRESSOR SYSTEM**

    • COMPLETE SYSTEM INCLUDES:

  • TALL 2" DROP SPINDLES:

    • RIDETECH TALL SPINDLES WILL INDUCE MORE NEGATIVE CAMBER GAIN TO MAXIMIZE TIRE CONTACT PATCH DURING CORNERING. IT ALSO OFFERS A 2" PIN DROP WHICH ALLOWS FOR THE USE OF LONGER SHOCKS CREATING MORE SUSPENSION TRAVEL.


  • FRONT UPPER AND LOWER STRONGARMS:

    • WHAT SAYS "PERFORMANCE" MORE THAN A SET OF TUBULAR CONTROL ARMS! AFTER ALL OF THE TIME AND EFFORT EXPENDED ON YOUR RIDE, YOU DEFINITELY CANT LET YOUR STAMPED OEM CONTROL ARMS DETRACT FROM ALL THAT WORK. FINISH YOUR SUSPENSION OFF WITH THESE NEW TUBULAR CONTROL ARMS. BUILT WITH ALL OF THE CARE AND EXPERIENCE YOU HAVE COME TO EXPECT FROM US, THESE TUBULAR CONTROL ARMS ARE A PRECISION-ENGINEERED SOLUTION FOR BALL JOINT BINDING AND FRAME CLEARANCE ISSUES THAT CAN HAUNT SOME VEHICLES. WHEN YOU COMBINE THE PERFORMANCE BENEFITS WITH THE ELEGANT DESIGN OF THESE ARMS, THERE IS NO BETTER CHOICE ON THE MARKET.
    • DEVELOPMENT: STRONGARMS ARE DEVELOPED BY RIDETECH IN JASPER, INDIANA, ON AN ACTUAL RUNNING, DRIVING VEHICLE. THIS ALLOWS US TO PROPERLY ADDRESS ALL FITMENT AND PERFORMANCE ISSUES. IT ALSO ALLOWS US TO DOCUMENT AN INSTALLATION, DEMONSTRATE THE INSTALLATION TO OUR SALES TECHS, AND ALLOWS ONGOING EVALUATION OF THE PERFORMANCE OF THE STRONGARMS.
    • DESIGN: RIDETECH THINK THE BEST WAY TO DESIGN ANY COMPONENT IS TO KEEP IT SIMPLE. THAT IS WHY STRONG ARMS ARE DESIGNED WITH AS FEW COMPONENTS AS POSSIBLE. THE NEW 4-AXIS TUBING BENDER ALLOWS PRECISE, REPEATABLE BENDS THAT NO OTHER MACHINE CAN ACHIEVE. WE CAN CREATE ELEGANT TUBING BENDS THAT WOULD OTHERWISE REQUIRE SEVERAL SEPARATE WELDED COMPONENTS.
    • COMPONENTS: POWDERCOATED IN A SATIN BLACK FINISH AND COMPLETELY ASSEMBLED WITH BALL JOINTS AND BUSIHNGS. TO REDUCE ALL STICKION FROM THE SUSPENSION MOVEMENT, INJECTION MOLDED DELRIN BUSHINGS ARE USED. THESE BUSHINGS ARE ALSO IMPREGNATED WITH TEFLON, WHICH ELIMINATES THE NEED FOR LUBRICATION.
    • GEOMETRY: GEOMETRY OF A SUSPENSION STARTS WITH THE POSITION OF THE FRAME MOUNTS AND THE HEIGHT OF THE SPINDLE, NOT THE SHAPE OF THE CONTROL ARM. HOWEVER, THERE ARE A FEW SMALL THINGS IN CONTROL ARM DESIGN THAT CAN MAKE A BIG DIFFERENCE IN HOW A VEHICLE DRIVES AND PERFORMS.
    • STRONGARMS ARE OPTIMIZED TO ALLOW PROPER CAMBER ADJUSTMENT AT YOUR NEW LOWERED RIDE HEIGHT WITHOUT USING A LARGE STACK OF SHIMS.

  • FRONT MUSCLEBAR SWAY BAR:

    • THE GM "A" BODY IS A VERY POPULAR MUSCLE CAR PLATFORM. ADDING A FEW KEY COMPONENTS CAN DRASTICALLY IMPROVE THE RIDE QUALITY AND HANDLING OF THESE TRUE AMERICAN ICONS. SWAY BARS ARE A EASY UPGRADE AND WILL MAKE A HUGE IMPROVEMENT IN EVERYDAY DRIVING.
    • PRECISION CNC-BENT TUBING FOR ACCURATE AND REPEATABLE FITMENT
    • EXACT BAR RATES INCLUDED WITH EACH BAR - NO GUESSES AS TO BAR RATE
    • LARGE INVENTORY AND SHORT LEAD TIMES - NO WAITING FOR WEEKS OR MONTHS FOR PRODUCT
    • DELRIN-LINED FRAME MOUNT BUSHINGS ALLOW EASY AND PREDICTABLE ROTATION OVER THE STICTION OF POLYURETHANE OR RUBBER
    • INVESTMENT CAST STEEL BAR ENDS OFFER PERFORMANCE AND APPEARANCE IMPROVEMENTS
    • EASY-TO-INSTALL SPHERICAL END LINKS WITH BARREL LOCK NUTS

  • REAR MUSCLEBAR SWAY BAR:

    • THE RIDETECH REAR MUSCLEBAR ASSISTS IN THE SAME JOB AS THE FRONT BAR. THIS DIRECT BOLT-ON BAR DECREASES BODY ROLL AND INCREASES STABILITY ON YOUR A-BODY.

  • HQ SERIES SHOCKWAVES:

    • UTILIZE AN IMPACT FORGED ALUMINUM BODY AND MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY AND HANDLING. THEY ALLOW FINE TUNING OF THE RIDE QUALITY AND HANDLING THE REBOUND KNOB IS LOCATED AT THE TOP OF THE SHOCK FOR UNDER HOOD ACCESS. THEY COME STANDARD WITH A 1,000,0001 MILE WARRANTY. BRACKETS ARE INCLUDED WITH THE REAR SHOCKWAVES FOR EASY ATTACHMENT TO THE FRAME AND TO THE 10/12 BOLT REAREND OR CURRIE 9".

  • REAR UPPER AND LOWER STRONGARM TRAILING ARMS:

    • THESE REAR STRONGARMS ARE A DIRECT REPLACEMENT FOR THE STOCK TRAILING ARMS. THEY UTILIZE R-JOINT TECHNOLOGY AND PROVIDE ADDED STRENGTH TO HELP GET THE POWER TO THE PAVEMENT.
    • R-JOINTS ARE A REVOLUTIONARY ROD END DESIGN THAT PROVIDES LOW FRICTION, FULL RANGE ARTICULATION, LONG SERVICE LIFE, LATERAL STABILITY AND QUIET OPERATION.
    • ARTICULATES IN 3 PLANES, 360 DEGREE AXIAL ROTATION AND 30 DEGREES OF TOTAL LATERAL ROTATION.
    • 17-4 INVESTMENT CAST STAINLESS STEEL HOUSING WITH ROLLED THREADS.
    • POLISHED STAINLESS BALL AND RTX10 COMPOSITE CAGE PROVIDES CONSISTENT LOW FRICTION MOVEMENT.
    • SPECIAL RTX10 COMPOSITE CAGE NEEDS NO LUBRICATION.
    • SELF CLEANING DESIGN - MOVEMENT NOT AFFECTED BY ANY WATER, GRIT, DIRT, OR DEBRIS.
    • SPRING LOADED CLOSURE KEEPS MECHANISM TIGHT AND RATTLE FREE FOR LIFE!

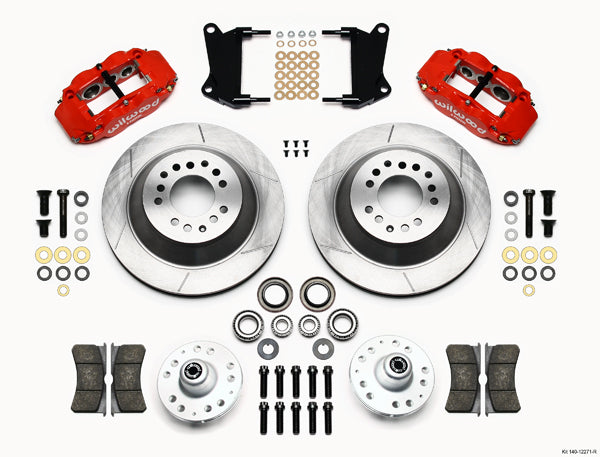

  • WILWOOD FRONT DISC BRAKE KIT WITH 12.90" ROTORS AND RED CALIPERS (140-12271-R):

    • FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 12.90" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WITH WHEEL, TIRE, AND SUSPENSION UPGRADES.
    • THESE BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.
    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
      • 1.10" THICK X 12.90" O.D. ROTORS
      • FORGED NARROW SUPERLITE 6 PISTON CALIPERS - RED
      • CALIPER MOUNTING BRACKETS
      • BP-10 SMART COMPOUND BRAKE PADS
      • HUBS, BEARINGS, SEALS, &
      • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

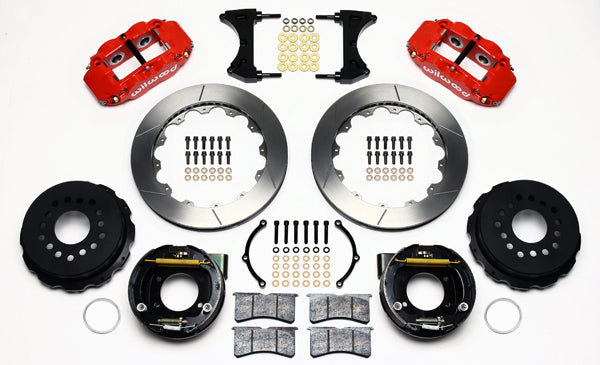

  • WILWOOD REAR DISC BRAKE KIT WITH 12.90" ROTORS AND RED CALIPERS (140-12964-R):

    • FORGED NARROW SUPERLITE 4 PISTON REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS THAT REQUIRE A PARKING BRAKE. FORGED SUPERLITE FOUR-PISTON CALIPERS 12.90" ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.
    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:
      • 1.10" THICK X 12.90" O.D. ROTORS WITH HATS
      • FORGED NARROW SUPERLITE 4 PISTON CALIPERS - RED
      • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
      • BP-10 SMART COMPOUND BRAKE PADS
      • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • FULL BRAKE LINE KIT FOR THE FRONT WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS

  • FULL BRAKE LINE KIT FOR THE REAR WITH 18" STEEL BRAIDED LINES, CALIPER FITTINGS, AND BRAKE LINE FITTINGS

  • PARKING BRAKE CABLE KIT THAT CONNECTS TO THE WILWOOD PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION

    • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THE RIDETECH AIR RIDE & 4-LINK KIT, THE WILWOOD FRONT BRAKE KIT, AND THE WILWOOD REAR BRAKE KIT
