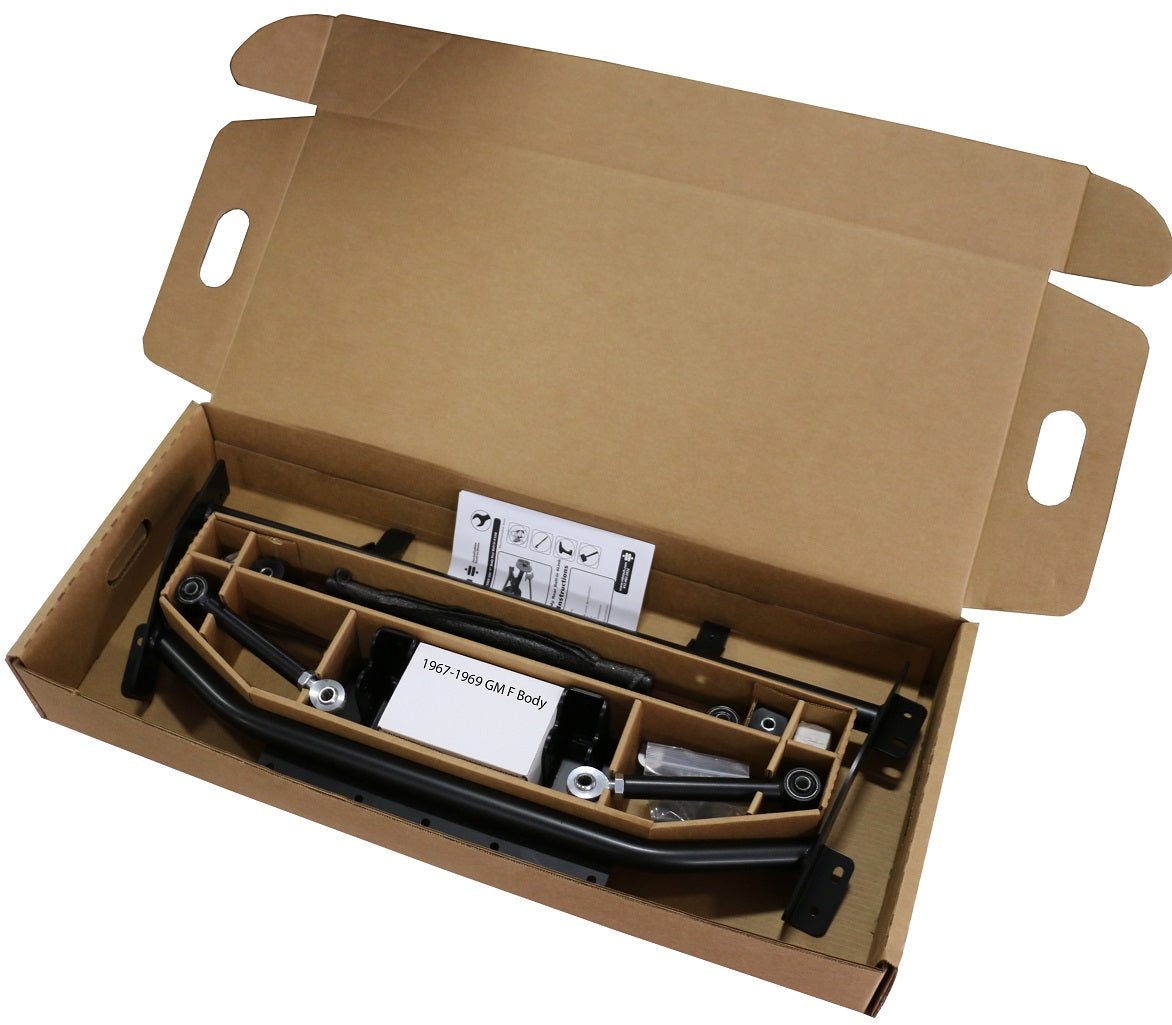

BOLT-ON HEIM 4 LINK,67-69 GM F-BODY

Brand New Ridetech Bolt-On 4 Link System with Double Adjustable R-Joints (Ridetech Part #11167197).

Muscle cars have always been the backbone of hot rodding...and now they are hotter than ever! The problem is nobody wants to put up with the ride quality, handling, and braking technology of 40 years ago. After driving a new Camaro or Mustang, the compromises of a standard leaf spring suspension just doesn't cut it! Now there is a solution......

This Ridetech 4-Link System is specifically designed for the 1967-1969 Camaro and Firebird and is for use with Coil-Overs or ShockWave air suspension (sold separately). Replacing the leaf springs with a 4-Link dramatically improves ride quality, traction and handling, while offering an adjustable stance at 1"�-3"� lower than stock. Instead of a wallowing soft ride, you'll experience a crisp, controlled ride that will inspire confidence. The 4-Link design offers more precise positioning of the rear axle, eliminates axle wrap (wheel hop) and increases stability through the corners with optimized roll center height and anti-squat.

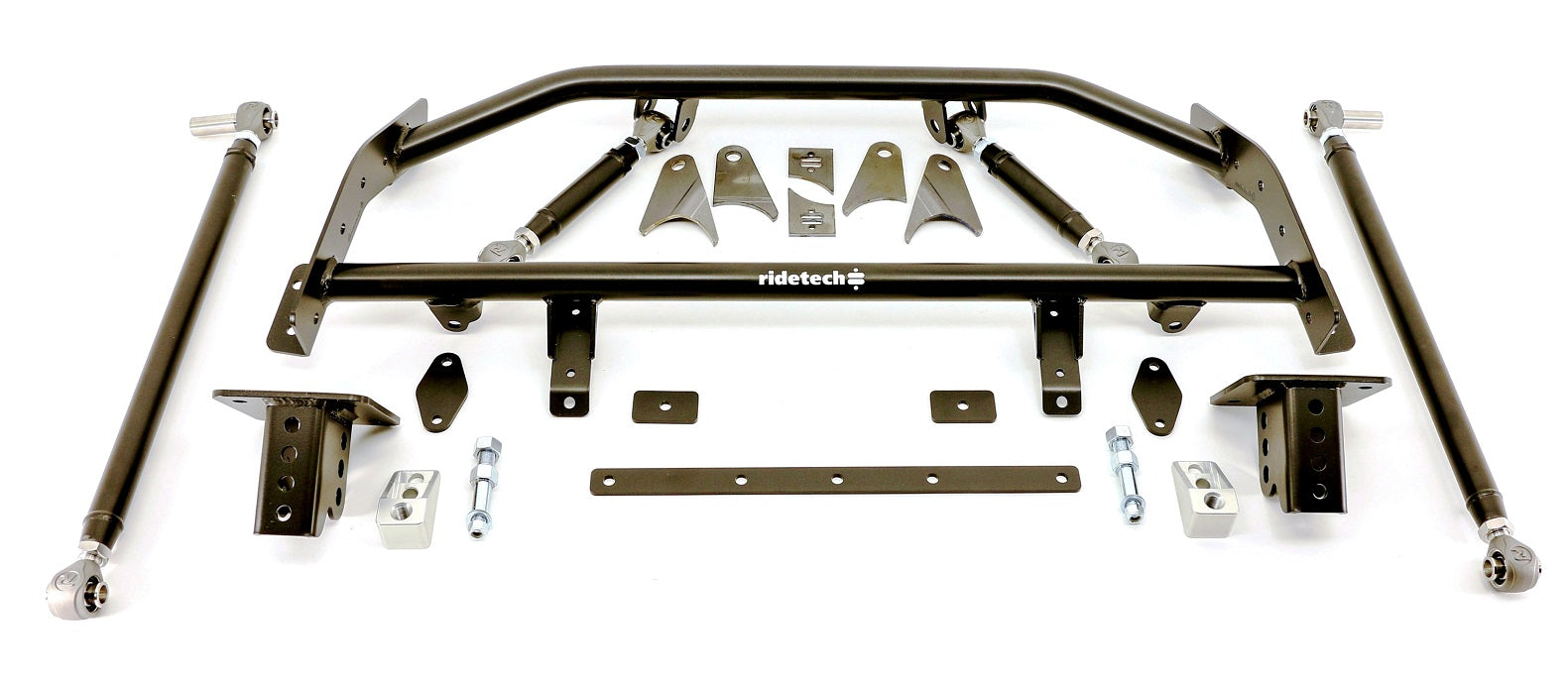

The lower bars attach to the OEM leaf spring mounts and to the axle with bolt-on brackets.  A stout tubular cradle bolts between the frame rails creating attachment points for the upper bars and shocks.  No cutting or fabrication to your prized muscle car, just four small tabs that are welded to the axle to attach the upper bars. The patented R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!  Now includes Double Adjustable Bars with right-hand and left-hand R-Joints for easy adjustments!

Fits:

• Chevrolet:
  • 1967-1969 Camaro
• Pontiac:
  • 1967-1969 Firebird

You can view and download the complete assembly instruction booklet for this kit here.
