AIR RIDE SYSTEM,WILWOOD 13/12" BRAKES,RED CALIPERS,SPINDLES,59-64 CHEVY

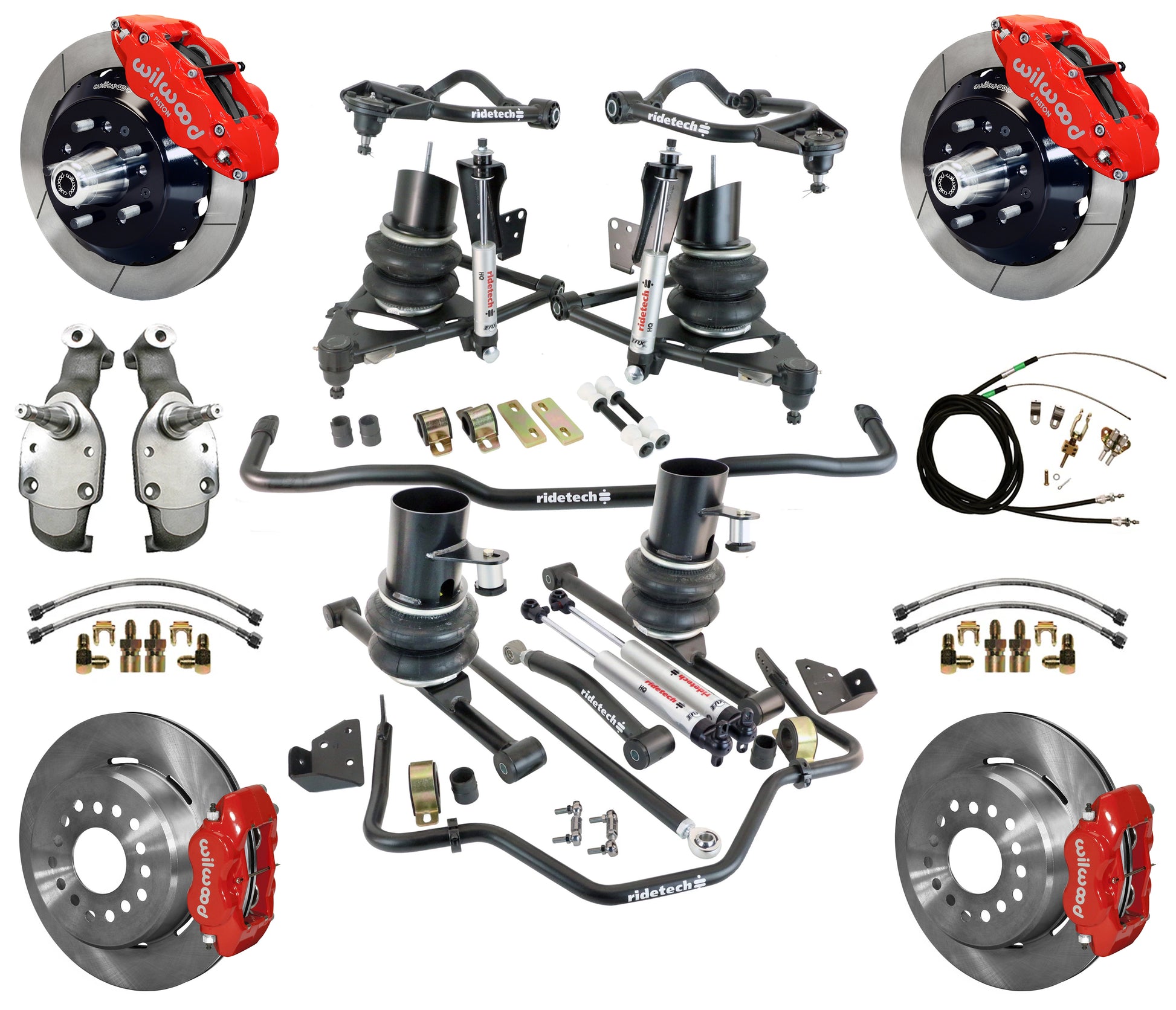

Brand New Ridetech Air Ride System and Wilwood Disc Brake Kit, including Front Upper & Lower StrongArms, Front & Rear CoolRide with HQ Series Shocks, Front & Rear MuscleBar Sway Bars, Rear StrongArms, 2" Drop Spindles, 13" Front & 12" Rear Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #11060298-32).

This Air Suspension System is specifically designed for the 1959-1964 Chevy “B” Body cars and includes everything needed to provide an ultra-low show stance while maintaining excellent ride quality and handling. The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series shocks, front and rear air spring w/ brackets, rear tubular trailing arms and an adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find the perfect components to acheive maximum vehicle performance and ride quality.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

We offer kits that have even more items than this, including Currie Rear End, etc.  Scroll to the bottom to the "Also Available" section to see everything we have in stock and ready to ship to you today.

Note: Some cars have two rear upper control arms and will need an additional StrongArm, Part # 11066698.

Note: To complete this Air Suspension system please choose from one of our Compressor Systems. Compatible compressors include 30514700, 30514100, 30534100, and 30534700.

Ridetech System Includes:

• Front Upper StrongArms:
• Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front Lower StrongArms:
• Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front & Rear MuscleBar Sway Bars:
  • Front & Rear MucleBar Sway Bars greatly reduce body roll. They feature significantly higher rates, performance end links and Delrin lined bushings.

• Front & Rear CoolRide:
  • Utilizes Firestone air springs and application specific bolt-on mounting brackets.
  • HQ Series Shocks utilize an aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the rebound dampening to adjust ride quality and handling. They come standard with a 1,000,0001 Mile Warranty. Bolt-on brackets are included to relocate the front shocks to the rear side of the lower StrongArms.  The rear shocks simply bolt in place of the factory shocks.
• Rear StrongArms:
  • Rear StrongArms provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind. The lower arms feature a double sheer mount for the coilovers locating them in place of the stock springs, keeping the load where is belongs. The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.
• Wilwood Front Disc Brake Kit with 12.90" Rotors and Red Calipers with 2" Drop Spindles (140-10238-R & 103-97645):
  • FNSL6R billet Forged 6-piston calipers with 13" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods.  Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance, dual-purpose street and track machines.  It's guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.  These kits can be used with either manual or power boost master cylinders.

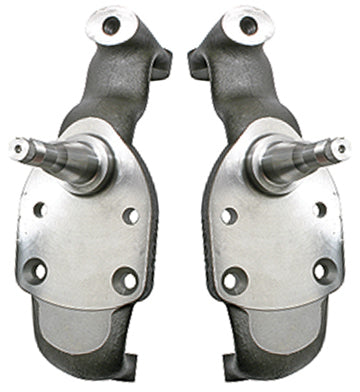

  • Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry.
  • These Brake kits require at least 17" diameter wheels.
  • Kit includes parts for both front wheels:
    • 2" Drop Spindles
    • 1.10" Thick x 12.90" O.D. Rotors
    • Superlite 6 Piston Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hats, Hubs, Bearings, Seals
    • All Hardware necessary to install the complete braking system on both front wheels

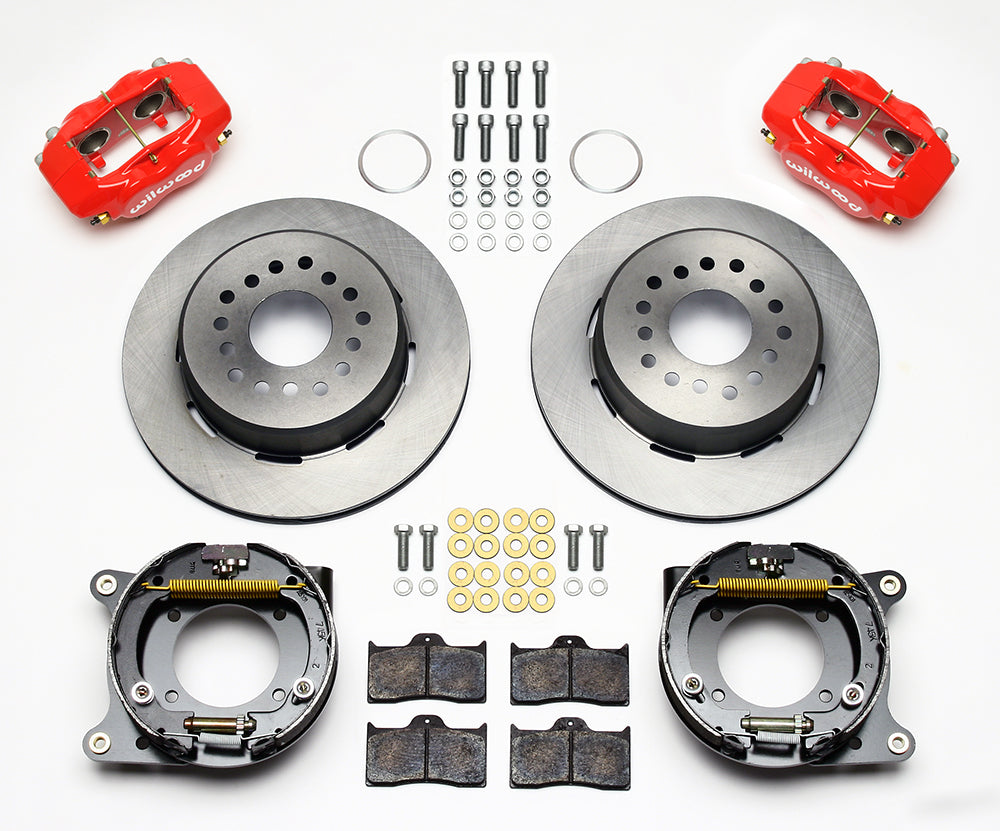

• Wilwood Rear Disc Brake Kit with 12" Rotors and Red Calipers (140-11828-R):
  • FDL Pro Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake. Forged billet dynalite four-piston calipers 12.19" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • .810" Thick x 12.19" O.D. Rotors with Hats
    • Dynalite 4 Piston Calipers - Red
    • Drum Parking Brake Assemblies with Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Full brake line kit for the front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full brake line kit for the rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Parking brake cable kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

Fits:

• Chevrolet:
  • 1959-1964 Bel Air
  • 1959-1964 Biscayne
  • 1959-1961 Brookwood
  • 1959-1960 El Camino
  • 1959-1964 Impala
  • 1959-1961 Kingswood

You can view and download the complete assembly instruction booklets for the Ridetech Kit, the Wilwood Front Brake Kit, and the Wilwood Rear Brake Kit
