AIR RIDE SUSPENSION SYSTEM,ARMS,BARS,59-64 FULL SIZE CHEVY

Brand New Ridetech Air Suspension System with Front and Rear CoolRide with HQ Series Shocks, Front Upper & Lower StrongArms, Rear Upper and Lower StrongArms and Front & Rear MuscleBars (Ridetech Part #11060297).

This Air Suspension System is specifically designed for the 1959-1964 Chevy “B” Body cars and includes everything needed to provide an ultra-low show stance while maintaining excellent ride quality and handling. The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series shocks, front and rear air spring w/ brackets, rear tubular trailing arms and an adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find the perfect components to achieve maximum vehicle performance and ride quality.

We offer kits that have even more items than this, including Ridetech's Air Compressor System, Wilwood Brakes, & Currie Rear End, etc. Scroll to the bottom to the "Also Available" section to see everything we have in stock and ready to ship to you today.

Note: Must be used with 1959-1964 stock spindles. Installing this kit with a drop spindle will cause fitment, geometry/alignment, and ride quality issues.

Note: Disc brake brackets must mount to the outside face of the spindle.

Note: If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required. Part # 11059121

Note: Some cars have two rear upper control arms and will need an additional StrongArm. Part # 11066698

Note: To complete this Air Suspension system please choose from one of our Compressor Systems. Compatible compressors include 30514700, 30514100, 30534100, and 30534700.

Ridetech System Includes:

• Front Upper StrongArms:
• Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front Lower StrongArms:
• Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front & Rear MuscleBar Sway Bars:
  • Included to replace the tiny factory sway bars (Many of these cars did not even have factory sway bars.)  They feature significantly higher rates, performance end links and Delrin lined bushings.

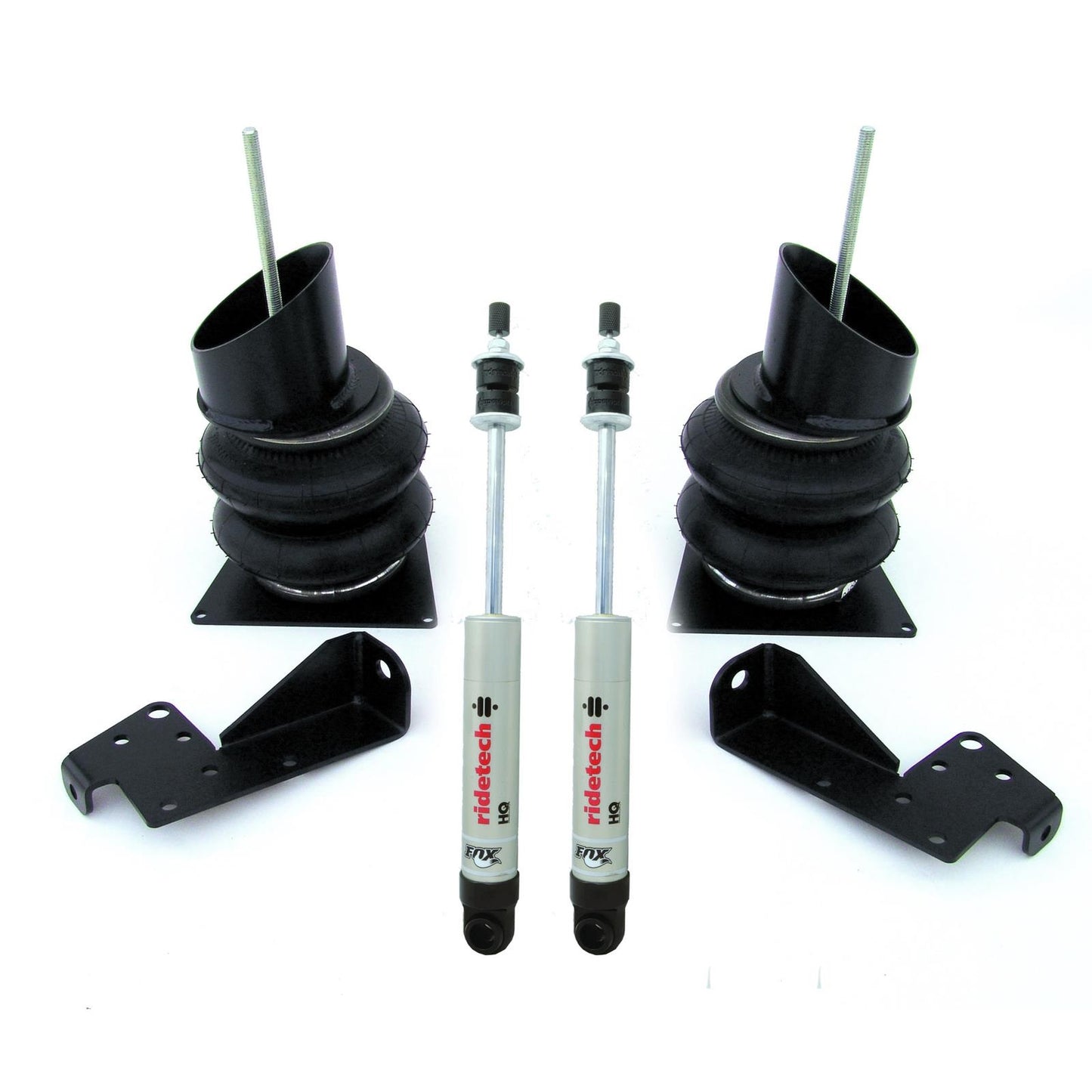

• Front & Rear CoolRide:
  • Utilizes Firestone air springs and application specific bolt-on mounting brackets.
  • HQ Series Shocks utilize an aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the rebound dampening to adjust ride quality and handling. They come standard with a 1,000,001 Mile Warranty. Bolt-on brackets are included to relocate the front shocks to the rear side of the lower StrongArms. The rear shocks simply bolt in place of the factory shocks.
• Rear StrongArms:
  • Provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind. The lower arms feature the air spring bracket for which bolts in place of the stock coil springs, keeping the load where is belongs. An adjustable panhard bar is included to allow the axle to centered at the new ride height.

Fits:

• Chevrolet:
  • 1959-1964 Bel Air with stock spindles
  • 1959-1964 Biscayne with stock spindles
  • 1959-1961 Brookwood with stock spindles
  • 1959-1960 El Camino with stock spindles
  • 1959-1964 Impala with stock spindles
  • 1959-1961 Kingswood with stock spindles
  • 1959-1961 Nomad with stock spindles
  • 1959-1961 Parkwood with stock spindles
  • 1959-1960 Sedan Delivery with stock spindles
  • **This system requires an Air Compressor System**

You can view and download the complete assembly instruction booklet for this Ridetech Kit.
