COILOVER SYSTEM,ARMS,BARS,59-64 IMPALA

Brand New Ridetech Coilover System with StrongArm Front Control Arms, Front & Rear Coilovers, Front & Rear MuscleBar Sway Bars, & StrongArm Rear Trailing Arms (Ridetech Part #11060202).

This CoilOver System is specifically designed for the 1959-1964 Chevy B-Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality. The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series CoilOvers, rear tubular trailing arms and an adjustable panhard bar. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality. 1959-1964 Chevrolet B-Body includes Impala, Bel Air, Biscayne, Brookwood, El Camino, Kingswood, Nomad & Parkwood.

Ridetech System Includes:

• Front Upper StrongArms:
• Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front Lower StrongArms:
• Lower StrongArms feature a double sheer lower mount for increased strength. They are powder coated satin black and fully assembled with ball joints, injection molded Delrin bushings and cross shafts; ready for installation.
• Front & Rear MuscleBar Sway Bars:

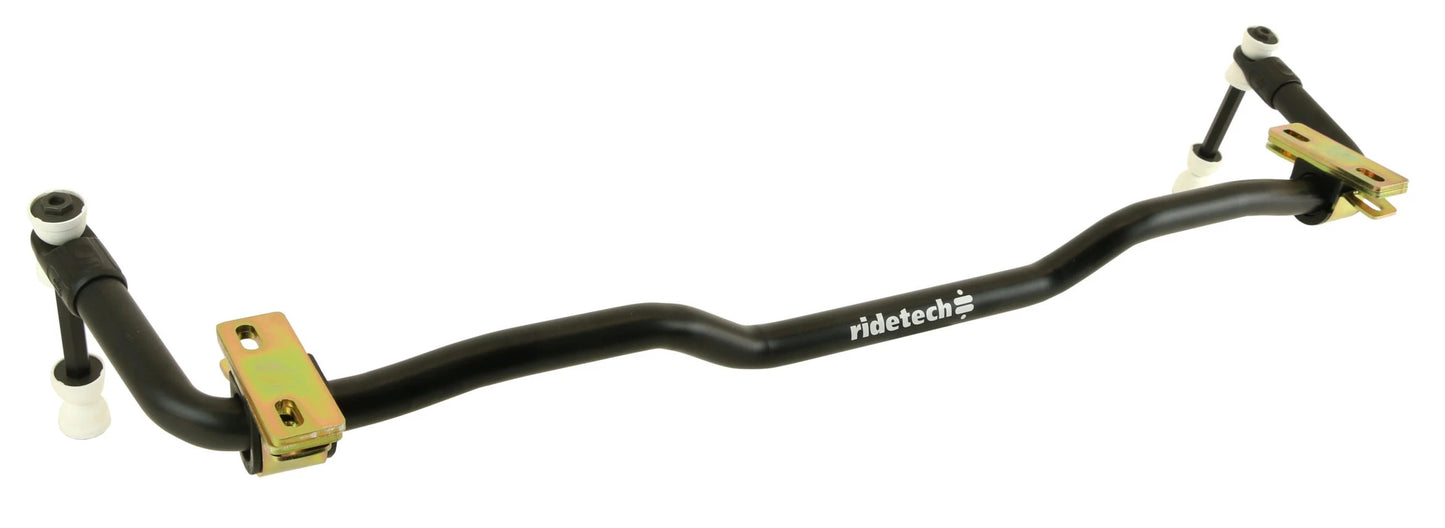

  • Front & Rear MucleBar Sway Bars greatly reduce body roll. They feature significantly higher rates, performance end links and Delrin lined bushings.

• Front & Rear HQ Series Coilovers:
  • HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,001 Mile Warranty. Hyperco springs are used to provide a consistent spring rate that will last a lifetime.
• Rear StrongArms:
  • Rear StrongArms provide added strength to help get the power to the pavement. They utilize R-Joint Technology to provide smooth operation and reduce roll bind. The lower arms feature a double sheer mount for the coilovers locating them in place of the stock springs, keeping the load where is belongs. The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.

Fits:

• Chevrolet:
  • 1959-1964 B-Body, Impala, Bel Air, Biscayne, Brookwood, El Camino, Kingswood, Nomad, and Parkwood with stock spindles

You can view and download the complete assembly instruction booklet for this Coilover System here.
