COILOVER SYSTEM,ARMS,BARS,59-64 IMPALA

BRAND NEW RIDETECH COILOVER SUSPENSION SYSTEM FOR 1959-1964 CHEVROLET IMPALA, BEL AIR, BISCAYNE, BROOKWOOD, EL CAMINO, KINGSWOOD, NOMAD & PARKWOOD B-BODY

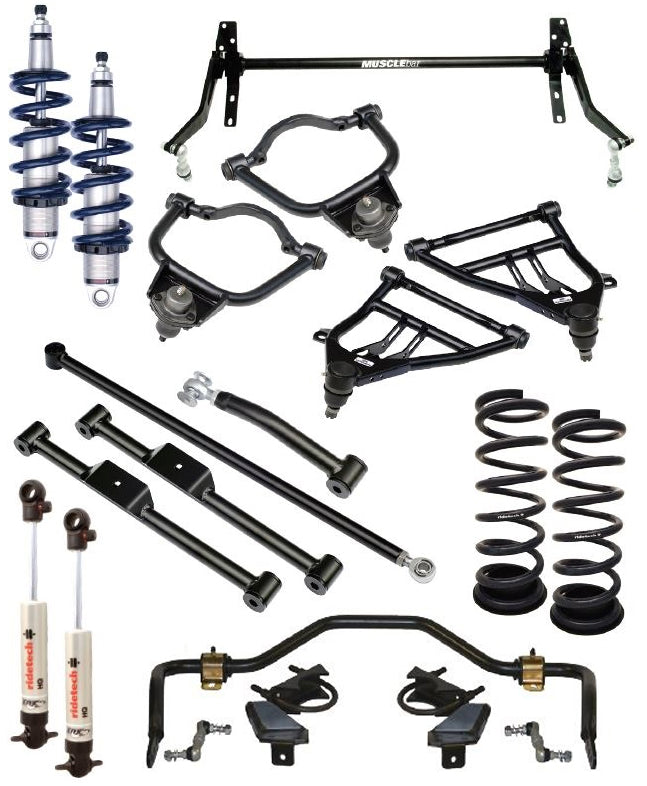

THIS COILOVER SYSTEM IS SPECIFICALLY DESIGNED FOR THE 1959-1964 CHEVY "B" BODY CARS AND INCLUDES EVERYTHING NEEDED TO PROVIDE A LOWERED STANCE WITH DRAMATICALLY IMPROVED HANDLING AND RIDE QUALITY. THE SYSTEM CONTAINS FRONT UPPER AND LOWER STRONGARMS, FRONT AND REAR MUSCLEBARS, FRONT HQ SERIES COILOVERS, REAR STRONGARMS WITH ADJUSTABLE PANHARD BAR, REAR COIL SPRINGS AND REAR HQ SERIES SHOCKS. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. RIDETECH HAS SPENT HOURS COLLECTING DATA TO FIND A PERFECT SPRING RATE AND COMPONENTS FOR YOUR VEHICLES PERFORMANCE AND RIDE QUALITY.

NOTE: MUST BE USED WITH STOCK SPINDLES. SOME CARS HAVE TWO REAR UPPER CONTROL ARMS AND WILL NEED AN ADDITIONAL STRONGARM.

FITS:

• 1959-1964 CHEVROLET IMPALA, BEL AIR, BISCAYNE, BROOKWOOD, EL CAMINO, KINGSWOOD, NOMAD & PARKWOOD B-BODY

FEATURES:

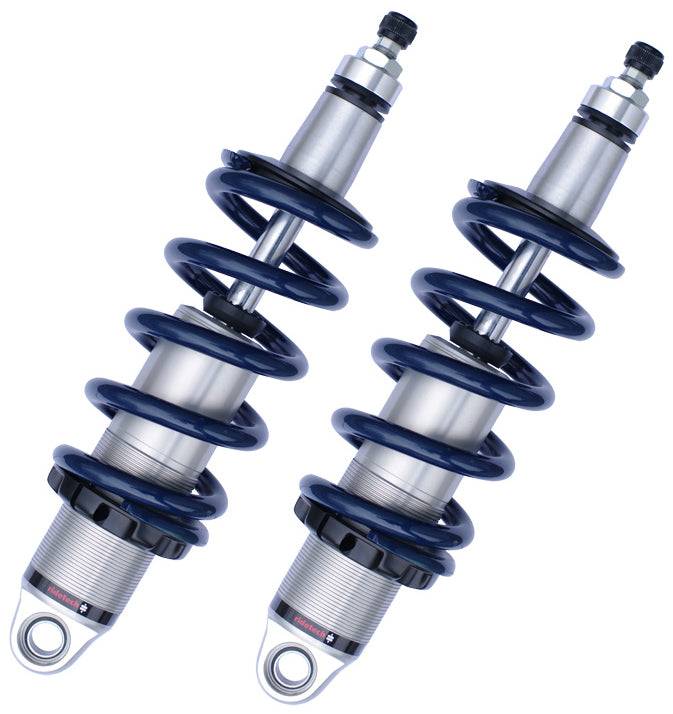

• HQ SERIES COILOVERS: UTILIZE AN IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY & HANDLING. ALLOWS FINE TUNING OF THE RIDE QUALITY & HANDLING THE REBOUND KNOB IS LOCATED AT THE TOP OF THE SHOCK FOR UNDER HOOD ACCESS. COME STANDARD W/ A 1,000,0001 MILE WARRANTY. HYPERCO SPRINGS PROVIDE A CONSISTENT SPRING RATE THAT WILL LAST A LIFETIME.
• UPPER STRONGARMS: CORRECTED BALL JOINT ANGLES & THE UPPER BALL JOINT HAVE BEEN MOVED BACK TO ALLOW FOR ADDITIONAL CASTER SETTING TO IMPROVE HIGH SPEED STABILITY & STEERING FEEL. POWDER-COATED BLACK & FULLY ASSEMBLED W/ BALL JOINTS BUSHING & CROSS SHAFTS, READY FOR INSTALLATION.
• LOWER STRONGARMS: DOUBLE SHEER LOWER MOUNT FOR INCREASED STRENGTH. POWDER-COATED BLACK & FULLY ASSEMBLED W/ BALL JOINTS BUSHING & CROSS SHAFTS, READY FOR INSTALLATION.

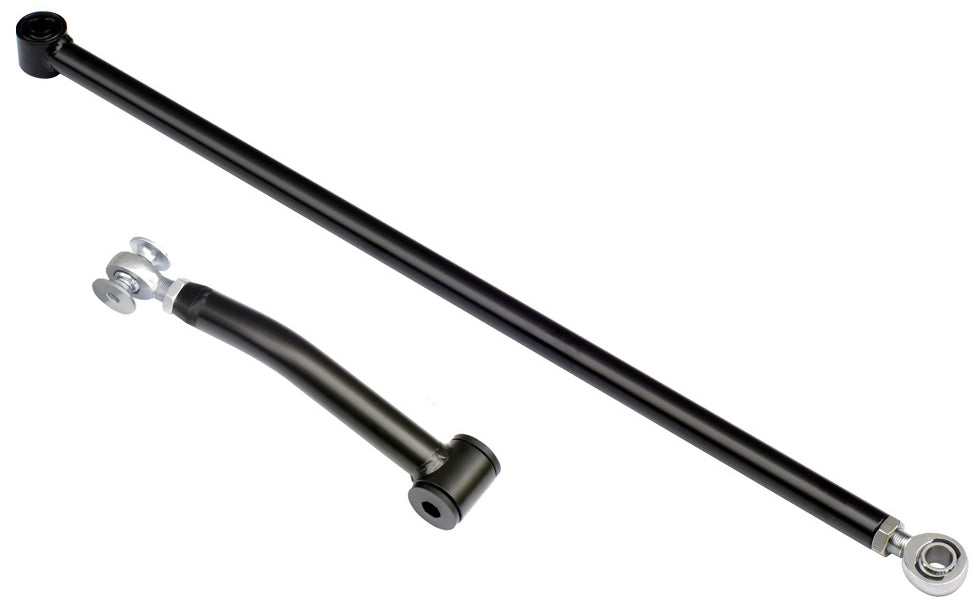

• REAR STRONGARMS: PROVIDE ADDED STRENGTH TO HELP GET THE POWER TO THE PAVEMENT. THE UPPER ARM & PANHARD BAR UTILIZE R-JOINT TECHNOLOGY TO PROVIDE SMOOTH OPERATION & REDUCE ROLL BIND.

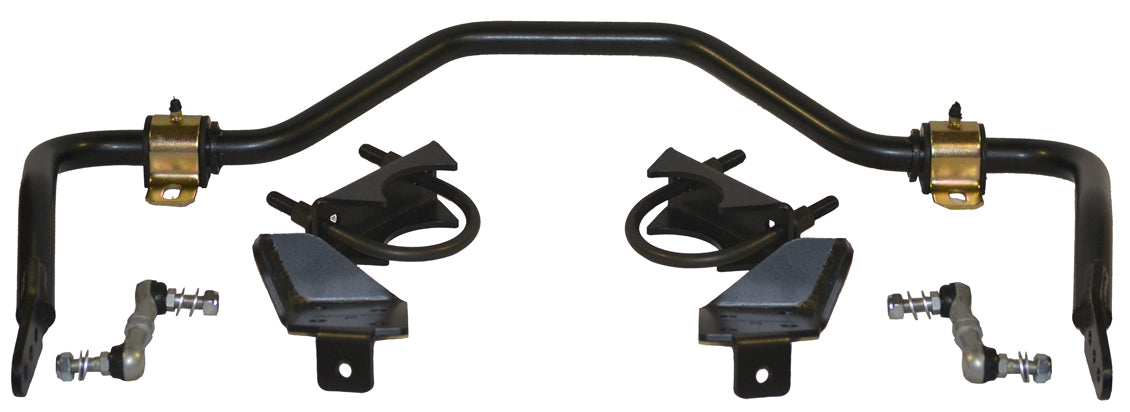

• MUSCLEBAR: REDUCES BODY ROLL & CREATES ROOM FOR WIDER FRONT TIRES. INCLUDES POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN CHASSIS & CONTROL ARMS.
• HQ SERIES REAR SHOCKS: UTILIZE AN IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY & HANDLING. COME STANDARD W/ A 1,000,0001 MILE WARRANTY.
• REAR COIL SPRINGS: OFFER PERFECT LOWERED STANCE. ENGINEERED BY RIDETECH, WOUND BY HYPERCO. HYPERCO SPRINGS ARE CNC COLD WOUND & ARE MANUFACTURED FROM HIGH TENSILE CHROME SILICON STEEL.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS SUSPENSION SYSTEM HERE.
