AIR SUSPENSION SYSTEM,ARMS,58 IMPALA

BRAND NEW RIDETECH AIR SUSPENSION SYSTEM WITH HQ SERIES SHOCKWAVES, STRONGARMS, MUSCLEBAR & COOLRIDE, FITS 1958 CHEVY B BODY IMPALA, DEL RAY, BEL AIR, BISCAYNE, BROOKWOOD & NOMAD

THIS AIR SUSPENSION SYSTEM IS SPECIFICALLY DESIGNED FOR THE 1958 CHEVY "B" BODY CARS AND INCLUDES EVERYTHING NEEDED TO PROVIDE AN ULTRA LOW SHOW STANCE WHILE MAINTAINING EXCELLENT RIDE QUALTIY AND HANDLING. THE SYSTEM CONTAINS FRONT UPPER AND LOWER STRONGARMS, FRONT & REAR MUSCLEBARS, FRONT HQ SERIES SHOCKWAVES, REAR STRONGARMS WITH UPPER WISHBONE, REAR COOLRIDE AND REAR HQ SERIES SHOCKS. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. RIDETECH HAS SPENT HOURS COLLECTING DATA TO FIND A PERFECT SPRING RATE AND COMPONENTS FOR YOUR VEHICLES PERFORMANCE AND RIDE QUALITY.

NOTE: AIR COMPRESSOR SYSTEM NOT INCLUDED. MUST BE USED WITH 1959-1964 STOCK SPINDLES & DISC BRAKES.

FITS:

• 1958 CHEVROLET B BODY: IMPALA > DEL RAY > BEL AIR > BISCAYNE > BROOKWOOD > NOMAD

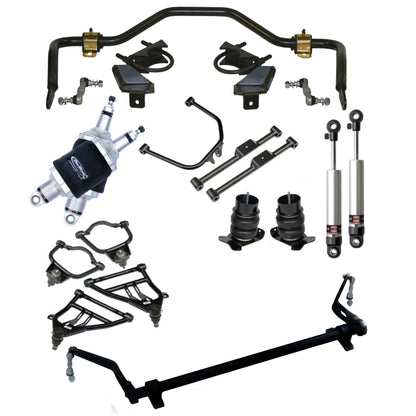

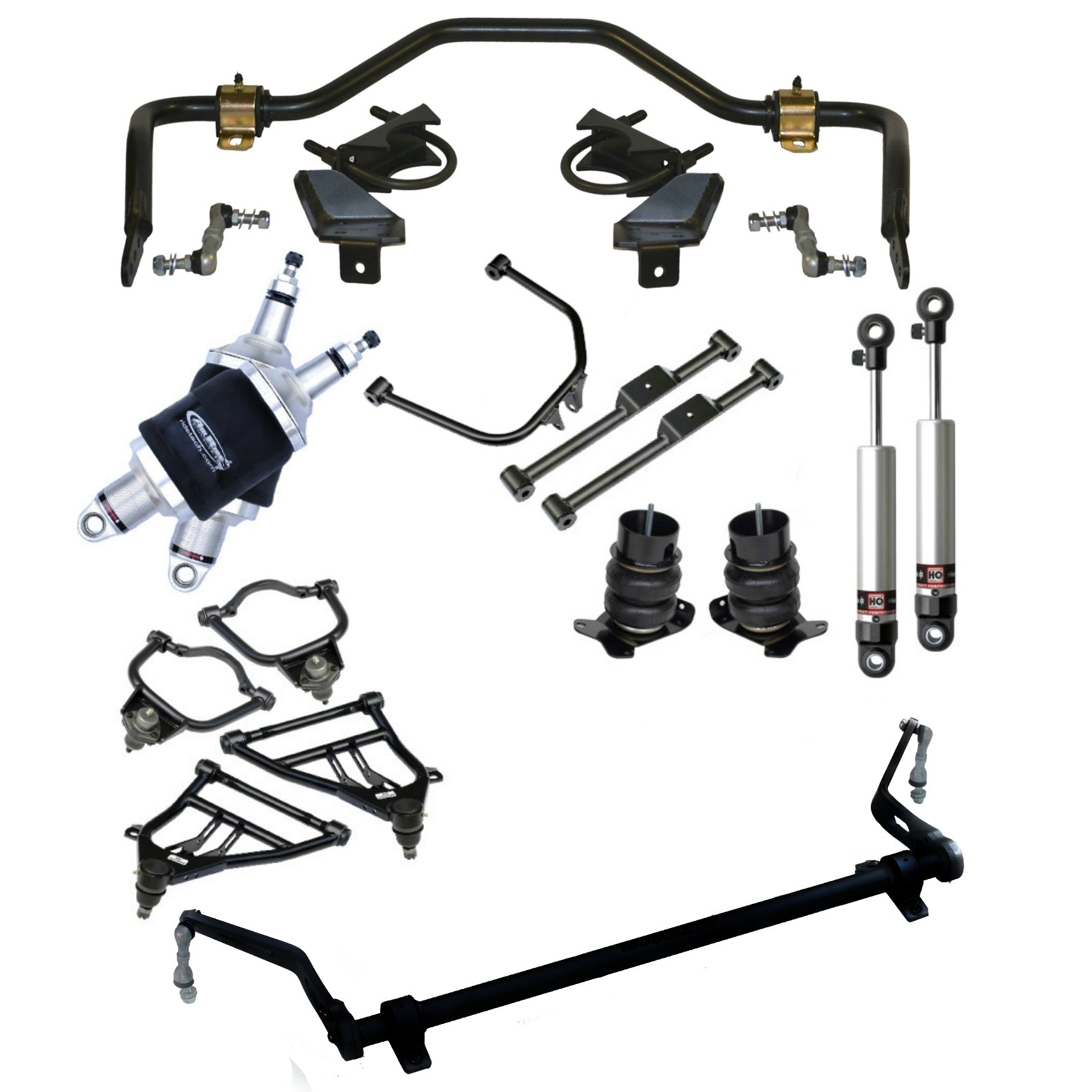

INCLUDES:

• HQ SERIES SHOCKWAVES
• FRONT UPPER & LOWER STRONGARMS
• FRONT & REAR MUSCLEBAR
• REAR STRONGARMS
• HQ SERIES REAR SHOCKS
• REAR COOLRIDE

FEATURES:

• HQ SERIES SHOCKWAVES:
• UTILIZES IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY AND HANDLING. ALLOWS FINE TUNING OF THE RIDE QUALITY & HANDLING. REBOUND KNOB IS LOCATED AT THE TOP OF THE SHOCK FOR UNDER HOOD ACCESS. HAS A 1,000,0001 MILE WARRANTY. HYPERCO SPRINGS ARE USED TO PROVIDE A CONSISTENT SPRING RATE THAT WILL LAST A LIFETIME
• UPPER STRONGARMS:
• CORRECTED BALL JOINT ANGLES FOR THE LOWERED RIDE HEIGHT & THE LENGTH HAS BEEN ALTERED TO CREATE MORE CAMBER ADJUSTMENT. INJECTION MOLDED DELRIN BUSHINGS W/ 13% TEFLON ARE USED TO REDUCE DEFLECTION & STICTION.
• LOWER STRONGARMS:
• DOUBLE SHEER LOWER SHOCK MOUNT FOR INCREASED STRENGTH. WE HAVE ALSO DROPPED THE LOWER SHOCK MOUNT TO INCREASE SUSPENSION TRAVEL & ALTERED THE LENGTH TO CREATE MORE CAMBER ADJUSTMENT. INJECTION MOLDED DELRIN BUSHINGS W/ 13% TEFLON ARE USED TO REDUCE DEFLECTION & STICTION

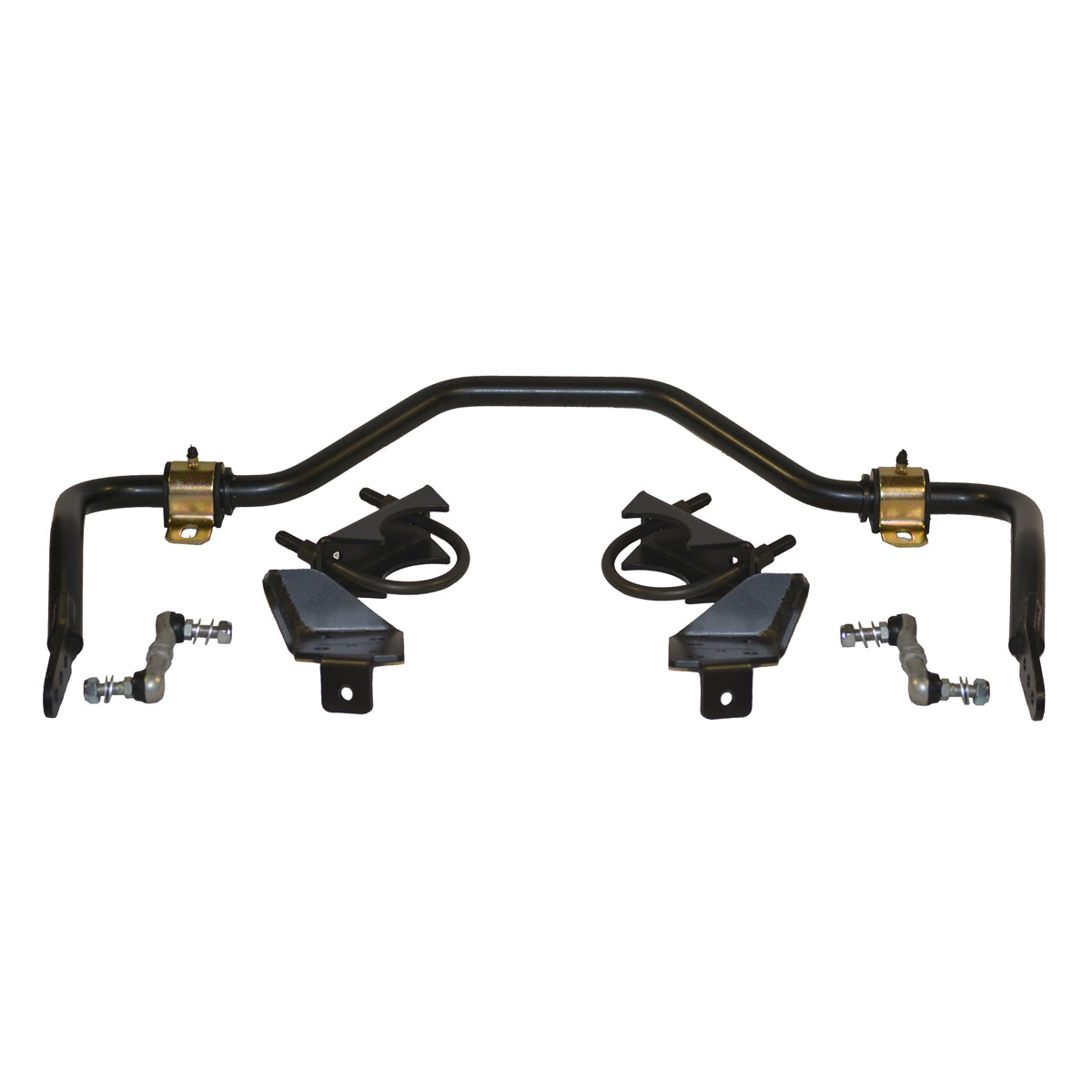

• FRONT MUSCLEBAR:
• REDUCES BODY ROLL & INCLUDES THE POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN THE CHASSIS & CONTROL ARMS. A REAR MUSCLEBAR IS ALSO INCLUDED
• REAR STRONGARMS:
• PROVIDE ADDED STRENGTH TO HELP GET THE POWER TO THE PAVEMENT. INCLUDES A TUBULAR UPPER WISHBONE SPECIFIC TO THE 1958 MODEL YEAR

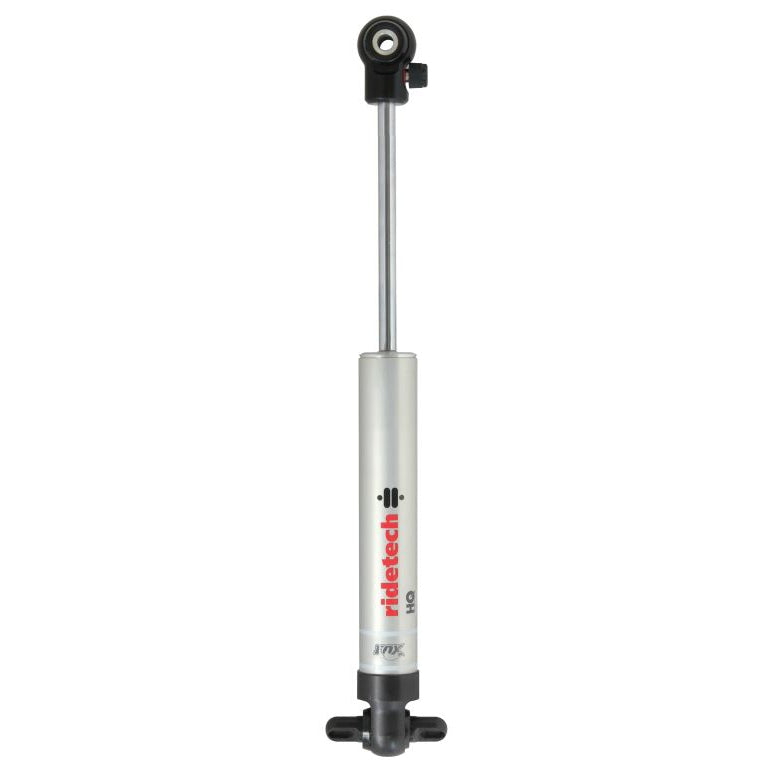

• HQ SERIES REAR SHOCKS:
• UTILIZE AN IMPACT FORGED ALUMINUM BODY AND MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY AND HANDLING. THEY ALLOW FINE TUNING OF THE RIDE QUALITY AND HANDLING AND COME STANDARD WITH A 1,000,0001 MILE WARRANTY

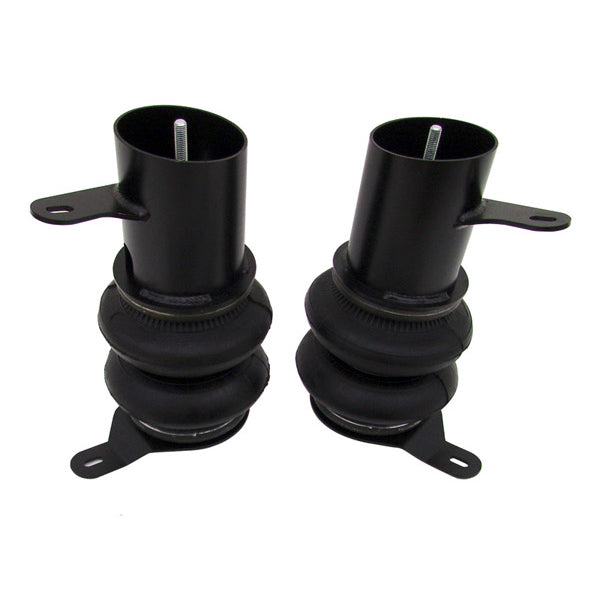

• REAR COOLRIDE:
• SYSTEM SIMPLY BOLTS IN PLACE OF THE STOCK SPRINGS
