AIR SUSPENSION SYSTEM,ARMS,58 IMPALA

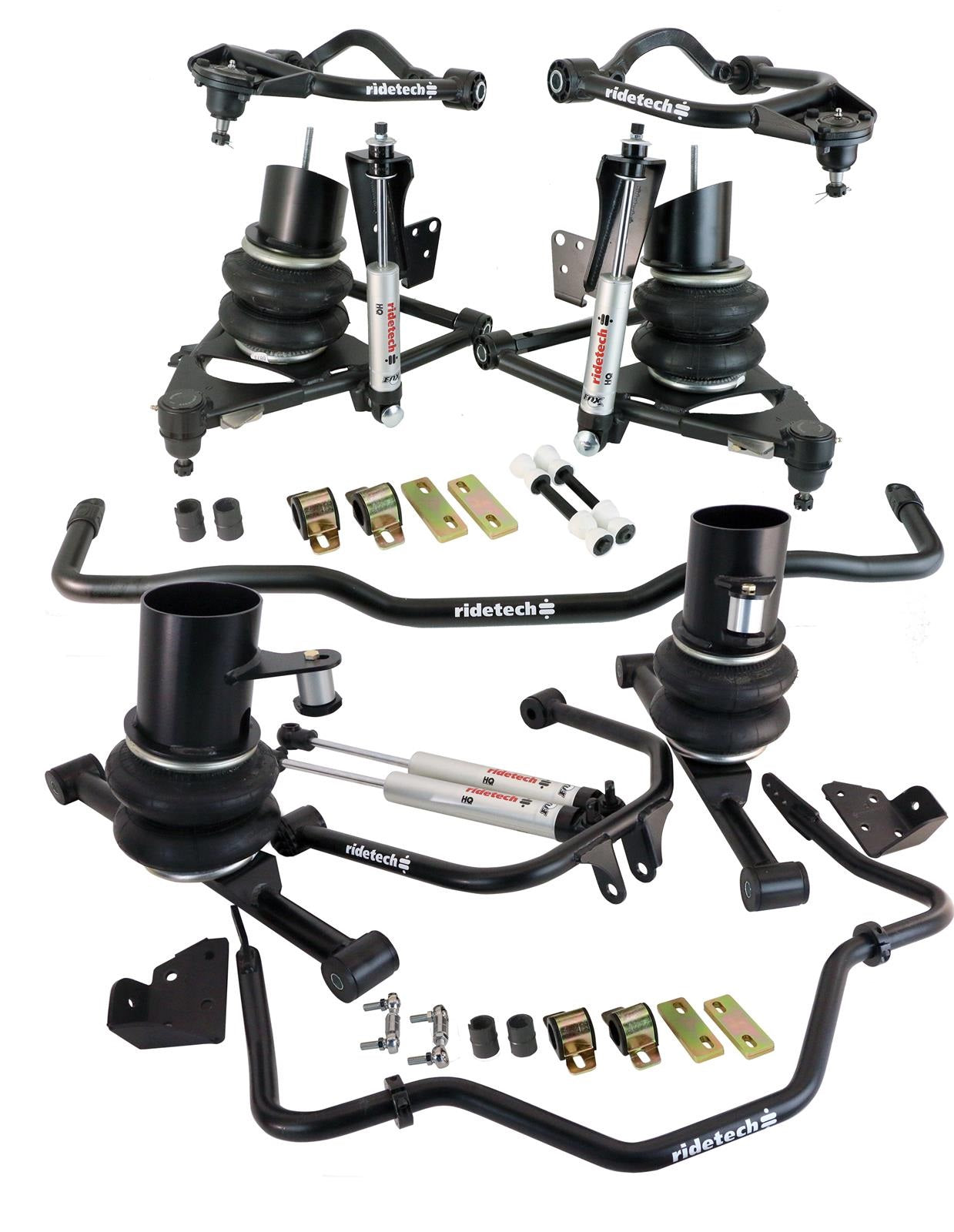

Brand New Ridetech Complete Air Suspension System (Part #11040297).

This Air Suspension System is specifically designed for the 1958 Chevy “B” Body cars and includes everything needed to provide an ultra-low show stance while maintaining excellent ride quality and handling. The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series shocks, front and rear air spring w/ brackets, rear tubular trailing arms. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find the perfect components to achieve maximum vehicle performance and ride quality. 1958 Chevrolet “B” Body includes Impala, Del Ray, Bel Air, Biscayne, Brookwood, Nomad.

Fits:

• Chevrolet:
  • 1958 Bel Air
  • 1958 Biscayne
  • 1958 Brookwood
  • 1958 Del Ray
  • 1958 Impala
  • 1958 Nomad
  • 1958 Sedan Delivery
  • 1958 Yeoman

Note:

• A compressor is required for this air suspension system. Example part #30514100.
• Must be used with 1959-1964 stock spindles & disc brakes. Installing this kit with a drop spindle will cause fitment, geometry/alignment, and ride quality issues.
• Disc brake brackets must mount to the outside face of the spindle
• If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required (Part # 11059121).

Includes:

• Front and Rear HQ Series Shocks
• Front and Rear CoolRide System
• Upper and Lower Front StrongArms
• Rear StrongArms
• Front and Rear Sway Bars
• Mounting Hardware

Features:

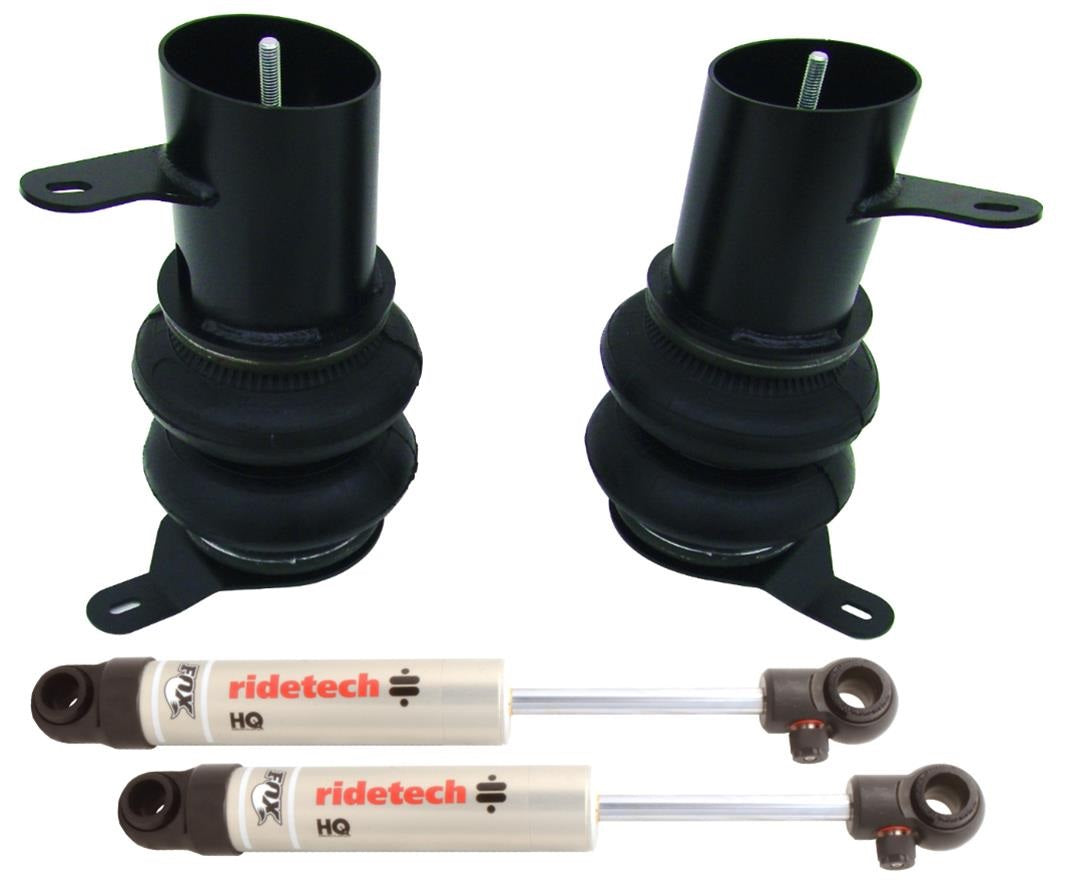

• HQ Series Shocks:
  • Utilizes an impact forged aluminum body and monotube design to deliver excellent ride quality and handling.
  • They allow fine tuning of the ride quality and handling.

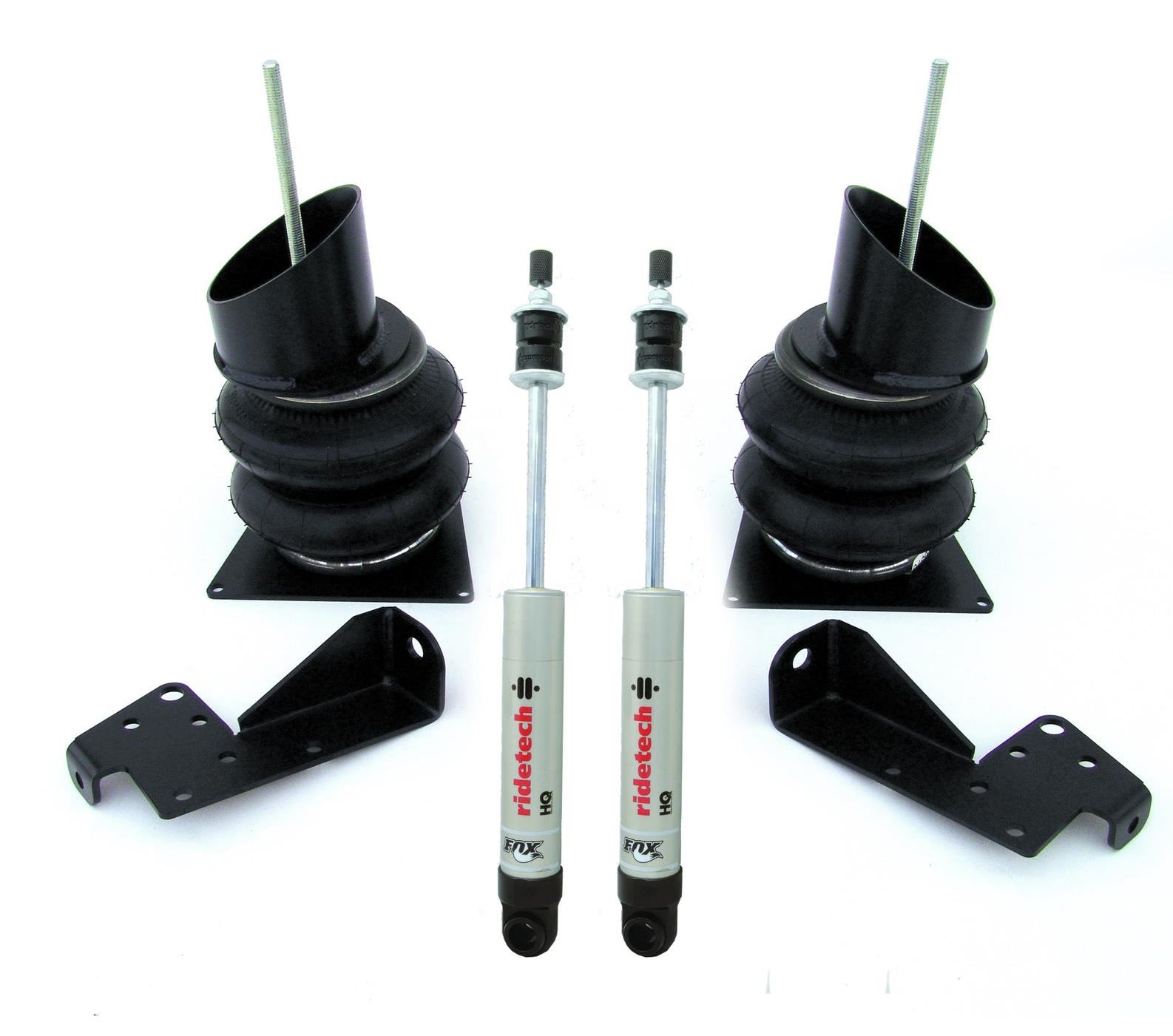

• Front and Rear CoolRide System:
  • Utilizes air springs and application specific bolt-on mounting brackets that allow the air spring to be bolted in place of coil springs.

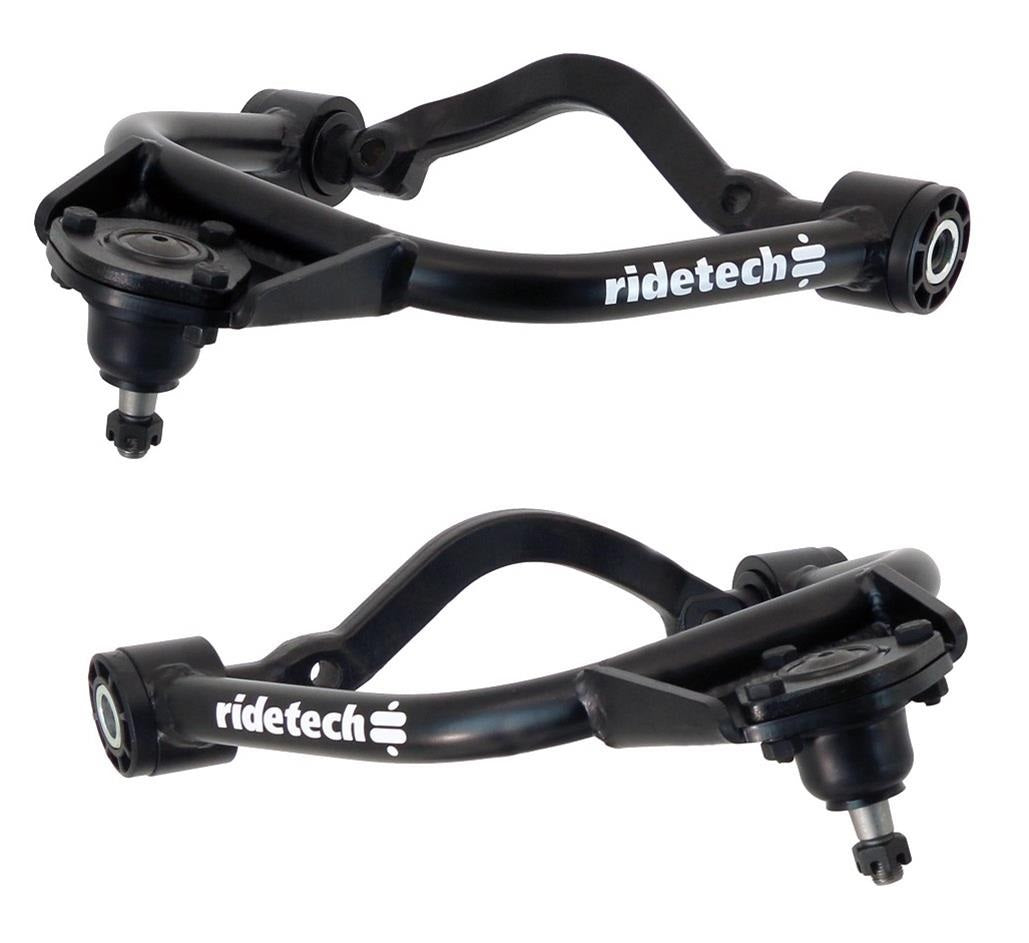

• Upper Front StrongArms:
  • Feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

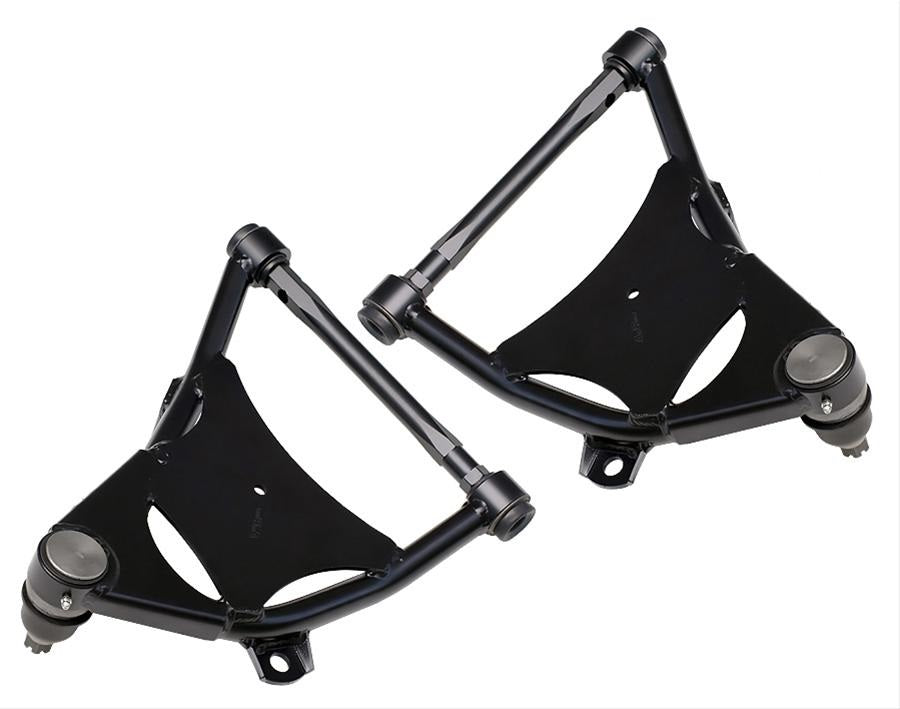

• Lower Front StrongArms:
  • Features a double sheer lower mount for increased strength.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

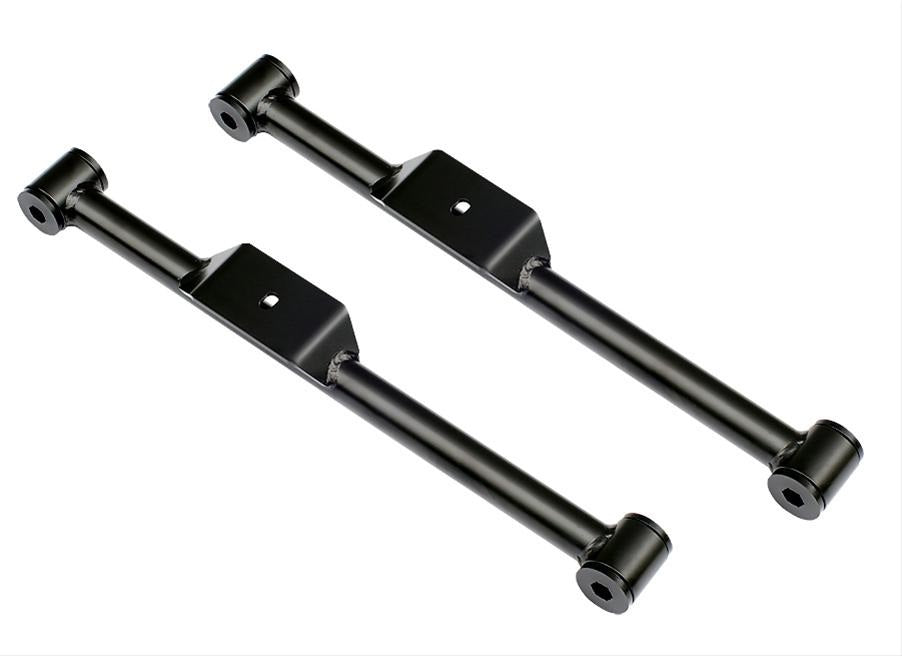

• Rear StrongArms:
  • The upper arms provide added strength to help get the power to the pavement.
  • Utilizes R-Joint Technology to provide smooth operation and reduce roll bind.
  • The lower arms feature a double sheer mount for the coilovers locating them in place of the stock springs, keeping the load where is belongs.

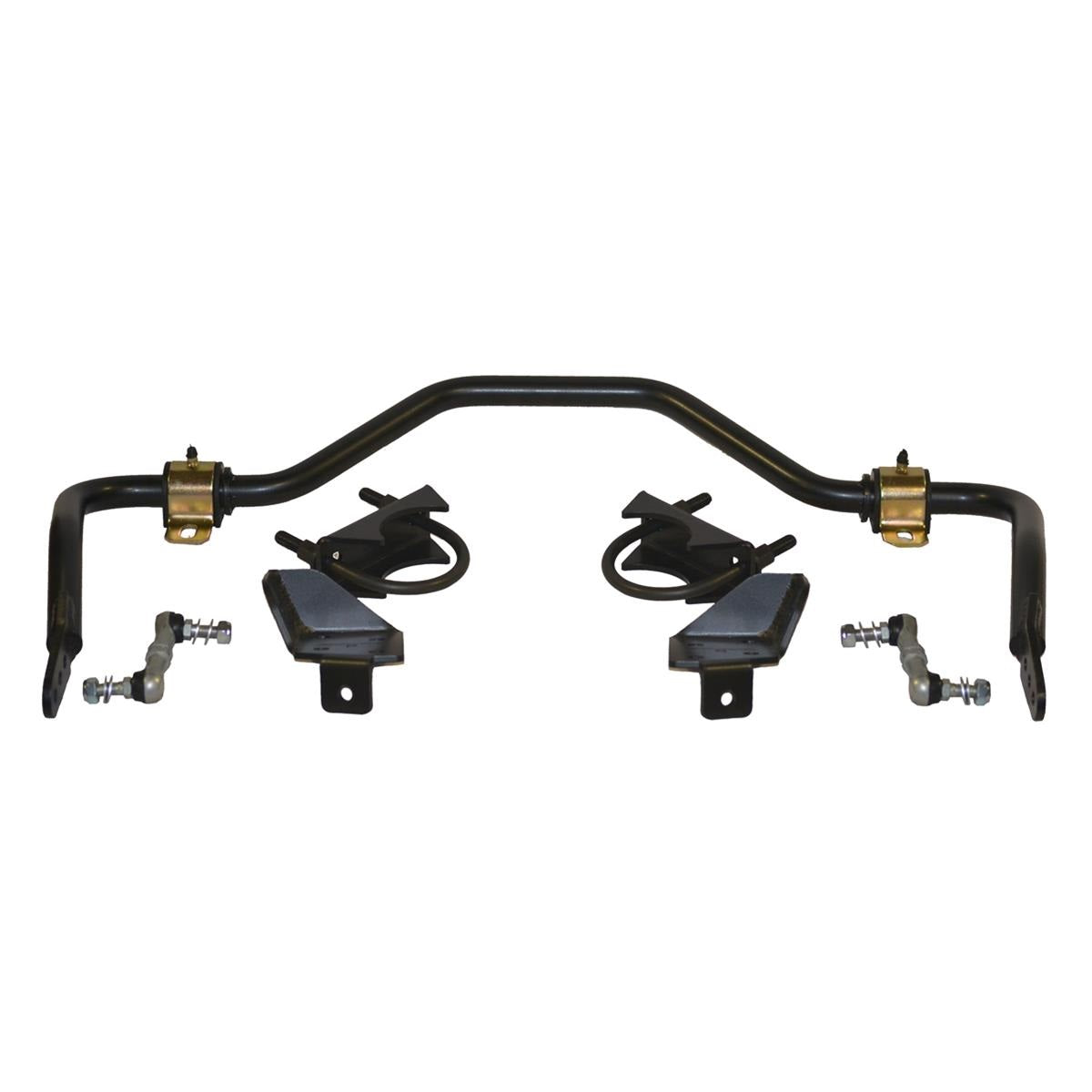

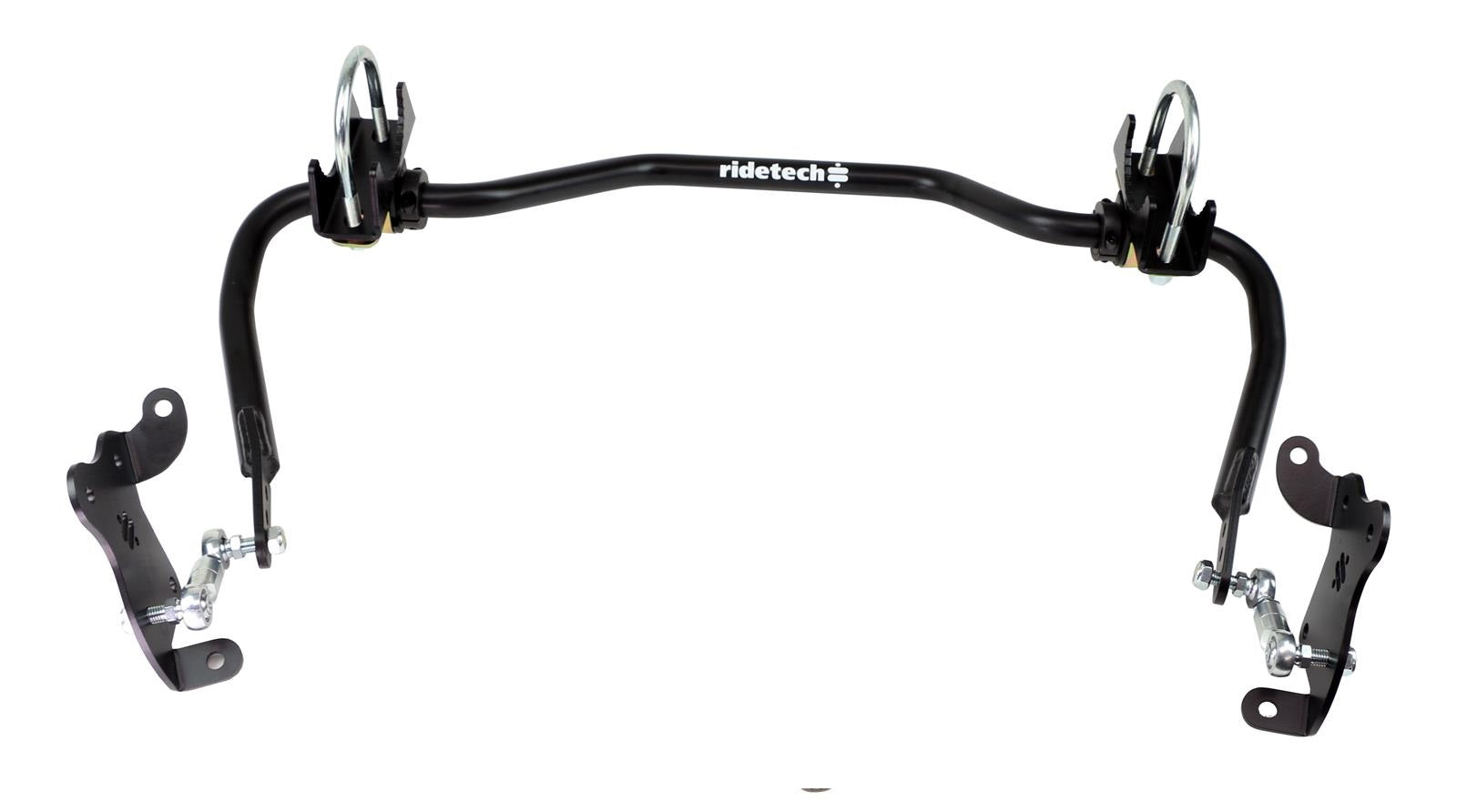

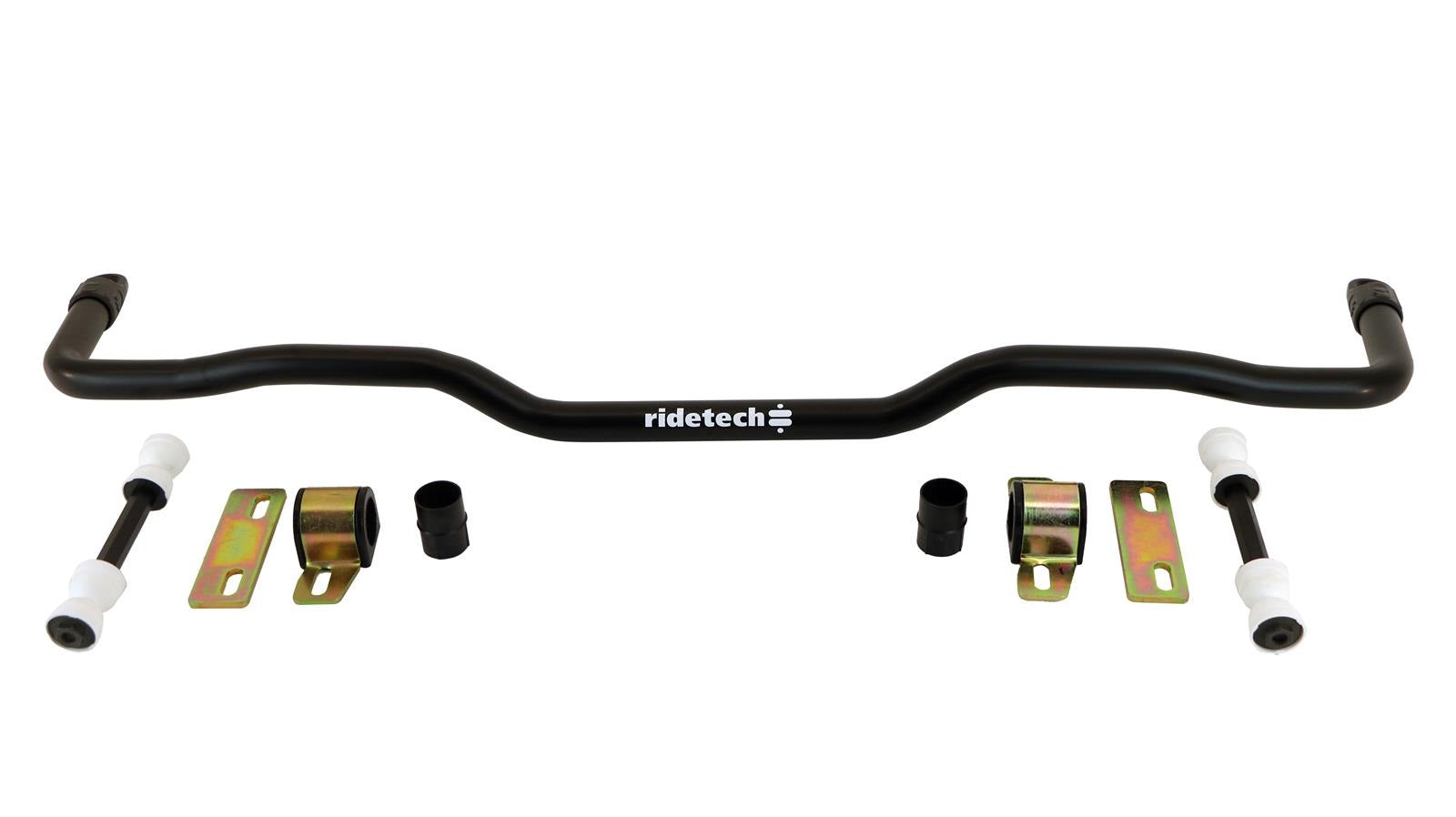

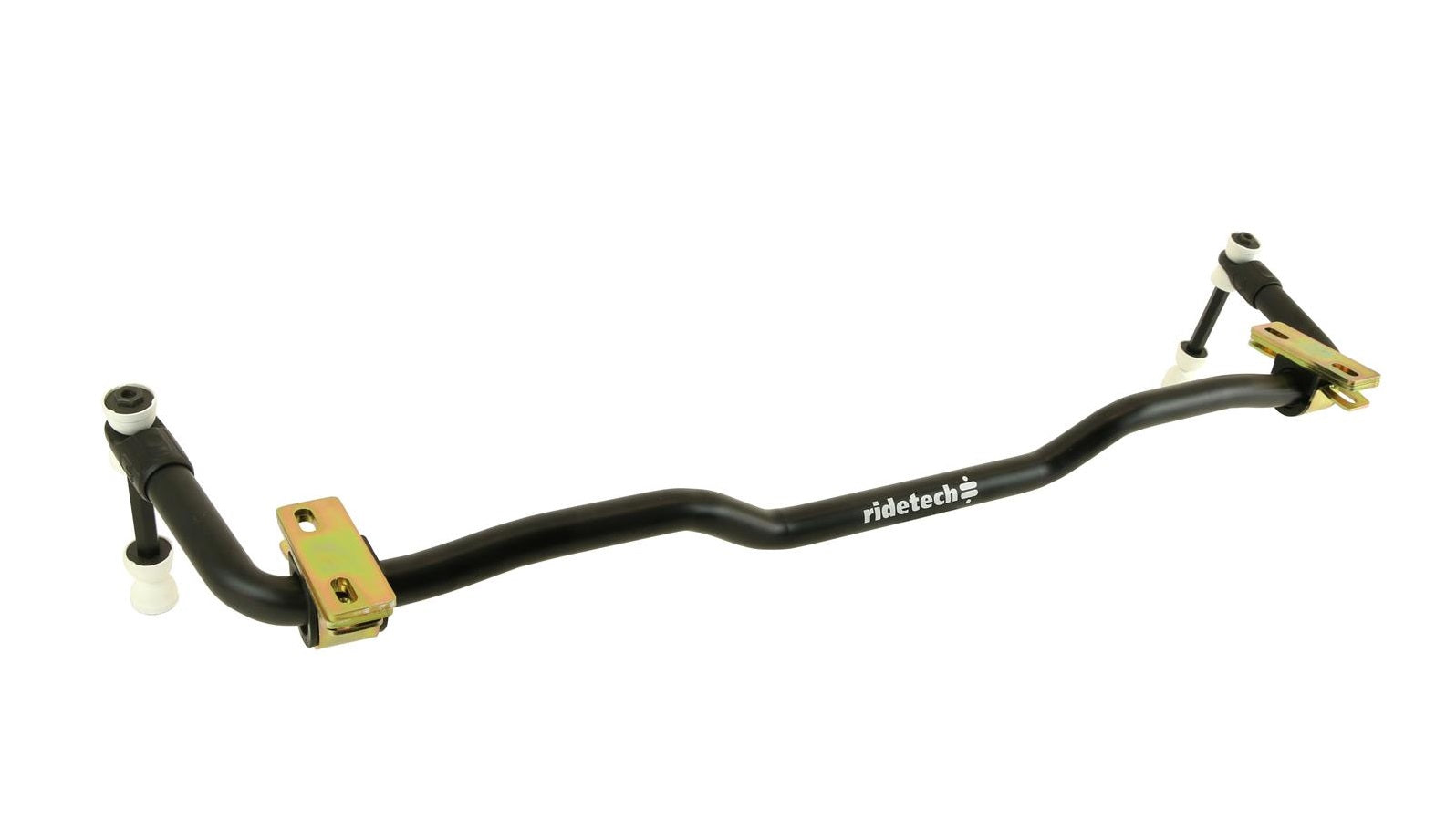

• Front & Rear Sway Bars:
  • Helps greatly reduce body roll.
  • They feature significantly higher rates, performance end links and Delrin lined bushings.

You can view and download the assembly instruction booklet here.
