COILOVER SYSTEM,ARMS,BARS,58 IMPALA

Brand New Ridetech Complete Coilover Suspension System (Part #11040202).

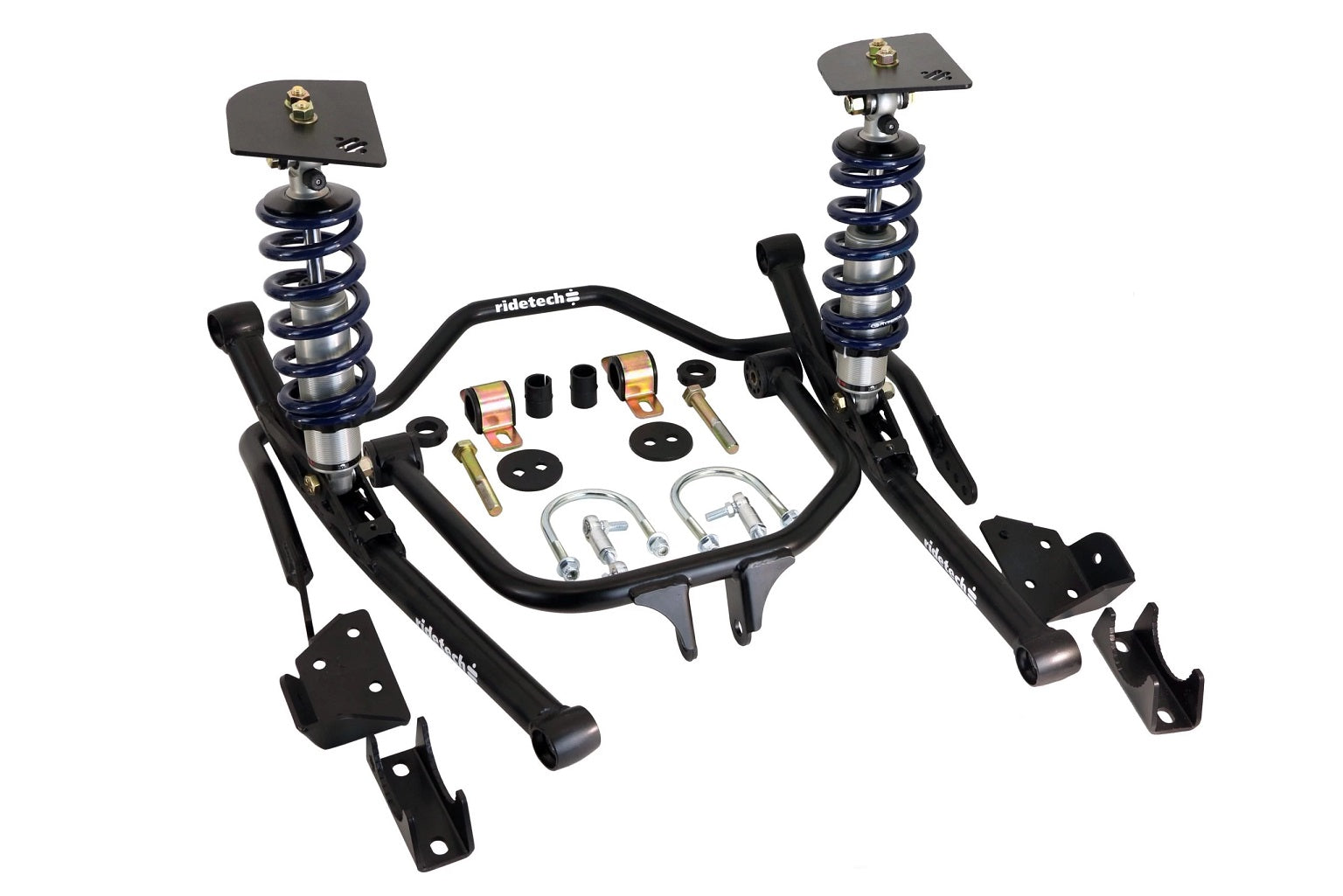

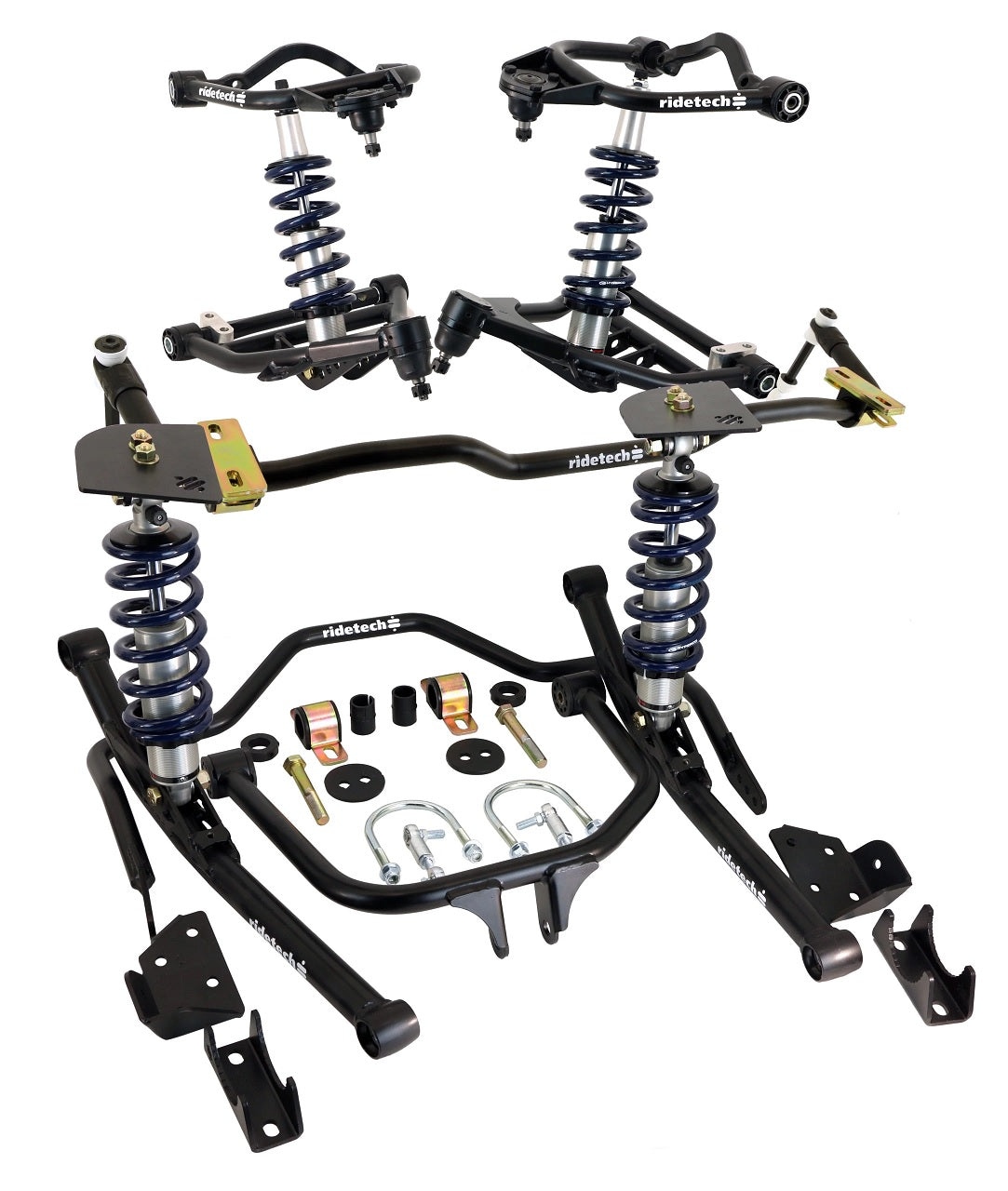

This Coilover System is specifically designed for the 1958 Chevy “B” Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality.  The system contains front tubular upper and lower control arms, front & rear sway bars, front and rear HQ Series Coilovers & tubular rear trailing arms. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality. 1958 Chevrolet “B” Body includes Impala, Del Ray, Bel Air, Biscayne, Brookwood, Nomad.

Fits:

• Chevrolet:
  • 1958 Bel Air
  • 1958 Biscayne
  • 1958 Brookwood
  • 1958 Del Ray
  • 1958 Impala
  • 1958 Nomad
  • 1958 Sedan Delivery
  • 1958 Yeoman

Notes:

• Must be used with 1959-1964 stock spindles & disc brakes. Installing this kit with a drop spindle will cause fitment, geometry/alignment, and ride quality issues.
• Disc brake brackets must mount to the outside face of the spindle.
• If utilizing the stock style power steering (with the assist cylinder), an additional bracket will be required (Part # 11059121).

Includes:

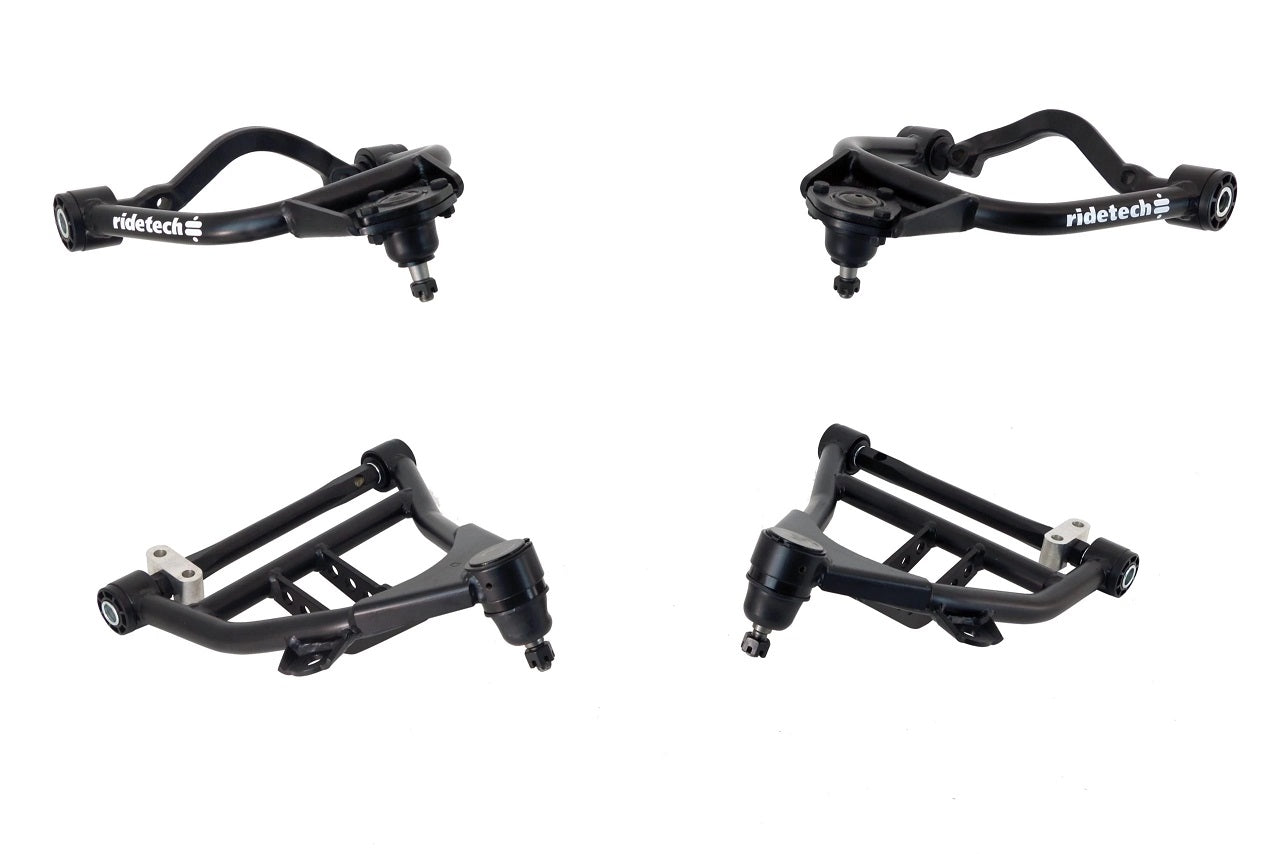

• Upper and Lower Front StrongArms
• Front and Rear HQ Series Coilovers
• Rear StrongArms
• Front and Rear Sway Bars
• Mounting Hardware

Features:

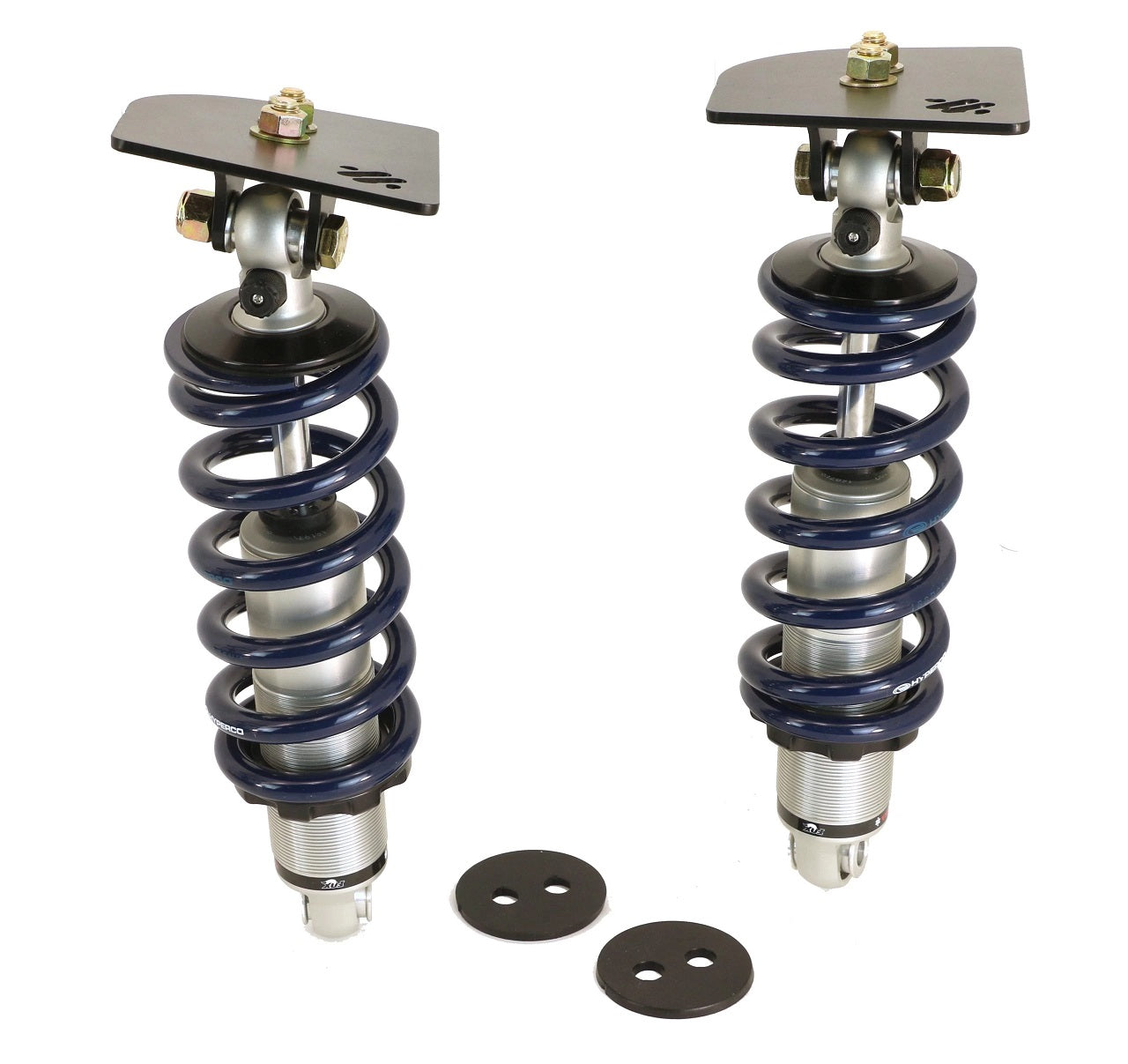

• HQ Series Coilovers:
  • Utilizes an impact forged aluminum body and monotube design to deliver excellent ride quality and handling.
  • They allow fine tuning of the ride quality and handling via the rebound knob that is located at the top of the shock for easy access.
  • Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

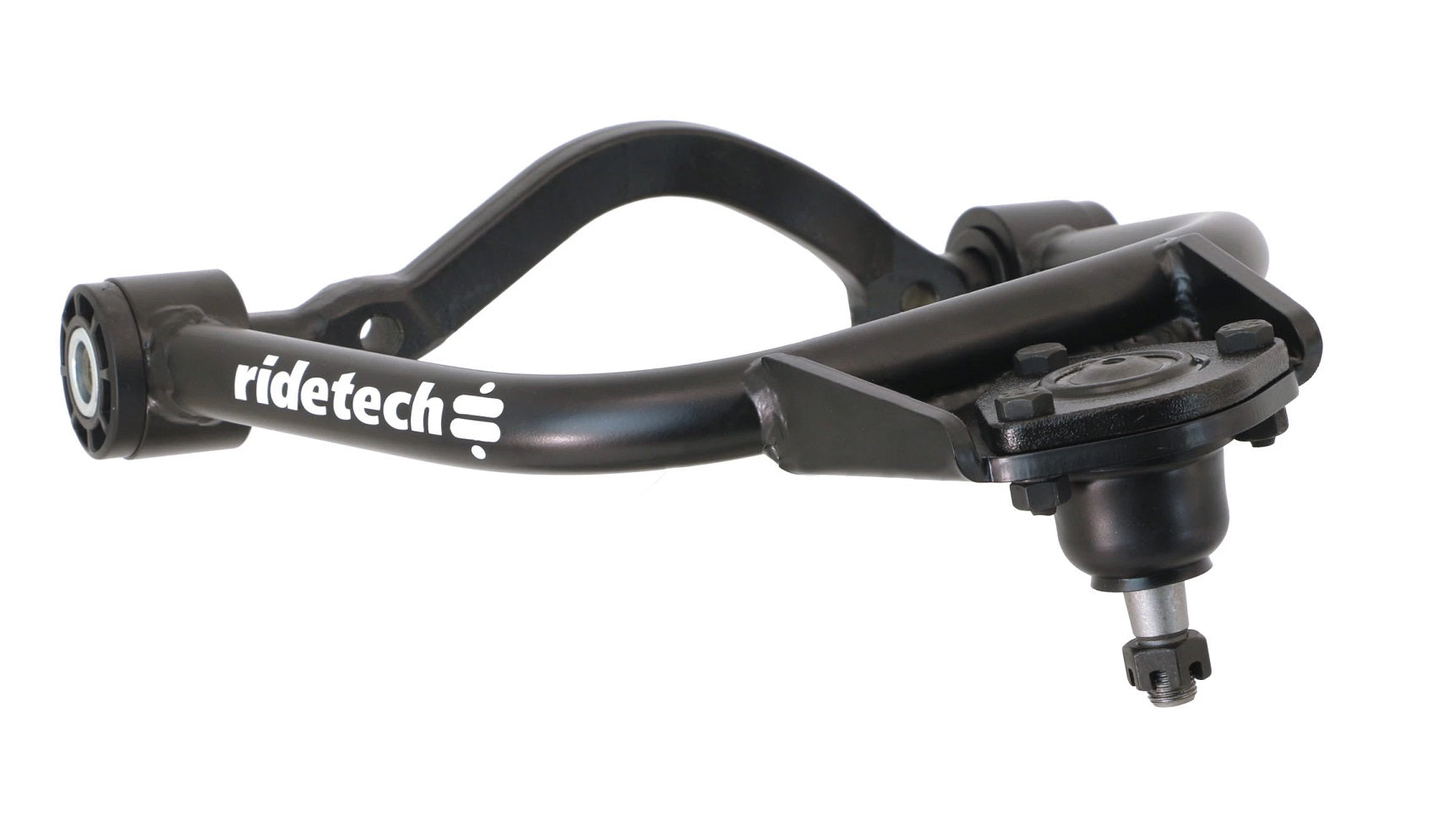

• Upper Front StrongArms:
  • Feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

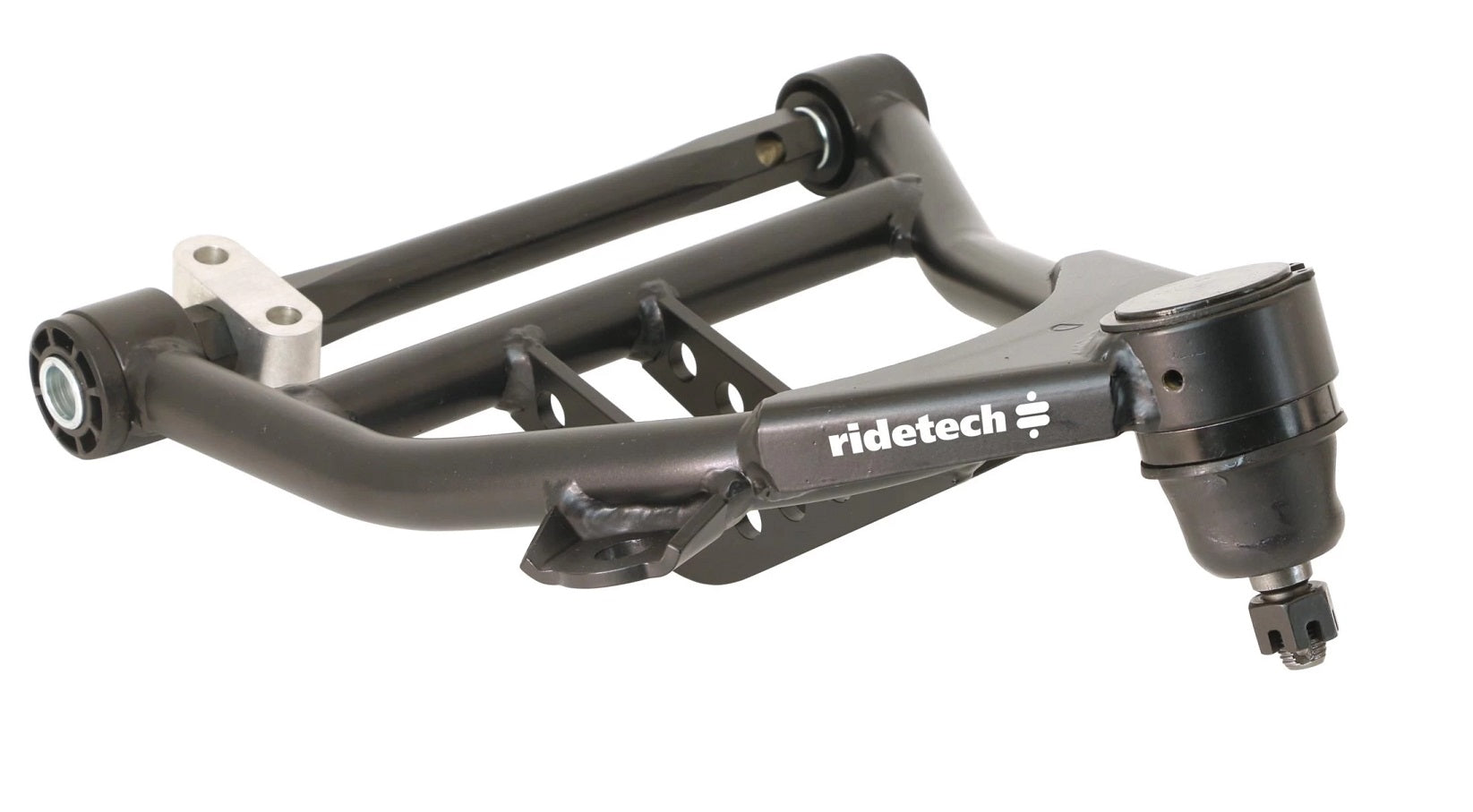

• Lower Front StrongArms:
  • Features a double sheer lower mount for increased strength.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.

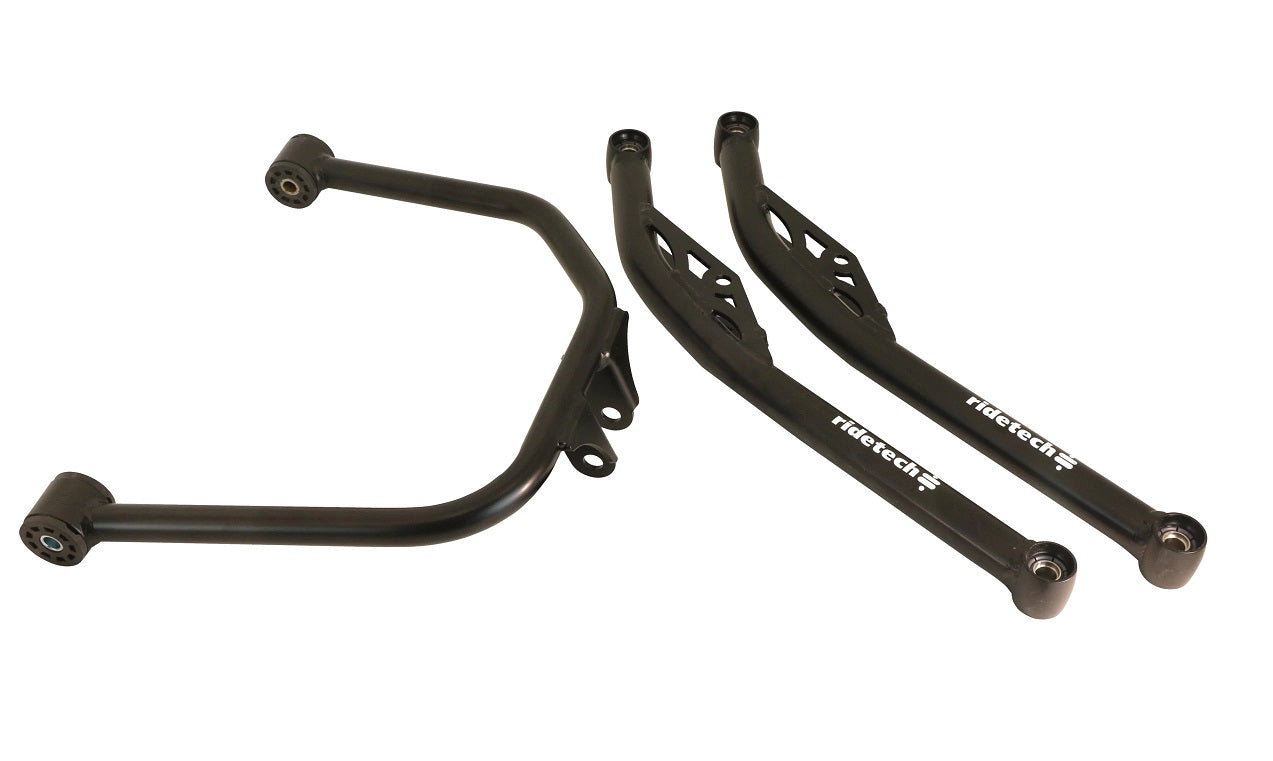

• Rear StrongArms:
  • The upper arms provide added strength to help get the power to the pavement.
  • Utilizes R-Joint Technology to provide smooth operation and reduce roll bind.
  • The lower arms feature a double sheer mount for the coilovers locating them in place of the stock springs, keeping the load where is belongs.

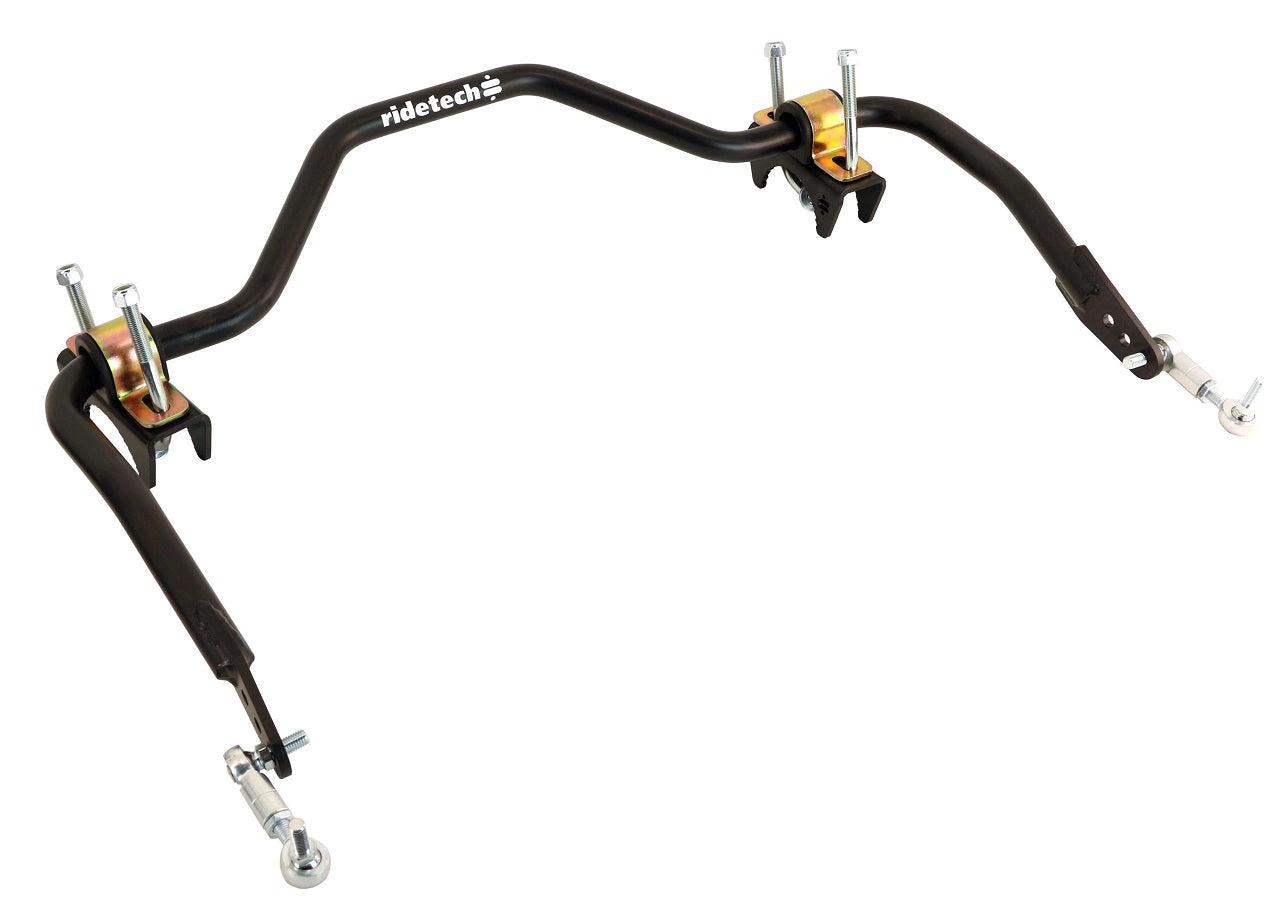

• Front & Rear Sway Bars:
  • Helps greatly reduce body roll.
  • They feature significantly higher rates, performance end links and Delrin lined bushings.

You can view and download the assembly instruction booklet here.
