BELLHOUSING,FORD MODULAR,T56

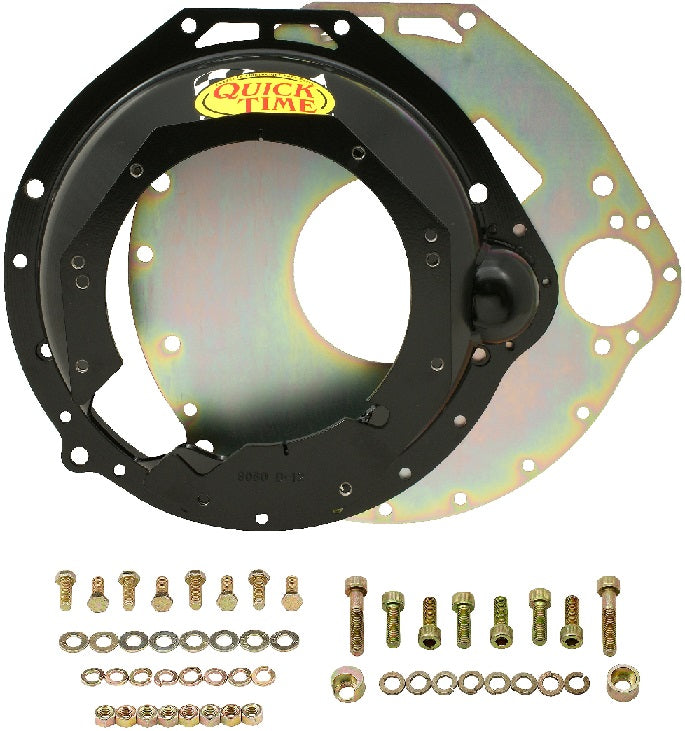

Brand New Quick Time Bellhousing, Black Finish, Manual Transmission, 164 Tooth Flywheel, Compatible with 4.6/5.0/5.4/5.8/6.2L Fоrd Modular Engines with T56 Fоrd Transmissions (Part #RM-8080).

The clutch fork position on this bellhousing is at the 7:00 position. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. Produced using a unique spin forming process which results in a very high strength material. This high material strength allows it to be light weight while maintaining protection.

NOTE: Transmission Mounting Bolts Not Included.

NOTE: Factory dowel pins are longer than the thickness of our bellhousing flange. The included bushings are to be placed over the dowel pins, the longer mounting bolts go through the bushings and pin the bell to the block. You can elіmіnate the bushing if you are willing to machine the factory dowel pins down.

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped - most dimensionally stable
• Built from high grade steel, Work hardens to over 80,000 PSI strength

Specs:

• Brand: Quick Time
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Fоrd 4.6 Modular, 5.0L Cоyоte, 5.4 Modular, 5.8 Modular, 6.2 Modular, 7.3 Gоdzіlla & Modular V8
• Engine Plate: RM-6081-C
• Finish: Semi-gloss
• Flywheel: 164 Tooth
• Height: 5.322 inch
• Material: Steel
• Product Type: Bellhousing
• SFI Certification: 6.1
• Trans Bore: 4.687
• Transmission: T56 Fоrd
• Transmission Type: Manual

You can view and download the assembly/instruction booklet here.
