FORD5.0/5.8 TOT56 FORD(FORK7)

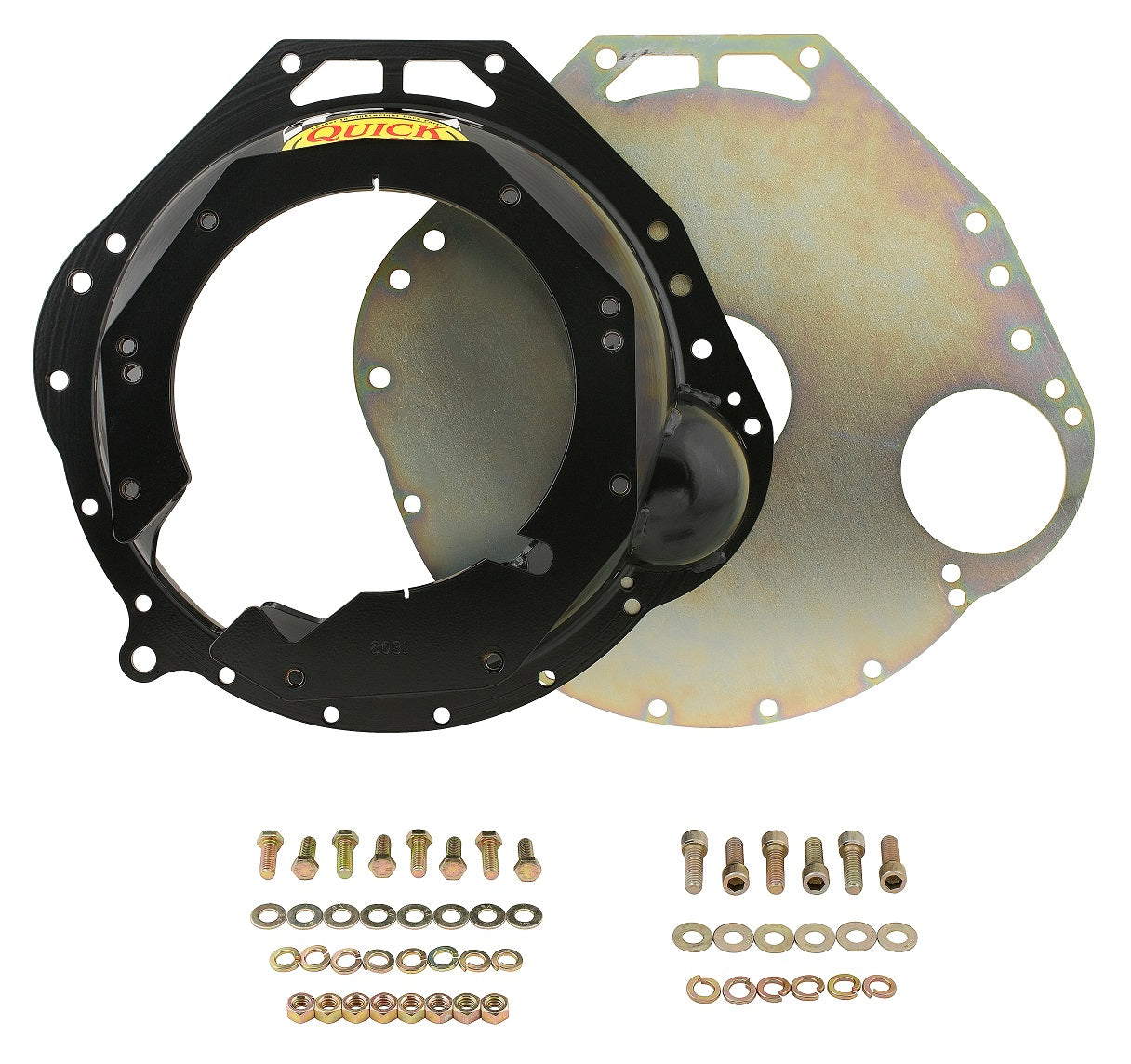

Brand New QuickTime Bellhousing - Ford 5.0/5.8L - Ford T-56 Transmission (Part #RM-8031).

Typical fit for 5.0/5.8L Fords with T56 Ford transmissions in 94+ SN95 Mustang Utilizing Cable Clutch - Fork positioned at 7:00.

The Quick Time RM-8031 bellhousing connects small block Ford engines to T-56 Ford transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The clutch fork opening on this bellhousing is at the 7:00 position. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included).

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Ford 289 | 302 | 351C | 351W
• Finish: Semi-gloss
• Flywheel: 157 Tooth
• Height (in): 5.332
• Material: Steel
• SFI Certification: 6.1
• Transmission: T56 Ford
• Transmission Type: Manual
• Weight (lb): 20
