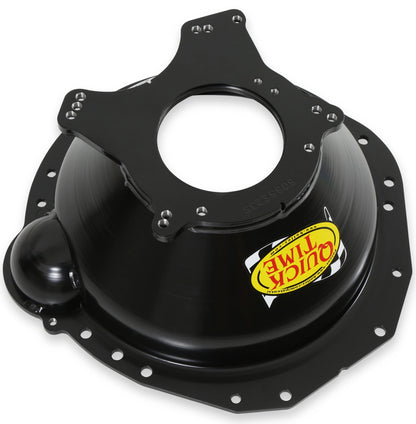

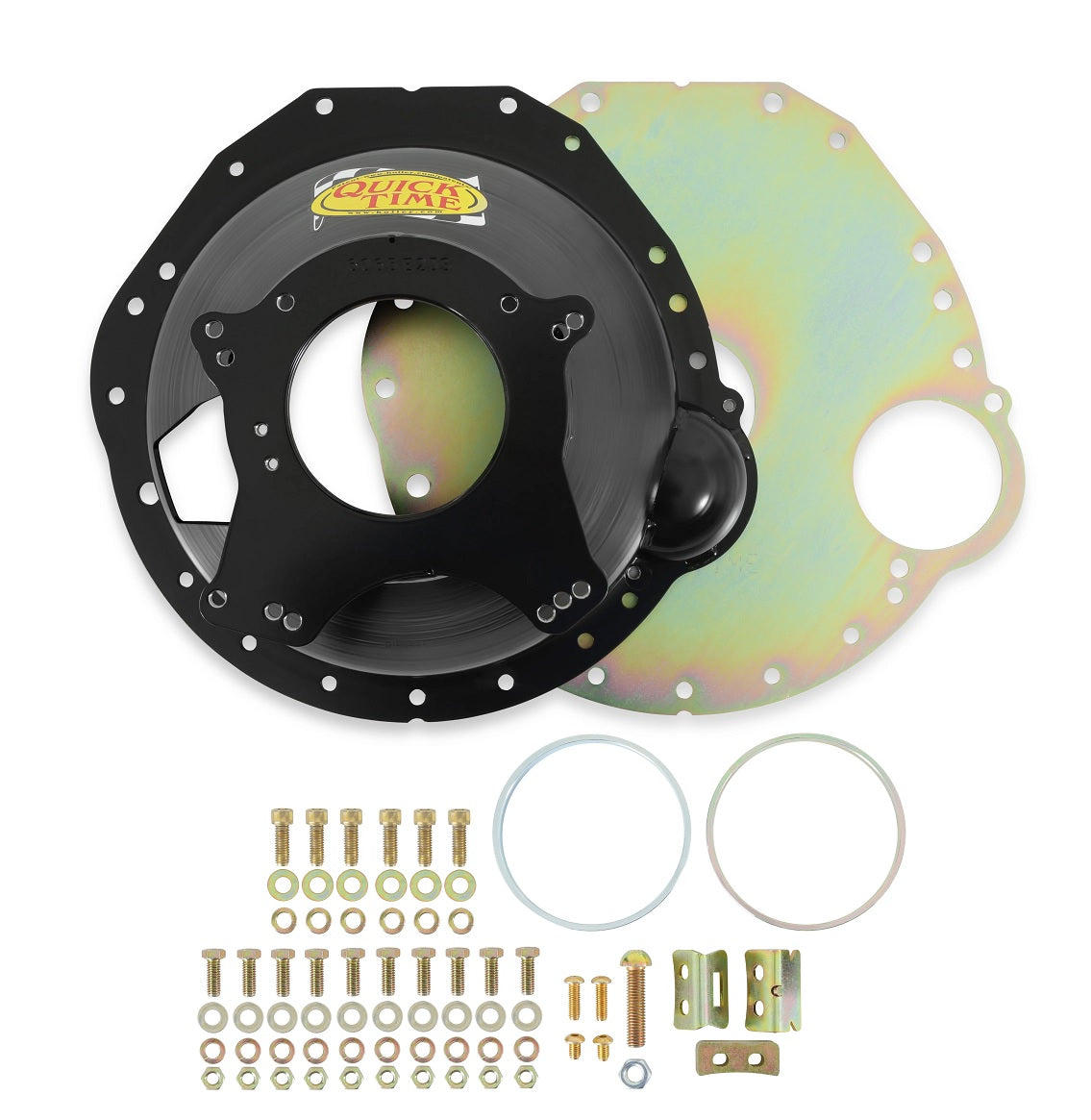

FORD5.0/5.8 TO FORDTKO/3550/T5

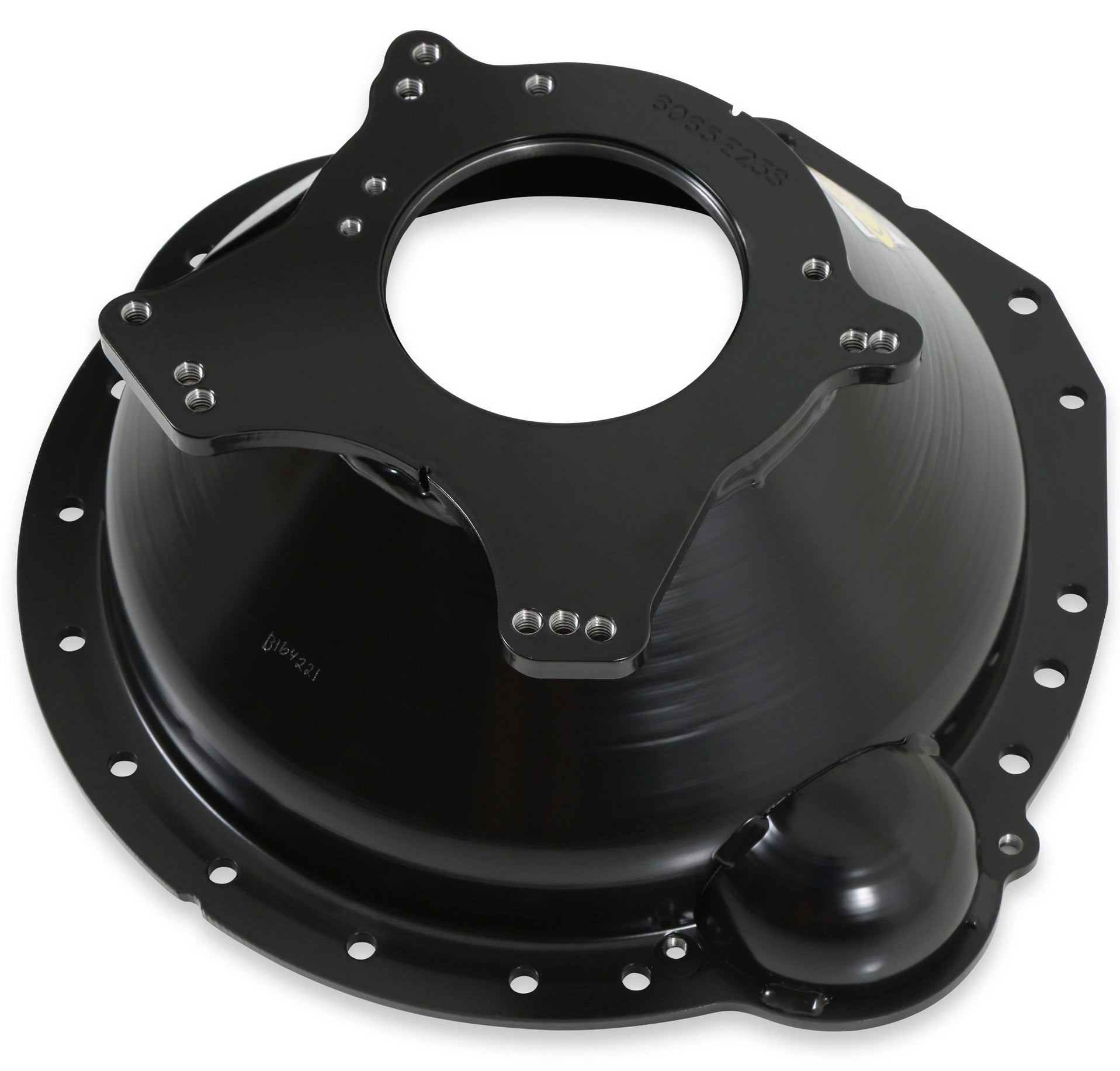

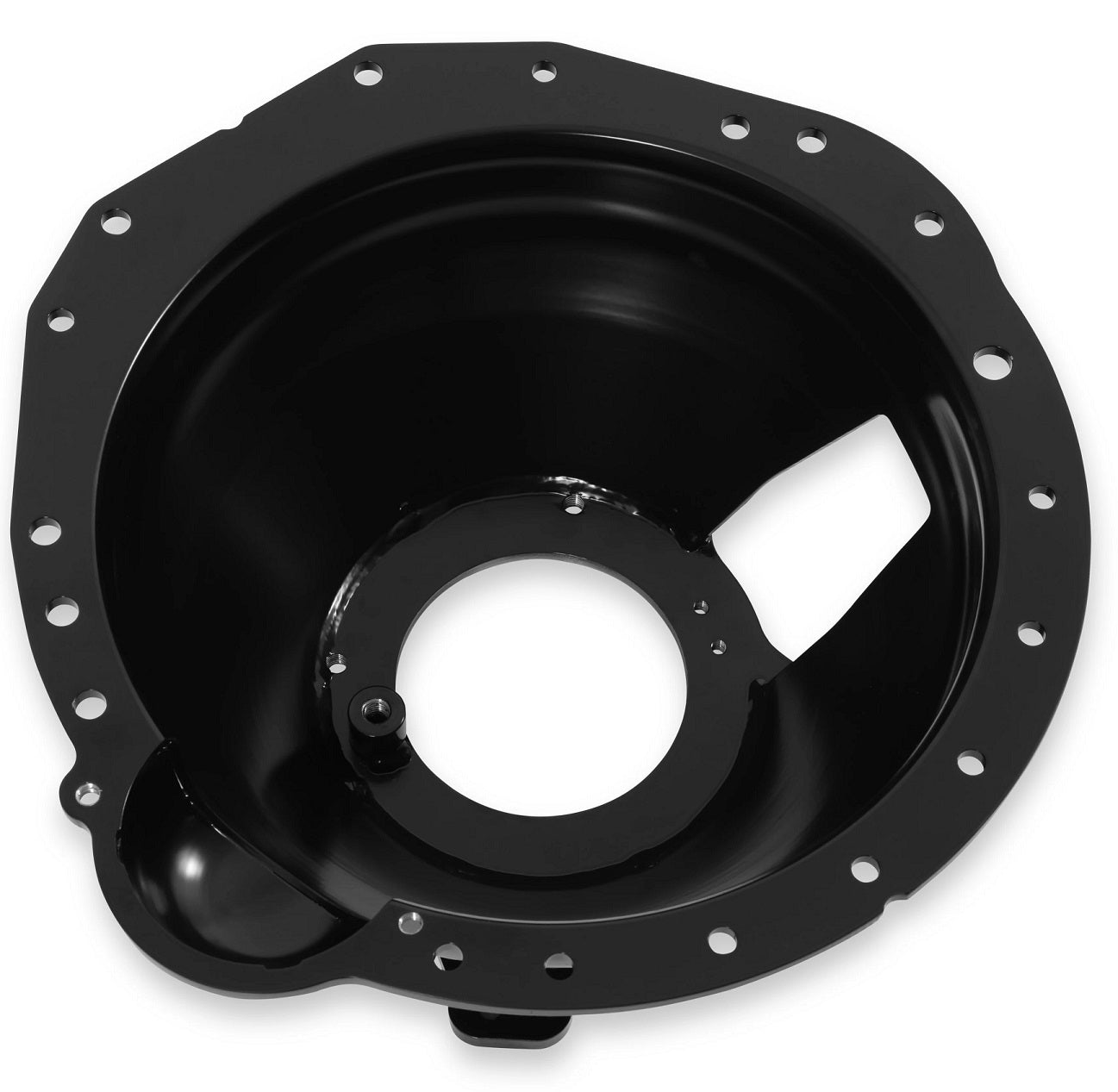

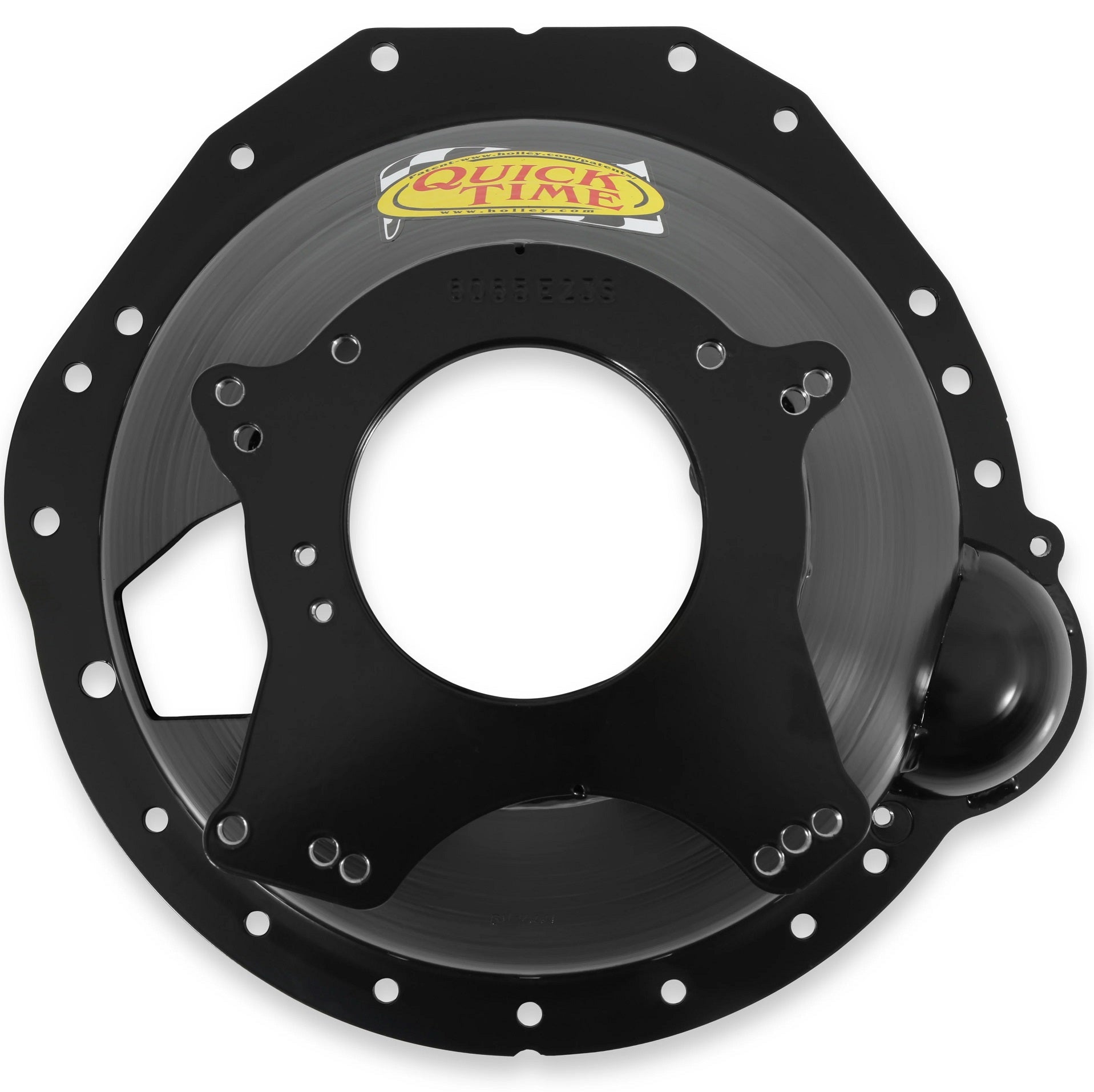

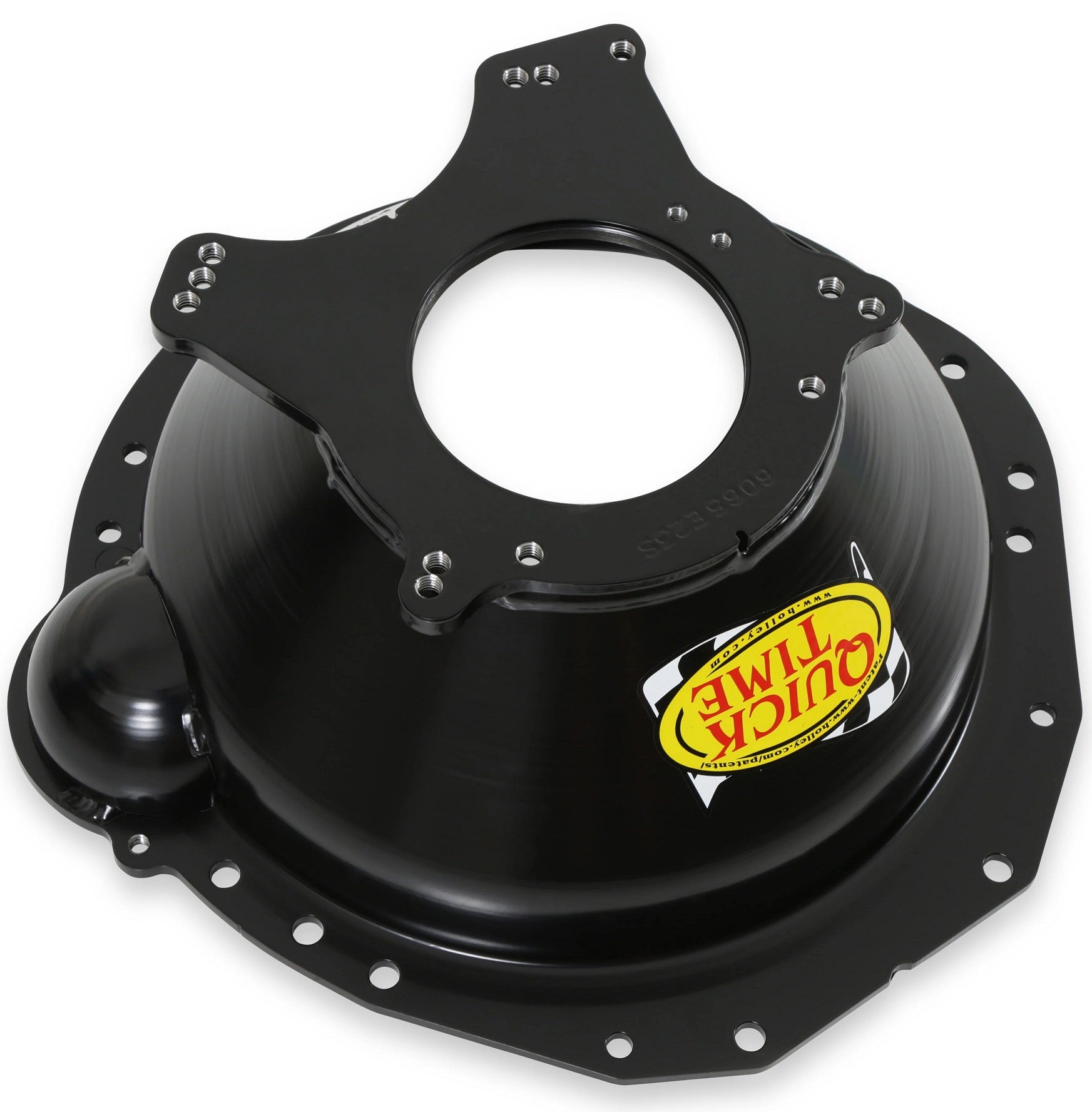

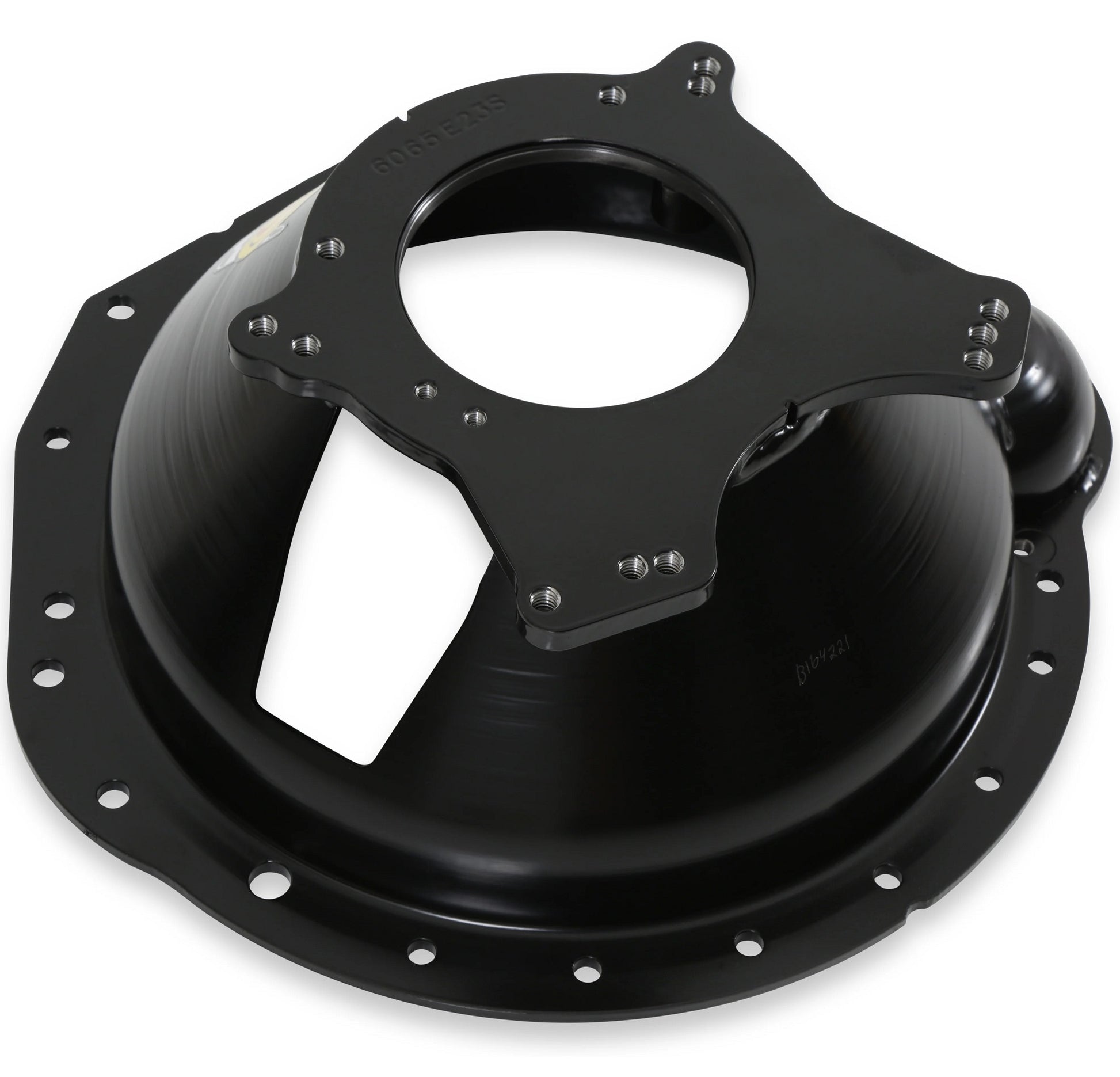

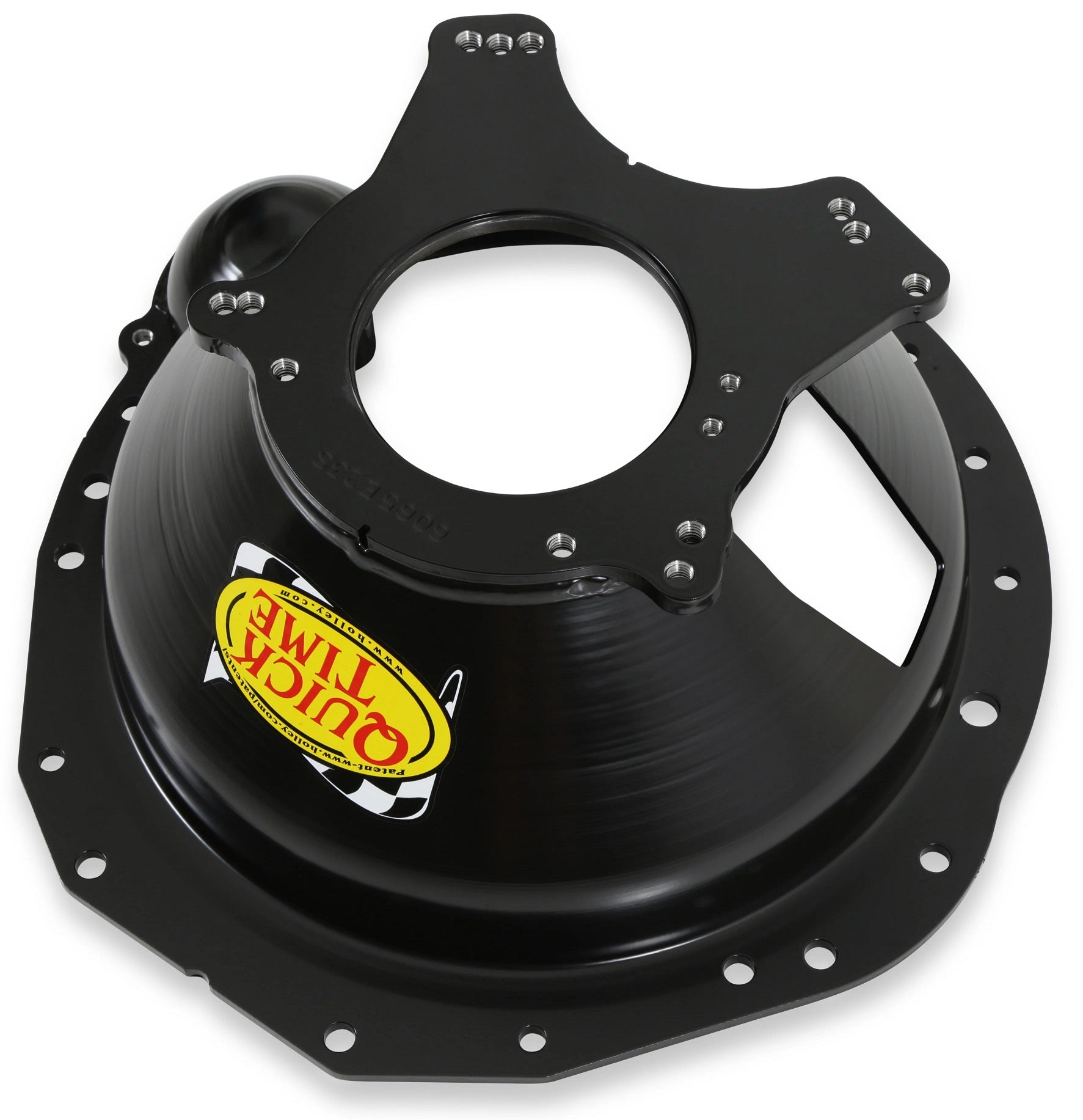

Brand New Quicktime Bellhousing, Compatible with Small Block Fords with TKO, TR3550, or T5 Transmissions. (Part #RM-6065).

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.  This bellhousing is a universal fit bellhousing and is not vehicle specific.

The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Note: Transmission Mounting Bolts Not Included. Designed for 157 tooth flywheel and 10.5 inch clutch Max.

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Certification: 6.1 SFI
• Clutch: 10.5 inch
• Clutch Operation: Mechanical/Pull Cable/Hydraulic
• Color: Black
• Engine: Ford 289, Ford 302, Ford 351C, Ford 351W, Ford Small Block
• Engine Plate: RM-6065-C
• Finish: Semi-Gloss
• Flywheel: 157 Tooth
• Height: 6.925 inch
• Height (in) 6.925
• Material: Steel
• Product Type: Bellhousing
• Trans Bore: 4.85 / 4.91 / 5.12
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Transmission: 1983-1993 T5 Ford, TKO 500/600 Ford, TKX Ford, TR3550
• Transmission Type: Manual

You can view and download the assembly/instruction booklet here.
