BELLHOUSING,SMALL BLOCK FORD,TKO,TR3550,T5

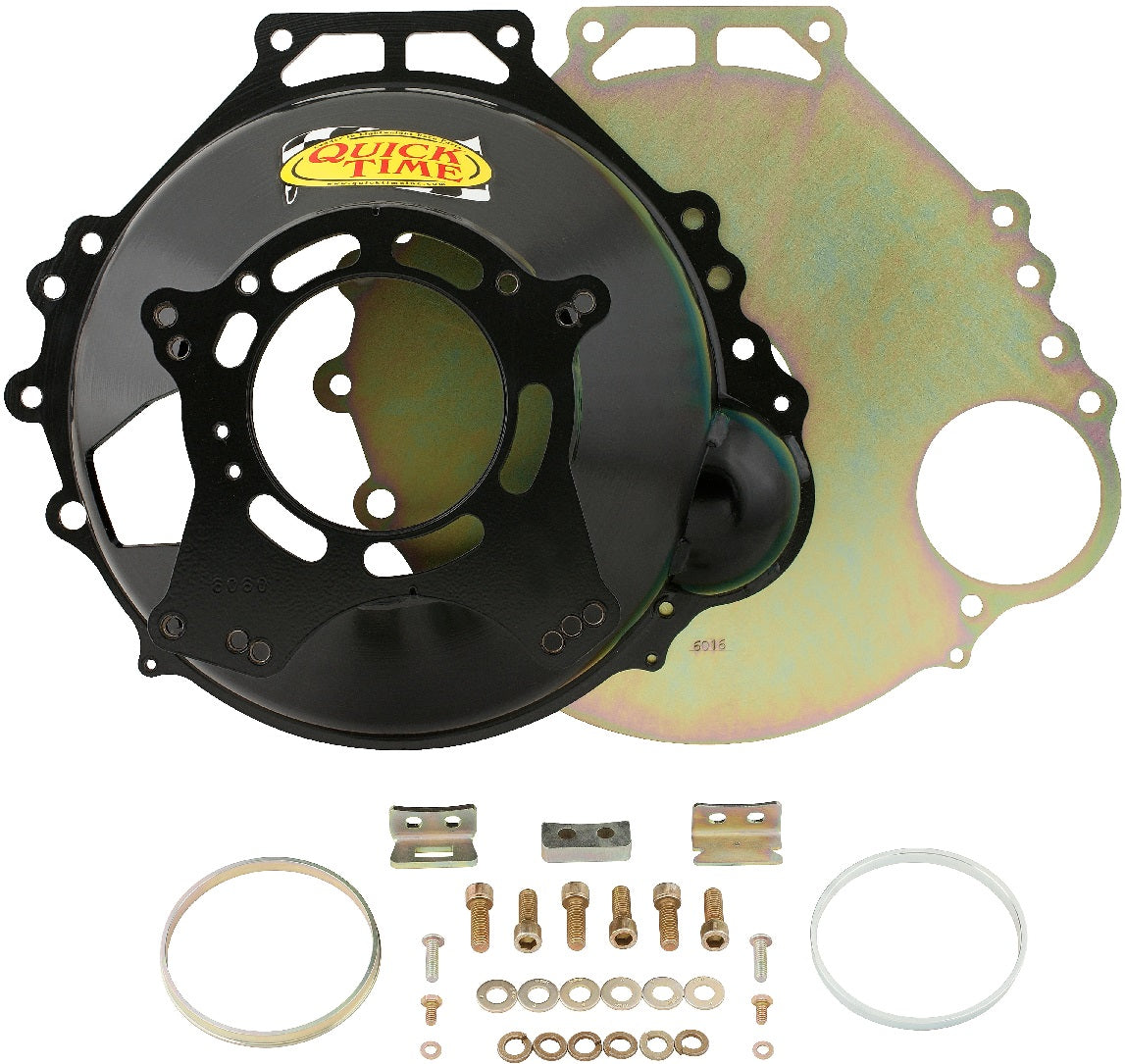

Brand New Quick Time Bellhousing, Black Finish, 157 Tooth Flywheel, 10.5 inch Clutch, Compatible with Small Block Fоrds with TKO, TR3550, or T5 Transmissions (Part #RM-6060).

The Quick Time RM-6060 bellhousing connects Small Block Fоrd engines to a Fоrd TKO 500-600, TR3550 or T5 Мustang (standard length input shaft) transmission. This bellhousing is NOT S.F.І. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. Produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

NOTE: Transmission Mounting Bolts Not Included.

NOTE: Compatible with 157 tooth flywheel & 10.5" clutch Max.

Includes:

• Bellhousing
• Pivot Ball
• Fork Brackets
• Hardware
• Trans Adapters
• Block Plate

Features:

• Most accurate bellhousings available due to our unique manufacturing processes
• Cones are spun, not rolled or stamped - Allows the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength
• Раtent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch: 10.5 inch
• Clutch Operation: Mechanical/Pull Cable/Hydraulic
• Color: Black
• Engine: Fоrd 289, 302, 351C, 351W, Small Block V8
• Engine Plate: RM-6016
• Finish: Semi-gloss
• Flywheel: 157 Tooth
• Height: 6.925 inch
• Material: Steel
• Product Type: Bellhousing
• Trans Bore: 4.85 / 4.91 / 5.12
• Transmission: T5 Fоrd 1983-1993, TKO 500/600 Fоrd, TKX Fоrd, TR3550
• Transmission Type: Manual

You can view and download the assembly/instruction booklet here.
