FORD BB TO T5/TKO/3550

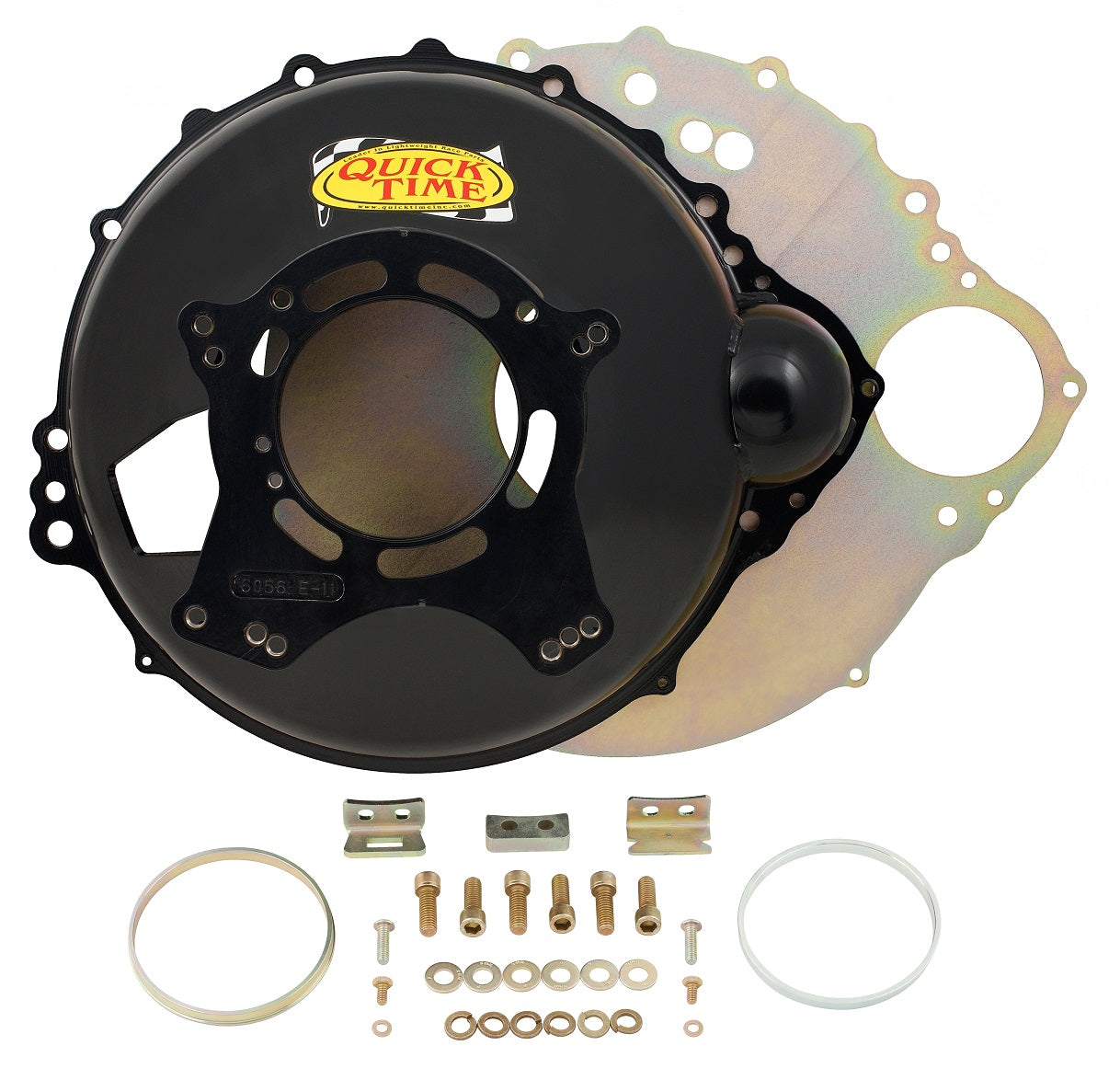

Brand New QuickTime Bellhousing - FE Big Block Ford (Part #RM-6056).

The Quick Time RM-6056 bellhousing connects Ford FE big block engines to Ford TKO500/600, T5 Mustang, or TR3550 transmissions.  This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.  This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.  This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch Diameter: 12"
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Ford 352 | Ford 390 | Ford 427 | Ford 428 | Ford FE Block
• Engine Plate: RM-6008
• Finish: Semi-gloss
• Flywheel: 184 Tooth
• Height: 7.150 inch
• Material: Steel
• Trans. Bore Diameter: 4.85 / 4.91 / 5.12 inch
• Transmission: T5 Ford 1983-1993 | TKO 500/600 Ford | TKX Ford | TR3550
• Transmission Type: Manual
• Weight (lb): 22
