BELLHOUSING,SBC,BBC,MUNCIE,RICHMOND,SAGINAW,TKO

Brand New Quick Time Bellhousing, Black Finish, Manual Transmission, 11" Clutch Diameter, Compatible with SBC Gen I & BBC V8 (Part #RM-6022).

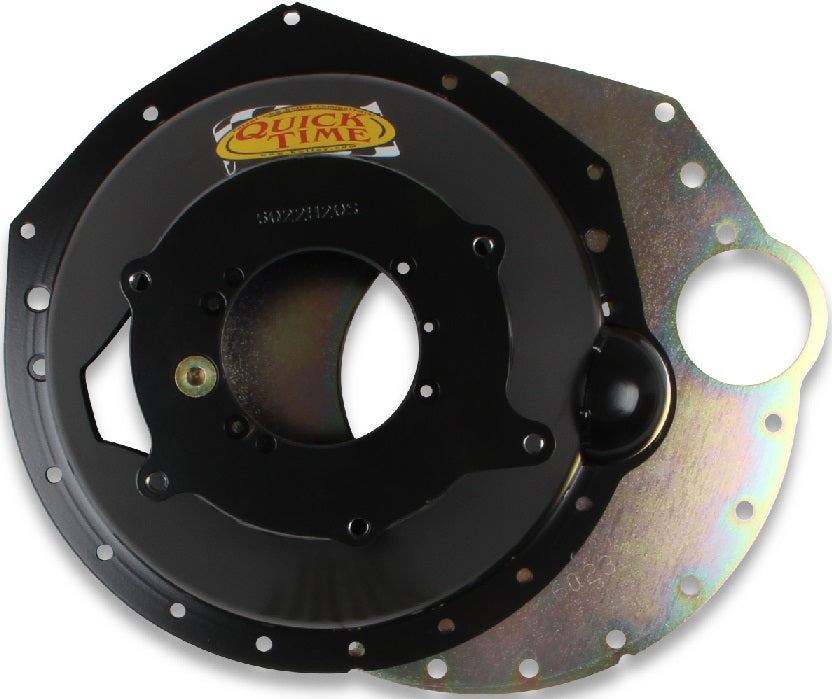

The Quick Time RM-6022 bellhousing connects small block and big block Сhevy engines to transmissions utilizing the GМ standard pattern such as the Мuncie, Sаginaw, Вorg Wаrner T10 and Тremec ТKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

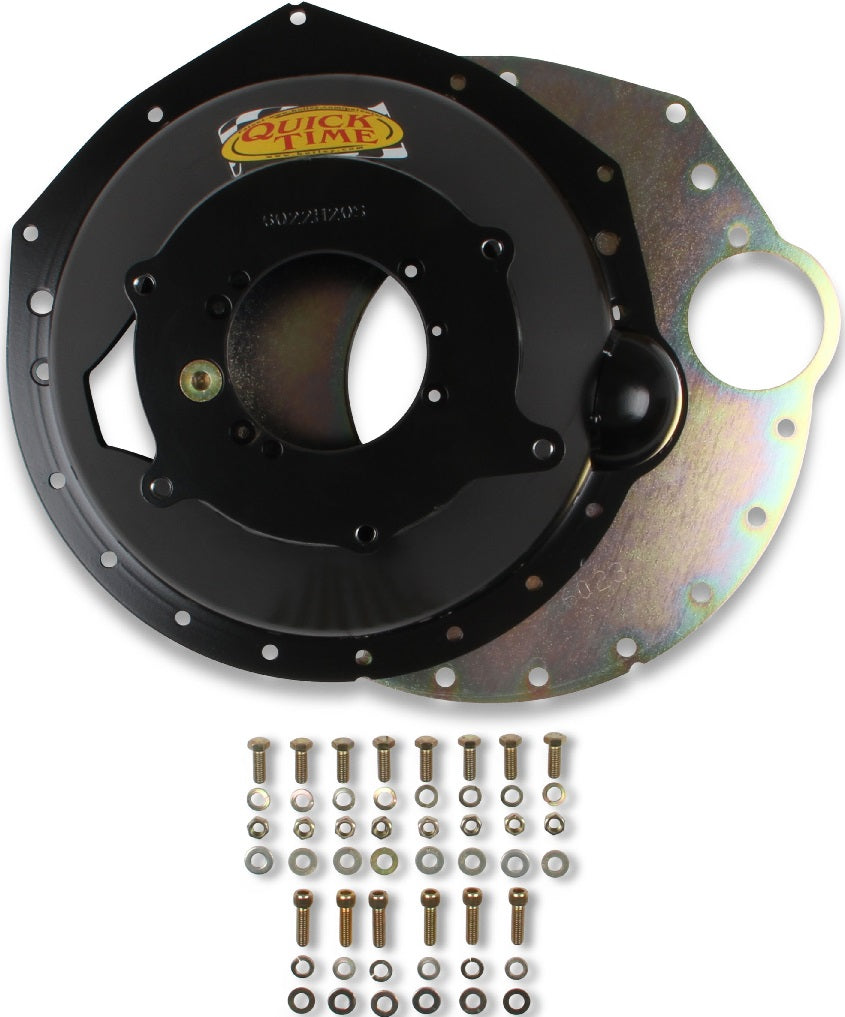

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included).

NOTE: Std LH Fork or Hyd. Bearing

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped - most dimensionally stable
• Built from high grade steel, Work hardens to over 80,000 PSI strength

Specs:

• Brand: Quick Time
• Clutch Diameter: 11"
• Clutch: Operation Hydraulic
• Color: Black
• Engine: Сhevy Small Block Gen I & Сhevy Big Block V8

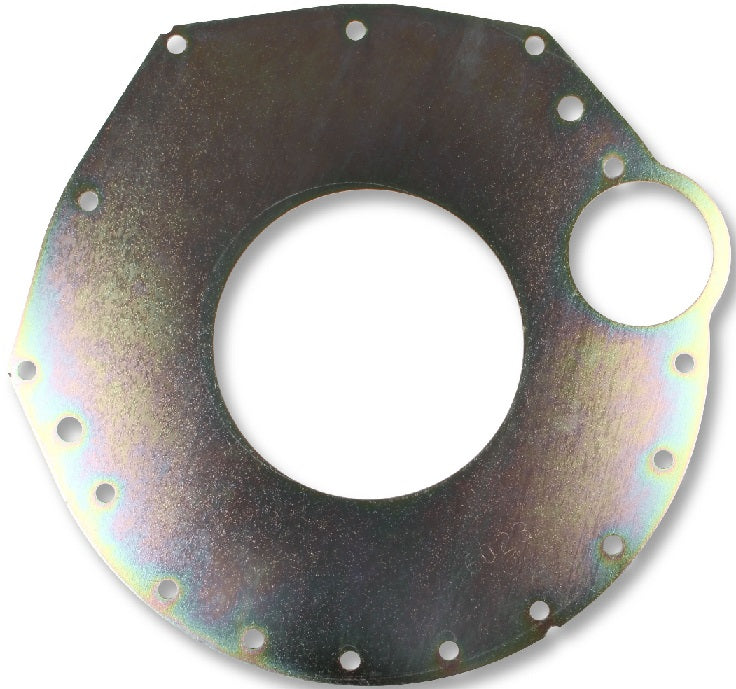

• Engine Plate: RM-6023-C
• Finish: Semi-gloss
• Flywheel: 153/168 Tooth
• Height: 6.290 inch
• Material: Steel
• Product Type: Bellhousing
• SFI Certification: 6.1
• Trans Bore: 4.687
• Transmission: Вert Racing | Вrinn Racing | Falcon | Jеrico | Мuncie | Rіchmond | Sаginаw | T10 | T5 GМ | TKO 500/600 GМ | TKX GМ
• Transmission Type: Manual

You can view and download the assembly/instruction booklet here.
