BELLHOUSING,CHEVY,MECH CLUTCH

Brand New Quick Time Hydraulic Bellhousing, Black, 10.5 inch Clutch Diameter, Mini-Starter, Compatible with Big Block Chevrolet & Small Block Chevrolet Gen I (Holley Part #RM-6020).

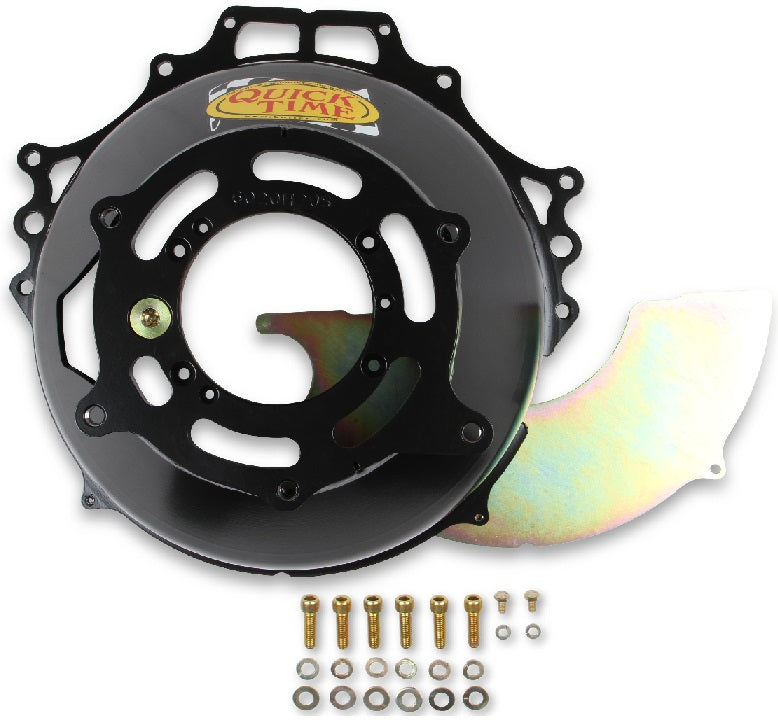

This bellhousing is designed for circle track, strip or street application. Compatible with Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Compatible with 153 tooth flywheel and 10.5 in clutch. 6.29 in deep. Built from high-grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included.

NOTE: Standard LH Fork or Hydraulic Bearing

NOTE: Must use Mini Starter

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch: Up to 10 1/2 Clutch Disc
• Clutch Diameter: 10.5 inch
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Chevrolet Big Block & Chevrolet Small Block Gen I
• Engine Make: Chevrolet

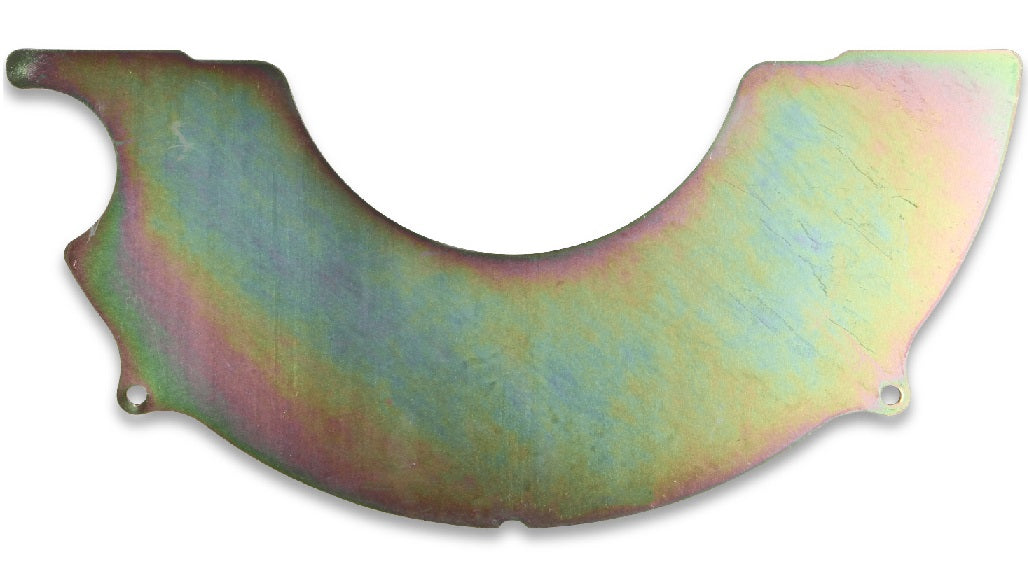

• Engine Plate: RM-6010-C
• Finish: Semi-gloss
• Flywheel: 153 Tooth
• Height: 6.290 inch
• Material: Steel
• Product Type: Bellhousing
• Starter: Mini
• Transmission Bore Diameter: 4.687 inch
• Transmission: Bert Racing | Brinn Racing | Falcon | Jerico | Muncie | Richmond | Saginaw | T10 | T5 GM | TKO 500/600 GM | TKX GM
• Transmission Type: Manual

You can view and download the complete assembly instruction booklet here.
