BELLHOUSING,CHEVY,HYD CLUTCH

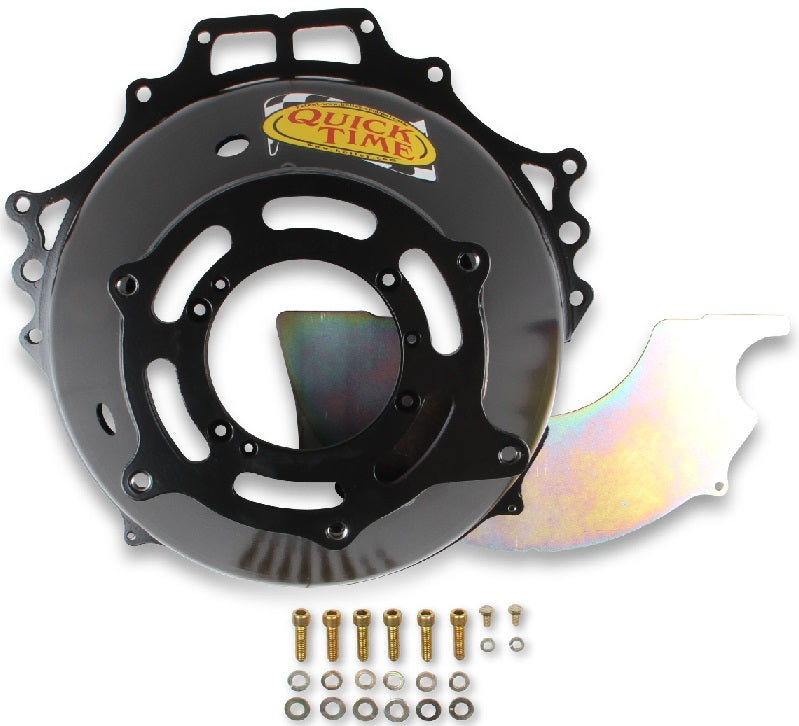

Brand New Quick Time Hydraulic Bellhousing, Black, 10.5 inch Clutch Diameter, Compatible with Big Block Chevrolet & Small Block Chevrolet Gen I (Holley Part #RM-6010).

The Quick Time RM-6010 bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKO or TXK transmissions.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

NOTE: Hydraulic Bearing Only

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch: Up to 10 1/2 Clutch Disc
• Clutch Diameter: 10.5 inch
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Chevrolet Big Block & Chevrolet Small Block Gen I
• Engine Make: Chevrolet
• Engine Plate: RM-6010-C
• Finish: Semi-gloss
• Flywheel: 153 Tooth
• Height: 6.290 inch
• Height (in): 6.29
• Material: Steel
• Product Type: Bellhousing
• Starter: Mini
• Transmission Bore Diameter: 4.687 inch
• Transmission: Bert Racing | Brinn Racing | Falcon | Jerico | Muncie | Richmond | Saginaw | T10 | T5 GM | TKO 500/600 GM | TKX GM
• Transmission Type: Manual

You can view and download the complete assembly instruction booklet here.
