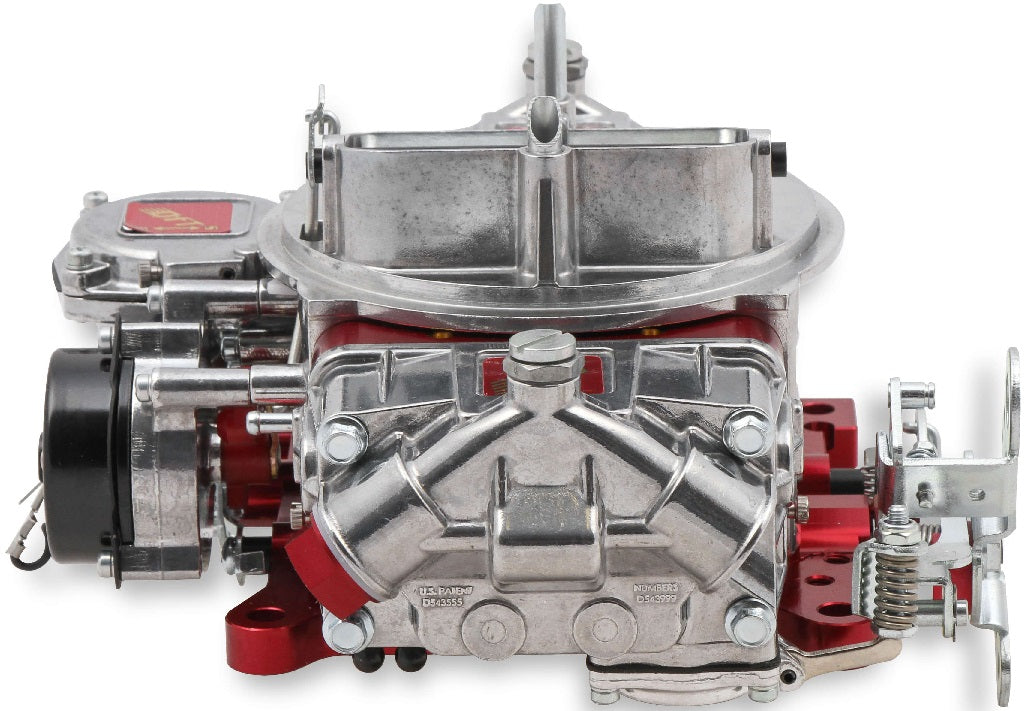

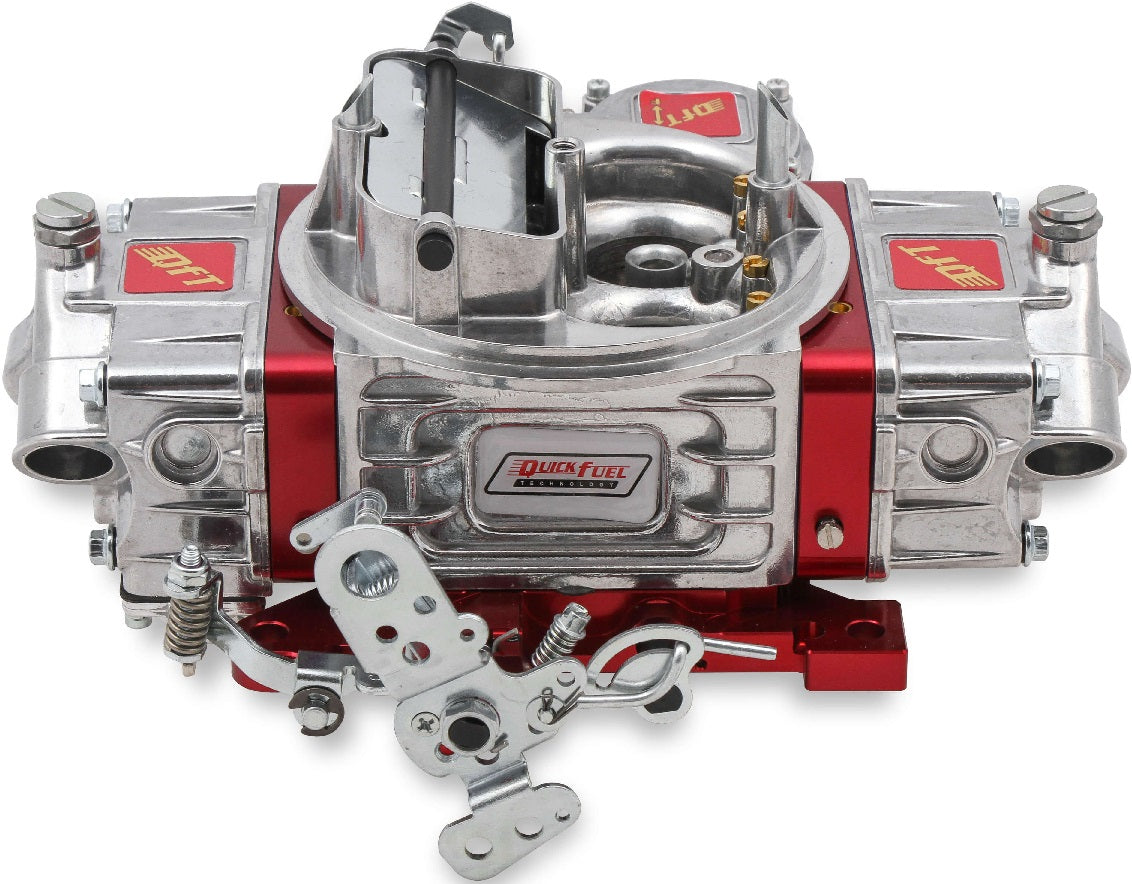

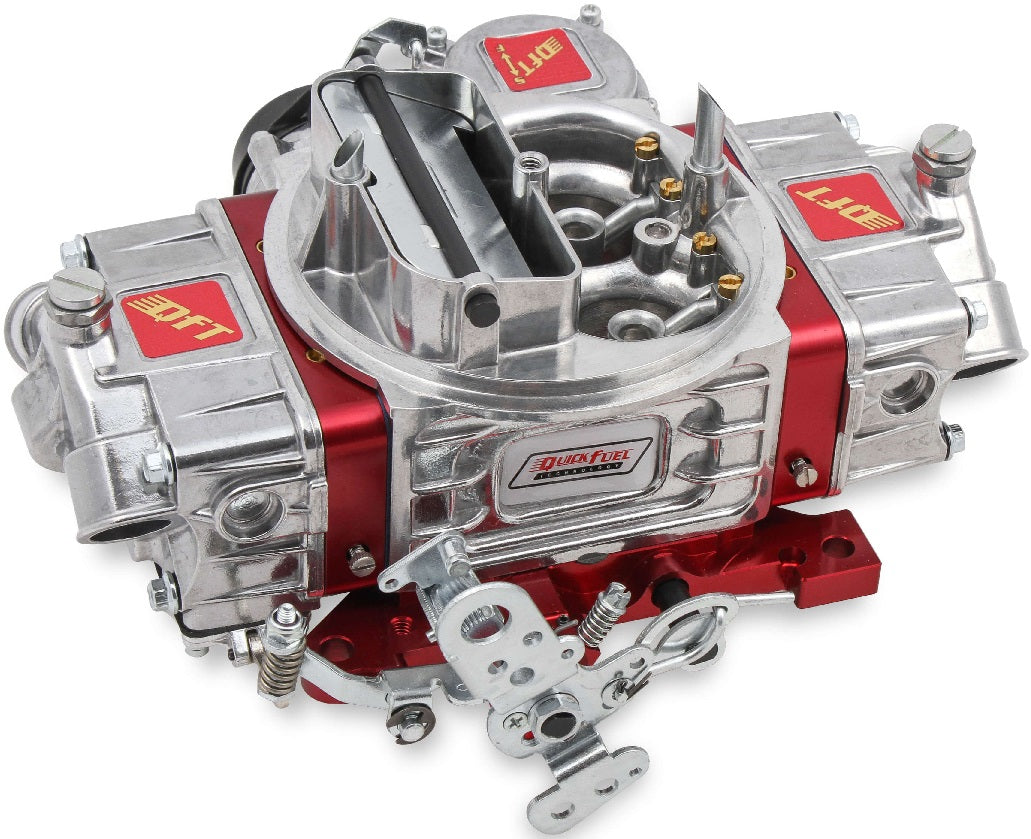

CARBURETOR,4150,780CFM,SS,VACUUM,ELECTRIC,DOWN LEG

CARBURETOR,4150,780CFM,SS,VACUUM,ELECTRIC,DOWN LEG

QFT SS-780-VS

$789.95
$789.95
View full details

BRAND NEW HOLLEY QUICK FUEL SS SERIES CARBURETOR, RED BILLET & SHINY FINISH, 780 CFM, VACUUM SECONDARIES, ELECTRIC CHOKE, COMPATIBLE WITH MODEL 4150

SUPER STREET SERIES CARBURETORS COMBINE STREET-FRIENDLY DRIVABILITY AND TRACK-CAPABLE PERFORMANCE IN A SINGLE VALUE-ORIENTED PACKAGE. SETTING THEM APART FROM ORDINARY STREET CARBS, THEY FEATURE BILLET DUAL METERING BLOCKS AND THROTTLE-BODIES THAT OFFER TIGHTER TOLERANCES AND ELIMINATE POROSITY.

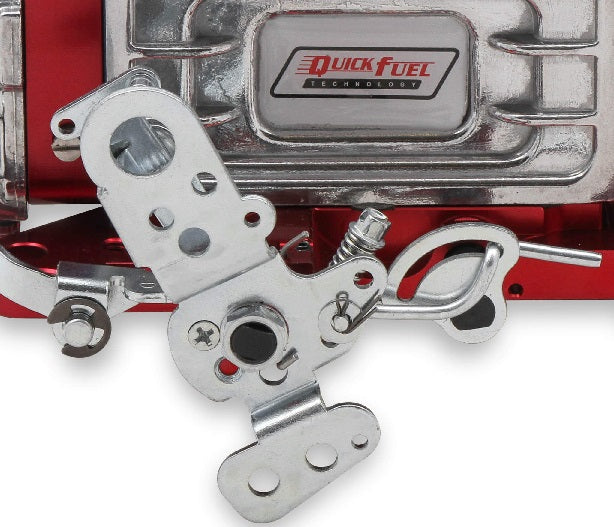

RUNNING ALTERNATIVE FUEL OR BOOST NO LONGER REQUIRES AN EXPENSIVE CUSTOM CARBURETOR. ALL SS-SERIES CARBURETORS ARE EQUIPPED WITH UNIVERSAL THROTTLE LEVERS TO ACCOMMODATE FORD A/T KICKDOWN, GM 700 R4 MOUNTING HOLES, AND ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES. BOLTING ON THE ULTIMATE STREET/STRIP CARBURETOR HAS NEVER BEEN EASIER.

NOTE: THIS CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, AN ADAPTER IS NEEDED TO INSTALL THIS CARBURETOR, SIMILAR TO MR. GASKET #1932.

FEATURES:

  • BILLET DUAL METERING BLOCKS & THROTTLE BODIES FOR IMPROVED DURABILITY
  • CHANGEABLE IDLE, HIGH-SPEED AIR BLEEDS & POWER VALVE RESTRICTIONS
  • DUAL INLET FUEL BOWLS WITH DUAL SIGHT GLASS WINDOWS FOR EASY FLOAT ADJUSTMENT
  • 4-CORNER IDLE FOR PRECISE IDLE AND SMOOTH TRANSITION
  • QUICKSET VACUUM SECONDARY HOUSING FULLY ADJUSTABLE OPENING RATE BY TURNING A SCREW - NO MORE SPRING ASSORTMENTS OR TORN DIAPHRAGMS
  • FULLY-ADJUSTABLE ELECTRIC CHOKE WITH EASY ONE WIRE HOOKUP
  • RACE-READY WITH NOTCHED SECONDARY FLOATS AND JET EXTENSIONS

SPECS:

  • BARRELS: 4
  • BILLET COLOR: RED
  • BOOSTER: DOWN LEG
  • CARBURETOR USE: PERFORMANCE & RACE
  • CFM: 780
  • CHOKE: ELECTRIC
  • CIRCUIT: 2
  • FINISH: SHINY
  • FUEL: GASOLINE
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 33
  • IDLE AIR BLEED SIZE: 70
  • MATERIAL: ALUMINUM
  • MODEL: SUPER STREET SERIES
  • PRIMARY MAIN JET: 74
  • PRIMARY POWER VALVE: 65
  • PRIMARY PUMP NOZZLE SIZE: 32
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: VACUUM
  • SECONDARY MAIN JET: 82
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-11/16 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
