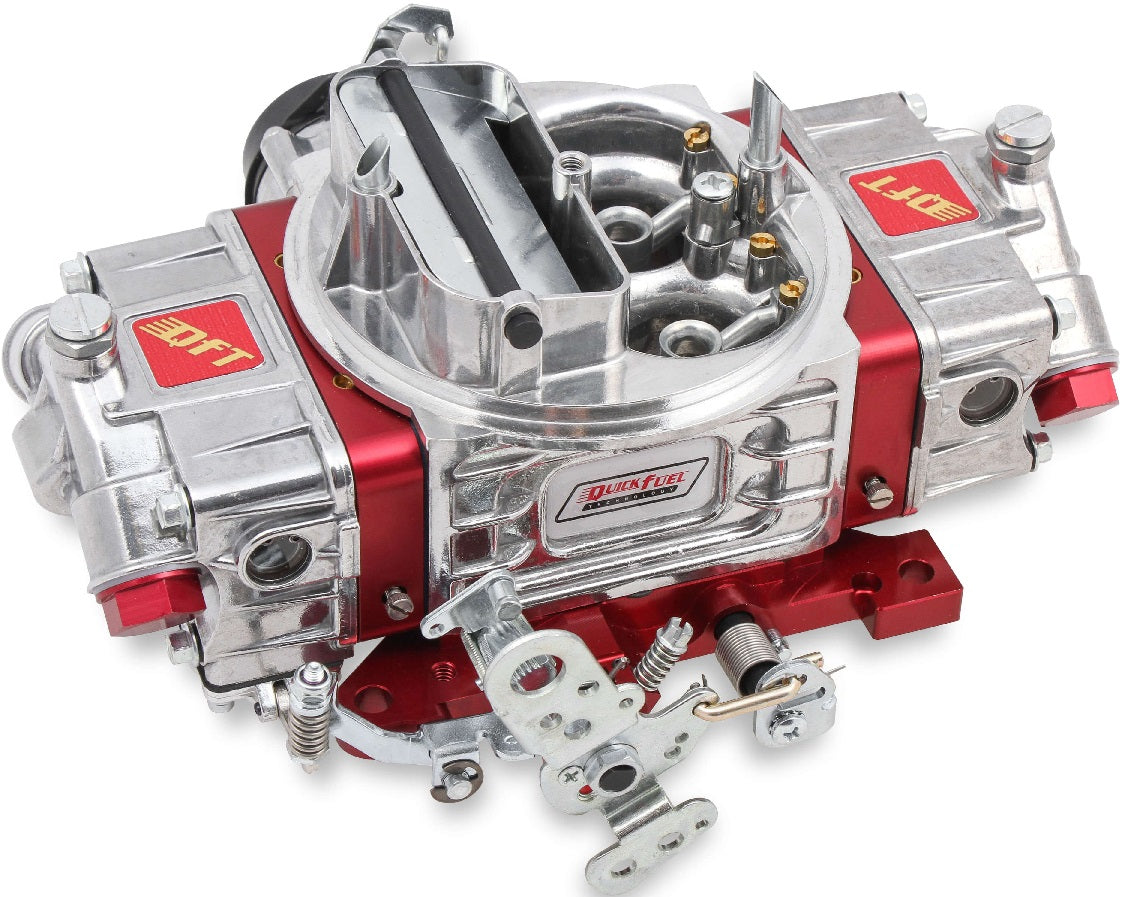

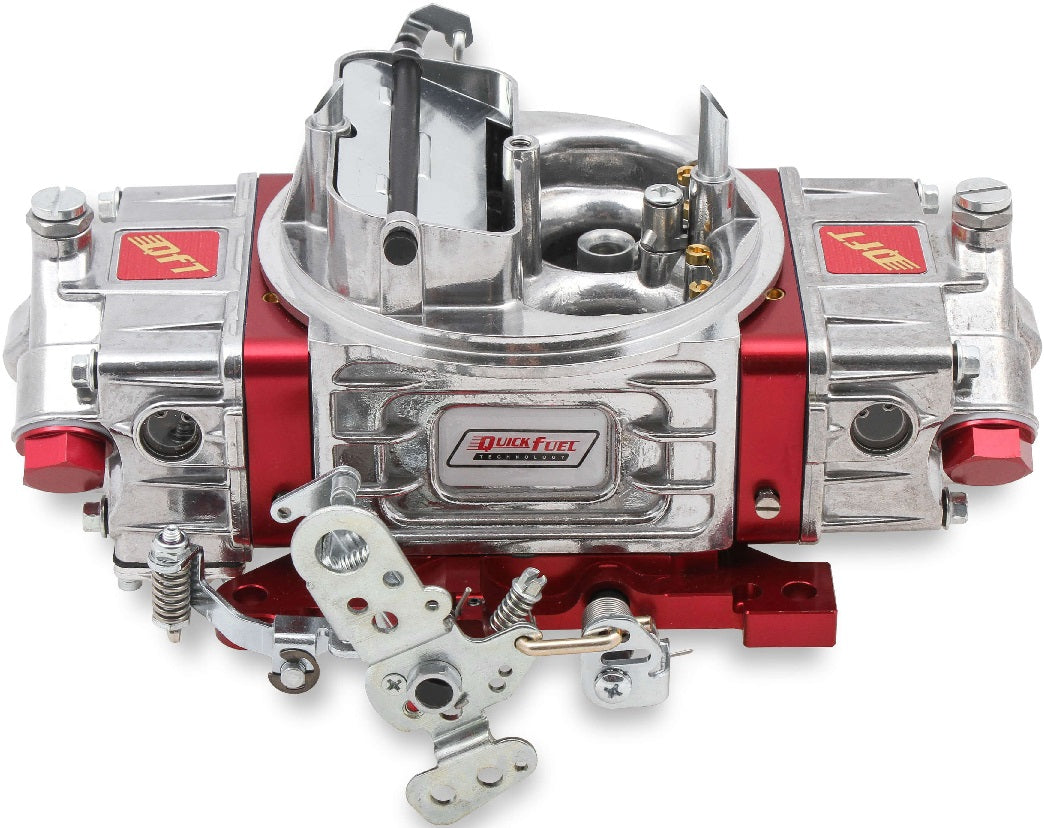

CARBURETOR,4150,750CFM,SS,MECHANICAL,ELECTRIC,DOWN LEG

CARBURETOR,4150,750CFM,SS,MECHANICAL,ELECTRIC,DOWN LEG

SKU:QFT SS-750

Regular price $879.95
Regular price Sale price $879.95
View full details

BRAND NEW HOLLEY QUICK FUEL SS SERIES CARBURETOR, SHINY WITH RED BILLET, 750 CFM, MECHANICAL SECONDARIES, COMPATIBLE WITH 4150 MODELS

SUPER STREET SERIES CARBURETORS FEATURE BILLET DUAL METERING BLOCKS & THROTTLE-BODIES THAT OFFER TIGHTER TOLERANCES & ELIMINATE POROSITY. RUNNING ALTERNATIVE FUEL OR BOOST NO LONGER REQUIRES AN EXPENSIVE CUSTOM CARBURETOR. ALL SS-SERIES CARBURETORS ARE EQUIPPED WITH UNIVERSAL THROTTLE LEVERS TO ACCOMMODATE FORD A/T KICKDOWN, GM 700 R4 MOUNTING HOLES & ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES. BOLTING ON THE ULTIMATE STREET/STRIP CARBURETOR HAS NEVER BEEN EASIER.

NOTE: THIS CARBURETOR HAS A SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR, LIKE THE MR. GASKET #1932.

FEATURES

  • BILLET DUAL METERING BLOCKS & THROTTLE BODIES FOR IMPROVED DURABILITY
  • CHANGEABLE IDLE, HIGH-SPEED AIR BLEEDS & POWER VALVE RESTRICTIONS
  • DUAL INLET FUEL BOWLS WITH DUAL SIGHT GLASS WINDOWS FOR EASY FLOAT ADJUSTMENT
  • 4-CORNER IDLE FOR PRECISE IDLE & SMOOTH TRANSITION
  • FULLY-ADJUSTABLE ELECTRIC CHOKE WITH EASY ONE WIRE HOOKUP
  • RACE-READY WITH NOTCHED SECONDARY FLOATS & JET EXTENSIONS

SPECS:

  • BARRELS: 4
  • BILLET COLOR: RED
  • BOOSTER: DOWN LEG
  • CARBURETOR USE: PERFORMANCE & RACE
  • CFM: 750
  • CHOKE: NONE
  • CIRCUIT: 2
  • FINISH: SHINY
  • FUEL: GAS
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 31
  • IDLE AIR BLEED SIZE: 70
  • MATERIAL: ALUMINUM
  • MODEL: SUPER STREET SERIES
  • PRIMARY MAIN JET: 74
  • PRIMARY POWER VALVE: 65
  • PRIMARY PUMP NOZZLE SIZE: 31
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 80
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
