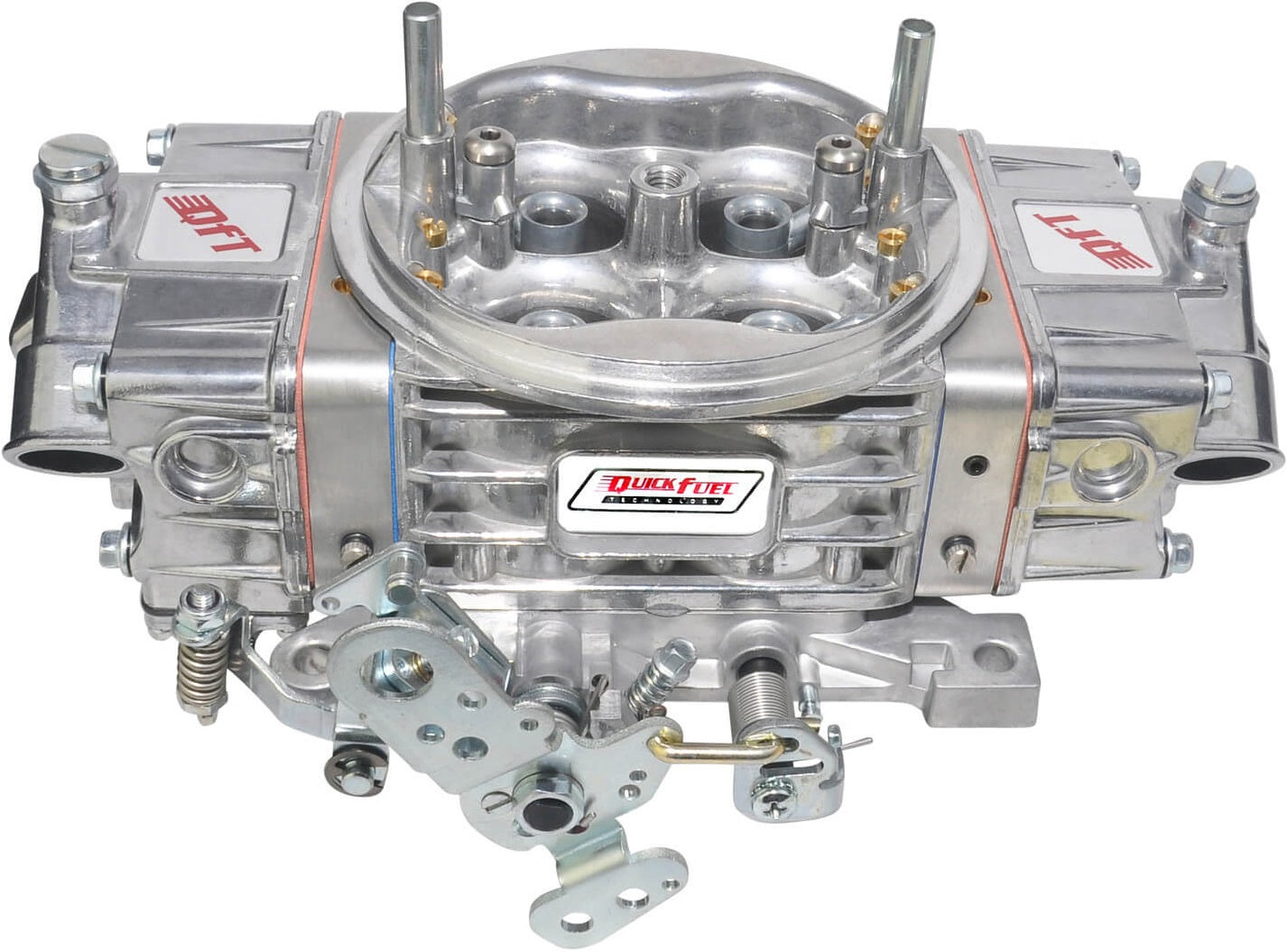

CARBURETOR,4150,950CFM,UNIV,MECHANICAL SECONDARIES

BRAND NEW HOLLEY QUICK FUEL STREET-Q CARBURETOR, SHINY, 950 CFM, COMPATIBLE WITH 4150 MODELS

QUICK FUEL TECHNOLOGY NEW STREET-Q CARBURETOR IS INTENDED TO DELIVER LEGENDARY Q-SERIES PERFORMANCE TO HARDCORE STREET ENTHUSIASTS AT A REDUCED PRICE. THE MAJOR DIFFERENCES BETWEEN THE STREET-Q & THE RACE-BRED Q-SERIES IS THE SUBSTITUTION OF CAST METERING BLOCKS & A CAST THROTTLE BODY IN PLACE OF FULLY-MACHINED BILLET COMPONENTS.

ALL OF THE CRITICAL FUNCTIONALITY IS RETAINED - 2-CIRCUIT METERING, DOWNLEG BOOSTERS, CHANGEABLE IDLE & HIGH-SPEED AIR BLEEDS & 4-CORNER IDLE. A UNIVERSAL THROTTLE LEVER DESIGN ACCOMMODATES FORD A/T KICKDOWNS, 700-R4 BRACKET MOUNTING HOLES & THE ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES.

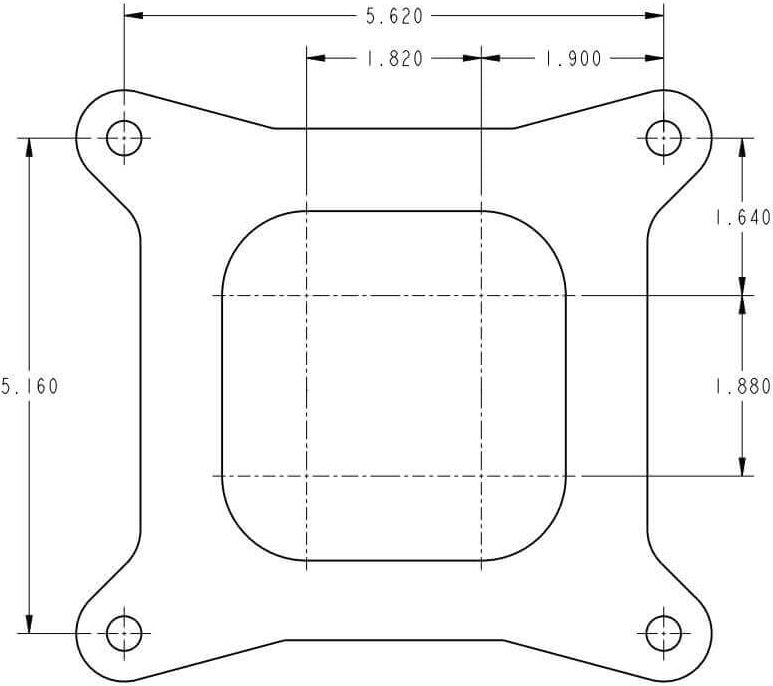

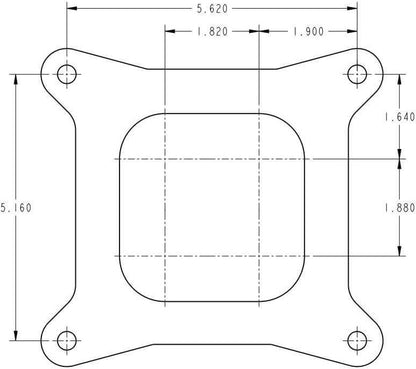

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO MR. GASKET #1932.

FEATURES:

• LIGHTWEIGHT DIE-CAST ALUMINUM COMPONENTS
• CHANGEABLE IDLE & HIGH-SPEED AIR BLEEDS
• 2-CIRCUIT METERING - 4-CORNER IDLE SYSTEM

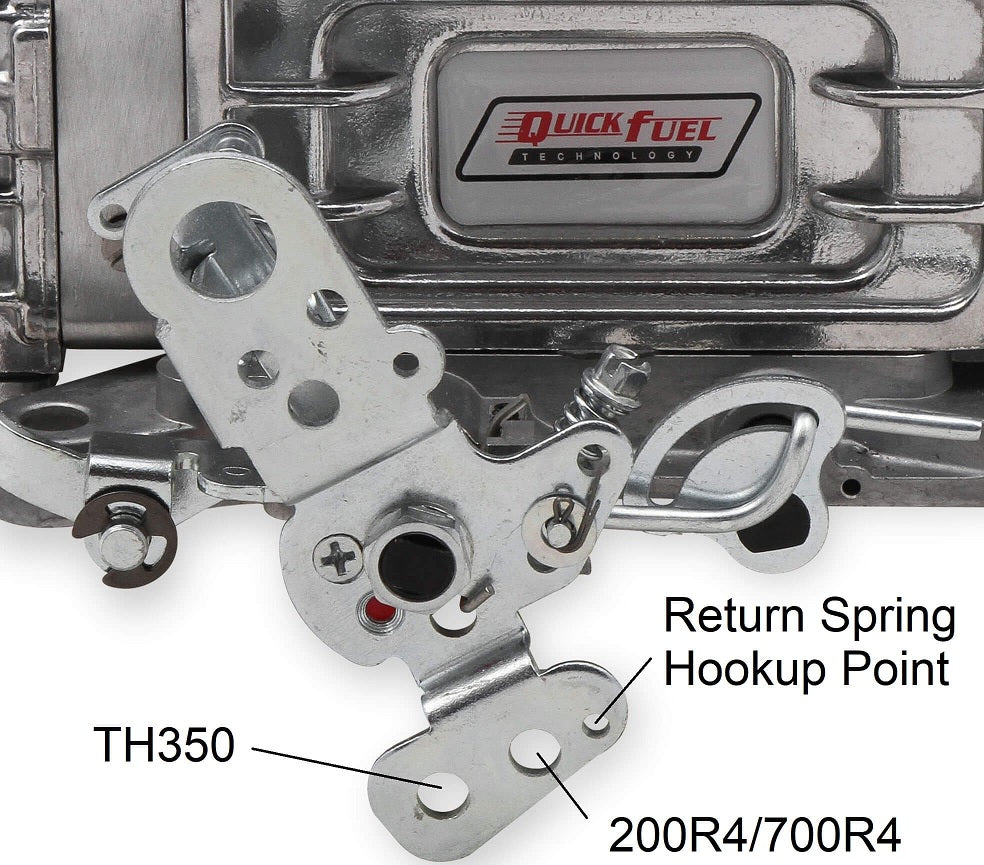

• UNIVERSAL THROTTLE LEVER DESIGN FITS FORD A/T KICKDOWN, 700-R4 MOUNTING HOLES - ACCEPTS BRACKETS FOR CHRYSLER VEHICLES

SPECS:

• BARRELS: 4
• BILLET COLOR: DIECAST-NO BILLET
• BOOSTER: DOWN LEG
• CARBURETOR USE: PERFORMANCE & RACE
• CFM: 950
• CHOKE: NONE
• CIRCUIT: 2
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 32
• IDLE AIR BLEED SIZE: 70
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: STREET-Q SERIES
• PRIMARY MAIN JET: 78
• PRIMARY POWER VALVE: 45
• PRIMARY PUMP NOZZLE SIZE: 32
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 86
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-3/4"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
