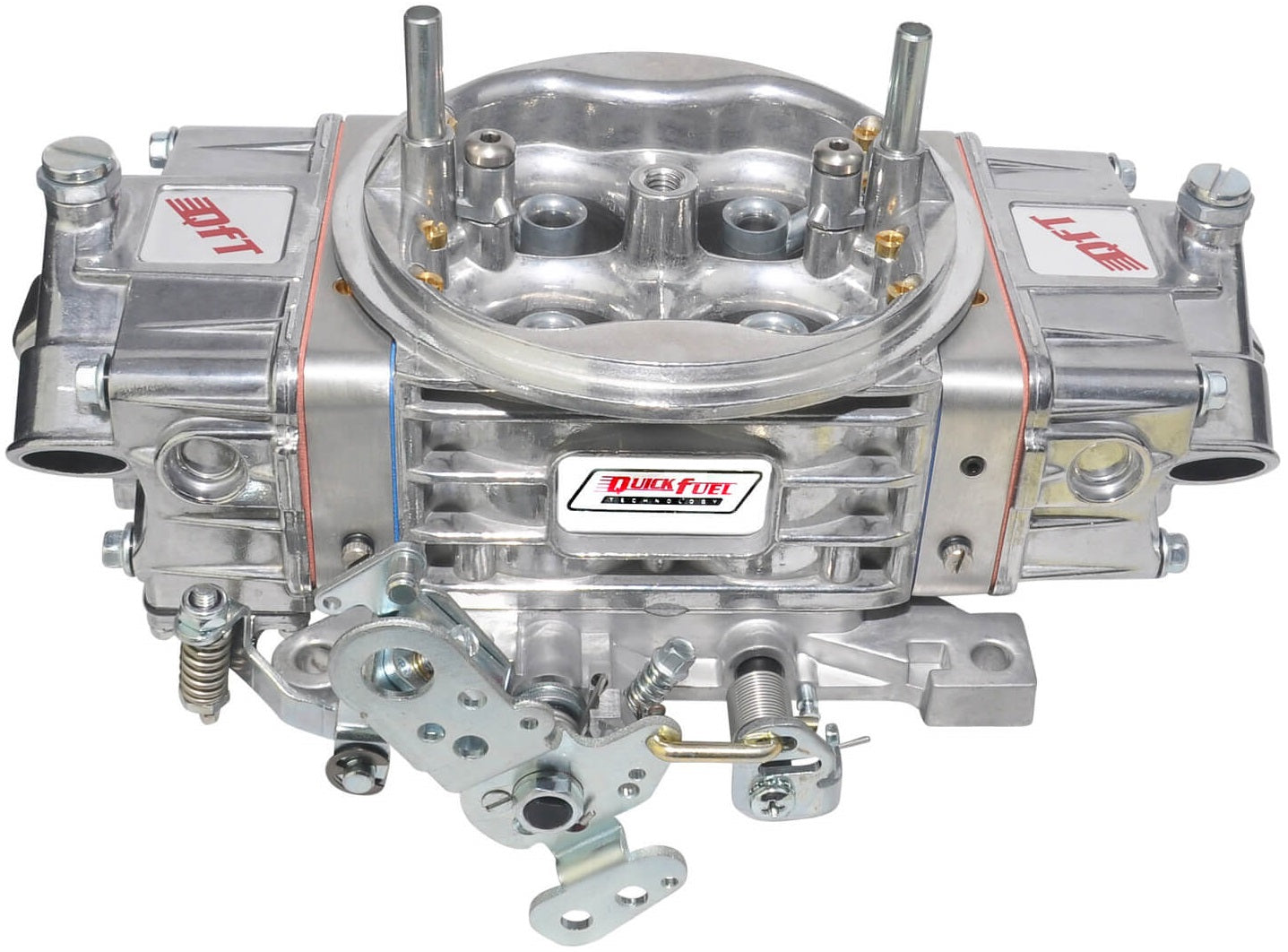

CARBURETOR,4150,750CFM,UNIVERSAL,MECHANICAL SECONDARIES

BRAND NEW HOLLEY STREET-Q CARBURETOR, 4BBL, 750 CFM, POLISHED, NO CHOKE, STREET-Q SERIES, COMPATIBLE WITH GASOLINE

QUICK FUEL TECHNOLOGY NEW STREET-Q CARBURETOR IS INTENDED TO DELIVER LEGENDARY Q-SERIES PERFORMANCE TO HARDCORE STREET ENTHUSIASTS AT A REDUCED PRICE. THE MAJOR DIFFERENCES BETWEEN THE STREET-Q AND THE RACE-BRED Q-SERIES IS THE SUBSTITUTION OF CAST METERING BLOCKS AND A CAST THROTTLE BODY IN PLACE OF FULLY-MACHINED BILLET COMPONENTS. ALL OF THE CRITICAL FUNCTIONALITY IS RETAINED - 2-CIRCUIT METERING, DOWNLEG BOOSTERS, CHANGEABLE IDLE AND HIGH-SPEED AIR BLEEDS AND 4-CORNER IDLE.

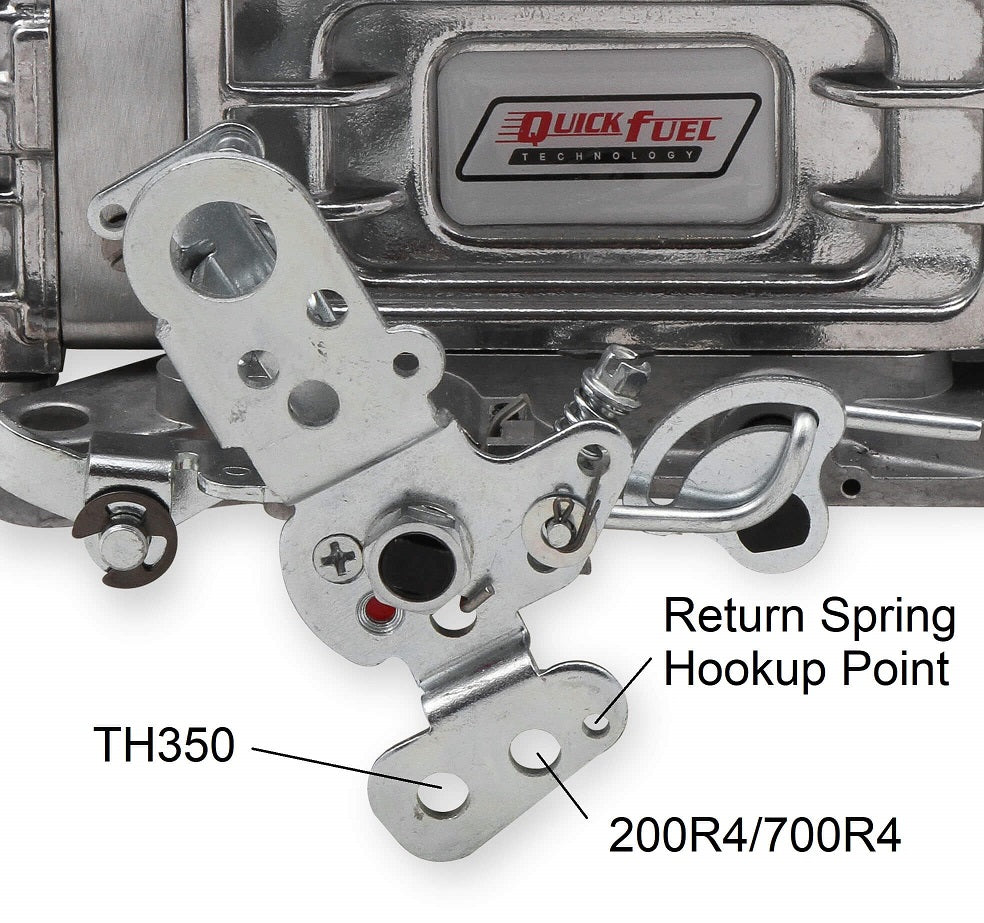

A UNIVERSAL THROTTLE LEVER DESIGN ACCOMMODATES FORD A/T KICKDOWNS, 700-R4 BRACKET MOUNTING HOLES AND THE ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• LIGHTWEIGHT DIE-CAST ALUMINUM COMPONENTS
• CHANGEABLE IDLE & HIGH-SPEED AIR BLEEDS
• VACUUM & MECHANICAL SECONDARY MODELS
• 2-CIRCUIT METERING - 4-CORNER IDLE SYSTEM
• DOWNLEG BOOSTERS
• UNIVERSAL THROTTLE LEVER DESIGN FITS FORD A/T KICKDOWN
• 700-R4 MOUNTING HOLES - ACCEPTS BRACKETS FOR CHRYSLER VEHICLES

SPECS:

• BARRELS: 4
• BOOSTER: DOWN LEG
• BRAND: QUICK FUEL
• CFM: 750
• CHOKE: NONE
• CIRCUIT: 2
• EMISSION CODE: 3
• FINISH: POLISHED
• FUEL: GASOLINE
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 33
• IDLE AIR BLEED SIZE: 70
• MATERIAL: ALUMINUM
• MODEL: STREET-Q SERIES
• PRIMARY MAIN JET: 74
• PRIMARY POWER VALVE: 45
• PRIMARY PUMP NOZZLE SIZE: 33
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 84
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
