CARBURETOR,4150,650CFM,UNIVERSAL,MECHANICAL SECONDARIES

CARBURETOR,4150,650CFM,UNIVERSAL,MECHANICAL SECONDARIES

QFT SQ-650

$703.95
$703.95
View full details

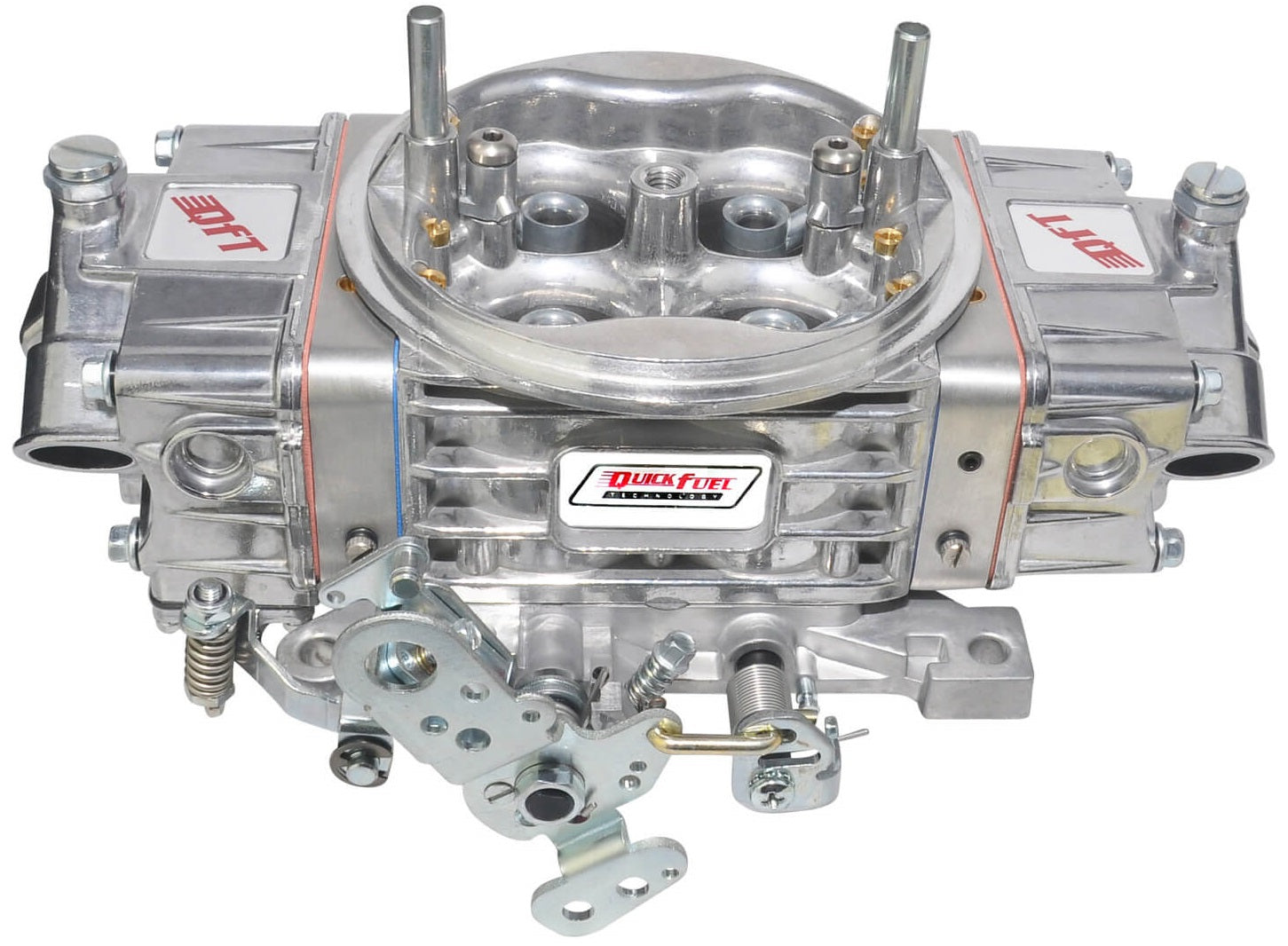

BRAND NEW HOLLEY STREET-Q CARBURETOR, 4BBL, 650 CFM, POLISHED, NO CHOKE, STREET-Q SERIES, COMPATIBLE WITH GASOLINE

QUICK FUEL TECHNOLOGY NEW STREET-Q CARBURETOR IS INTENDED TO DELIVER LEGENDARY Q-SERIES PERFORMANCE TO HARDCORE STREET ENTHUSIASTS AT A REDUCED PRICE. THE MAJOR DIFFERENCES BETWEEN THE STREET-Q AND THE RACE-BRED Q-SERIES IS THE SUBSTITUTION OF CAST METERING BLOCKS AND A CAST THROTTLE BODY IN PLACE OF FULLY-MACHINED BILLET COMPONENTS. ALL OF THE CRITICAL FUNCTIONALITY IS RETAINED - 2-CIRCUIT METERING, DOWNLEG BOOSTERS, CHANGEABLE IDLE AND HIGH-SPEED AIR BLEEDS AND 4-CORNER IDLE.

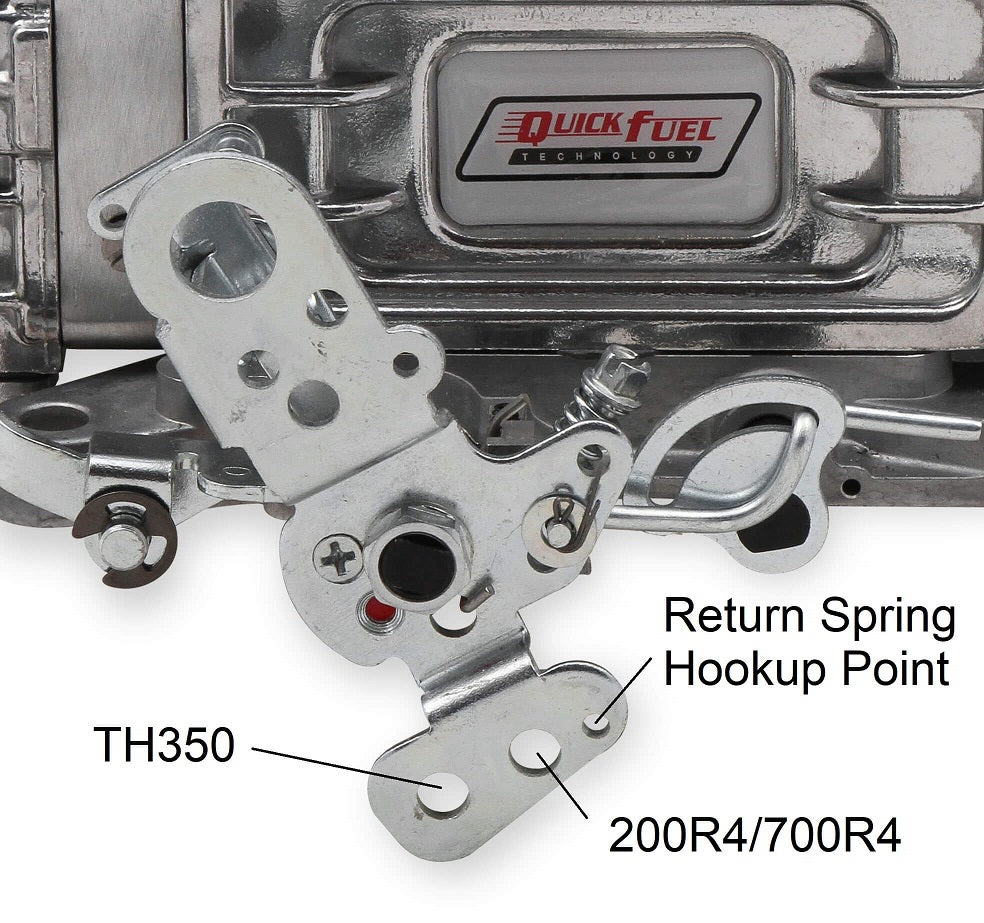

A UNIVERSAL THROTTLE LEVER DESIGN ACCOMMODATES FORD A/T KICKDOWNS, 700-R4 BRACKET MOUNTING HOLES AND THE ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

  • LIGHTWEIGHT DIE-CAST ALUMINUM COMPONENTS
  • CHANGEABLE IDLE & HIGH-SPEED AIR BLEEDS
  • VACUUM & MECHANICAL SECONDARY MODELS
  • 2-CIRCUIT METERING - 4-CORNER IDLE SYSTEM
  • DOWNLEG BOOSTERS
  • UNIVERSAL THROTTLE LEVER DESIGN FITS FORD A/T KICKDOWN
  • 700-R4 MOUNTING HOLES - ACCEPTS BRACKETS FOR CHRYSLER VEHICLES

SPECS:

  • BARRELS: 4
  • BILLET COLOR: DIECAST-NO BILLET
  • BOOSTER: DOWN LEG
  • BRAND: QUICK FUEL
  • CFM: 650
  • CHOKE: NONE
  • CIRCUIT: 2
  • EMISSION CODE: 3
  • FINISH: POLISHED
  • FUEL: GASOLINE
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 31
  • IDLE AIR BLEED SIZE: 73
  • MATERIAL: ALUMINUM
  • MODEL: STREET-Q SERIES
  • PRIMARY MAIN JET: 68
  • PRIMARY POWER VALVE: 45
  • PRIMARY PUMP NOZZLE SIZE: 31
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 76
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
