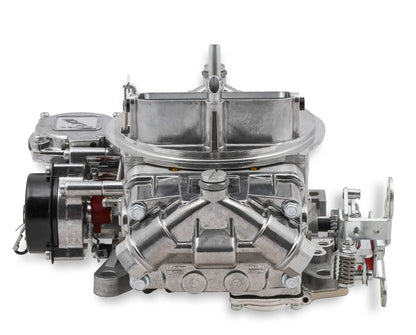

750 CFM 4 BBL ELECTRIC CHOKE

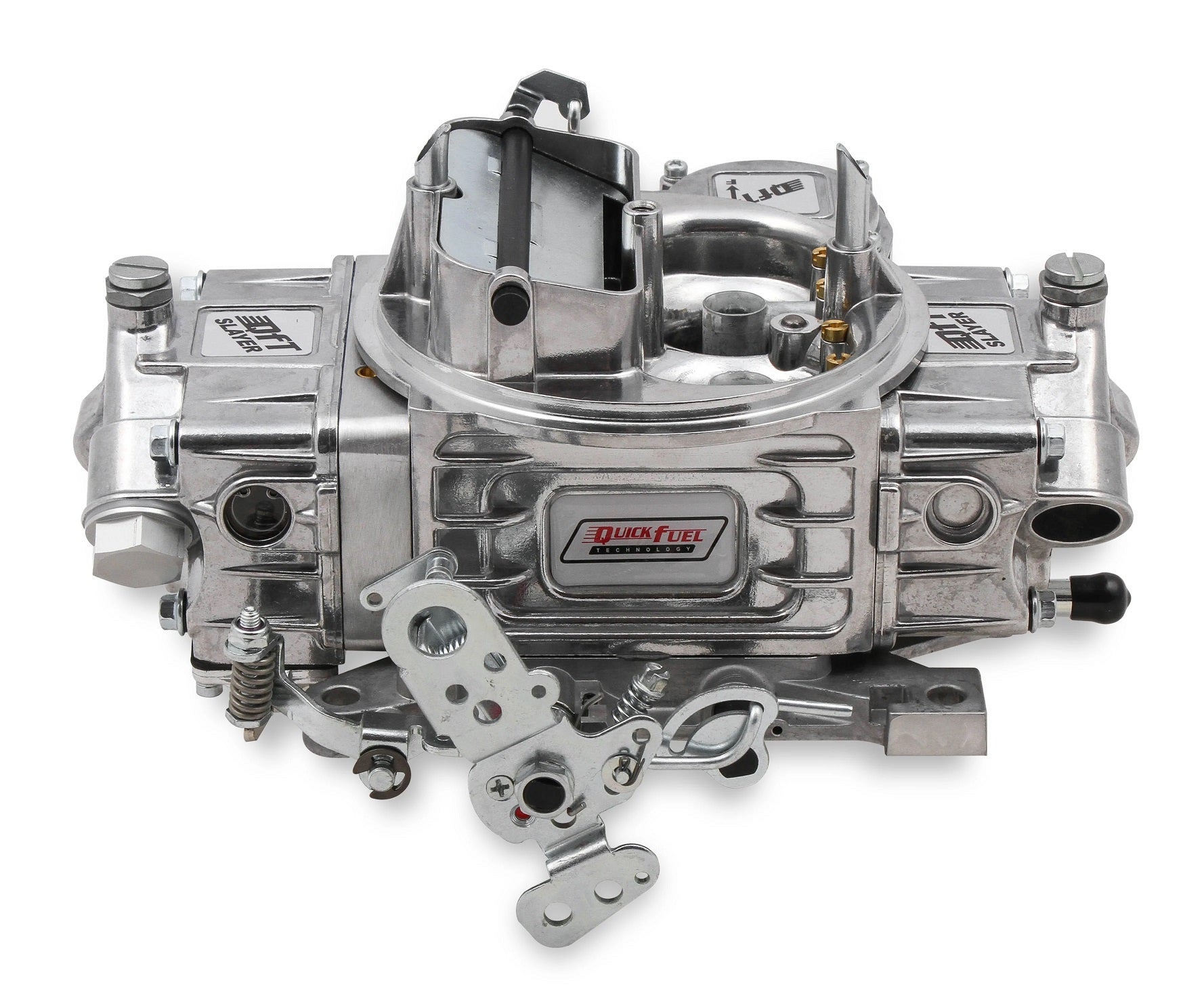

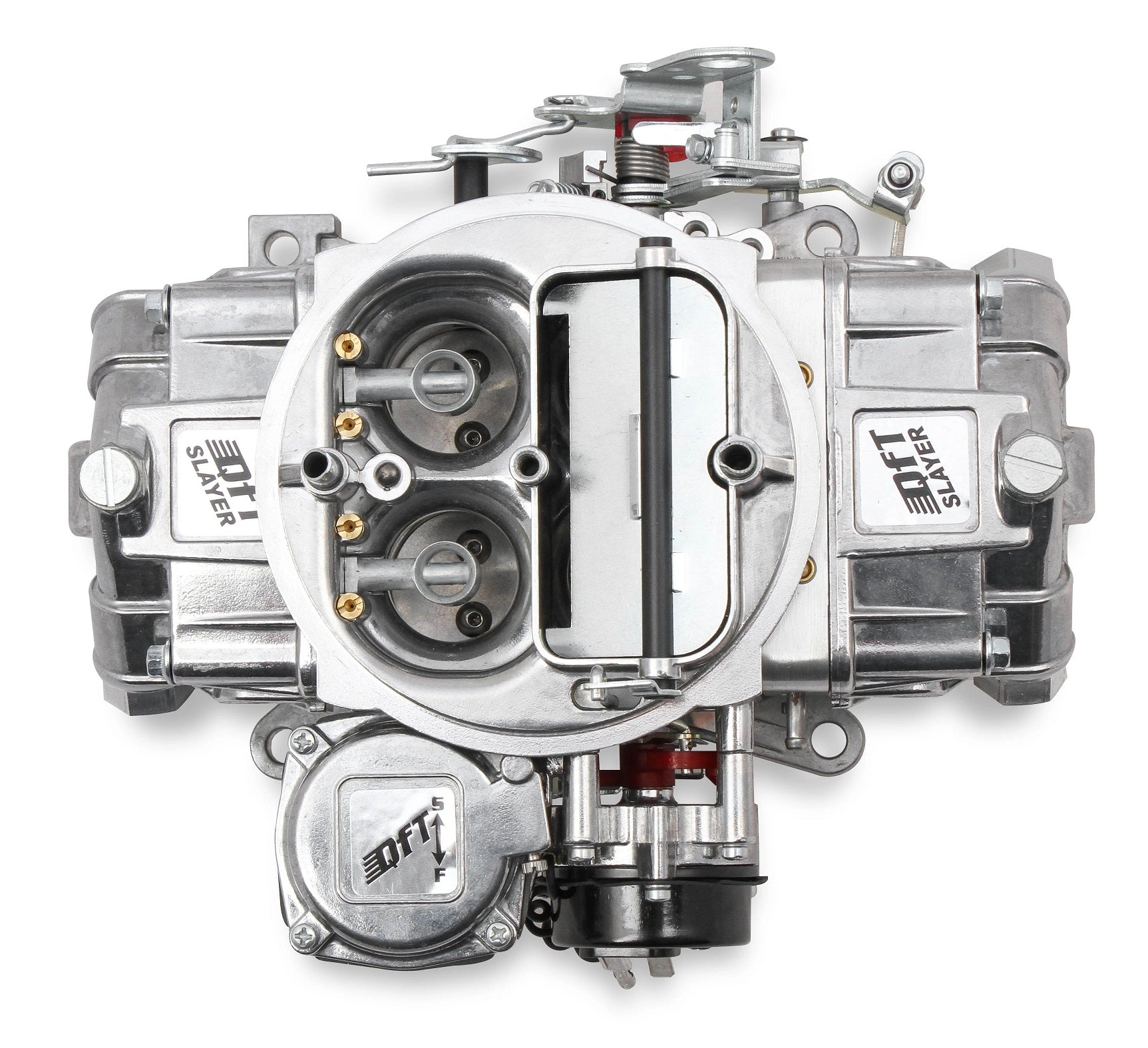

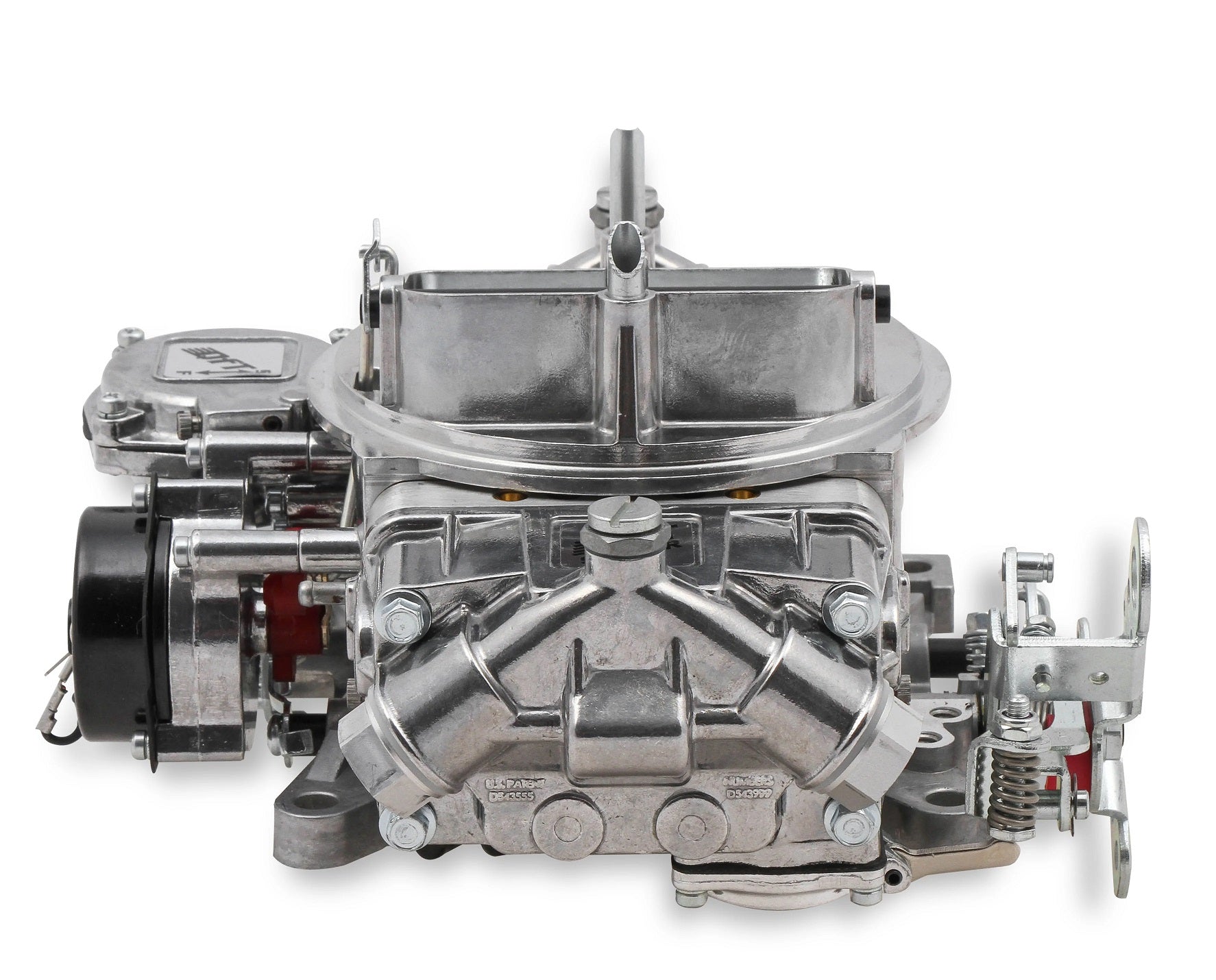

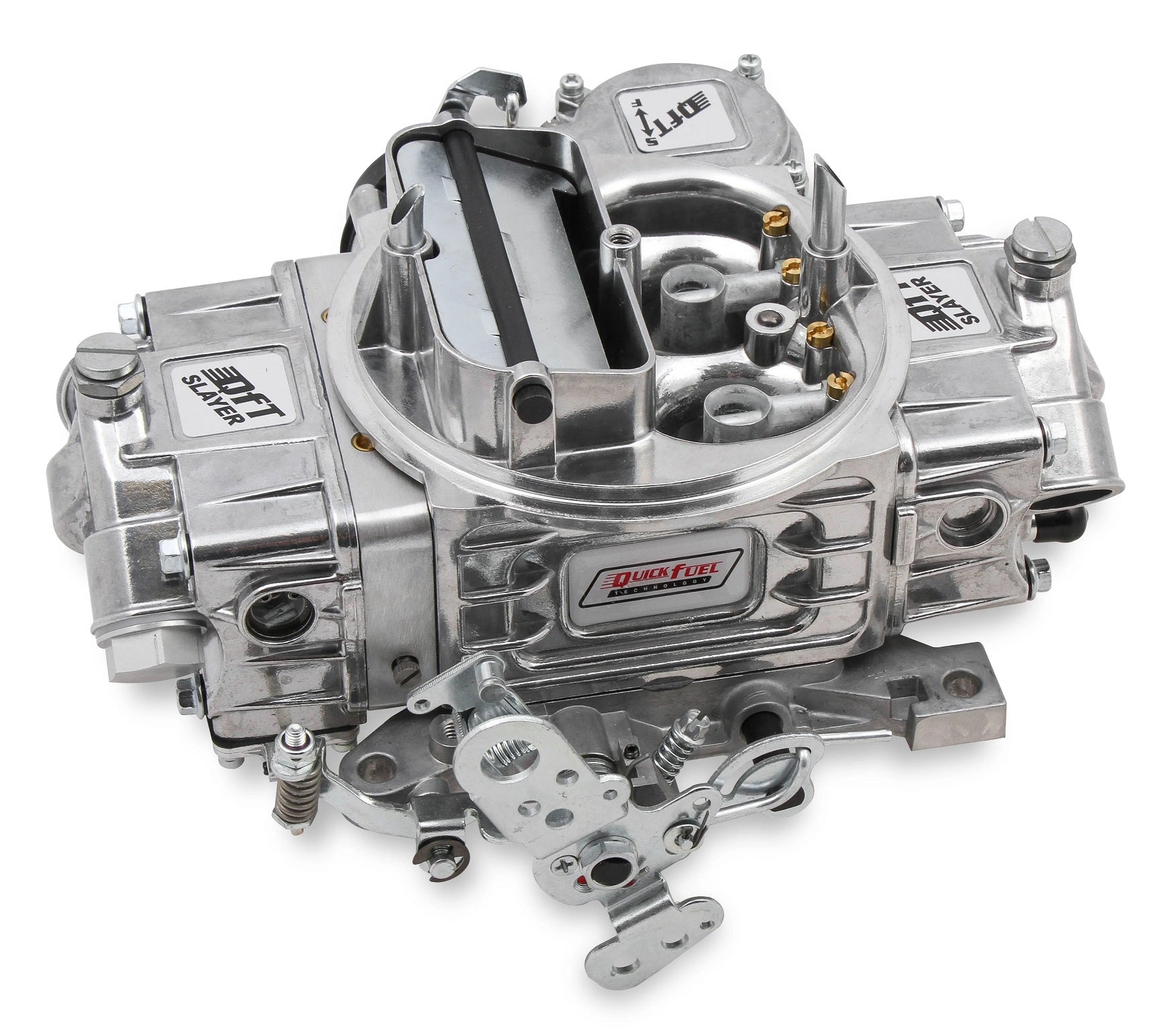

Brand New Holley Slayer Series 4160 - Vacuum Secondaries Carburetor, Shiny, 750 CFM, Electric Choke, Cast Aluminum Throttle Body, Compatible with Gasoline. (Holley Part #SL-750-VS).

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings.

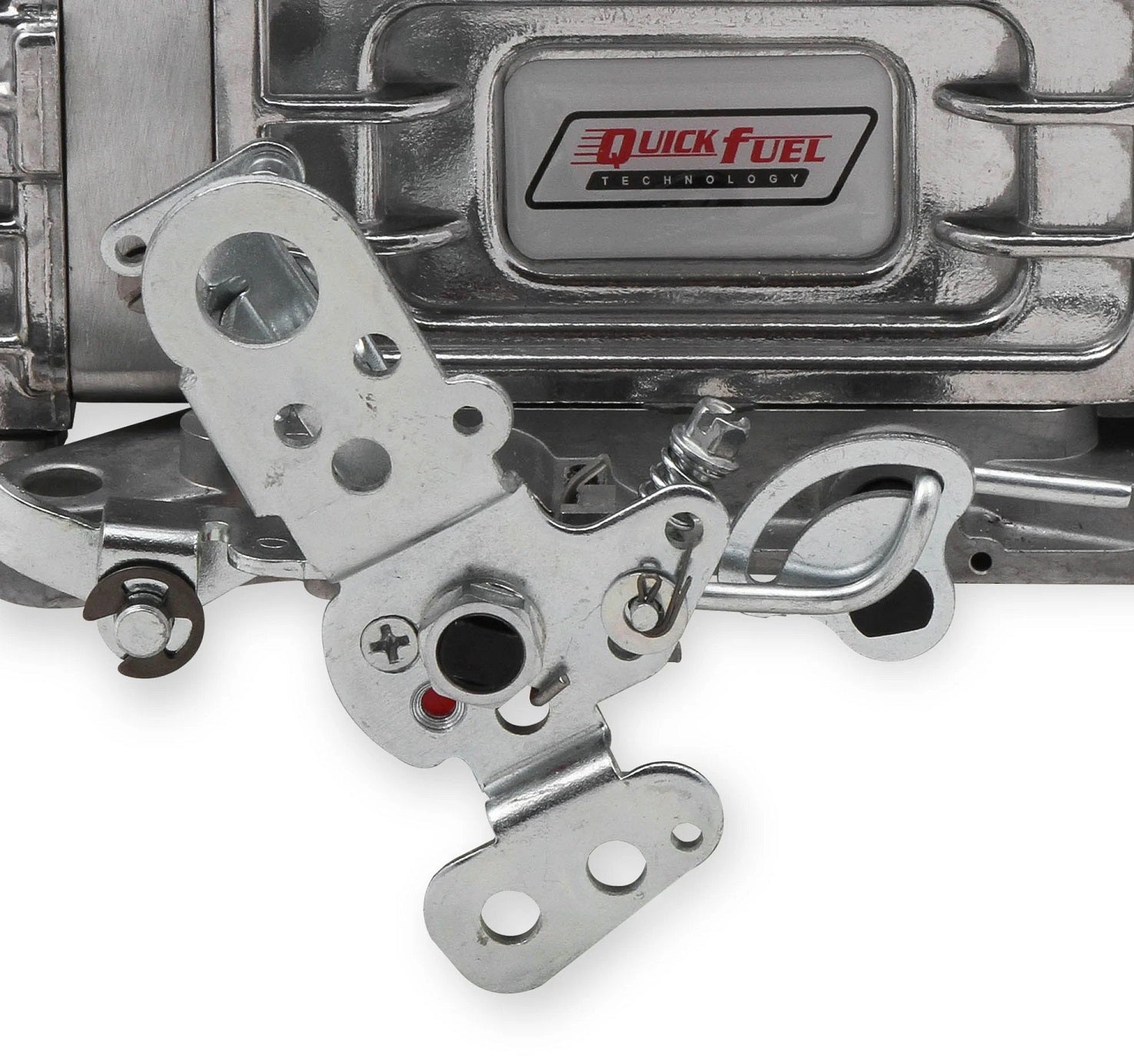

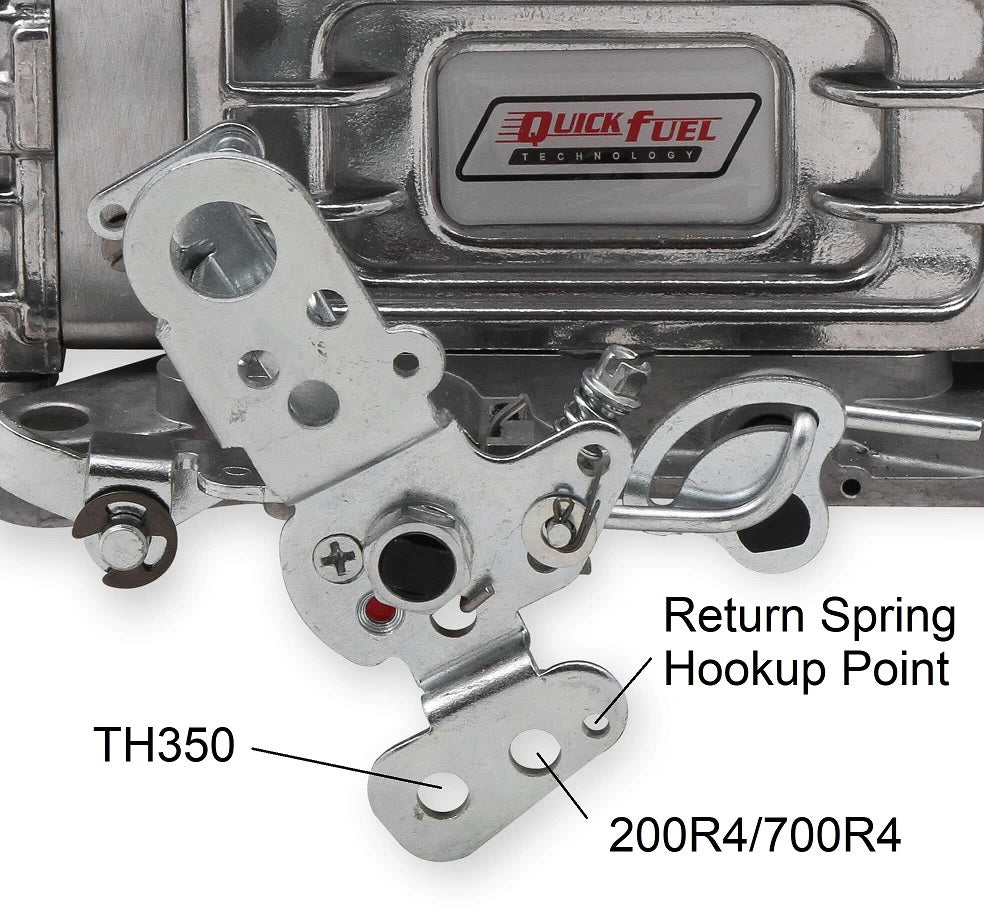

All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

Features:

• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions

Specs:

• Barrels: 4
• Billet Color: Diecast - No Billet
• Booster: Down Leg
• Brand: Quick Fuel
• CFM: 750
• Choke: Electric
• Circuit: 2
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel System: Carbureted
• Material: Aluminum
• Primary Main Jet: 72
• Primary Power Valve: 65
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 82
• Supercharged Application: Yes

You can view and download the assembly/instruction booklet here.
