CARBURETOR,4160,450CFM,TUNNEL RAM,NO CHOKE,FRONT

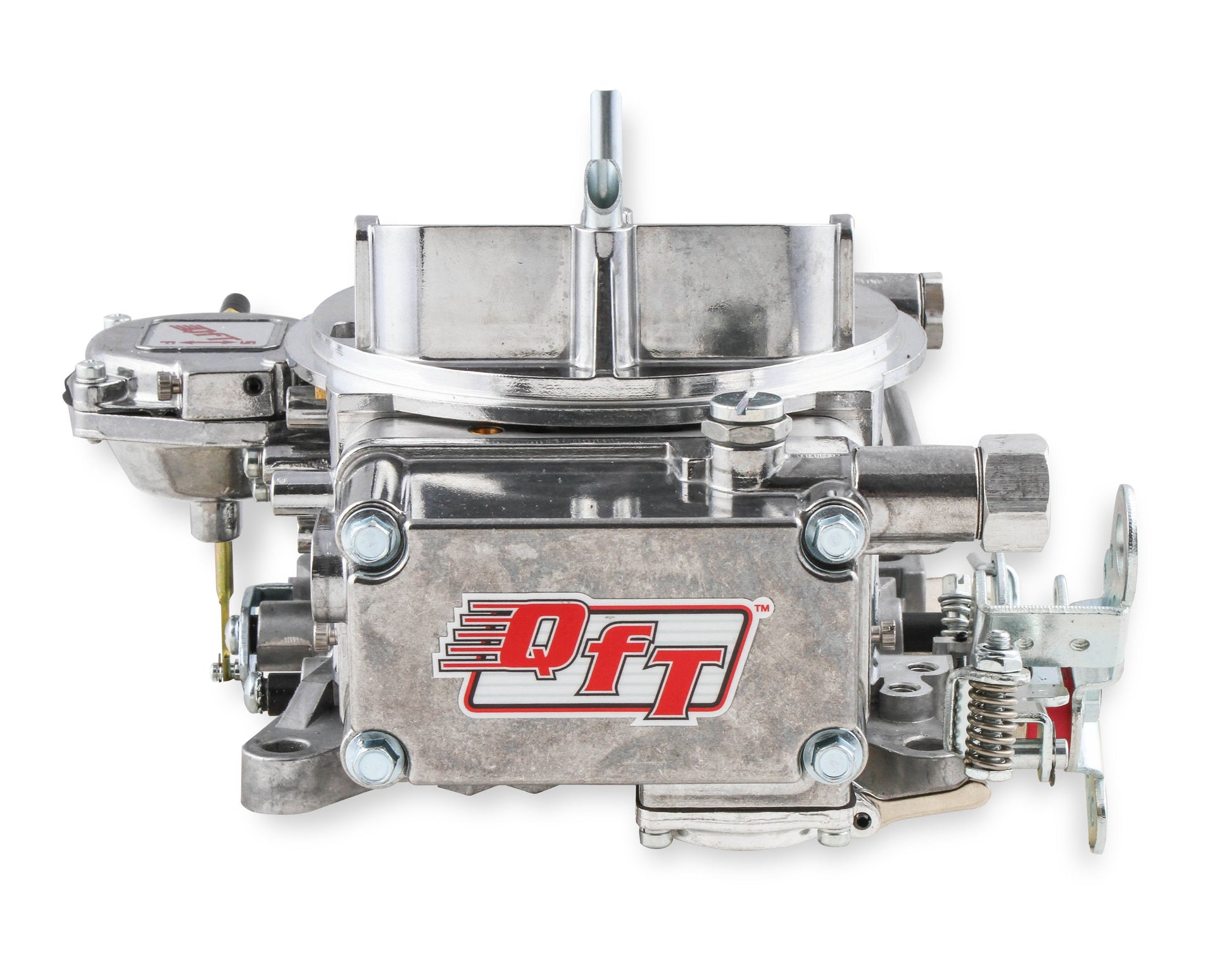

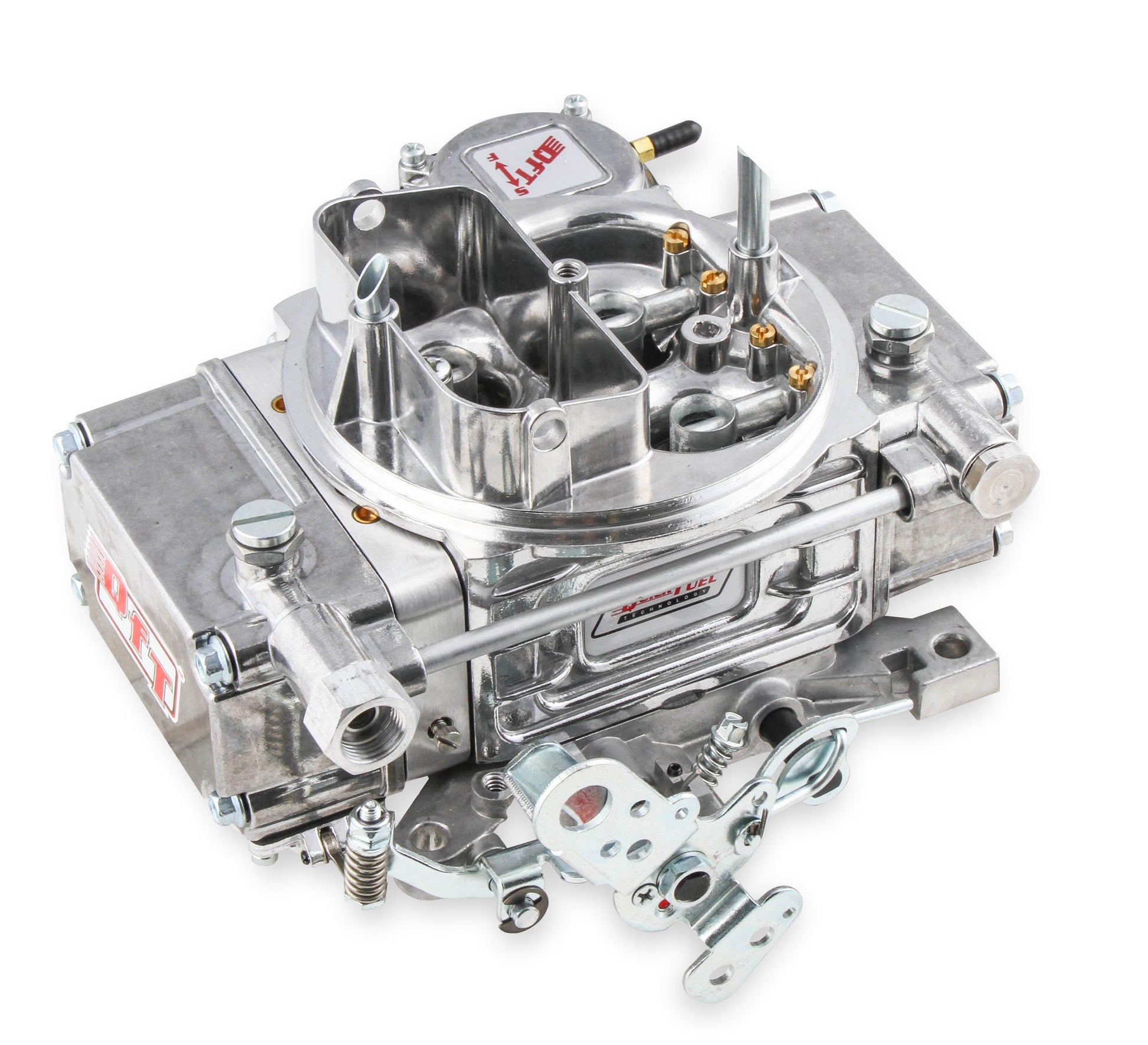

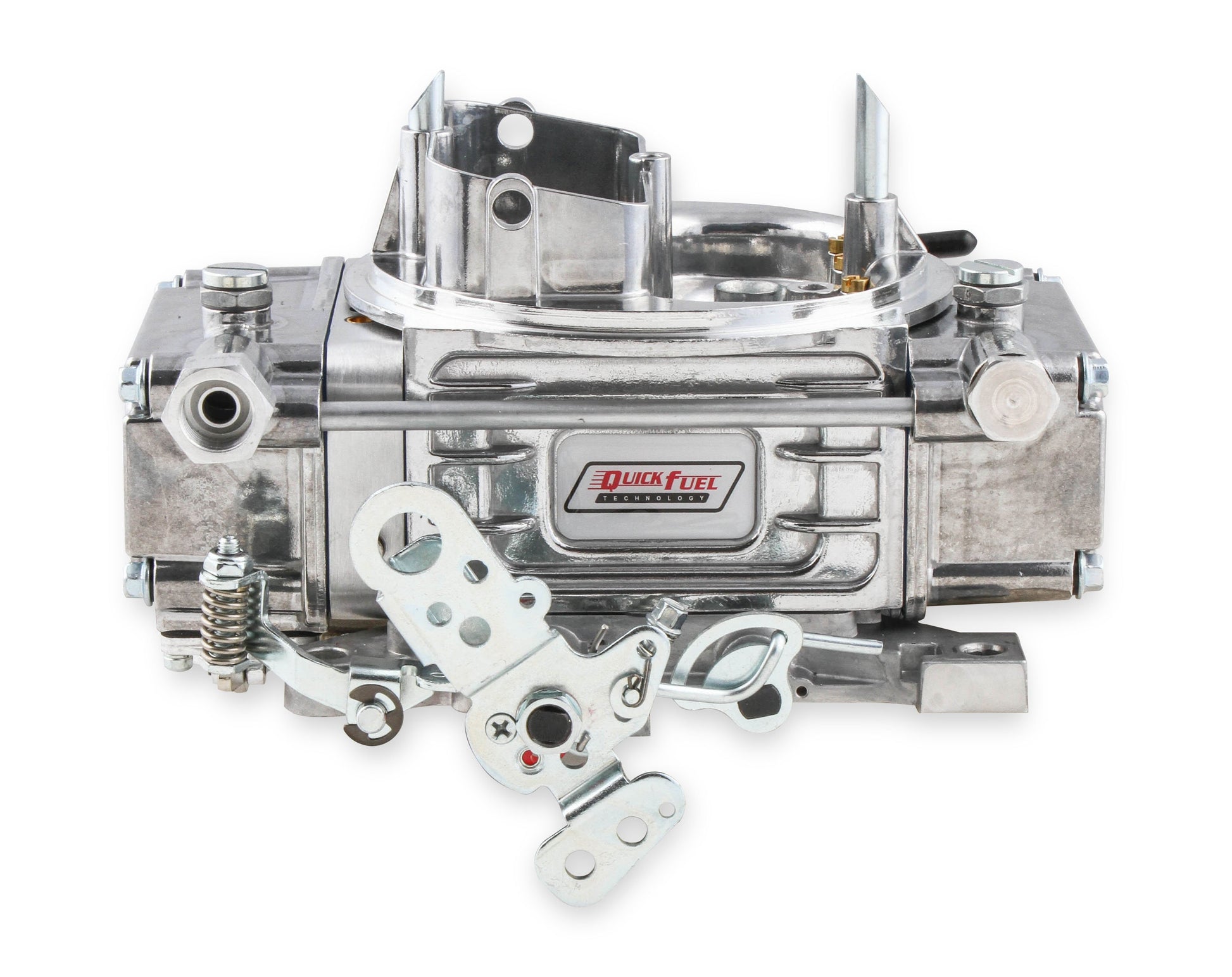

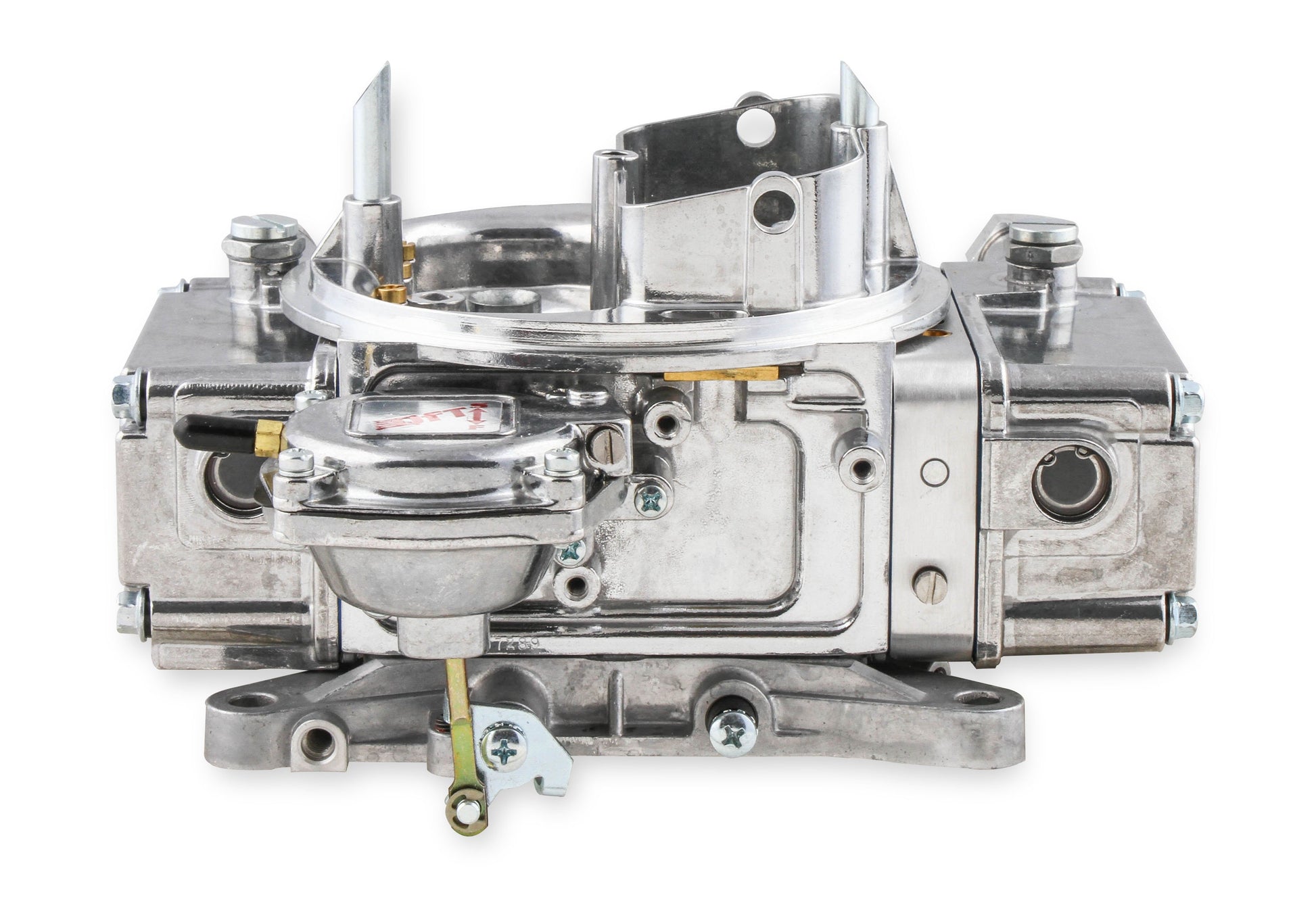

BRAND NEW HOLLEY QUICK FUEL SLAYER SERIES CARBURETOR 450CFM VS FRONT TUNNEL RAM (PART #SL-450-VSTRF).

COMBINING THE YEARS OF EXPERIENCE WITH TUNNEL RAM AND DUAL CARBURETOR APPLICATIONS, QUICK FUEL HAS DEVELOPED A MATCHED CARBURETOR PAIR BASED ON THE 450 SLAYER SERIES FOR YOUR TUNNEL RAM APPLICATION. THE FRONT CARBURETOR IS A NO CHOKE MODEL CALIBRATED TO WORK WITH THE REAR CARBURETOR FOR THE PERFORMANCE THAT YOU ARE LOOKING FOR.

PURCHASE THE SL-450-VSTRF (FRONT) ALONG WITH THE SL-450-VSTRR (REAR) FOR THE MATCHED PERFORMANCE FOR YOUR DUAL CARBURETOR APPLICATION.

SLAYER SERIES STREET CARBURETORS ARE DESIGNED WITH MANY OF THE SAME INNOVATIONS AND FEATURES THAT ARE BUILT INTO ALL QFT RACE-WINNING CARBURETORS, INCLUDING CHANGEABLE AIR BLEEDS AND POWER VALVE CHANNEL RESTRICTIONS. ITS DESIGNED WITH A SECONDARY METERING PLATE WITH CHANGEABLE JETS, AND FEATURES ALL ALUMINUM COMPONENTS FOR ADDITIONAL WEIGHT SAVINGS. ALL SLAYER SERIES CARBURETORS ARE EQUIPPED WITH UNIVERSAL THROTTLE LEVERS TO ACCOMMODATE FORD A/T KICKDOWN, GM 700 R4 MOUNTING HOLES, AND ABILITY TO MOUNT BRACKETS FOR CHRYSLER VEHICLES.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT CAN REPLACE HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• MATCHED CARBURETORS FOR TUNNEL RAM OR DUAL CARB APPLICATIONS
• BOTH CARBURETORS CALIBRATED TO GIVE YOU CRISP THROTTLE RESPONSE
• PURCHASE SL-450-VSTRF AND SL-450-VSTRR TOGETHER

SPECS:

• BARRELS: 4
• BILLET COLOR: DIECAST-NO BILLET
• BOOSTER: STRAIGHT
• BRAND: QUICK FUEL
• CARBURETOR USE: STREET
• CFM: 450
• CHOKE: NONE
• CIRCUIT: 2
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 35;33
• IDLE AIR BLEED SIZE: 70;39
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: SLAYER SERIES
• PRIMARY MAIN JET: 55
• PRIMARY POWER VALVE: 65
• PRIMARY PUMP NOZZLE SIZE: 25
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: VACUUM
• SECONDARY MAIN JET: 60
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-9/16 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
