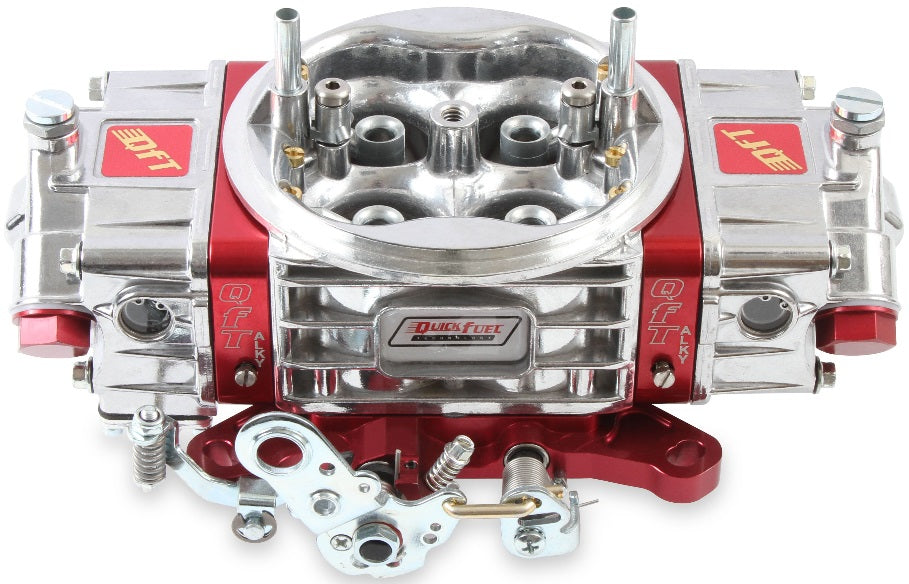

Q-SERIES,950CFM,DRAG CARBURETOR,4150,ALCOHOL

Q-SERIES,950CFM,DRAG CARBURETOR,4150,ALCOHOL

SKU:QFT Q-950-A

Regular price $1,190.95
Regular price Sale price $1,190.95
View full details

BRAND NEW HOLLEY QUICK FUEL Q-SERIES CARBURETOR, SHINY WITH RED BILLET FINISH, 950 CFM, MECHANICAL SECONDARIES, 4150, DRAG, COMPATIBLE WITH ALCOHOL

IDEALLY SUITED FOR BRACKET RACERS AND WEEKEND WARRIORS ALIKE, Q-SERIES CARBURETORS ARE PURPOSE-BUILT FOR DRAGSTRIP. EQUIPPED WITH NOTCHED FLOATS AND SECONDARY JET EXTENSIONS. THE HIGH-FLOW ALUMINUM MAIN BODY IS NOT JUST LIGHTWEIGHT, BUT IT ALSO FEATURES RECESSED AIR BLEED CAVITIES FOR IMPROVED AIR FLOW.

DIE-CAST VENTURI ARE MACHINED TO EXACTING TOLERANCES FOR OUTSTANDING THROTTLE RESPONSE. BILLET METERING BLOCKS ENSURE A UNIFORM FUEL CURVE, WHILE THROTTLE-BODIES ENHANCE DURABILITY. WHEN TRACK CONDITIONS VARY FROM ONE PASS TO THE NEXT, QFT QUICKLINK SYSTEM MAKES ADJUSTING THE SECONDARIES EASY.

NOTE: THIS CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, AN ADAPTER IS NEEDED TO INSTALL THIS CARBURETOR, SIMILAR TO MR. GASKET #1932.

FEATURES:

  • LIGHTWEIGHT ALUMINUM MAIN BODY
  • MECHANICAL SECONDARIES
  • ALUMINUM FUEL BOWLS WITH DUAL SIGHT GLASS WINDOWS
  • BILLET METERING BLOCKS WITH 4-CORNER IDLE SYSTEM
  • CHANGEABLE IDLE FEED & POWER VALVE CHANNEL RESTRICTIONS
  • BILLET ALUMINUM THROTTLE BODY PROVIDES EXCEPTIONAL PRECISION AND STRENGTH
  • PTFE COATED AND SEALED SHAFTS

SPECS:

  • BARRELS: 4
  • BOOSTER: DOWN LEG
  • BRAND: QUICK FUEL
  • CARBURETOR USE: PERFORMANCE/RACE
  • CFM: 950
  • CHOKE: NONE
  • CIRCUIT: 2
  • FINISH: SHINY WITH RED BILLET
  • FUEL: ALCOHOL
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 28
  • IDLE AIR BLEED SIZE: 53
  • MATERIAL: ALUMINUM
  • MODEL: Q-SERIES
  • PRIMARY MAIN JET: 160
  • PRIMARY PUMP NOZZLE SIZE: 55
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 160
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-3/4 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
