Q-SERIES,750CFM,DRAG CARBURETOR,4150,ALCOHOL

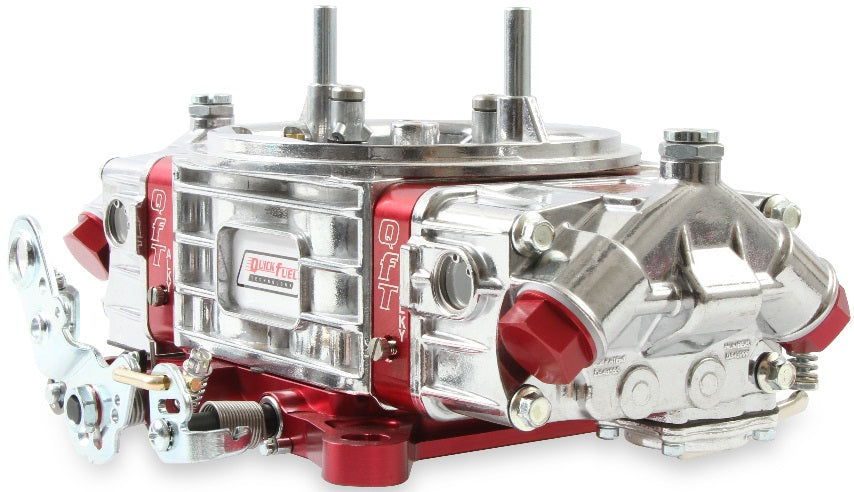

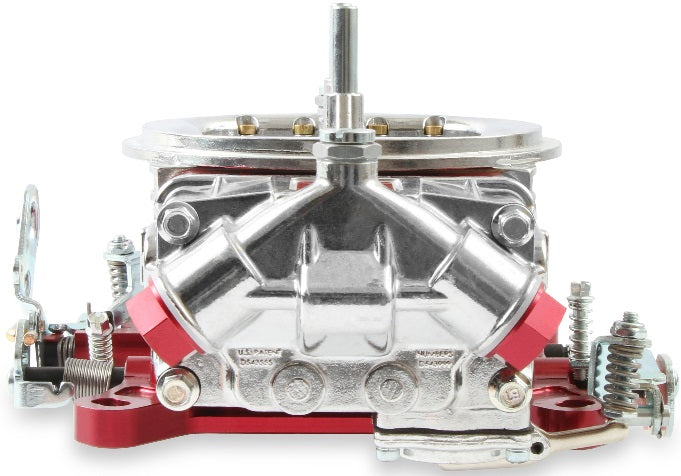

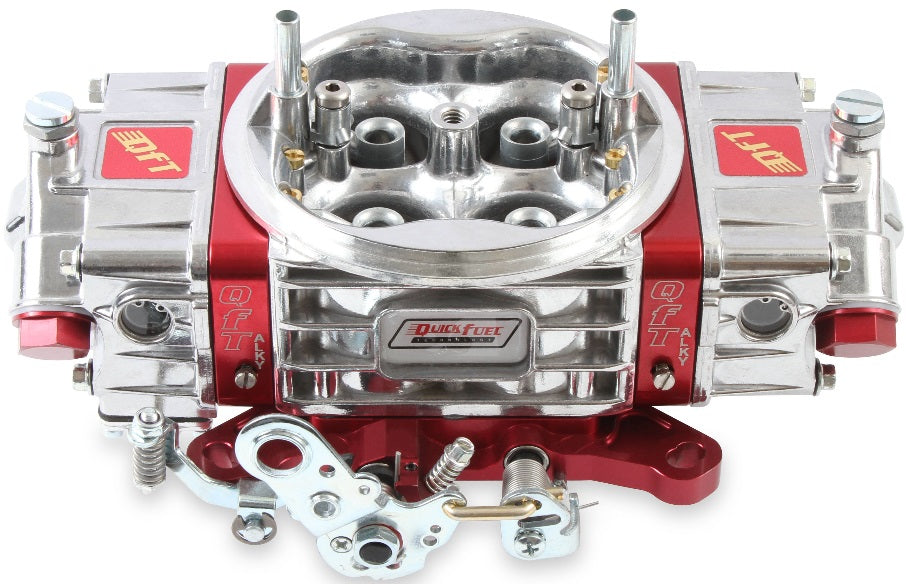

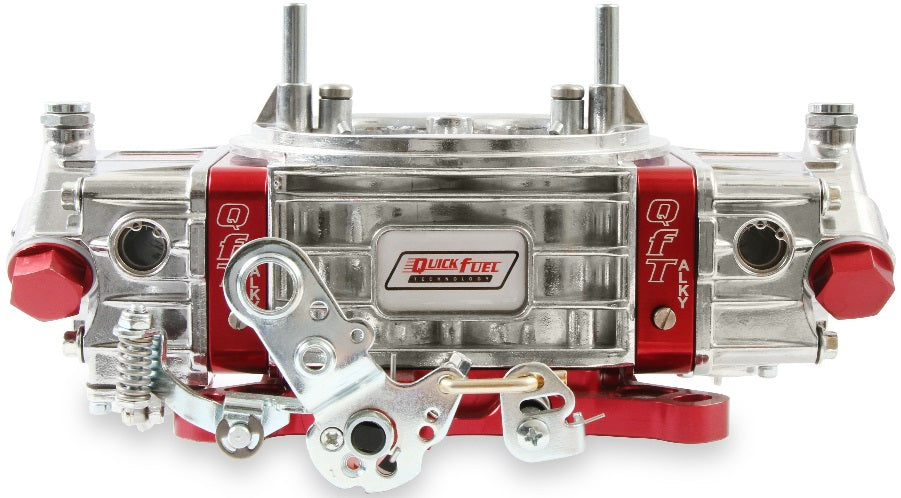

BRAND NEW HOLLEY QUICK FUEL Q-SERIES CARBURETOR, SHINY WITH RED BILLET FINISH, 750 CFM, MECHANICAL SECONDARIES, 4150, DRAG, COMPATIBLE WITH ALCOHOL

IDEALLY SUITED FOR BRACKET RACERS AND WEEKEND WARRIORS ALIKE, Q-SERIES CARBURETORS ARE PURPOSE-BUILT FOR DRAGSTRIP. EQUIPPED WITH NOTCHED FLOATS AND SECONDARY JET EXTENSIONS. THE HIGH-FLOW ALUMINUM MAIN BODY IS NOT JUST LIGHTWEIGHT, BUT IT ALSO FEATURES RECESSED AIR BLEED CAVITIES FOR IMPROVED AIR FLOW.

DIE-CAST VENTURI ARE MACHINED TO EXACTING TOLERANCES FOR OUTSTANDING THROTTLE RESPONSE. BILLET METERING BLOCKS ENSURE A UNIFORM FUEL CURVE, WHILE THROTTLE-BODIES ENHANCE DURABILITY.

FEATURES:

• LIGHTWEIGHT ALUMINUM MAIN BODY
• MECHANICAL SECONDARIES
• ALUMINUM FUEL BOWLS WITH DUAL SIGHT GLASS WINDOWS
• BILLET METERING BLOCKS WITH 4-CORNER IDLE SYSTEM
• CHANGEABLE IDLE FEED & POWER VALVE CHANNEL RESTRICTIONS
• BILLET ALUMINUM THROTTLE BODY PROVIDES EXCEPTIONAL PRECISION AND STRENGTH
• PTFE COATED AND SEALED SHAFTS

SPECS:

• BARRELS: 4
• BOOSTER: DOWN LEG
• BRAND: QUICK FUEL
• CARBURETOR USE: PERFORMANCE/RACE
• CFM: 750
• CHOKE: NONE
• CIRCUIT: 2
• FINISH: SHINY WITH RED BILLET
• FUEL: ALCOHOL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 31
• IDLE AIR BLEED SIZE: 61
• MATERIAL: ALUMINUM
• MODEL: Q-SERIES
• PRIMARY MAIN JET: 146
• PRIMARY PUMP NOZZLE SIZE: 45
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 146
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-11/16 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
