QFX 4700 CARBURETOR 1.710 E-85

QFX 4700 CARBURETOR 1.710 E-85

QFT FX-4710-E85

$1,949.95
$1,949.95

Yes, we have this item in stock and ready to ship immediately!
View full details

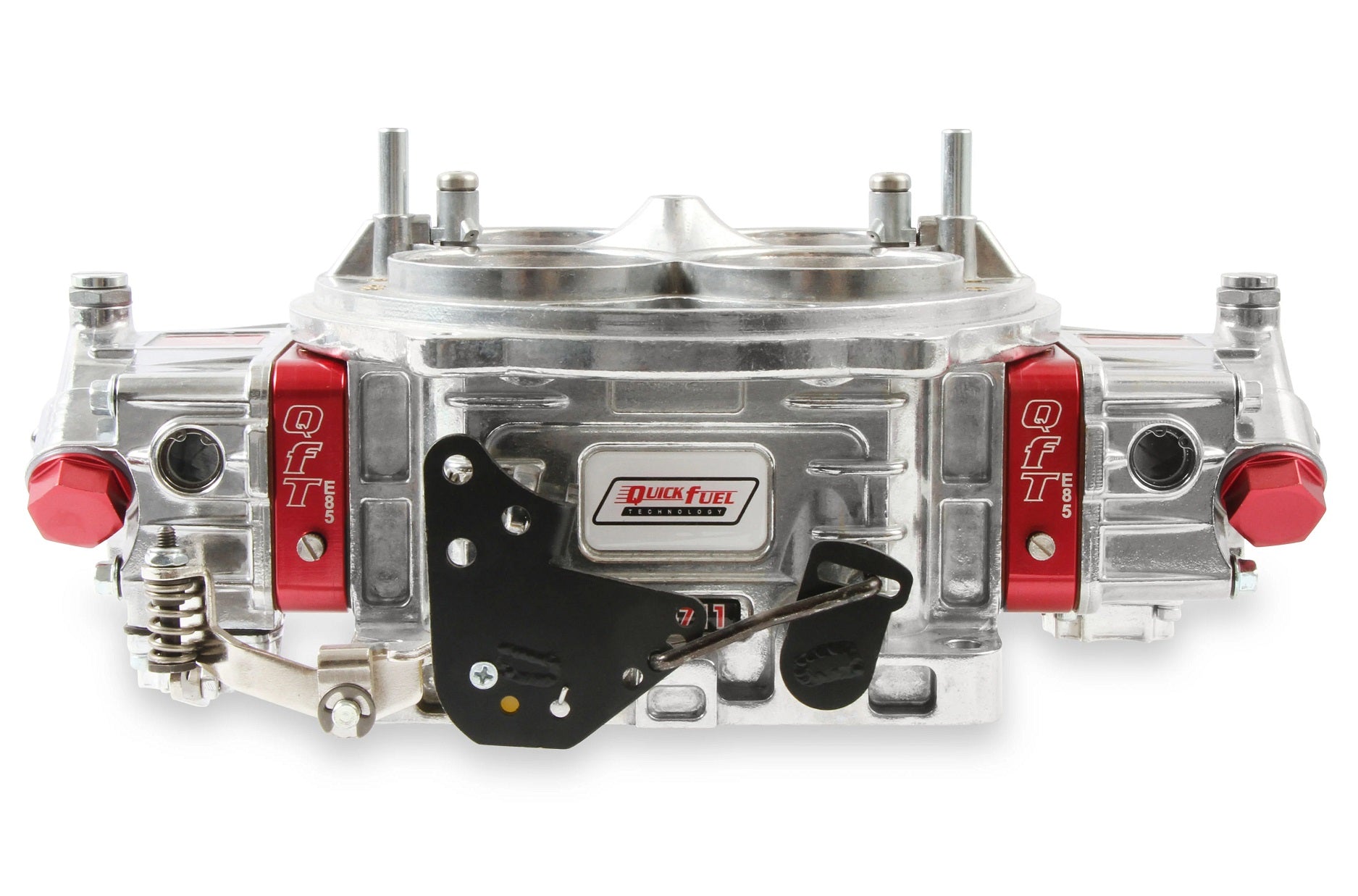

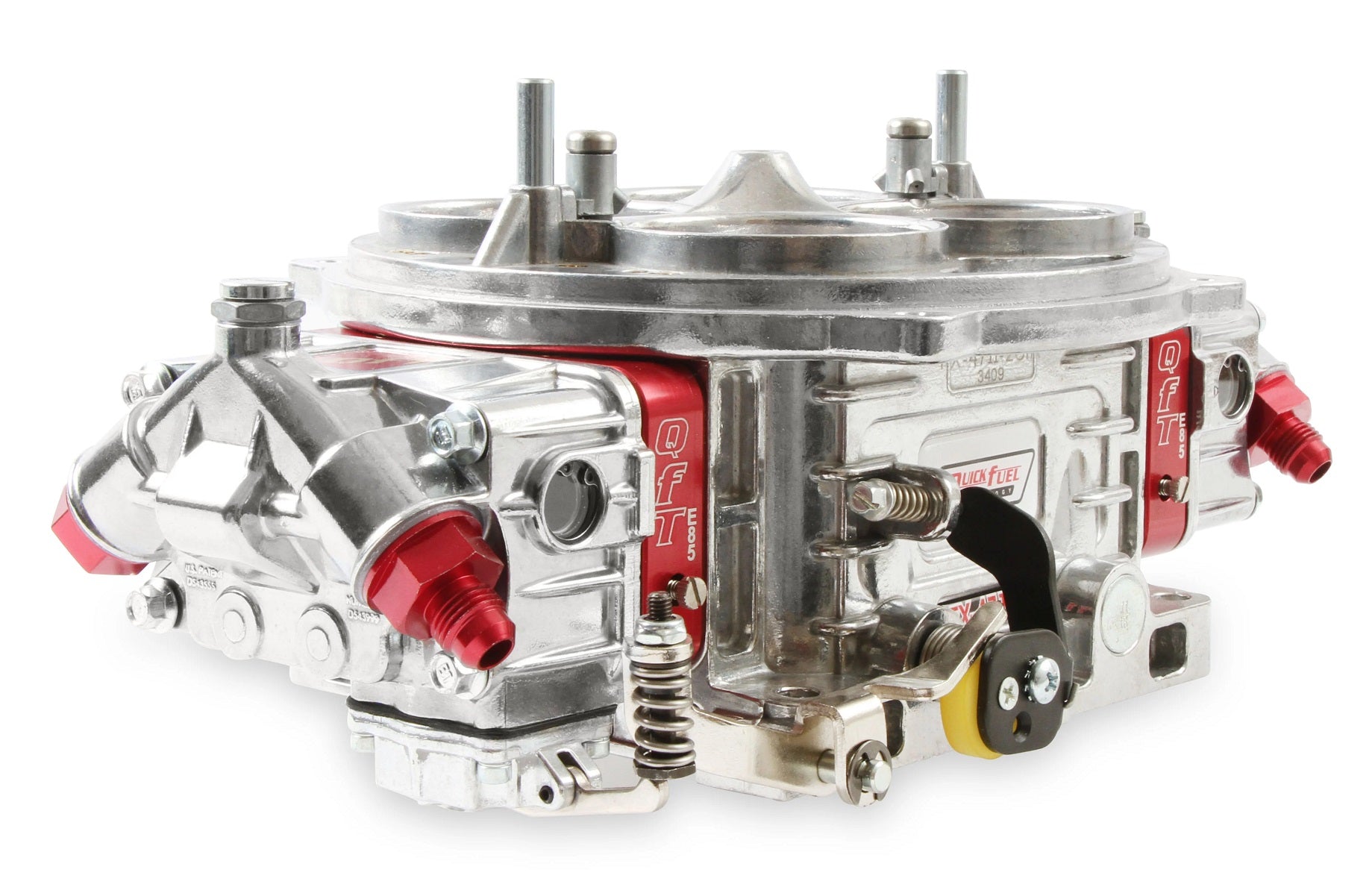

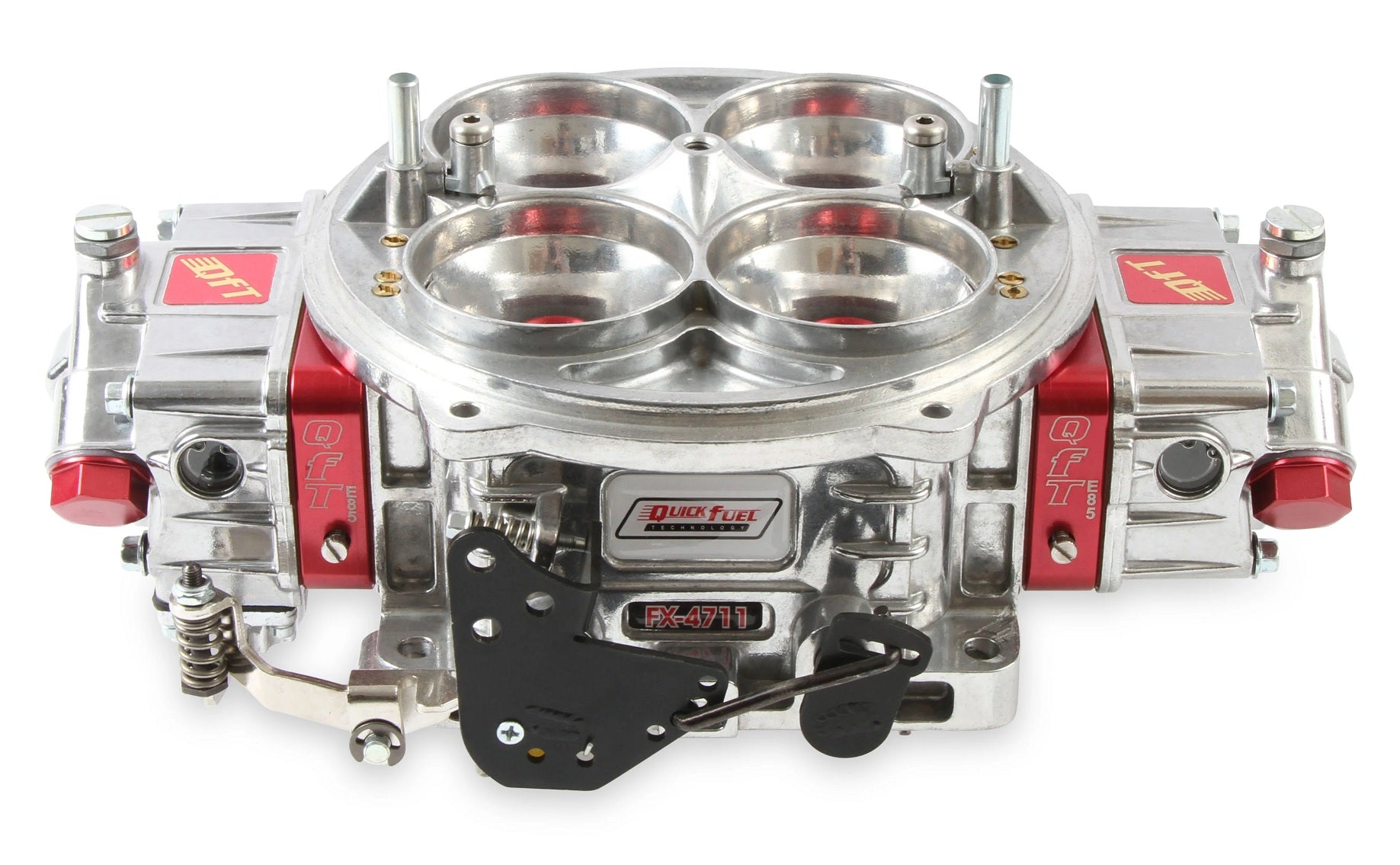

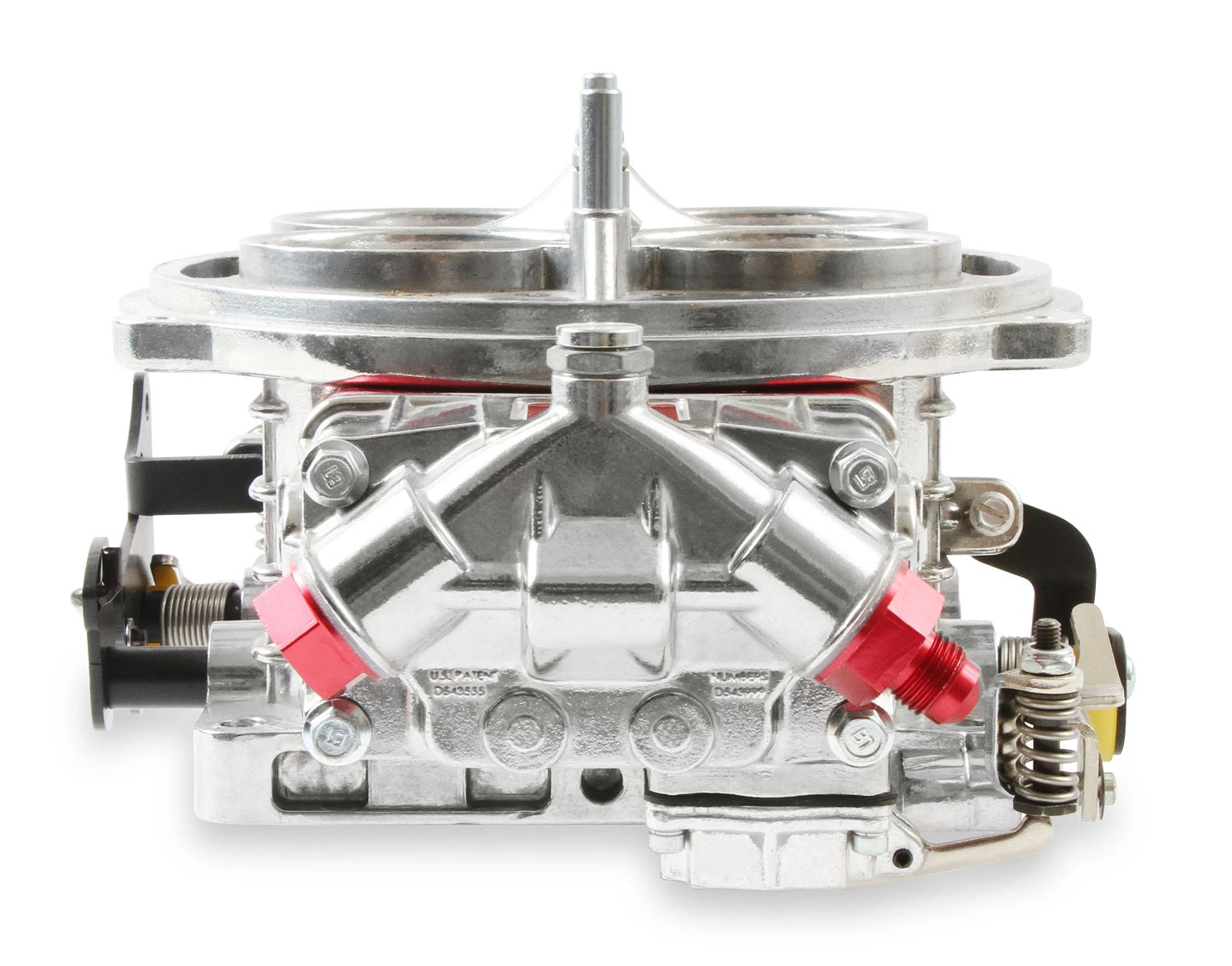

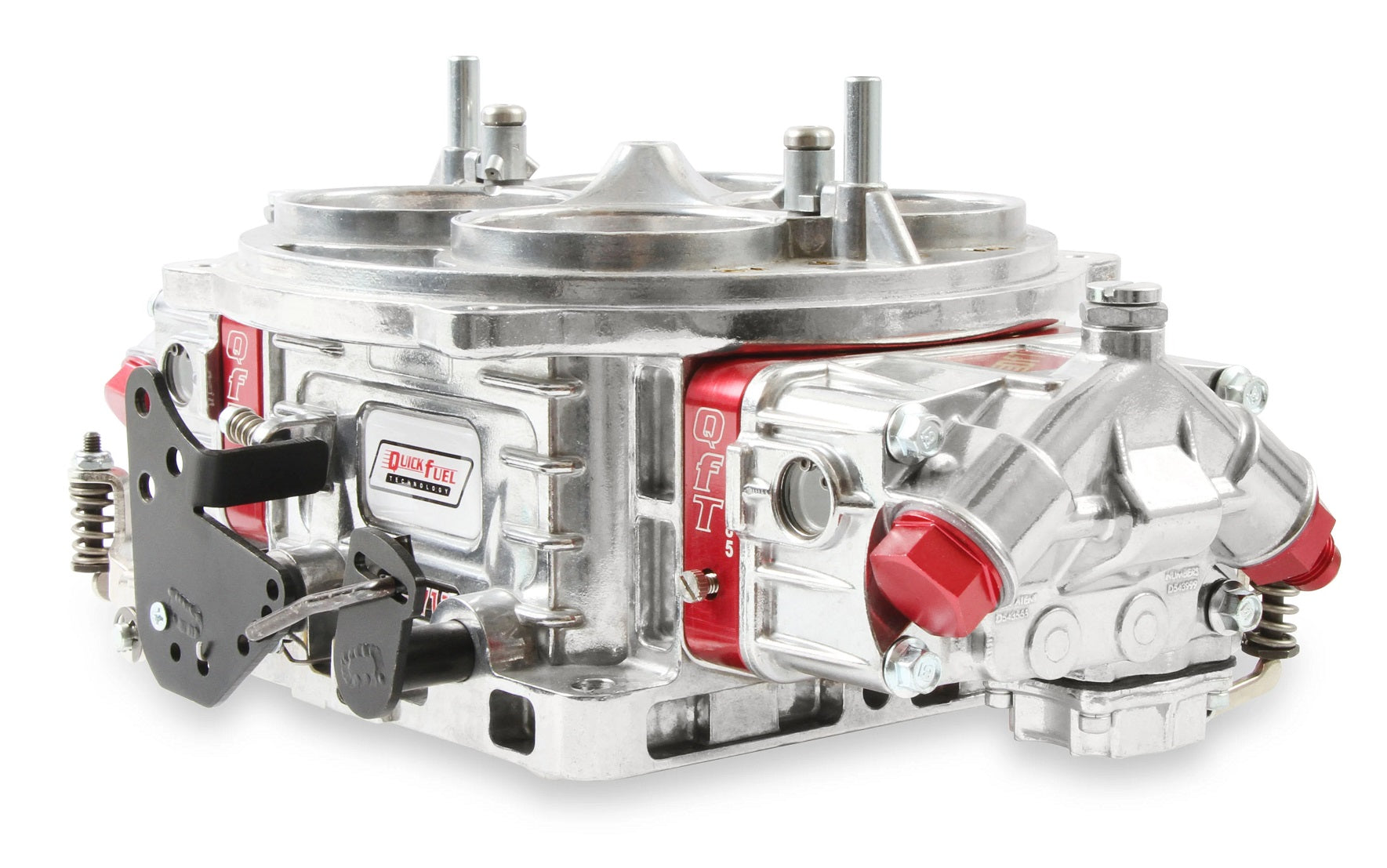

Brand New Holley QFX Series 4710-E85 Carburetor,Polished with Red Billet, 1050 CFM, 1.710 Venturi, No Choke, Mechanical Secondaries, Compatible with E85 fuels. (Holley Part #FX-4710-E85).

Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence.

QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.

Features:

  • QFX aluminum main body w/raised venturi
  • Billet aluminum metering blocks with screw in restrictions
  • Aluminum fuel bowls with dual sight windows and fuel inlets
  • Nitrophyl® Floats (notched rear) and jet extensions
  • Viton .130" Needles and Seats
  • Billet Aluminum annular booster inserts
  • QuickLink adjustable secondary opening adjustment
  • Hand assembled and engine tested

Specs:

  • Barrels: 4
  • Billet Color: Red
  • Booster: Annular
  • Brand: Quick Fuel
  • CFM: 1050
  • Choke: None
  • Circuit: 3
  • Emission Code: 4
  • Finish: Shiny
  • Fuel: E85
  • Fuel System: Carbureted
  • High Speed Air Bleed: 28
  • Idle Air Bleed Size: 39
  • Intermediate Air Bleed: 63
  • Material: Aluminum
  • Model: FX Series
  • Primary Main Jet: 92
  • Primary Power Valve: N/A
  • Primary Pump Nozzle Size: 47
  • Product Type: Carburetor
  • Secondaries: Mechanical
  • Secondary Main Jet: 92
  • Supercharged Application: No
  • Throttle Bore: 2.00"

You can view and download the instruction booklet here.
