CARBURETOR,4150,1050CFM,1.700 VENTURI,2 CIRCUIT

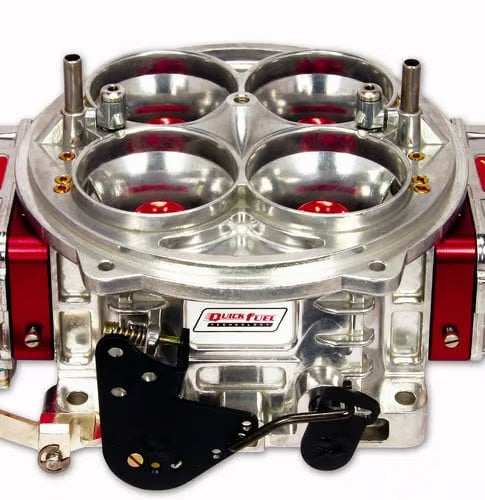

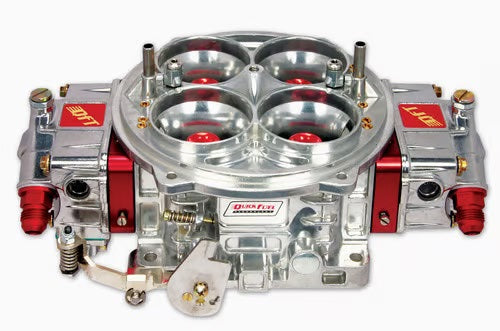

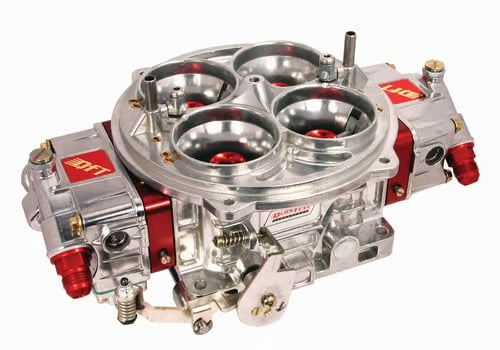

Brand New Holley QFX Series 4700 Carburetor, Polished with Red Billet, 1050 CFM, 1.71 Venturi, No Choke, Mechanical Secondaries, 2 Circuit, Gasoline (Holley Part #FX-4700).

Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters.

Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, two- and three-circuit fuel systems are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.

Features:

• QFX aluminum main body w/raised venturi
• Billet aluminum metering blocks with screw in restrictions
• Aluminum fuel bowls with dual sight windows and fuel inlets
• Nitrophyl Floats (notched rear) and jet extensions
• Viton .130" Needles and Seats
• Billet Aluminum annular booster inserts
• QuickLink adjustable secondary opening adjustment
• Hand assembled and engine tested

Specs:

• Barrels: 4
• Billet Color: Red
• Booster: Annular
• Brand: Quick Fuel
• CFM: 1050
• Choke: None
• Circuit: 2
• Finish: Polished
• Fuel: Gasoline
• Fuel System: Carbureted
• Material: Aluminum
• Model: FX Series
• Primary Main Jet: 84
• Primary Power Valve: 35
• Primary Pump Nozzle Size: 35
• Primary Venturi Diameter: 1.71
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 92
• Supercharged Application: No
• Throttle Bore: 2.00"
