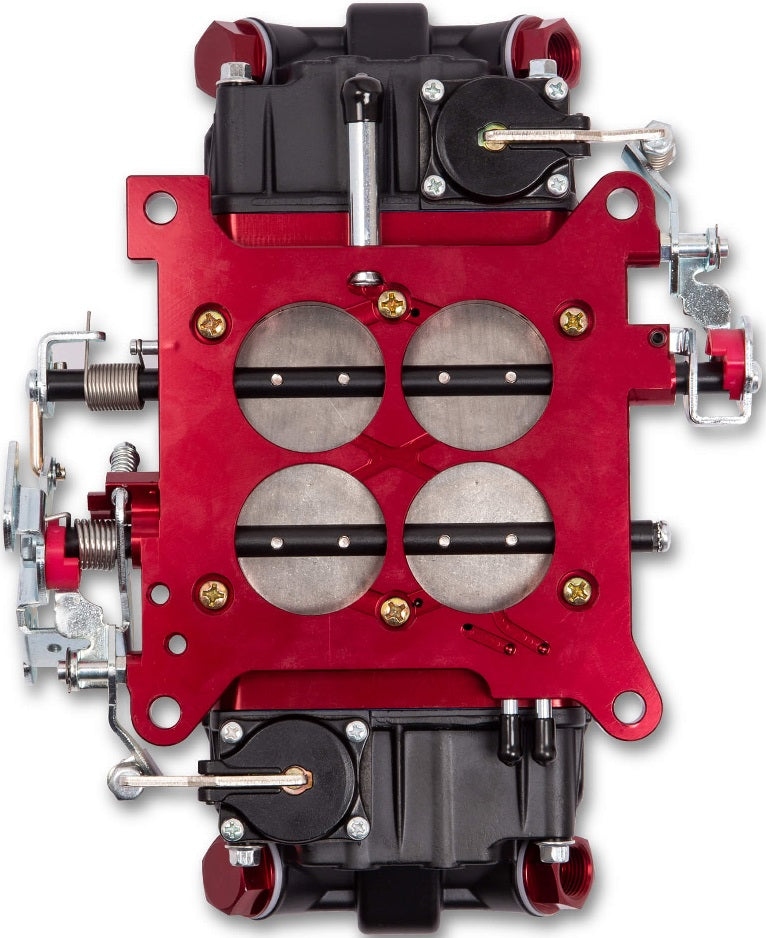

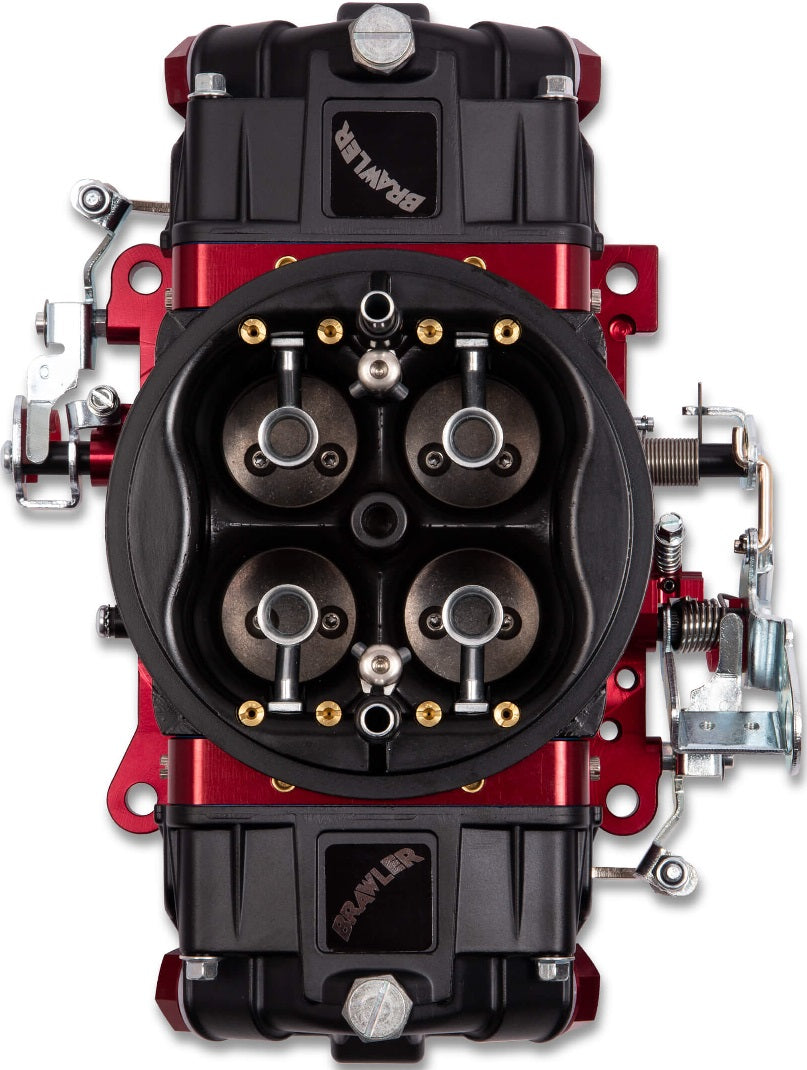

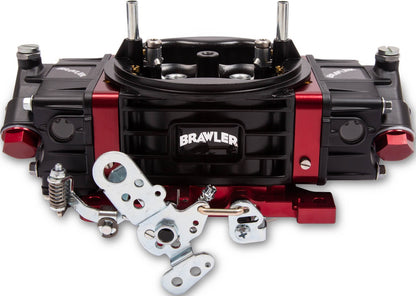

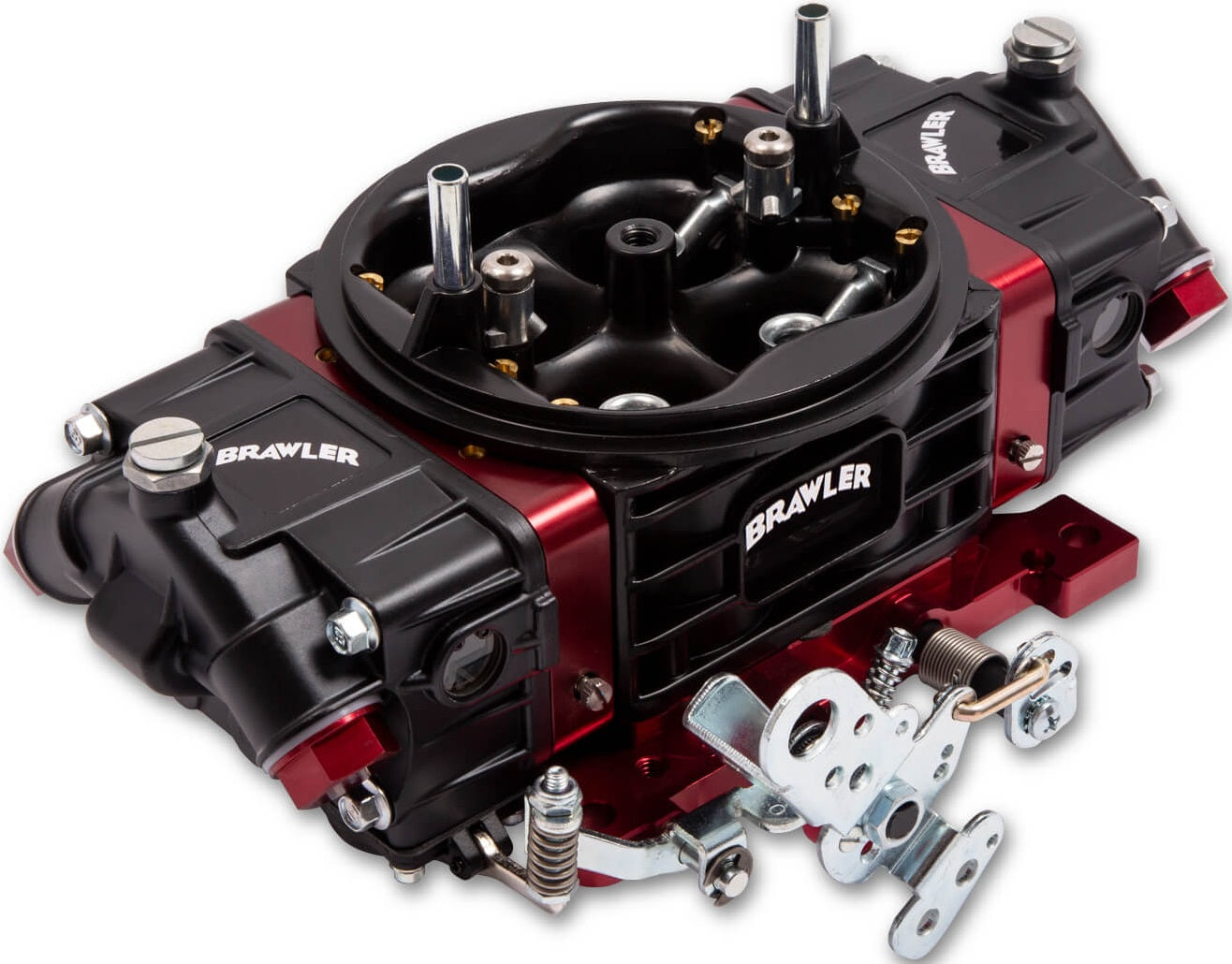

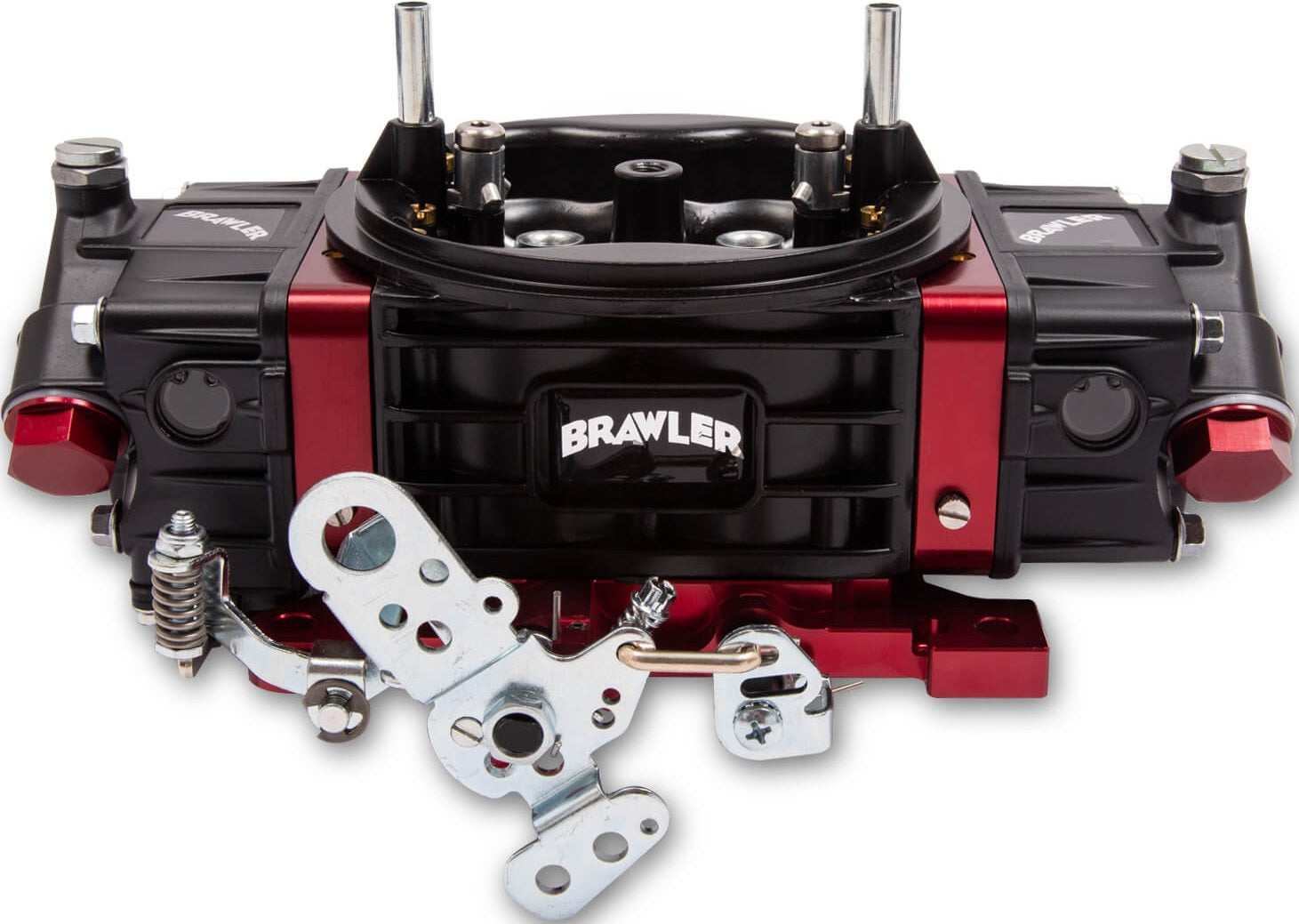

CARBURETOR,4150,850CFM,RACE,MECHANICAL,BLACK,RED

CARBURETOR,4150,850CFM,RACE,MECHANICAL,BLACK,RED

QFT BR-67332

$759.95
$759.95
View full details

BRAND NEW HOLLEY QUICK FUEL BRAWLER RACE CARBURETOR, BLACK WITH RED BILLET, 850 CFM, MECHANICAL SECONDARIES, COMPATIBLE WITH 4150 MODELS

THE BRAWLER FAMILY OF CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES- JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON. THE SECOND PHASE OF NEW CARBURETORS BUILD ON THE SUCCESS OF THE ORIGINALS BY ADDING MORE CFM SIZES AND OPTIONS INCLUDING A BLACK COATED FINISH.

BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THE BRAWLER FAMILY OF CARBURETORS ARE ALL MADE FROM LIGHT-WEIGHT ALUMINUM COMPONENTS AND OFFER ALL THE TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO MR. GASKET #1932.

FEATURES:

  • THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS
  • ALL MODELS HAVE DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE AND EASY FLOAT ADJUSTMENTS
  • CHANGEABLE IDLE AND HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT
  • RACE MODELS INCLUDE BILLET METERING BLOCKS & THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
  • BLACK COATED FINISH FOR CORROSION PROTECTION & GOOD LOOKS

SPECS:

  • BARRELS: 4
  • BILLET COLOR: RED
  • BOOSTER: DOWN LEG
  • CARBURETOR USE: PERFORMANCE & RACE
  • CFM: 850
  • CHOKE: NONE
  • CIRCUIT: 2
  • FINISH: BLACK
  • FUEL: GASOLINE
  • FUEL INLET: DUAL
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 33
  • IDLE AIR BLEED SIZE: 73
  • MATERIAL: ALUMINUM
  • MODEL: BRAWLER RACE
  • PRIMARY MAIN JET: 68
  • PRIMARY POWER VALVE: 4.5
  • PRIMARY PUMP NOZZLE SIZE: 33
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 84
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1.75"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
