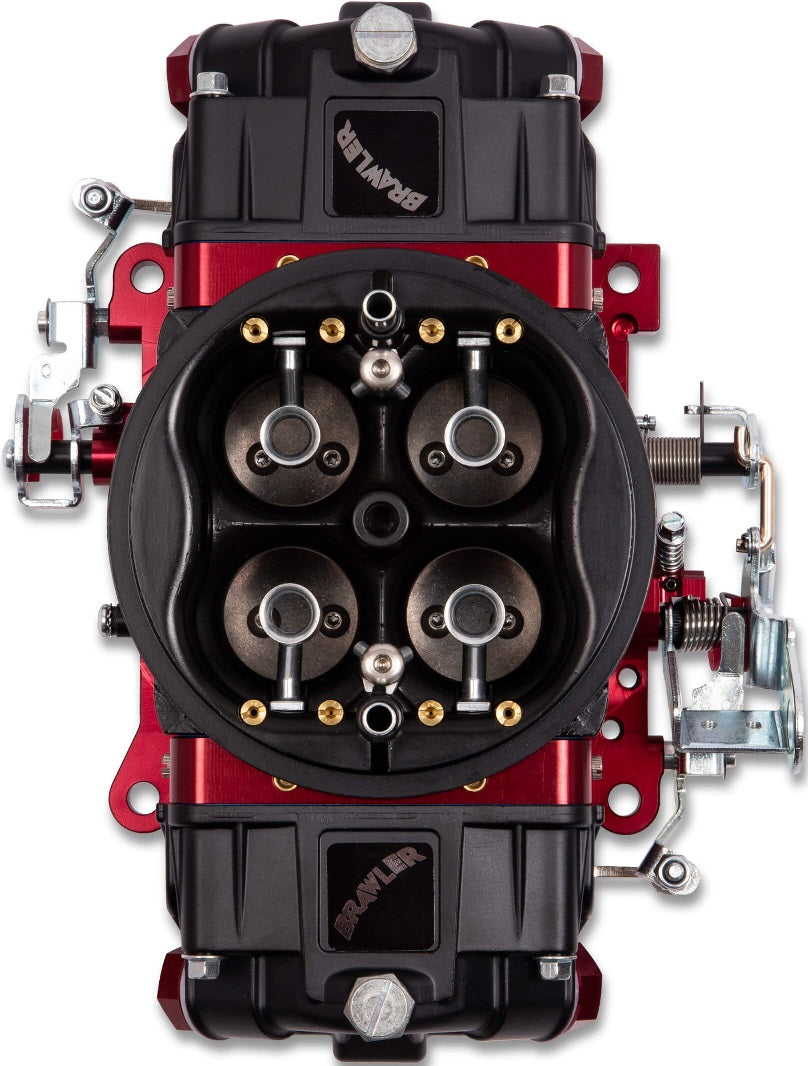

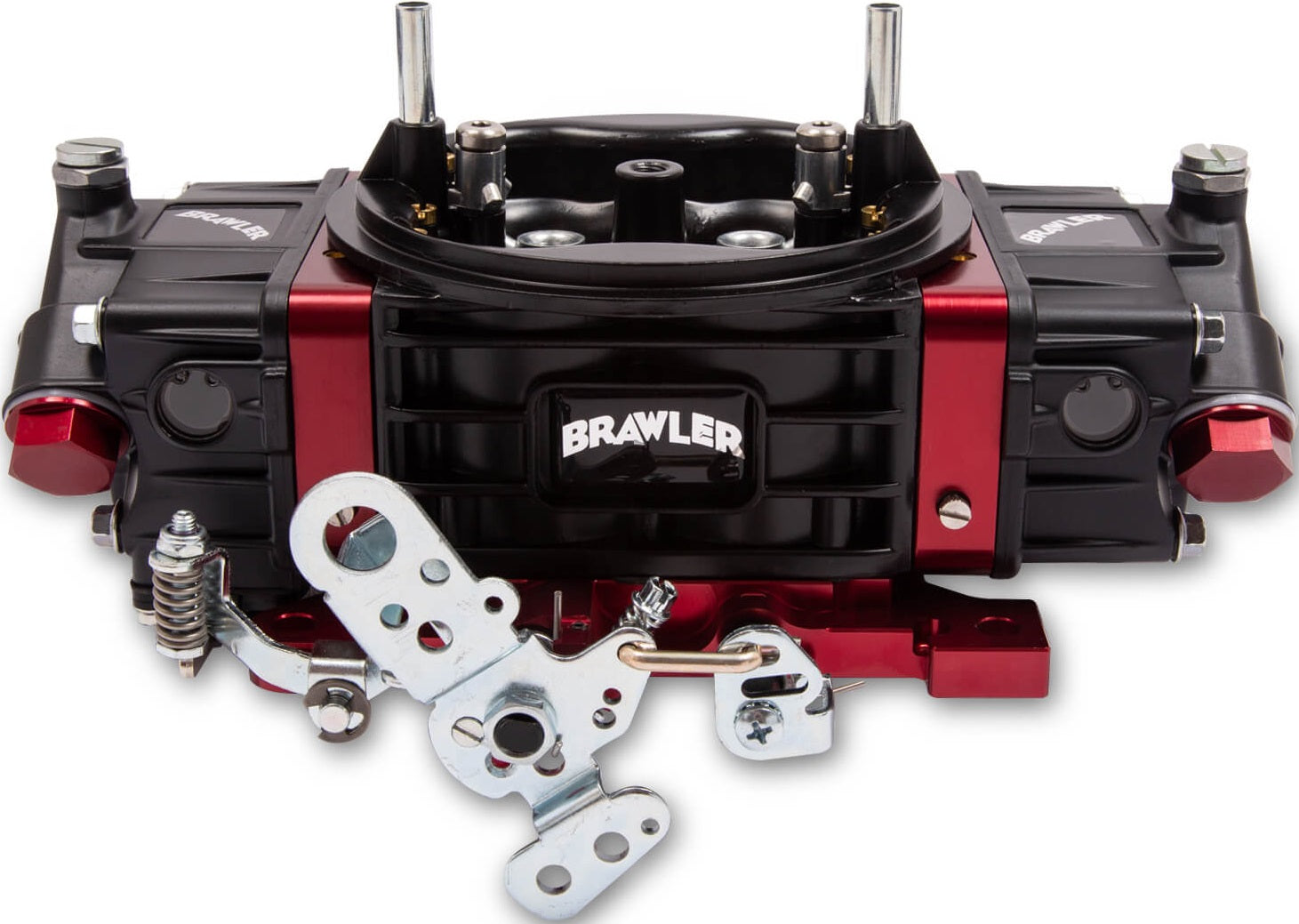

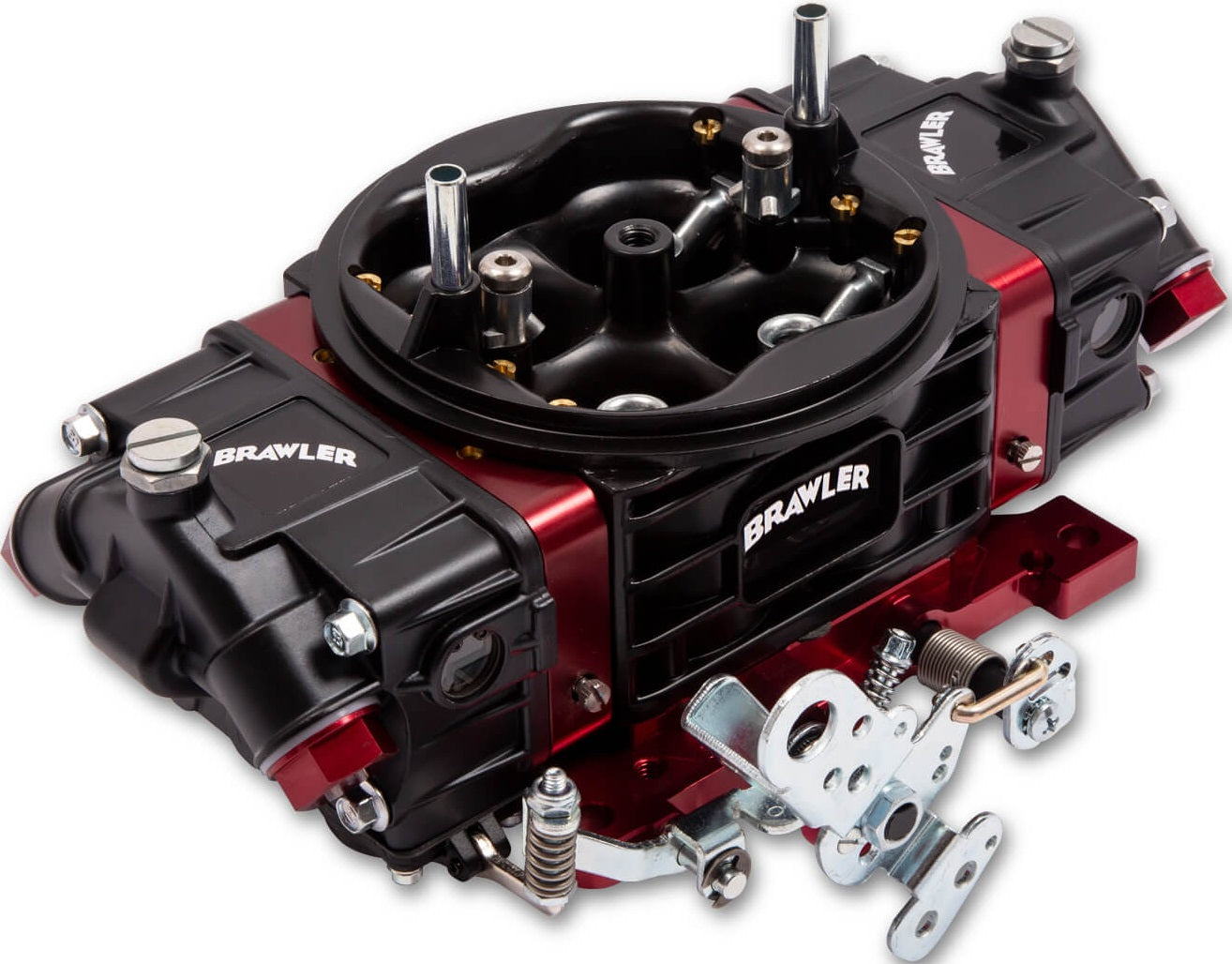

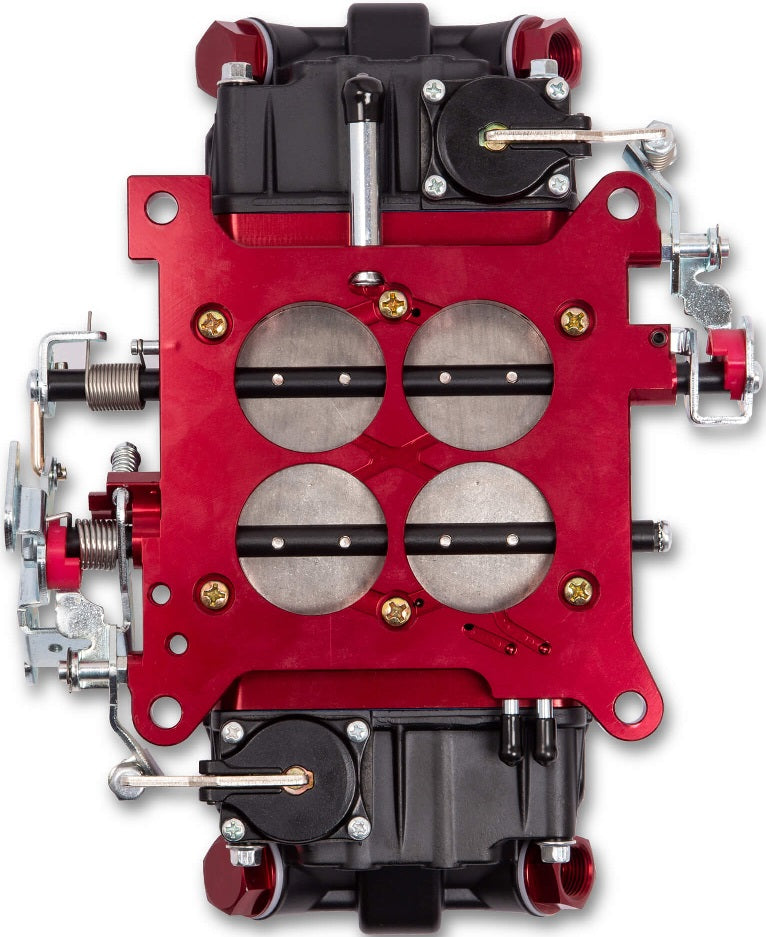

CARBURETOR,4150,750CFM,RACE,MECHANICAL,BLACK,RED

CARBURETOR,4150,750CFM,RACE,MECHANICAL,BLACK,RED

QFT BR-67331

$679.95
$679.95
View full details

BRAND NEW HOLLEY QUICK FUEL 750 CFM BRAWLER RACE CARBURETOR, RED BILLET & BLACK FINISH, MECHANICAL SECONDARIES, COMPATIBLE WITH 4150 MODELS

THE 3RD PHASE OF NEW BRAWLER CARBURETORS BUILD ON THE SUCCESS OF THE ORIGINALS BY ADDING MORE CFM SIZES & A BLACK COATED FINISH WITH RED BILLET METERING BLOCKS & THROTTLE BODIES. BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THEY ARE ALL MADE FROM LIGHT-WEIGHT ALUMINUM COMPONENTS & OFFER ALL THE TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.

NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO MR. GASKET #1932.

FEATURES:

  • THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS MECHANICAL SECONDARIES
  • DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE & EASY FLOAT ADJUSTMENTS
  • CHANGEABLE IDLE & HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT
  • PERFORMANCE MODELS INCLUDE BILLET METERING BLOCKS & THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
  • BLACK COATED FINISH FOR CORROSION PROTECTION & GOOD LOOKS

SPECS:

  • BARRELS: 4
  • BILLET COLOR: RED
  • BOOSTER: DOWN LEG
  • CFM: 750
  • CHOKE: NONE
  • CIRCUIT: 2
  • FINISH: BLACK
  • FUEL: GASOLINE
  • FUEL INLET: DUAL
  • FUEL SYSTEM: CARBURETED
  • HIGH SPEED AIR BLEED: 33
  • IDLE AIR BLEED SIZE: 70;70
  • MARINE USE: NO
  • MATERIAL: ALUMINUM
  • MODEL: BRAWLER RACE
  • PRIMARY MAIN JET: 74
  • PRIMARY POWER VALVE: 4.5
  • PRIMARY PUMP NOZZLE SIZE: 31
  • PRIMARY VENTURII SIZE: 1.380"
  • PRODUCT TYPE: CARBURETOR
  • SECONDARIES: MECHANICAL
  • SECONDARY MAIN JET: 84
  • SECONDARY VENTURII SIZE: 1.380"
  • SUPERCHARGED APPLICATION: NO
  • THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
