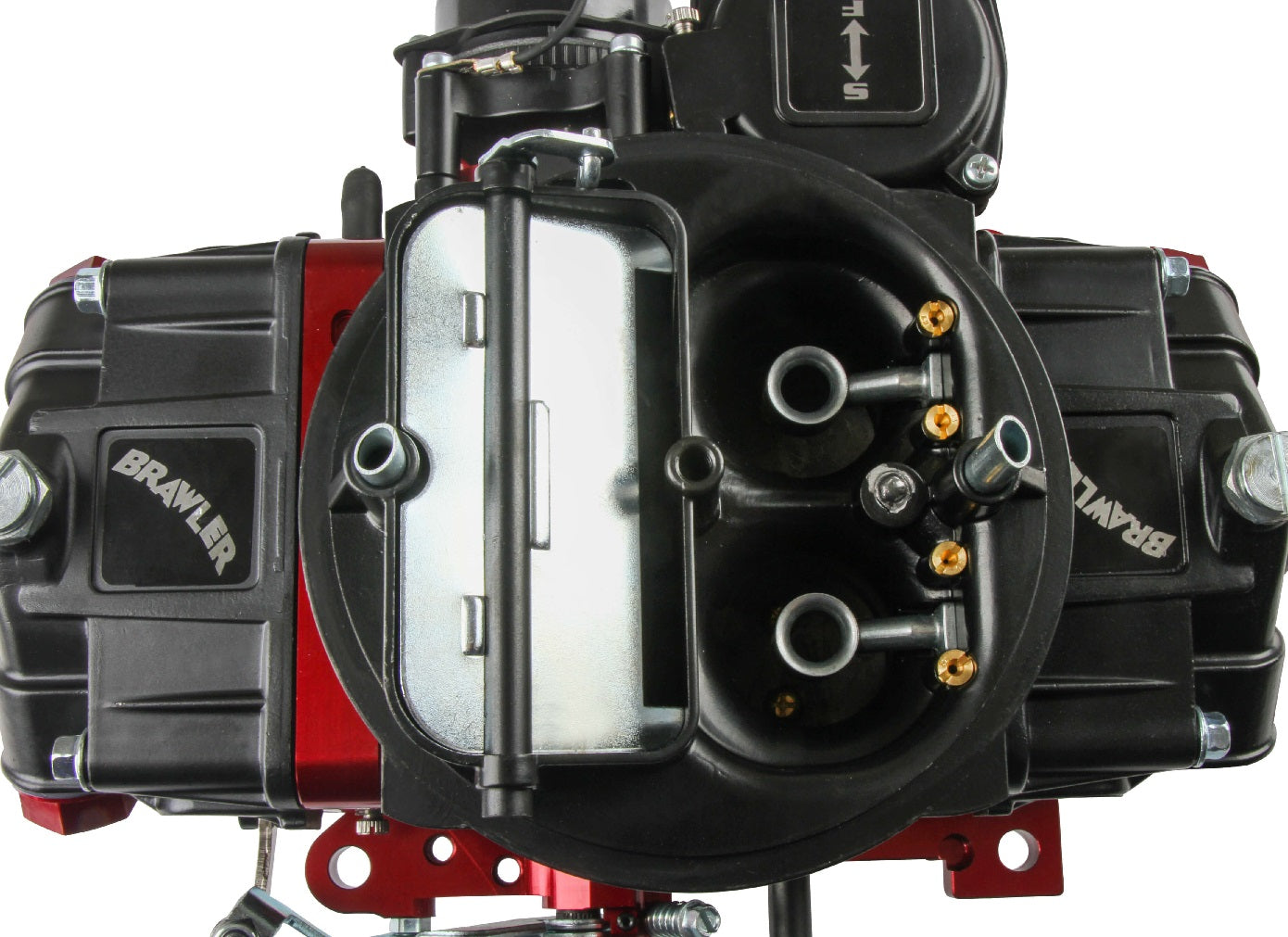

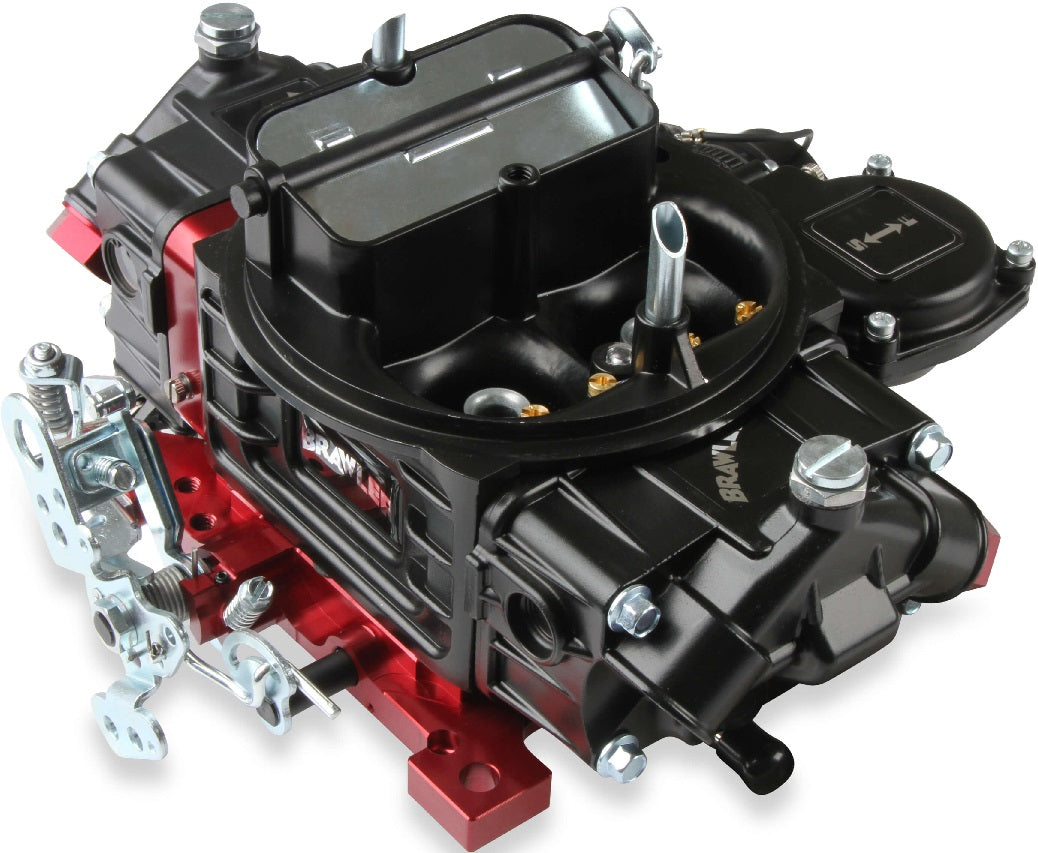

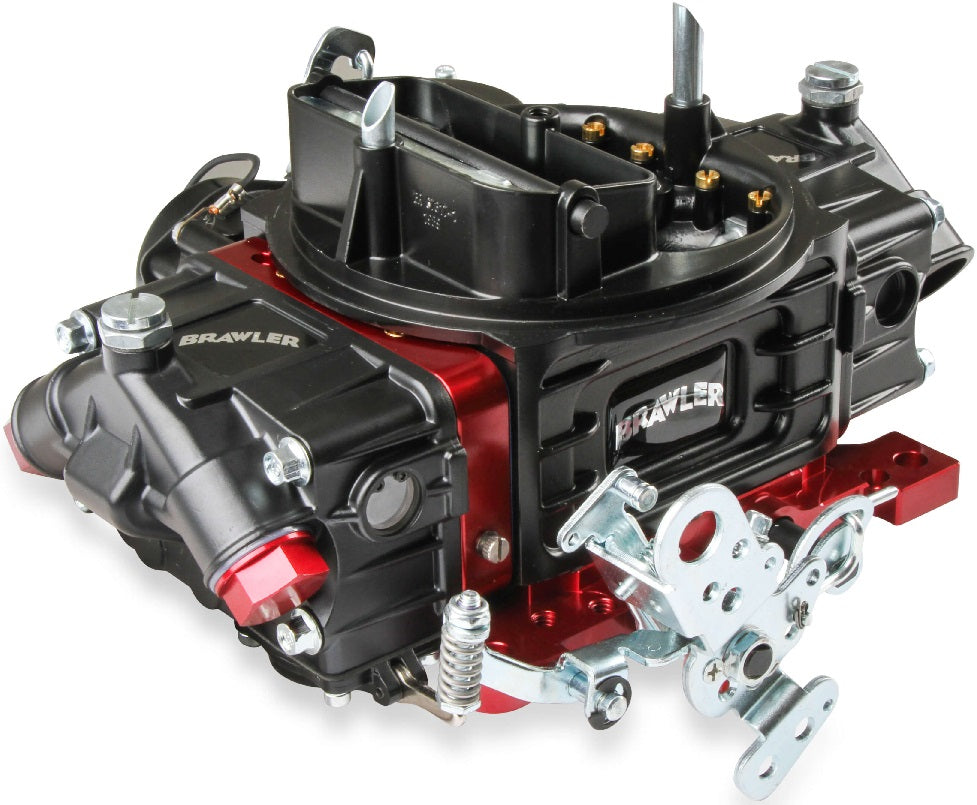

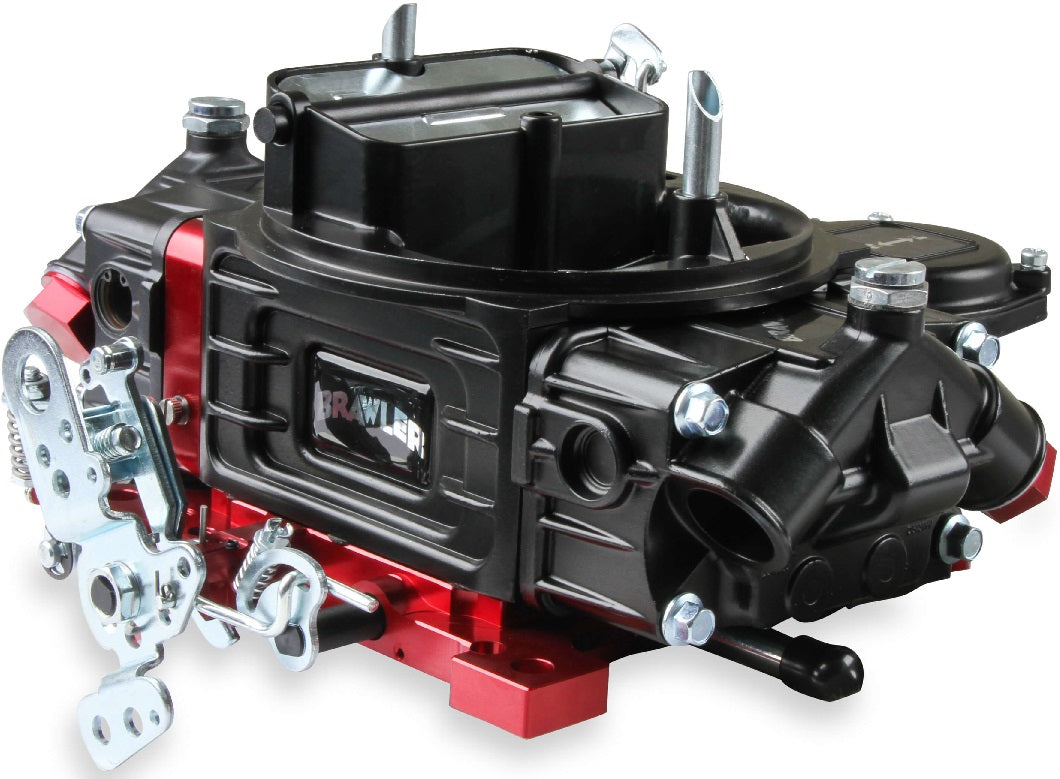

CARBURETOR,4160,750CFM,UNIV,VACUUM,ELECTRIC,BLACK,RED

BRAND NEW HOLLEY QUICK FUEL BRAWLER STREET CARBURETOR, 750 CFM, ELECTRIC CHOKE, VACUUM SECONDARIES, BLACK WITH RED BILLET, COMPATIBLE WITH 4160

BRAWLER STREET CARBURETORS WORK HARD JUST AS THEIR NAME IMPLIES- JUST RAW BARE KNUCKLED PERFORMANCE THAT YOU CAN RELY ON. DO NOT LET THE BUDGET-FRIENDLY PRICE FOOL YOU, THE BRAWLER DEVELOPMENT FOCUSED ON THE PERFORMANCE YOU WANT AND NOT THE PRETTY BOX THAT IT COMES IN.

BRAWLER STREET CARBURETORS COME WITH BLACK BILLET METERING BLOCKS WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THEY ALSO COME WITH BLACK BILLET THROTTLE BODIES FOR SUPERIOR DURABILITY AND THROTTLE SHAFT STABILITY. BRAWLER STREET MODELS OFFER ALL OF THE OPTIONS AND TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET, INCLUDING AN ELECTRIC CHOKE AND A BEAUTIFUL FINISH.

NOTE: THIS CARBURETOR HAS A SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR, LIKE THE MR. GASKET #1932.

FEATURES:

• BRAWLER STREET MODELS INCLUDE BLACK FINISH WITH RED BILLET METERING BLOCKS AND THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
• VACUUM SECONDARIES
• 750 CFM

SPECS:

• BARRELS: 4
• BOOSTER: DOWN LEG
• CARBURETOR USE: STREET
• CFM: 750
• CHOKE: ELECTRIC
• CIRCUIT: 2
• FINISH: BLACK WITH RED BILLET
• FUEL: GASOLINE
• FUEL INLET: DUAL
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 33:33
• IDLE AIR BLEED SIZE: 70:70
• PRIMARY MAIN JET:72
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 33
• PRIMARY VENTURII SIZE: 1.380"
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: VACUUM
• SECONDARY MAIN JET: 76
• SECONDARY VENTURII SIZE: 1.430"
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-11/16"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
